PR 350S

PR 350S

350W RGBAYC LED Profile Spot

The PR 350S is a versatile 350W LED Profile Spot featuring a 6-color RGBAYC engine (Red, Green, Blue, Amber, Yellow, Cyan). This advanced color mixing system delivers a wider spectrum and superior color rendering, boasting a high CRI of 85 and TLCI of 95, making it ideal for theatrical mood scenes and professional studio camera setups.

Equipped with a manual zoom range of 18° to 38° and optional Fresnel lens adapters, the PR 350S offers exceptional flexibility. It supports DMX, RDM, and Art-Net protocols, alongside a physical rotary knob for manual control. With five selectable dimming curves, flicker-free operation via adjustable PWM, and a silent, intelligent cooling system, it ensures high-quality, reliable performance in any production environment.



Available as a KIT:

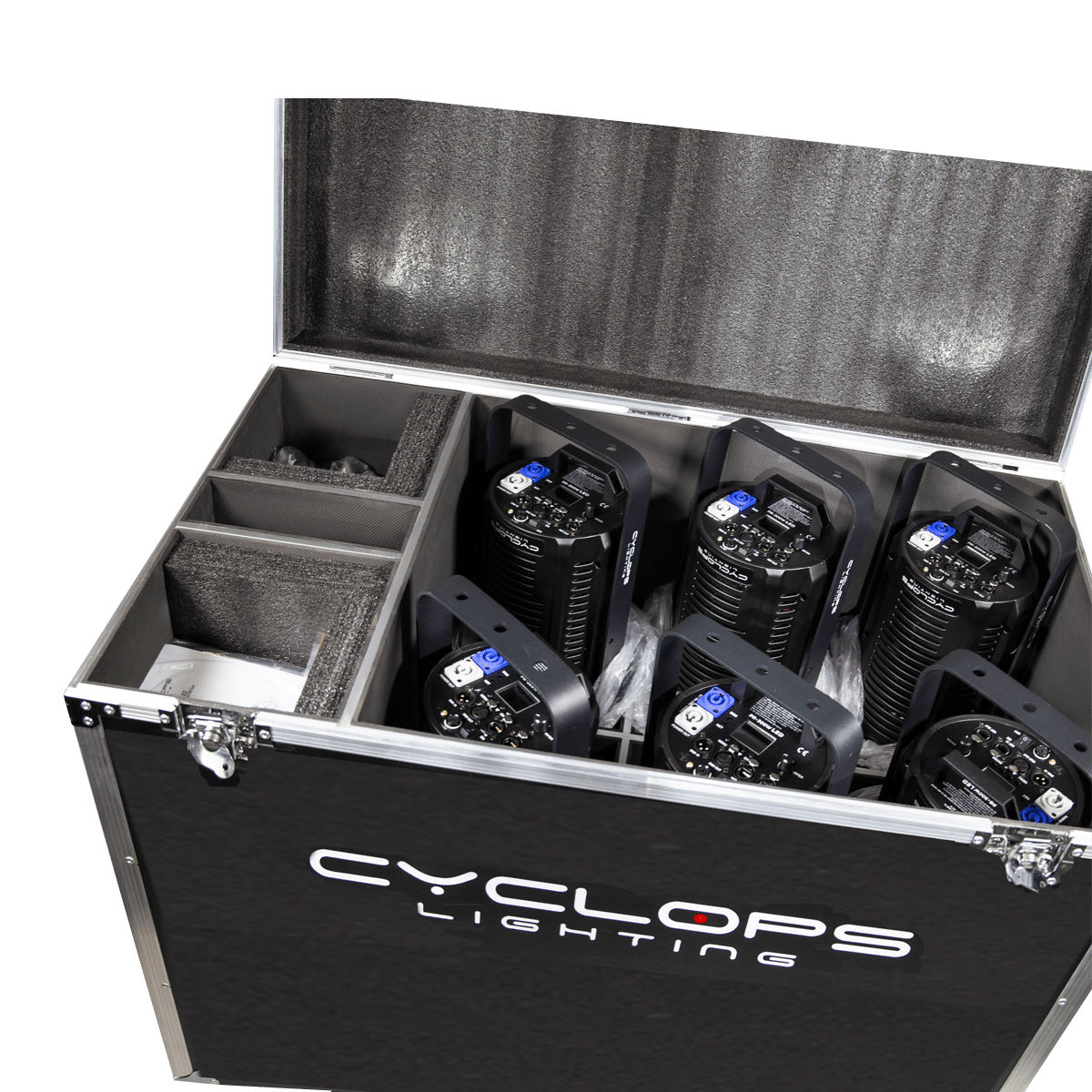

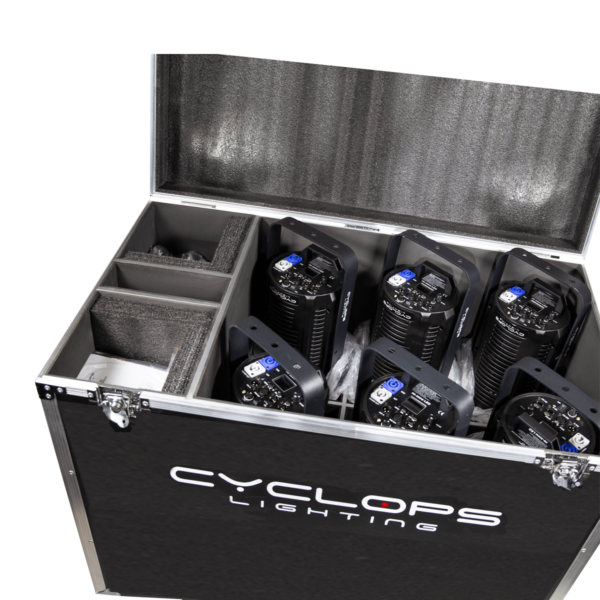

6x PR 350S, 6 x 25°–50° Fresnel lenses, 6 x barn doors, and 1 heavy-duty flight case.

Optional Accessories:

9°–18° zoom lenses

25°–50° zoom lenses

Clear
Add to quote
SKU: PR350S1838 Categories: , Series: PR

SOURCE

  • Light Source: 350 Watts RGBAYC LED
  • Light Output: 5,000 Lux @ 5m @ 18°
  • LED Life Expectancy: 50,000 Hrs
  • CRI: 85
  • TLCI: 95

OPTICAL SYSTEM

  • Zoom Type: Manual zoom
  • Zoom Range: 18° to 38° (standard)
  • Optional Lenses: 5°-10° or 9°-18° profile lenses; Fresnel lens adapter 25°-50° (PMMA)
  • Accessories: Optional Iris and Gobo holder

COLOR

  • Color Mixing: 6-color RGBAYC (Red, Green, Blue, Amber, Yellow, Cyan)
  • Color Temperature Macros: 2,700K to 8,000K

DYNAMIC EFFECTS

  • Strobe Effect: Yes, with increasing speed
  • Color Fading: Yes, via DMX (12CH mode)
  • Color Macros: Color jump and color fading with speed control

CONTROL & PROGRAMMING

  • Display: LCD display with Menu, Up, Down, and Enter buttons
  • Rotary Knob: Multi-function knob for dimmer, strobe, and menu navigation
  • Control Protocols: Rotary, DMX 512, RDM, Art-Net
  • Control Channels: 2, 8, or 12 Channels
  • Dimming Curves: 5 selectable curves (Standard, Stage, TV, Architecture, Theatre) plus Custom
  • PWM: Selectable PWM for video flicker-free operation

THERMAL MANAGEMENT

  • Temperature Control: Intelligent/Smart temperature control
  • Operating Temperature: -5°C to 45°C

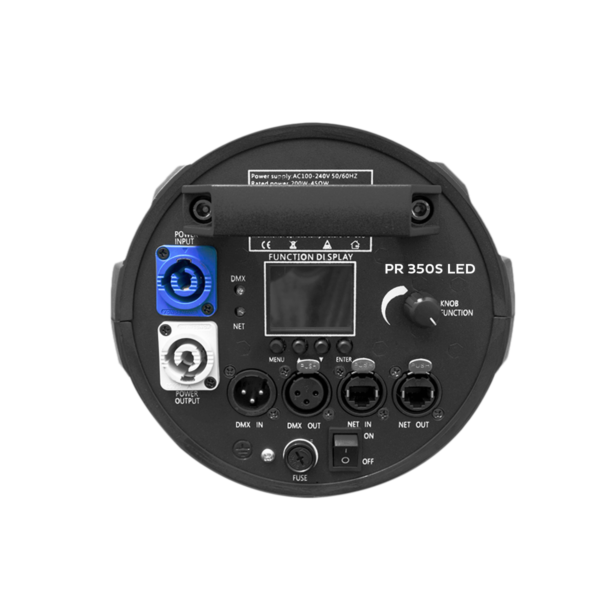

CONNECTIONS

  • Power Connections: PowerCon In/Out (Supports power linking up to 6 units)
  • DMX Connections: 3-pin XLR In/Out (male and female)
  • Network Connections: Dual RJ45 connectors for Art-Net data transmission

ELECTRICAL

  • Input Voltage: AC100-240V, 50-60Hz
  • Power Consumption: 350 Watts LED source (Studio mode silent option at 200W)

PHYSICAL

  • Dimensions: 745 x 294 x 294 mm
  • Net Weight: 8.7 Kg (including lens)
  • Housing Color: Black
  • IP Rating: IP20

Videos

Variations

1 fixture, 1 kit including 6 fixtures, 6 x 25°-50° fresnel lens, 6 x barn doors, 1 flight case
