Name: FR 40
SKU: 9630

FR 40

40W Super Compact LED Fresnel

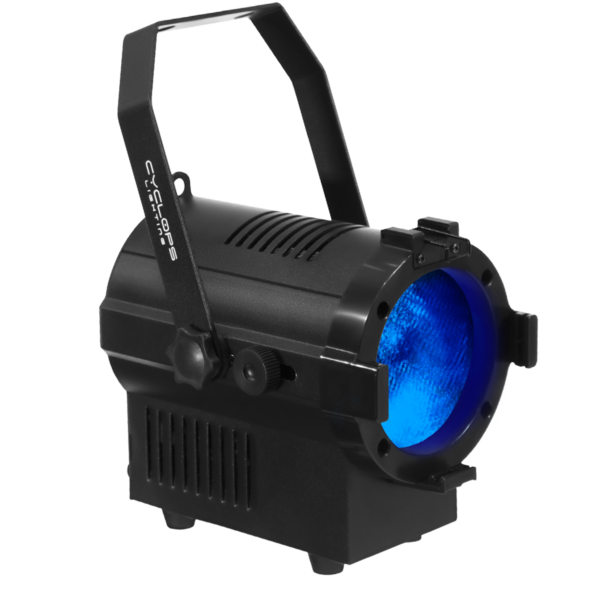

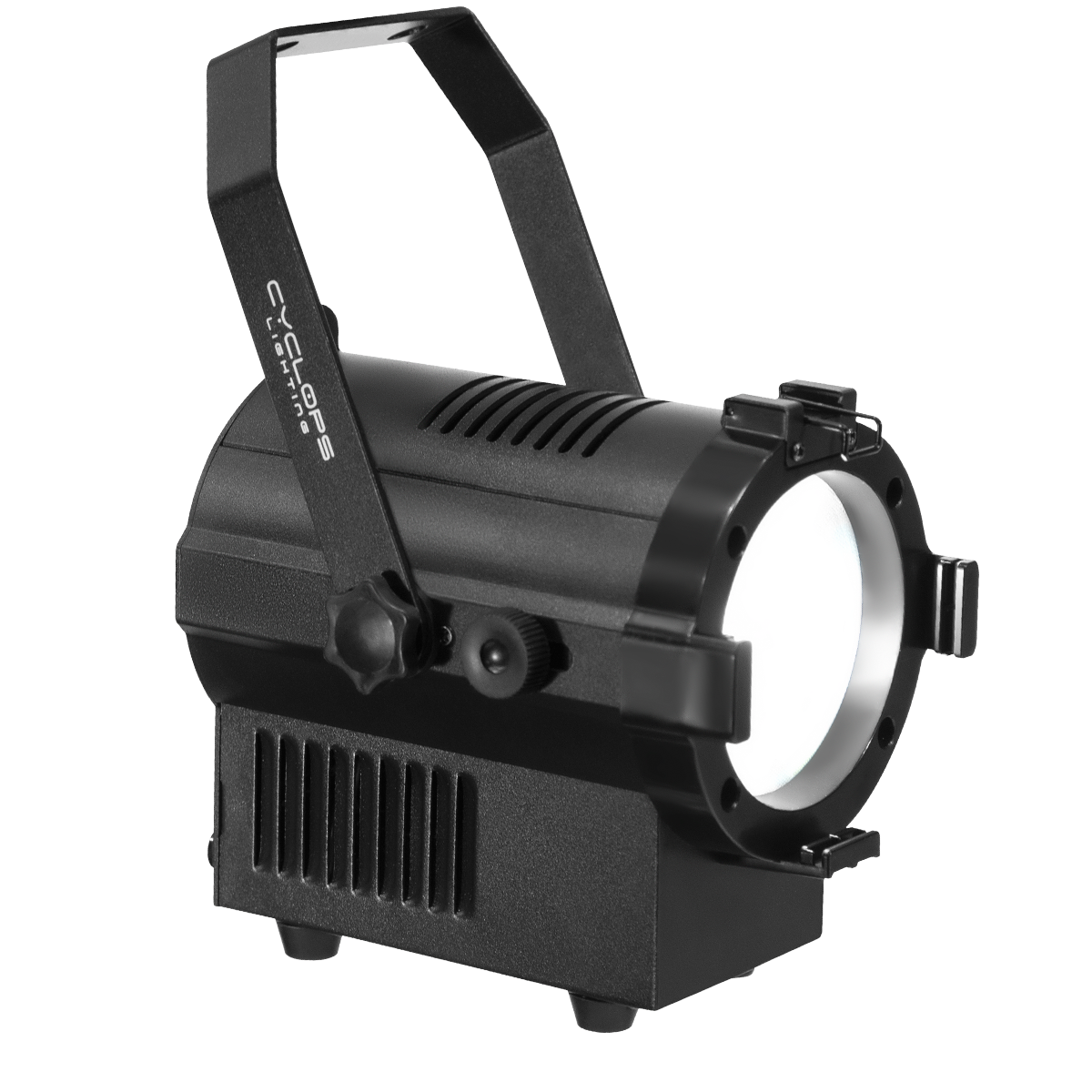

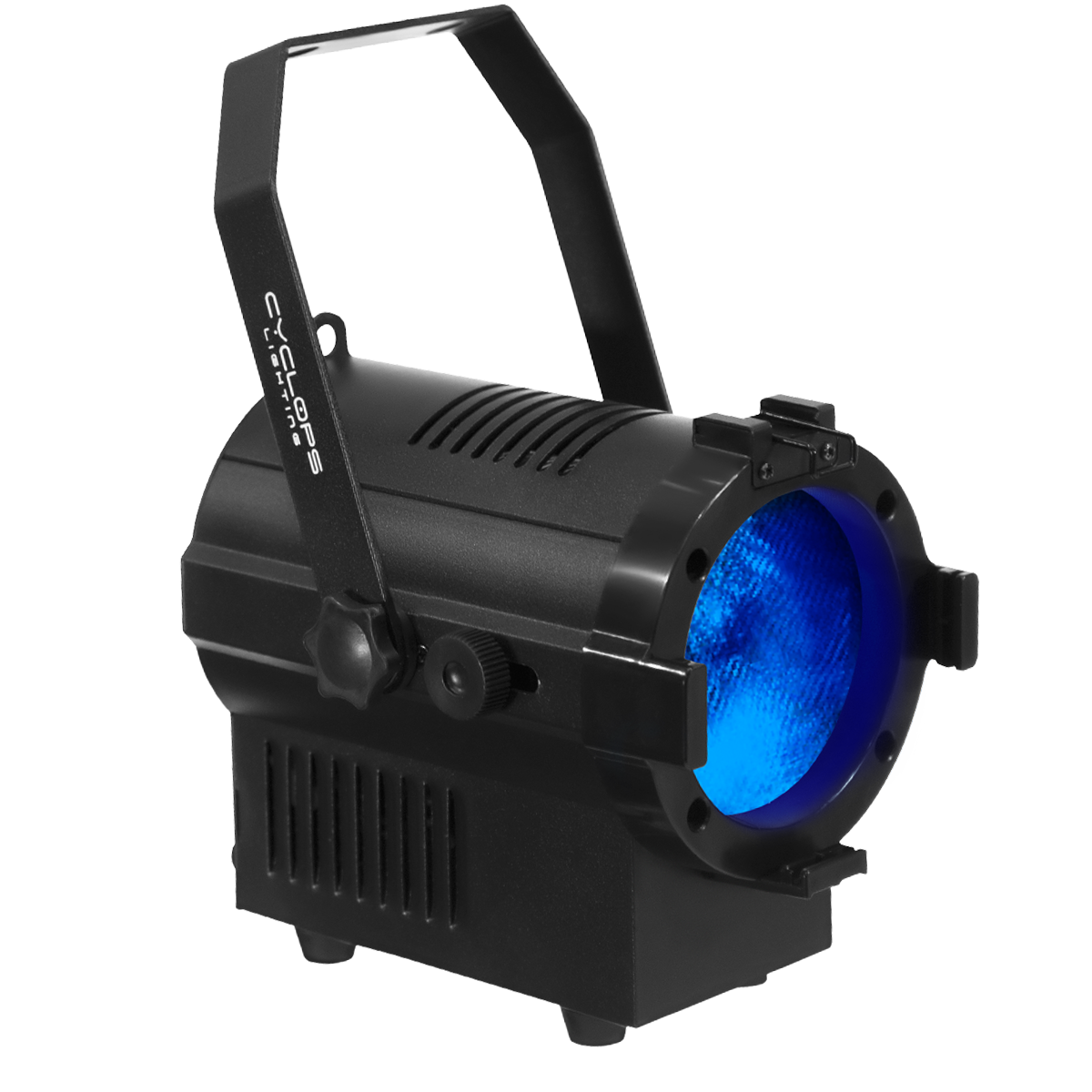

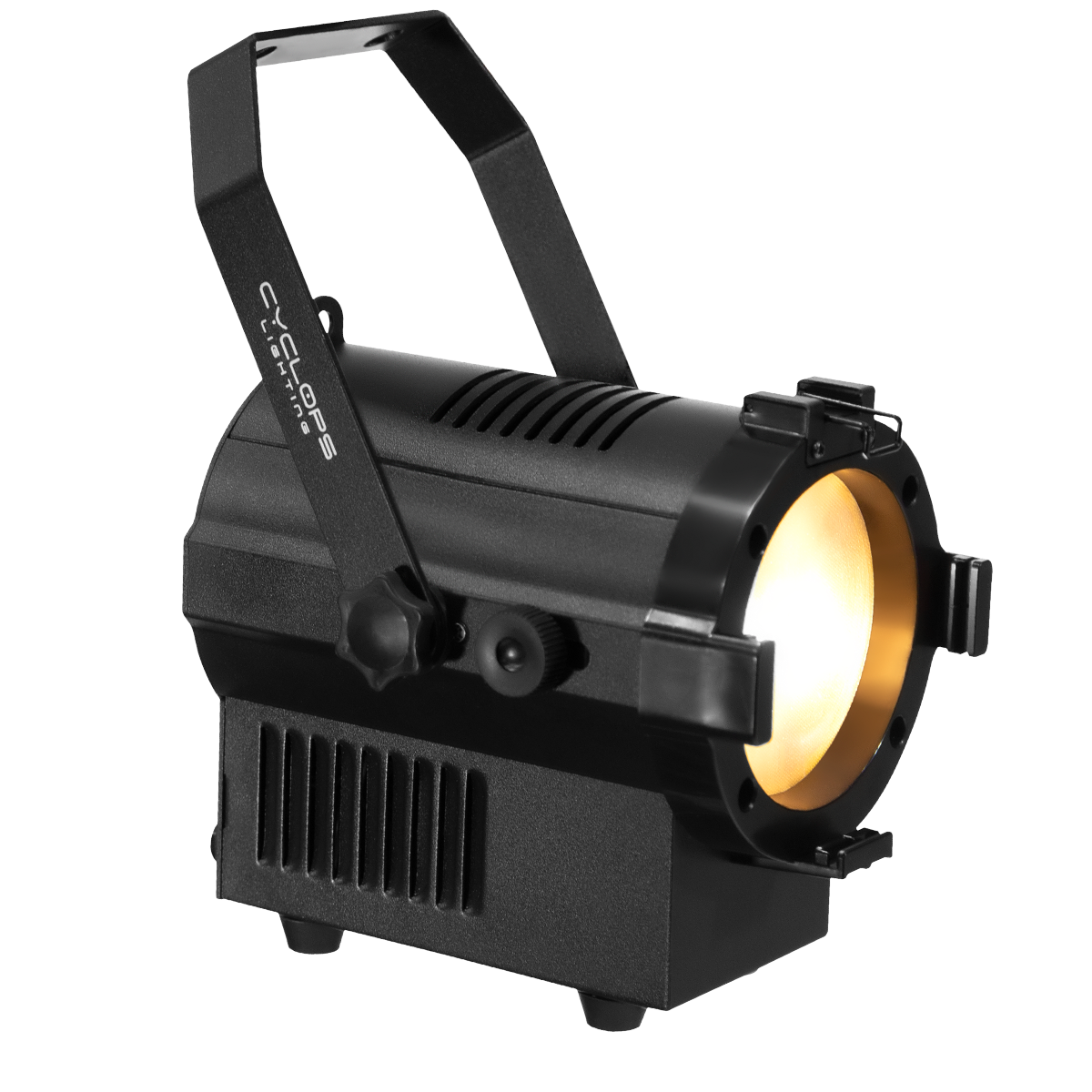

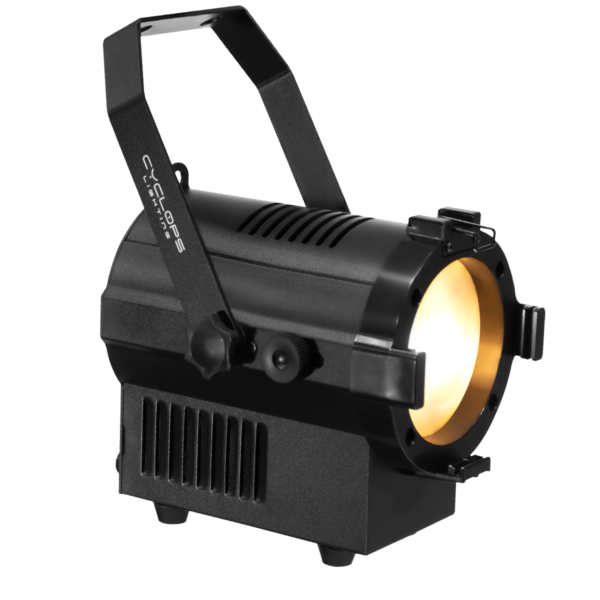

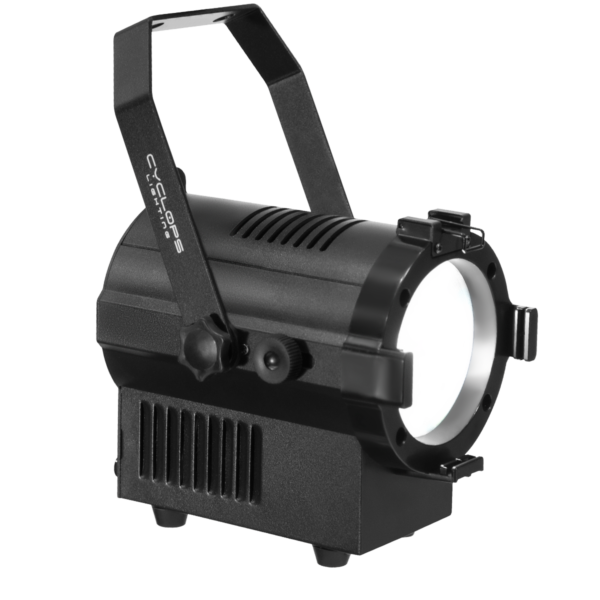

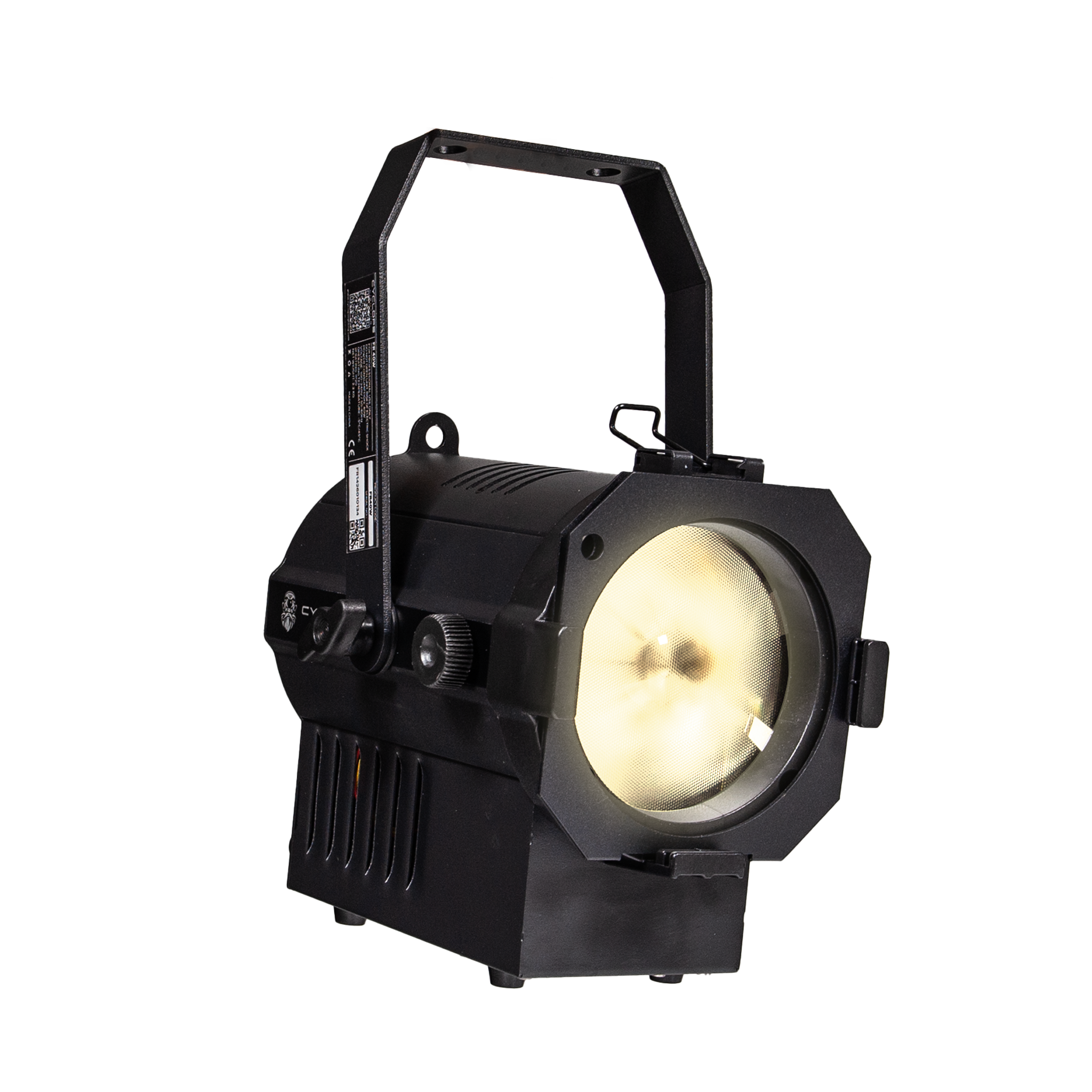

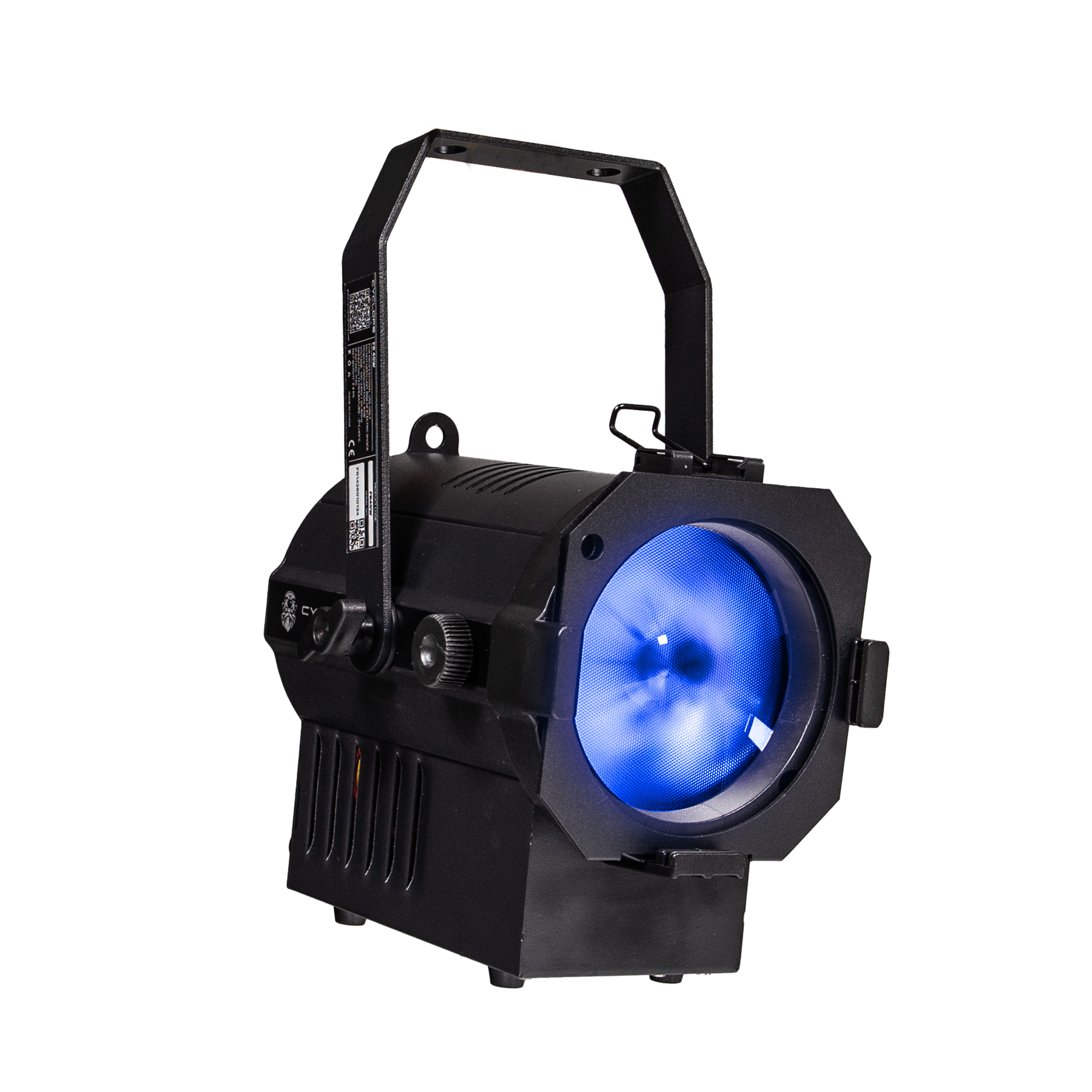

The FR 40 is a compact, high-efficiency LED Fresnel tailored for short-distance washes and rapid deployment in professional environments. To suit different creative needs, this versatile fixture is available in three distinct variants. The FR 40W utilizes a 40W tungsten LED (3200K) and a 25˚C to 90˚C zoom to produce a smooth, flat field of warm light, while the daylight-balanced FR 40C outputs a crisp 5600K source; both white-light options boast an exceptional CRI of 95 and R9 of 90 for critical color accuracy. For multi-color applications, the FR 40F features an RGBW light engine with a $25^\circ\text{ to }80^\circ$ zoom for dynamic color mixing. Regardless of the configuration, all FR 40 fixtures include integrated rotary dimming and adjustable barn doors, making them the ideal space-saving solution for studios and stages alike.

SOURCE

Light Source: 40W COB LED (FR 40C: Cool White 5600K, FR 40F: RGBW, FR 40W: Warm White 3200K)
Illuminance: 14,000 Lux @ 1m @ 25° (FR 40C & FR 40W); 5,000 Lux @ 2m @ 25° (FR 40F)
LED life expectancy: 50,000 Hrs.
CRI > 95
R9 >90

OPTICAL SYSTEM

Zoom: Manual
Zoom range: 25° – 90° (FR 40C & FR 40W); 25° – 80° (FR 40F)
Lens: PMMA polymethyl methacrylate lens

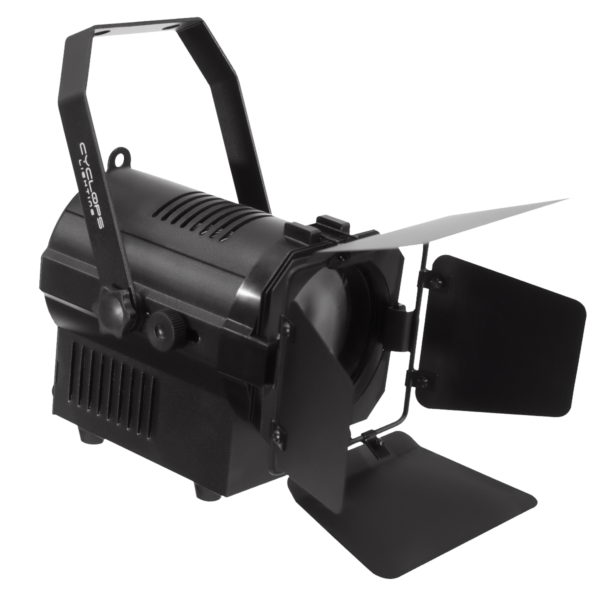

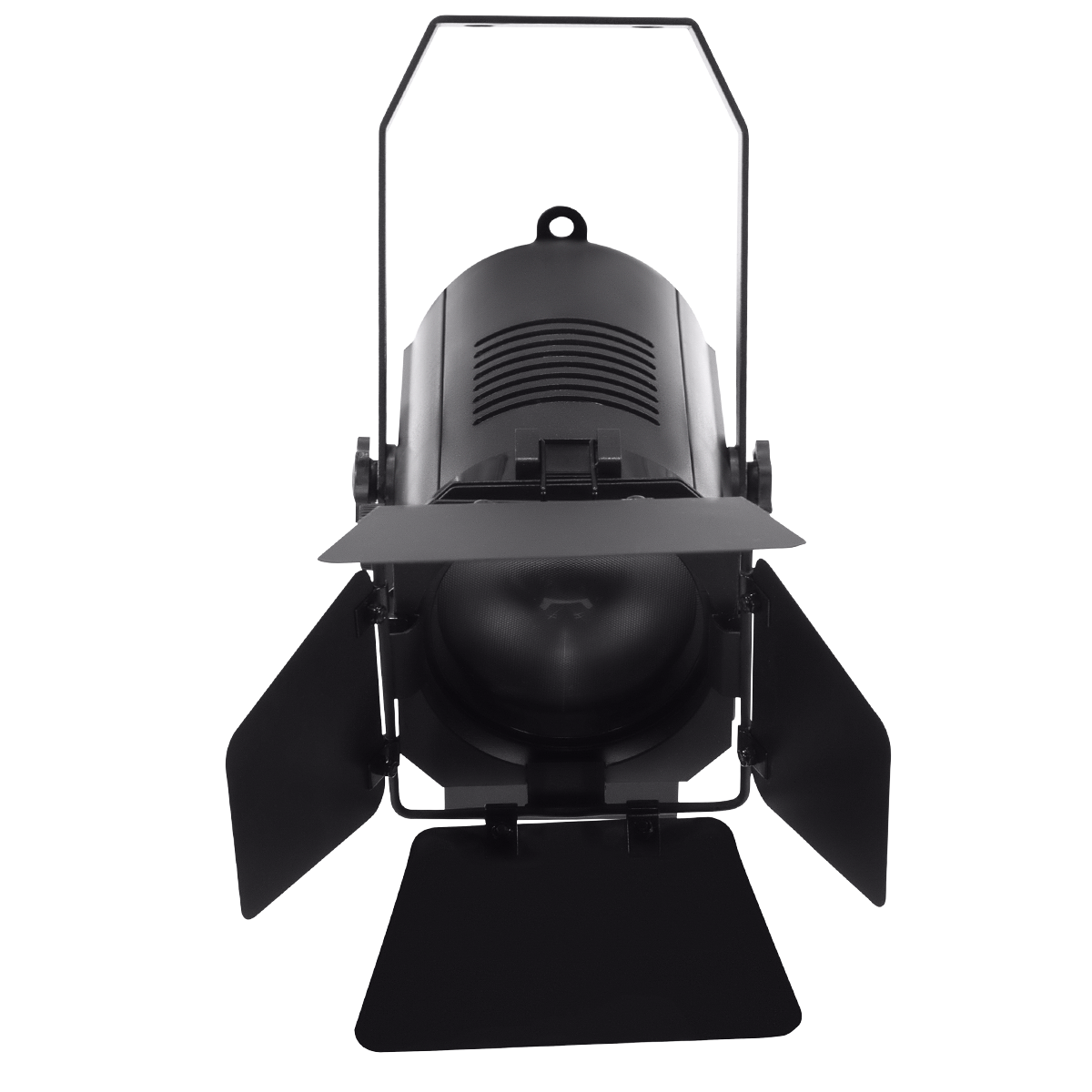

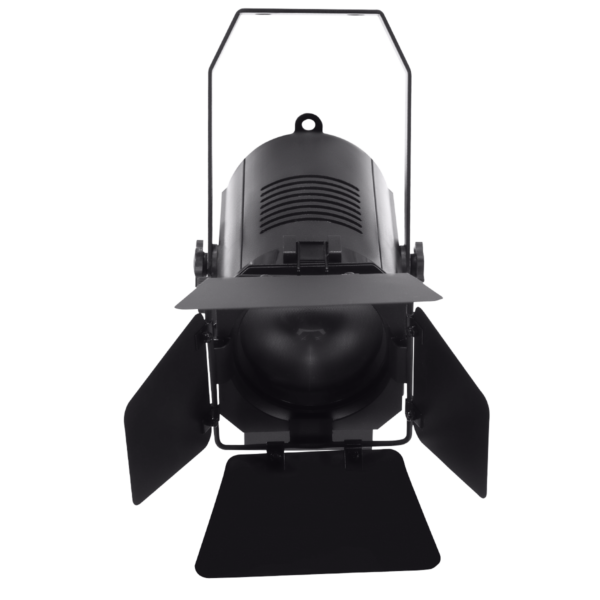

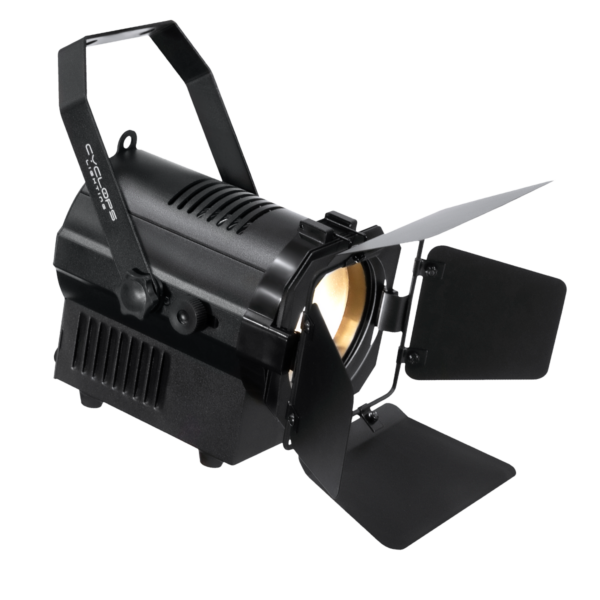

Barn doors included

COLORS

CQS (Color Quality Scale): >96

PHOTOMETRICS

TM-30 Rf (IES TM-30-15 Fidelity Index): >92
TM-30 Rg (IES TM-30-15 Gamut Index): >98
TLCI (Television Lighting Consistency Index): >98

DYNAMIC EFFECTS

Strobe effect

CONTROL & PROGRAMMING

Control Channels: 1, 2, 3, 4 CHs (FR 40C & FR 40W); ARC.1(3CH), AR1.D(4CH), ARC.2(4CH), AR2.D(5CH), AR2.S(6CH), HSV(3CH), STAG(11CH) (FR 40F)
Control Protocols: Rotary, DMX, RDM
Dimming Curves: 5 selectable dimming curves
LED Frequency: Video flicker-free
