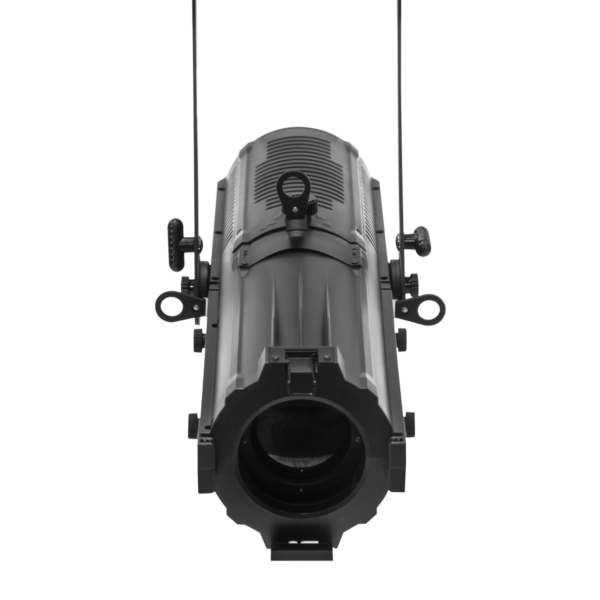

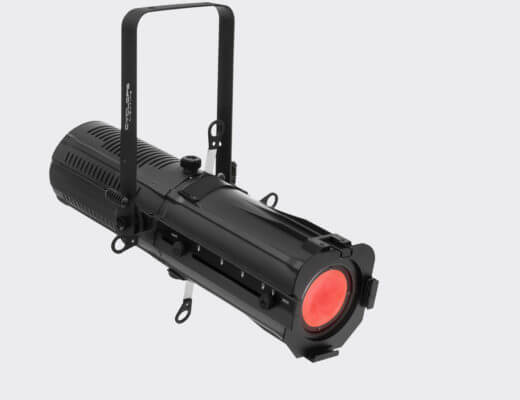

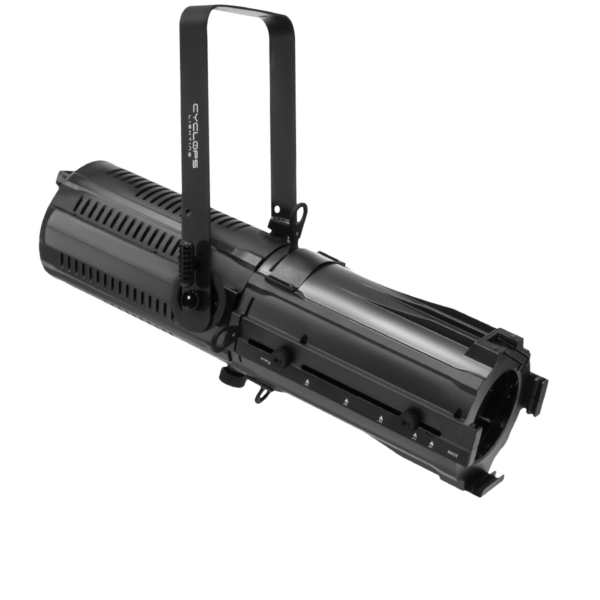

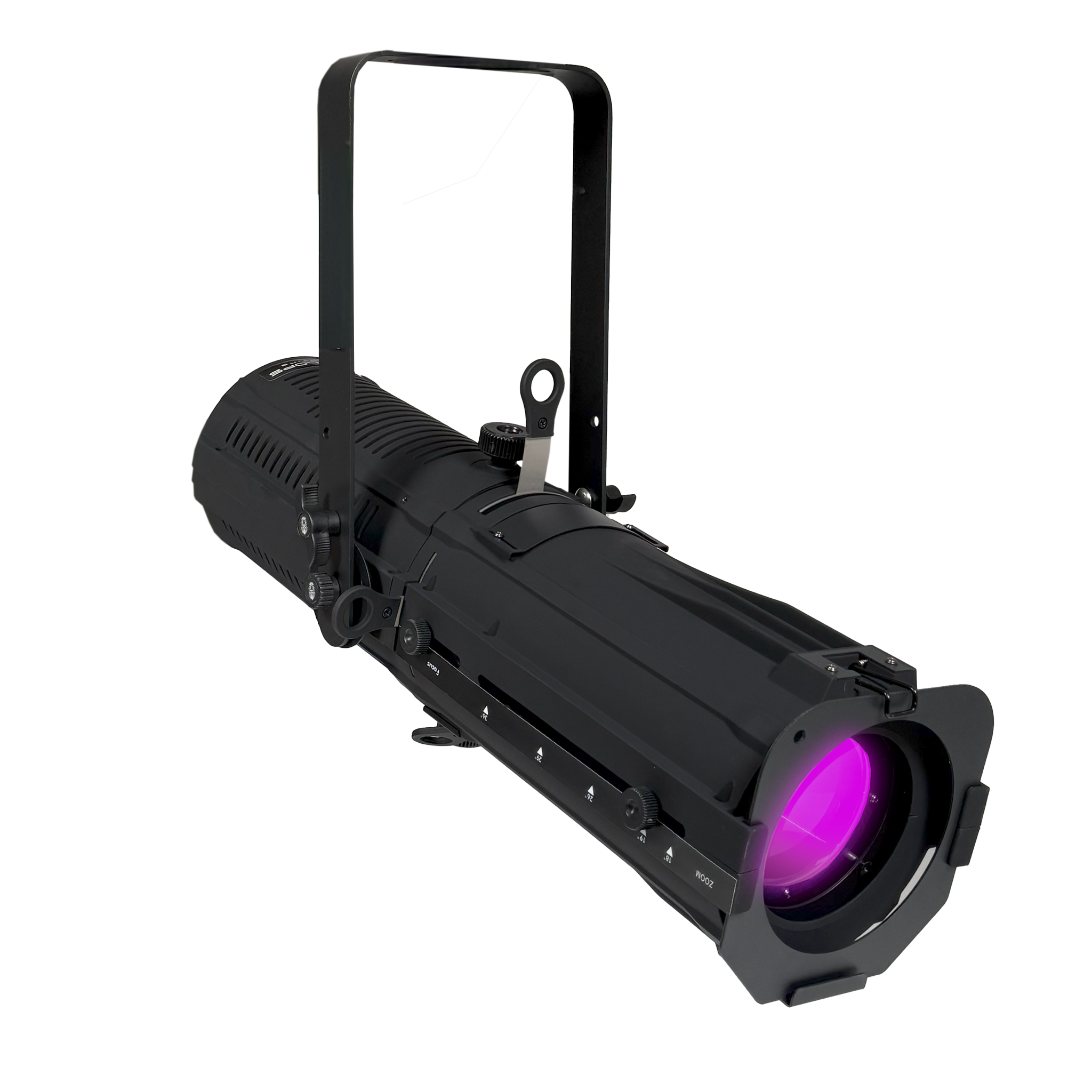

PR 400F
400 watts RGBW LED Profile Spot

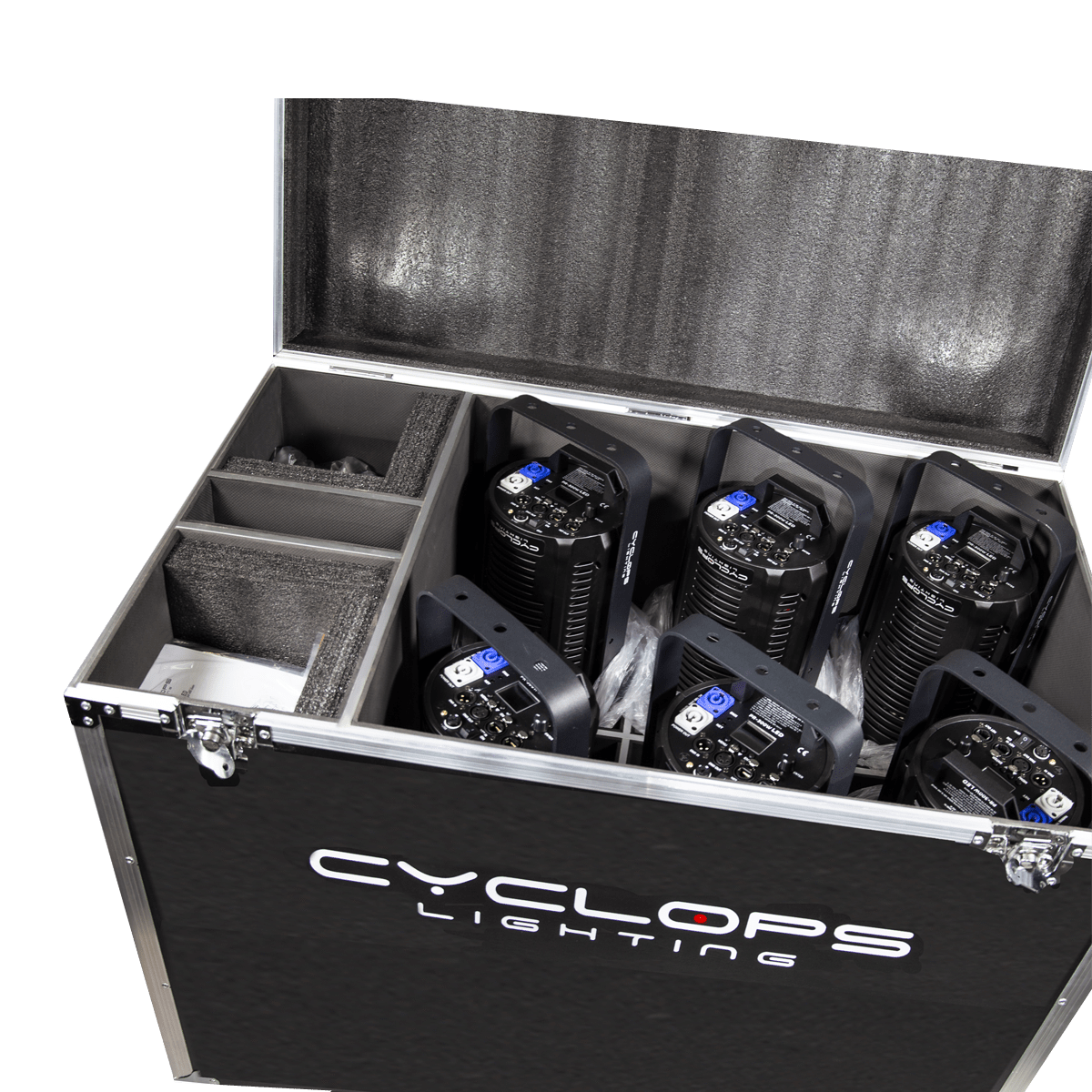

PR 400F is a 400 watts RGBW LED Profile. With a multicolor COB LED source, it can deliver a flat and even field of light with bright color output and a smooth color transition. An optional high-performance Fresnel lens with barn doors can replace the profile lens offering an even Fresnel wash from the same LED engine. This LED profile offers a high-quality output making it ideal for theatres, schools, studios and events applications. Available in a kit of 1 flight case, 6 Profiles, 6 Adapter Fresnel Lenses + Barndoors.
SOURCE
- Light source: 400 watts RGBW COB LED
- LED life expectancy: 50, 000 Hrs
OPTICAL SYSTEM
- Manual zoom
- Zoom range: 18° to 38°
- Light output: 6,500 Lux @ 2m @ 18°
- Optional Fresnel lens adapter 25°-50° (PMMA)
- Optional Iris and Gobo holder
KEY FEATURES
- 5 Dimmer curves
- Color mixing: RGBW
- White temperature macros
- Strobe
- Video flicker free with selectable PWM
- Intelligent temperature control
- Silent operation
CONTROL & PROGRAMMING
- Control protocols: Rotary, DMX, RDM, Artnet
- Control channels: 1, 4, 6, 10 CHs
ELECTRICAL
- Input voltage: AC100-240V/50-60Hz

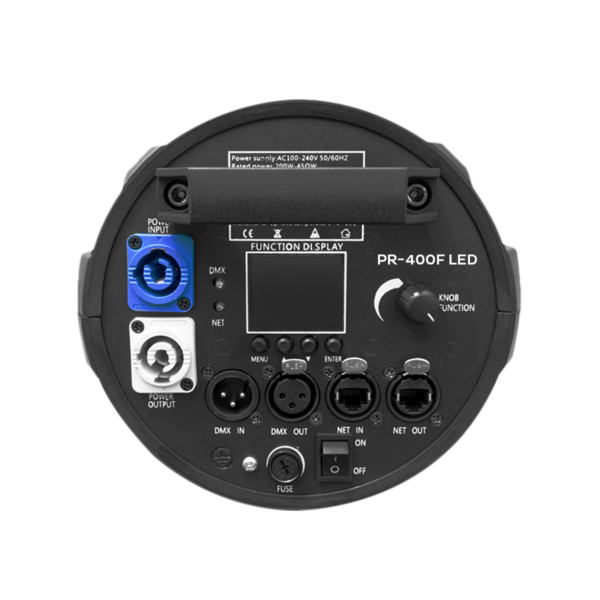

CONNECTIONS
- DMX connections: 3 pin XLR In/Out male and female
- Power connections: PowerCon In/Out
PHYSICAL
- Dimensions: 745 x 294 x 294mm
- Net weight: 8.7 Kg (including lens)
- Color: Black
- IP rating: 20
- Operating temperature: -5°C/45°C
| Number of Pieces | 1 piece, 1 kit including 6 pieces, 6 x 25°~50° fresnel lens, 1 flight case |
|---|
