Name: FR 100
SKU: 9621

FR 100

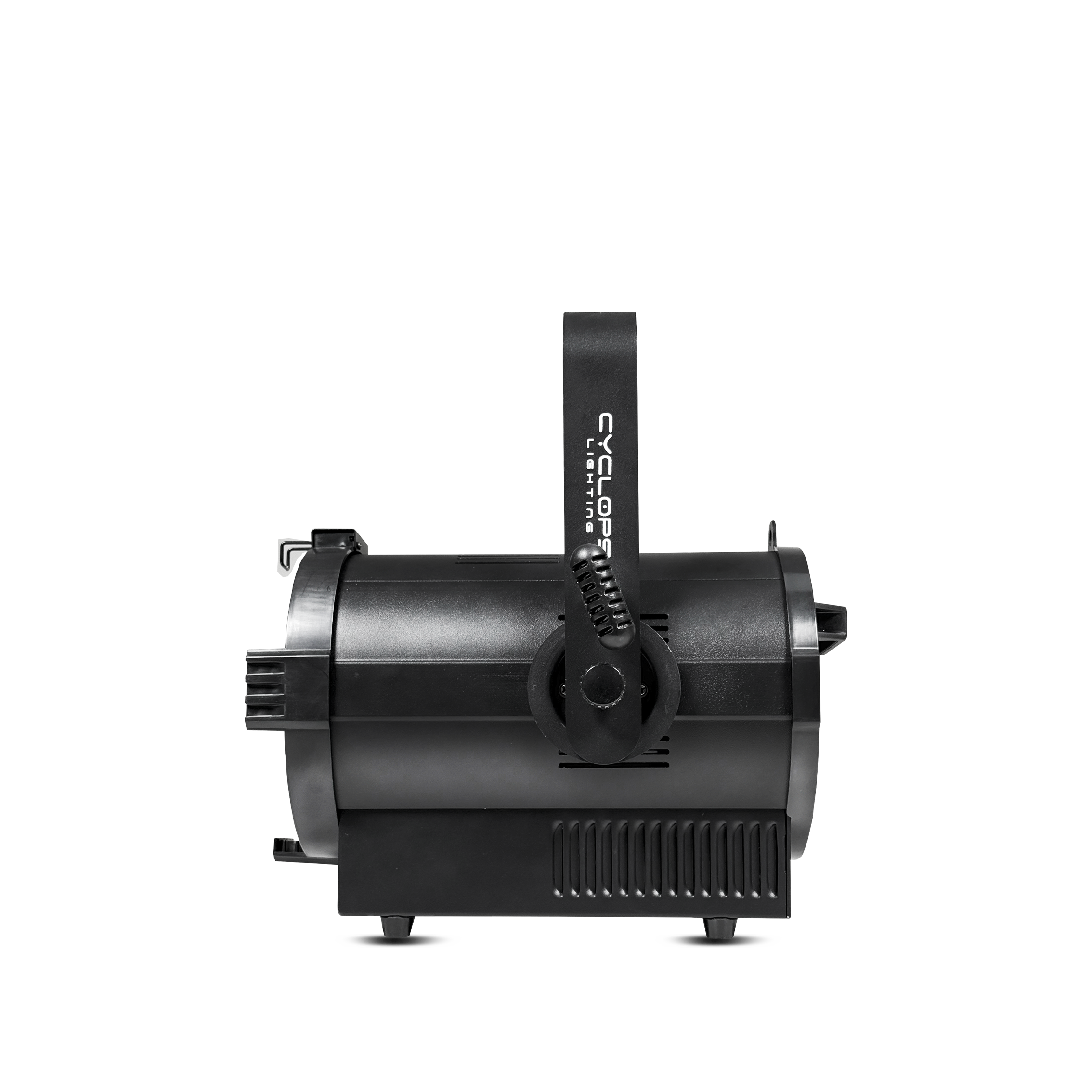

100W LED Fresnel

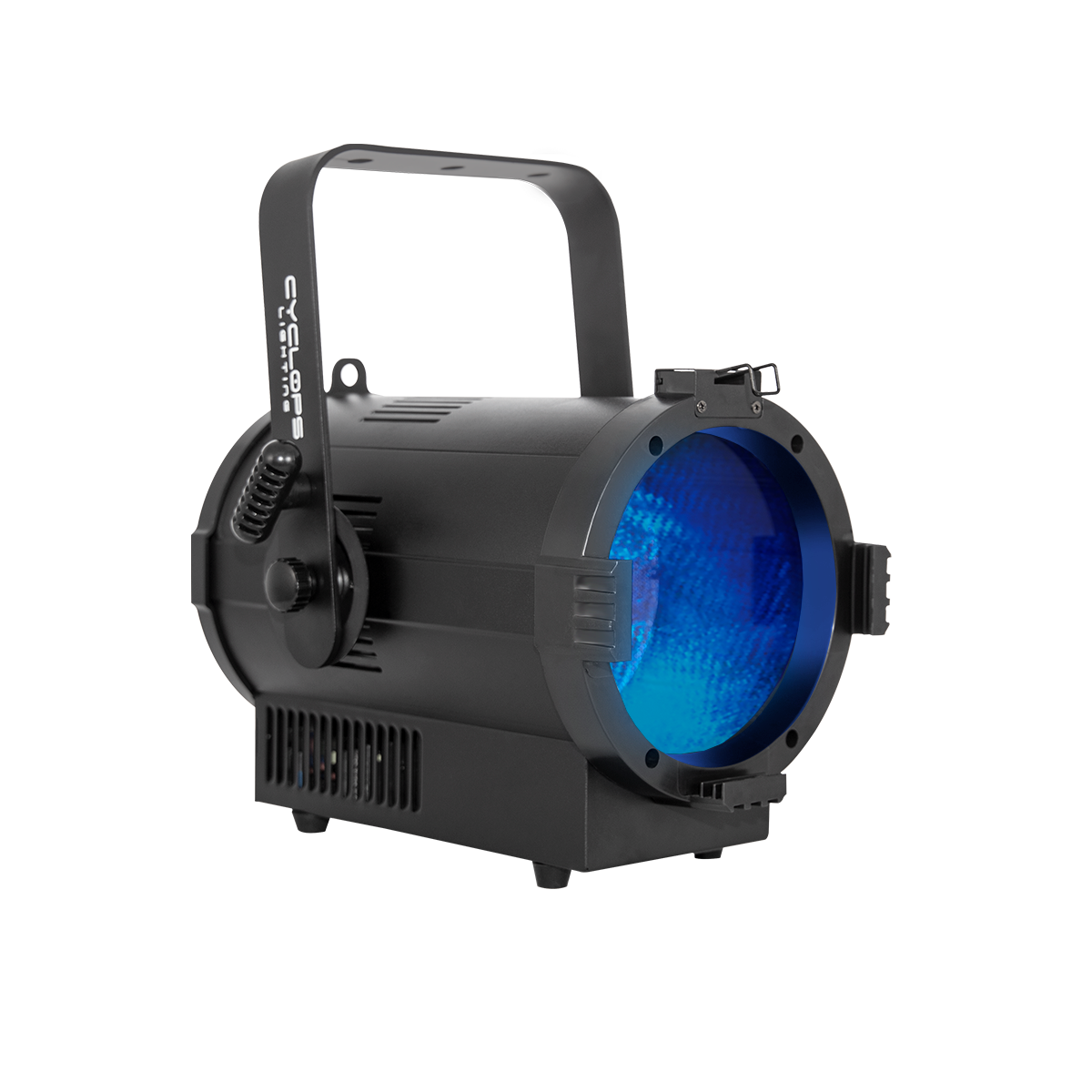

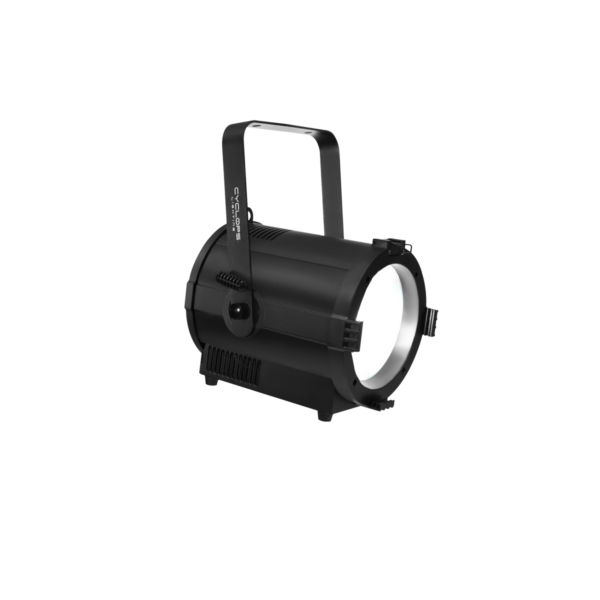

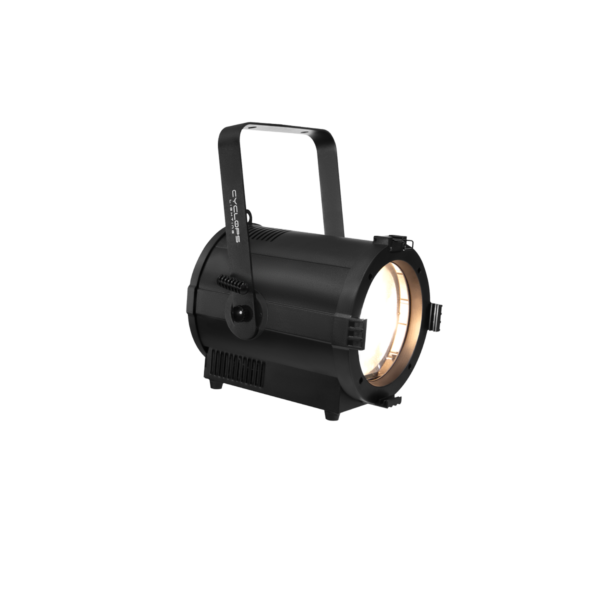

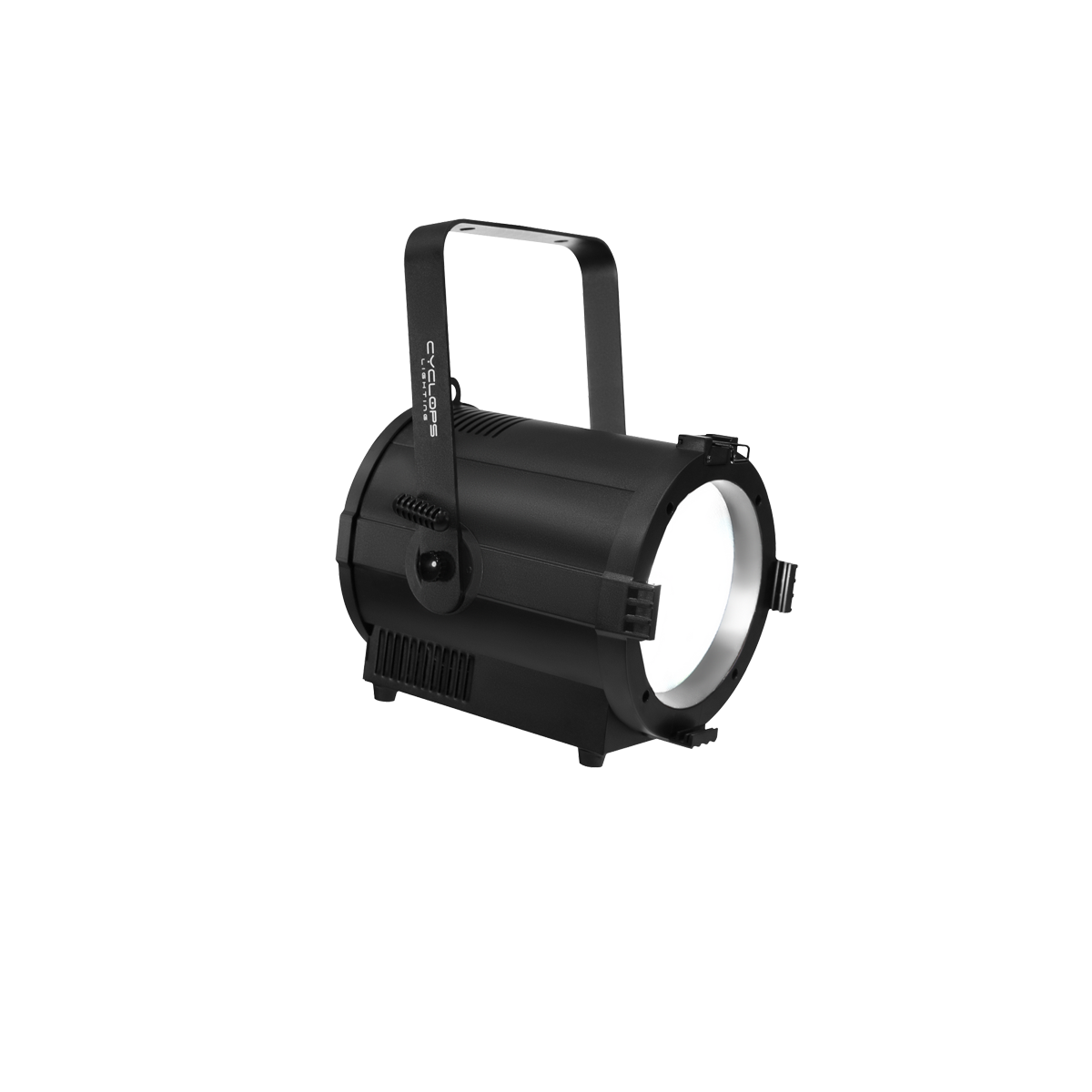

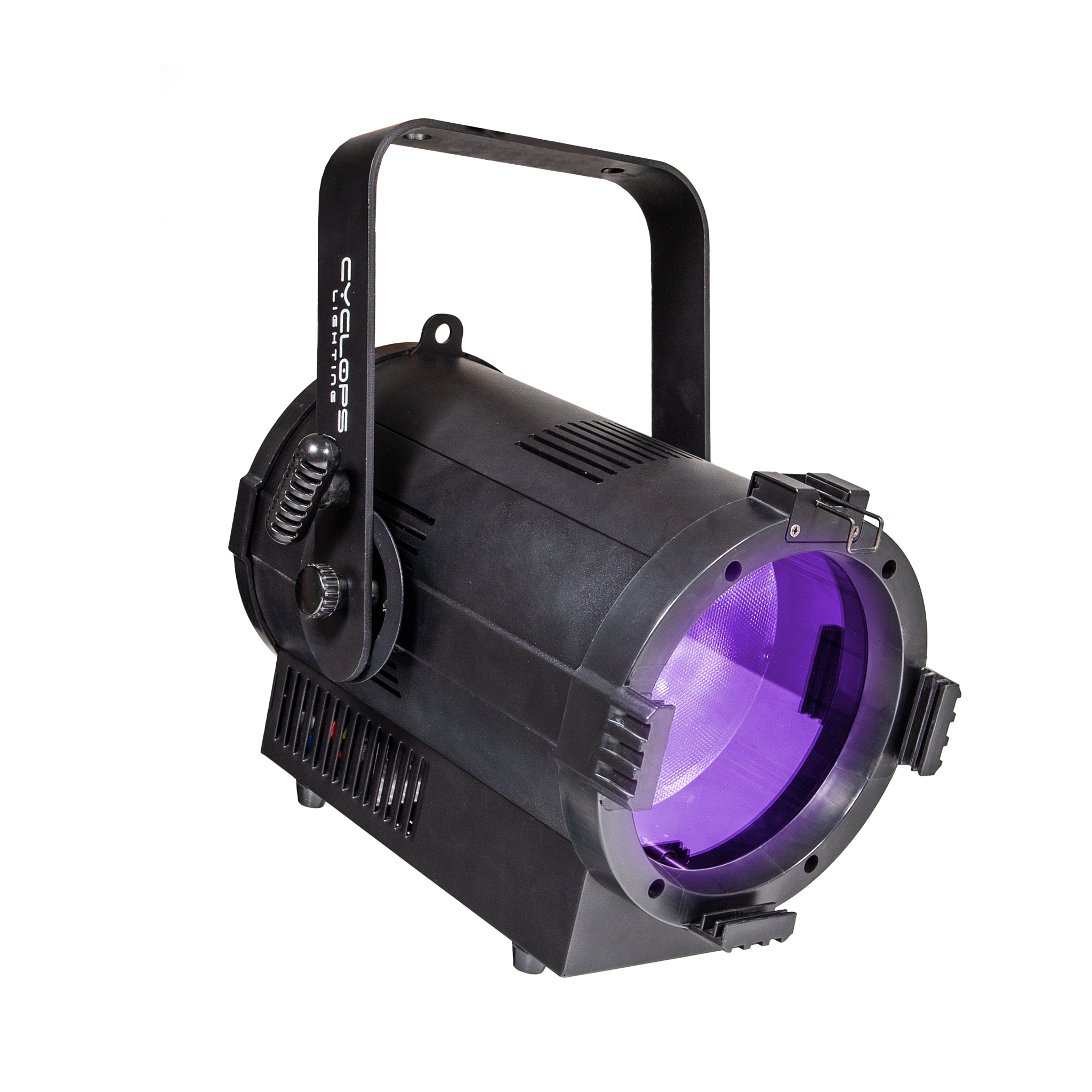

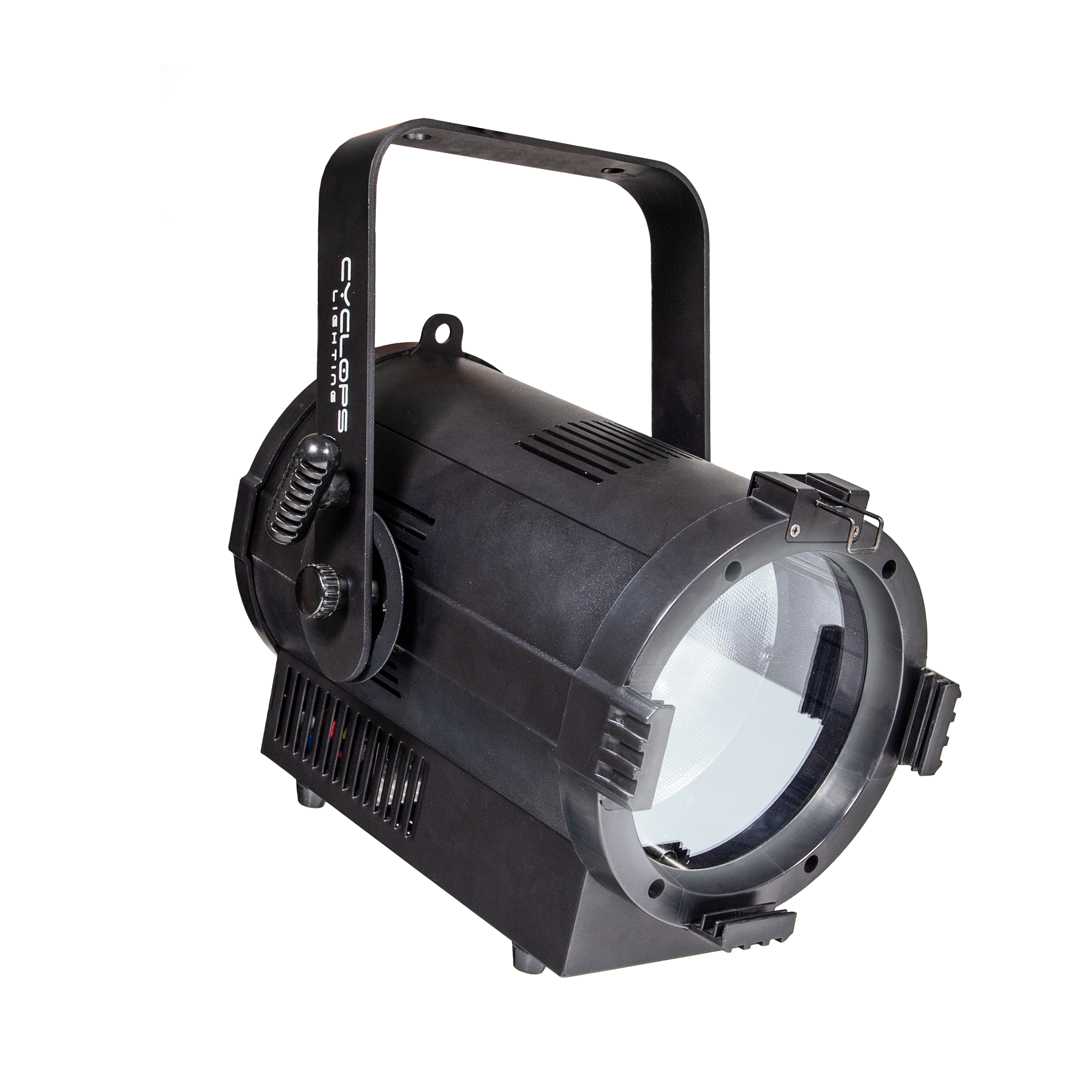

The FR 100 is a high-performance LED Fresnel fixture powered by a 100W COB LED, designed for precise, professional lighting. Available in three distinct variations, it offers the exact output needed for any production environment. The FR 100F features an RGBW LED source with a motorized zoom range of 25° to 65°, making it ideal for vibrant color washes and dynamic effects. For high-fidelity white light, the FR 100C delivers a crisp Cool White (5600K) output, while the FR 100W provides a classic Warm White (3200K) illumination. Both white variations boast an exceptional CRI of 96 for accurate, natural color reproduction in studios and theatres. All models are RDM-DMX compliant, feature motorized zoom for effortless adjustments, and include barndoors for precise beam shaping.

SOURCE

Light Source: 100W RGBW COB LED (FR100F) | Cool white COB LED (FR100C) | Warm white COB LED (FR100W)
Light Output: 4,000 Lux @ 2m (RGBW COB LED) and @ 25° and 85,000 Lux @ 2m @ 25° (Warm White/Cool White)
Color Temperature: 3000K-8000K (RGBW COB LED), 5600K (Cool White) and 3200K (Warm White)
LED Life Expectancy: 50,000 Hr.

OPTICAL SYSTEM

Electronic zoom
Zoom Range: 25° to 65°

KEY FEATURES

5 Dimmer curves
Strobe
Video flicker free with selectable PWM
Silent operation
PMMA polymethyl methacrylate lens

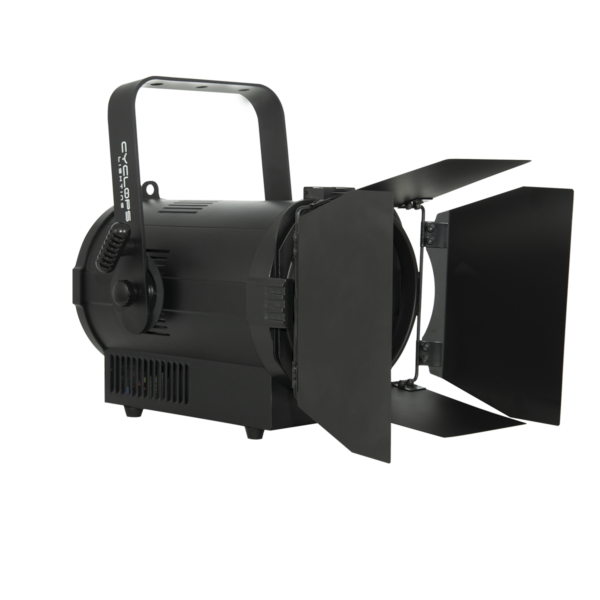

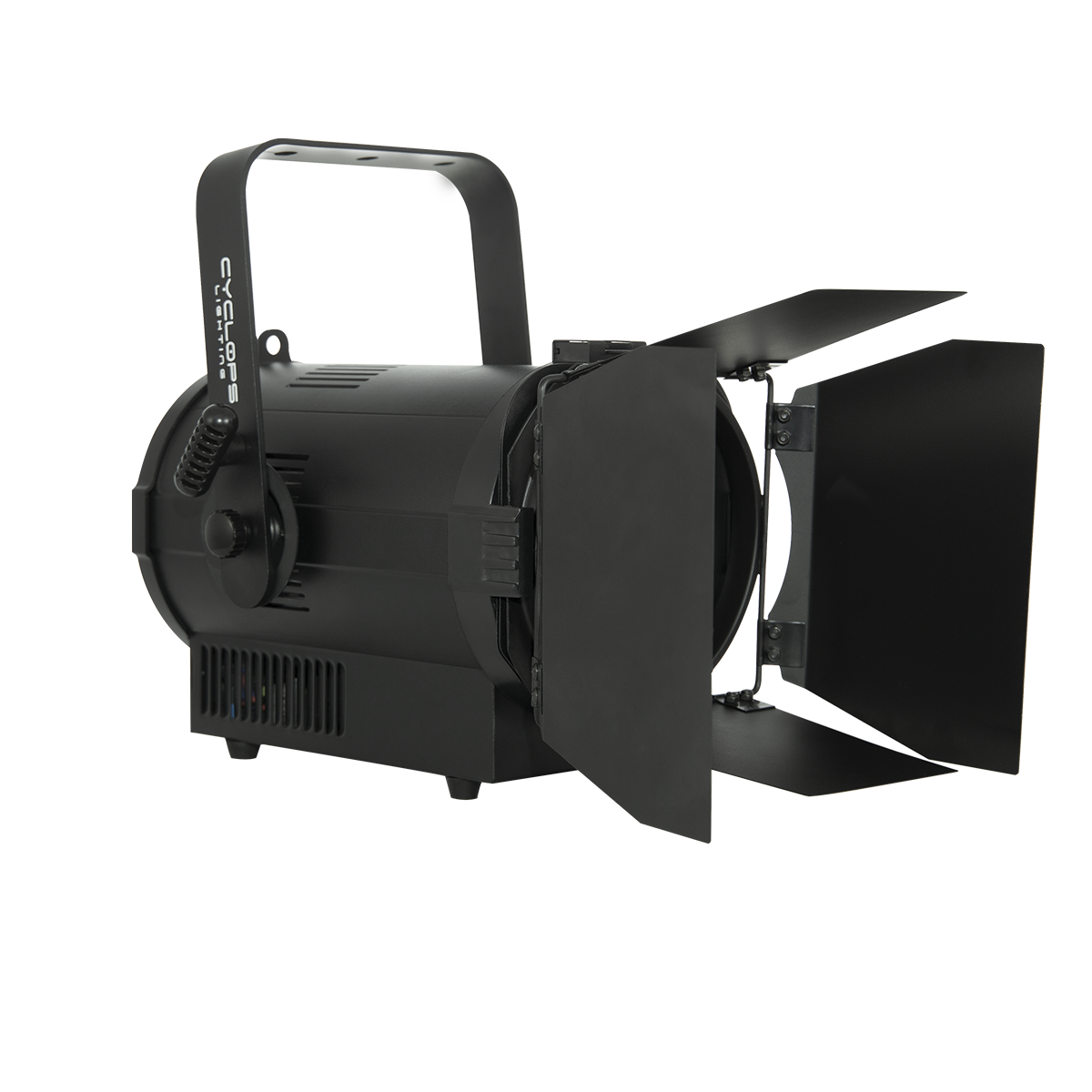

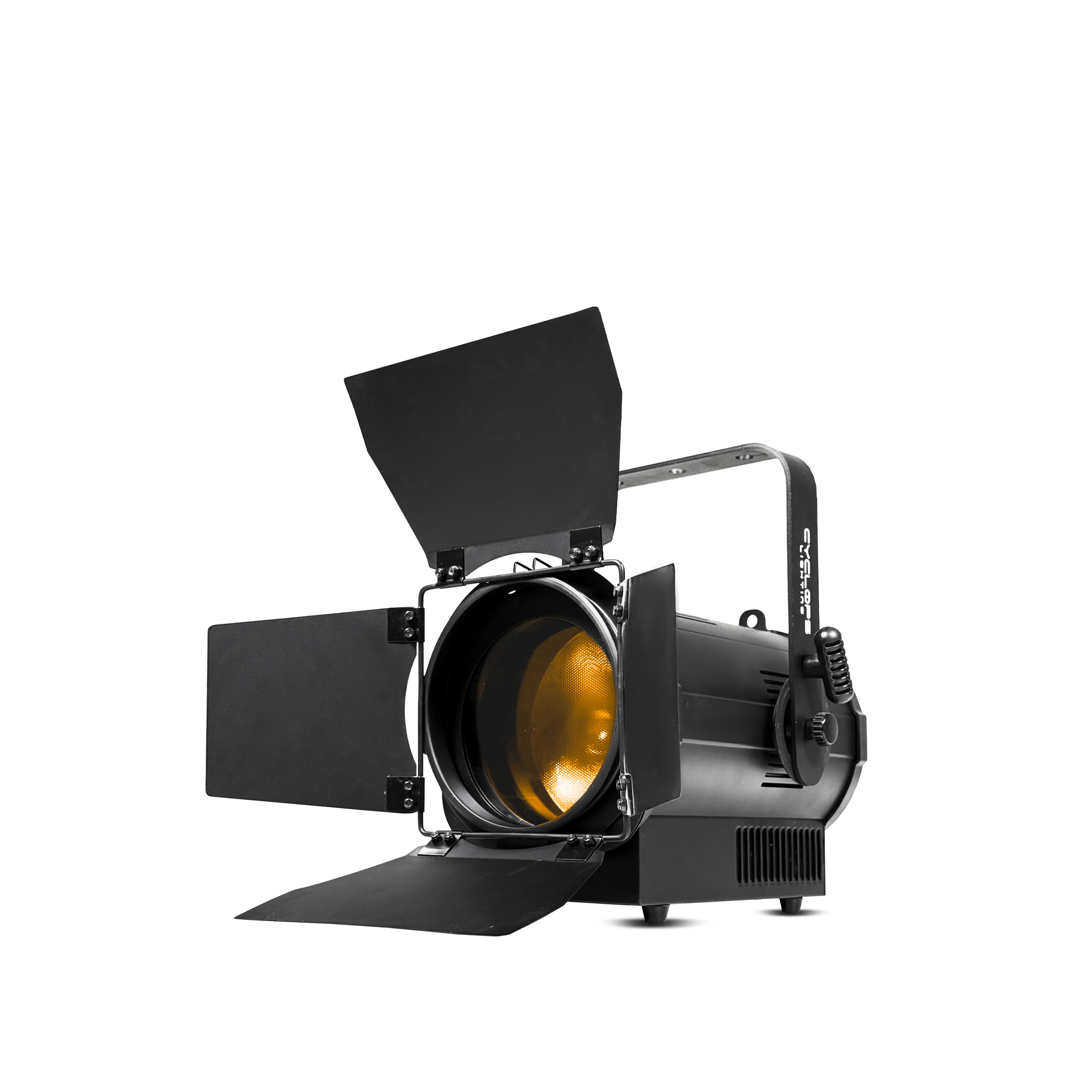

Barn doors included

CONTROL & PROGRAMMING

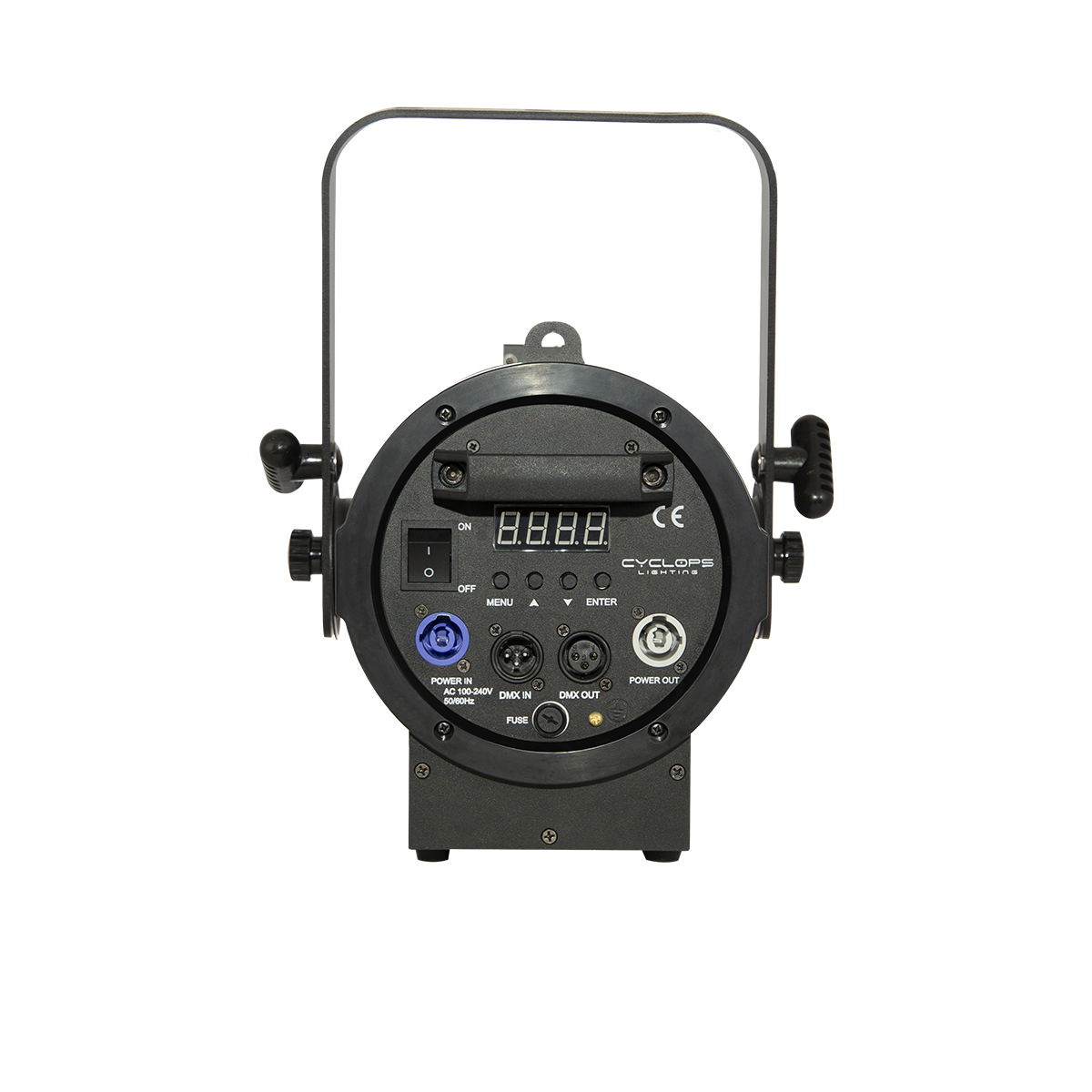

Control protocols: DMX, RDM
Control channels: FR 100C, FR 100W: 2, 3, 4, 5 CHs | FR 100F: ARC.1(3CH), AR1.D(4CH), ARC.2(4CH), AR2.D(5CH), AR2.S(6CH), HSV(3CH), STAG(12CH)

THERMAL MANAGEMENT
