SOURCE
- Light Source: 40 watts COB LED (Cool White or Warm White)
- Illuminance: 3,000 Lux @ 2 m @ 10°
- LED Life Expectancy: 50,000 Hr
- Color Temperature: 5600 K (Cool White) / 3200 K (Warm White)
- CRI (Color Rendering Index): >92
- TM-30 Rf (Fidelity Index): >94
- TM-30 Rg (Gamut Index): >102
- TLCI (Television Lighting Consistency Index): >97
OPTICAL SYSTEM
- Zoom Range: 15° to 30° (Manual zoom)
FRAMING SYSTEM
- HQ optical system, clean shutter cuts beam
KEY FEATURES
- 5 Dimmer curves selectable; 16-bit dimming
- Color: Cool White / Warm White
- RDM data: Available
- Video flicker-free
- Gobo size: 20 mm
CONTROL & PROGRAMMING
- Control Channels: 1, 2, 3, or 4 channels
- Control Protocols: Rotary, DMX, RDM
- Dimming Curves: 5 selectable dimming curves
THERMAL MANAGEMENT
- Operating Temperature: -5°C to 45°C
CONNECTIONS

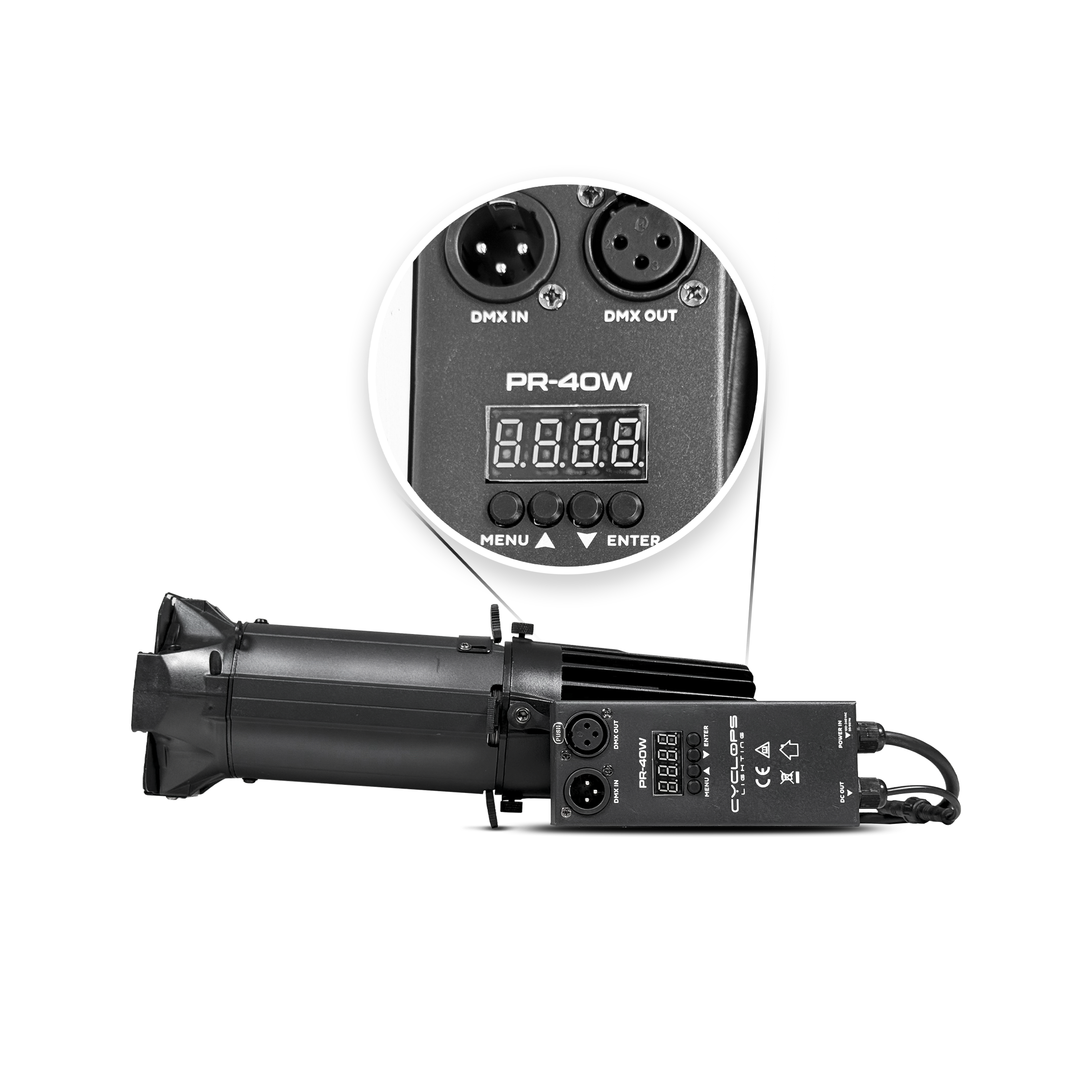

- DMX connections: 3-pin XLR In/Out (male and female)

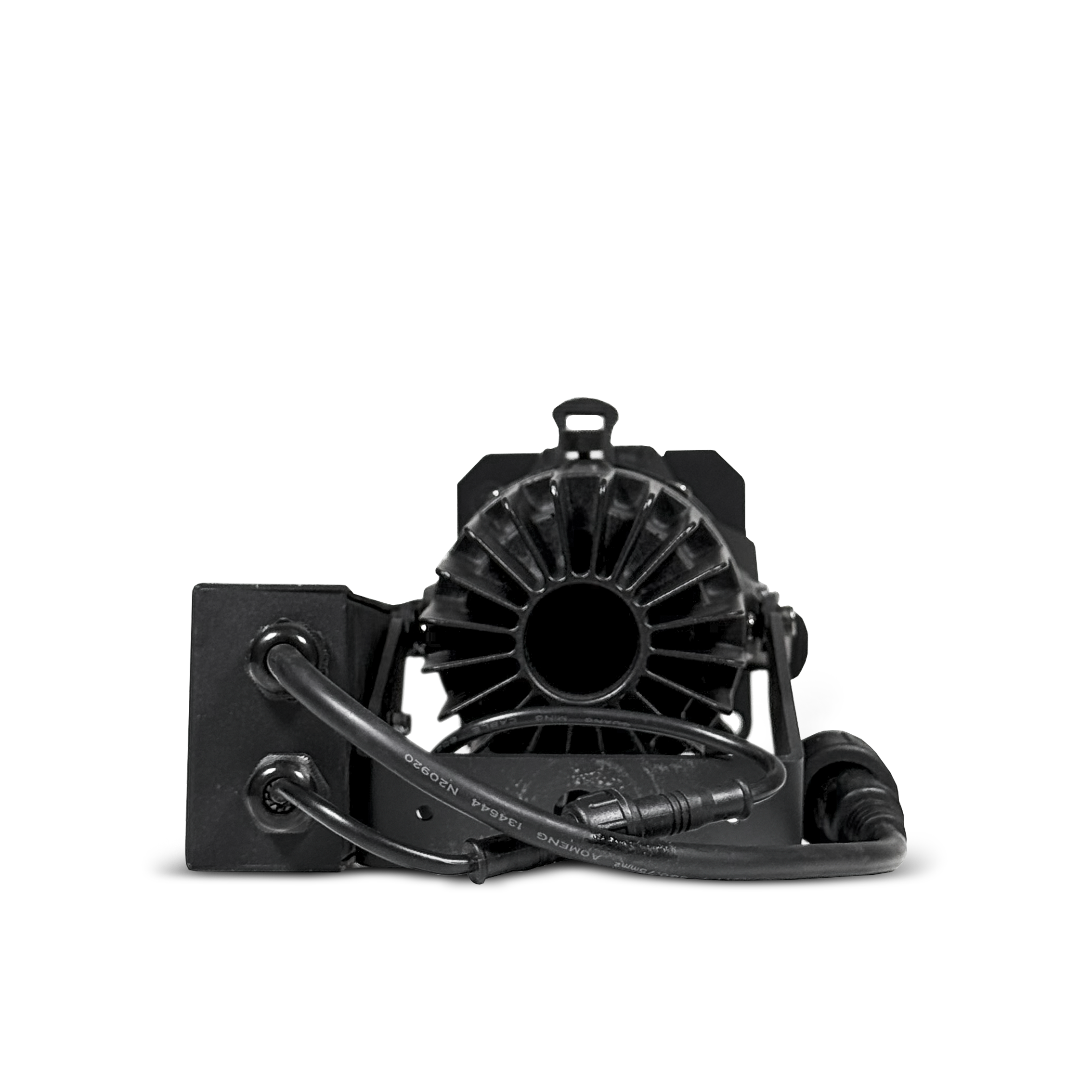

- Power connections: 3-pin power input cable
ELECTRICAL
- Input Voltage: AC 100-240 V / 50-60 Hz
PHYSICAL
- Dimensions: 402 x 180 x 230 mm
- Net Weight: 2.3 kg
- Housing: Aluminum
- Housing Color: Black
- IP Rating: IP20
