LEDE 100B

LEDE 100B

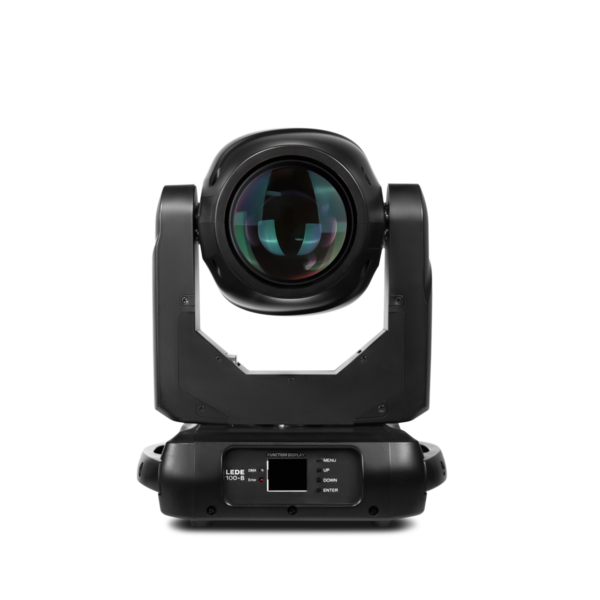

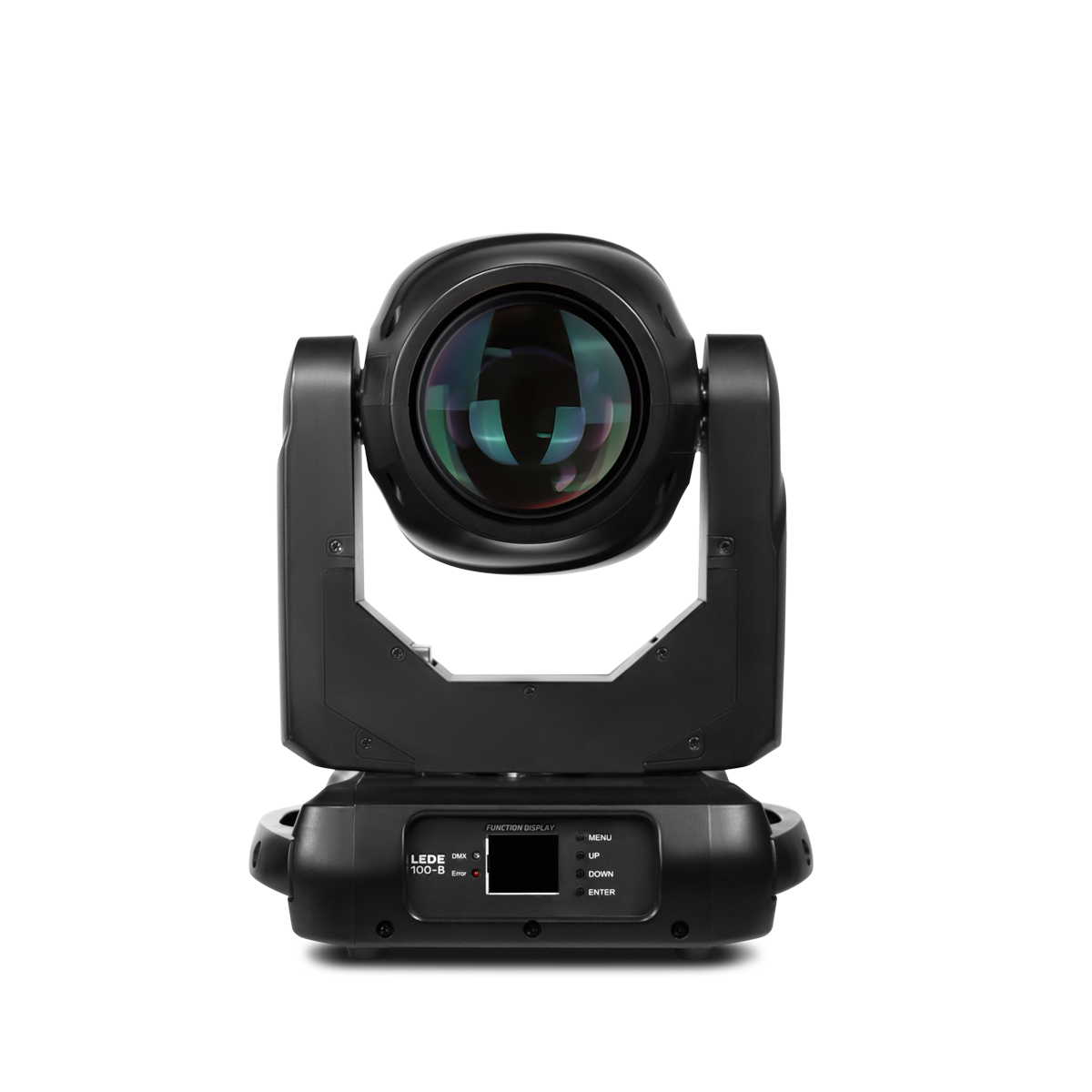

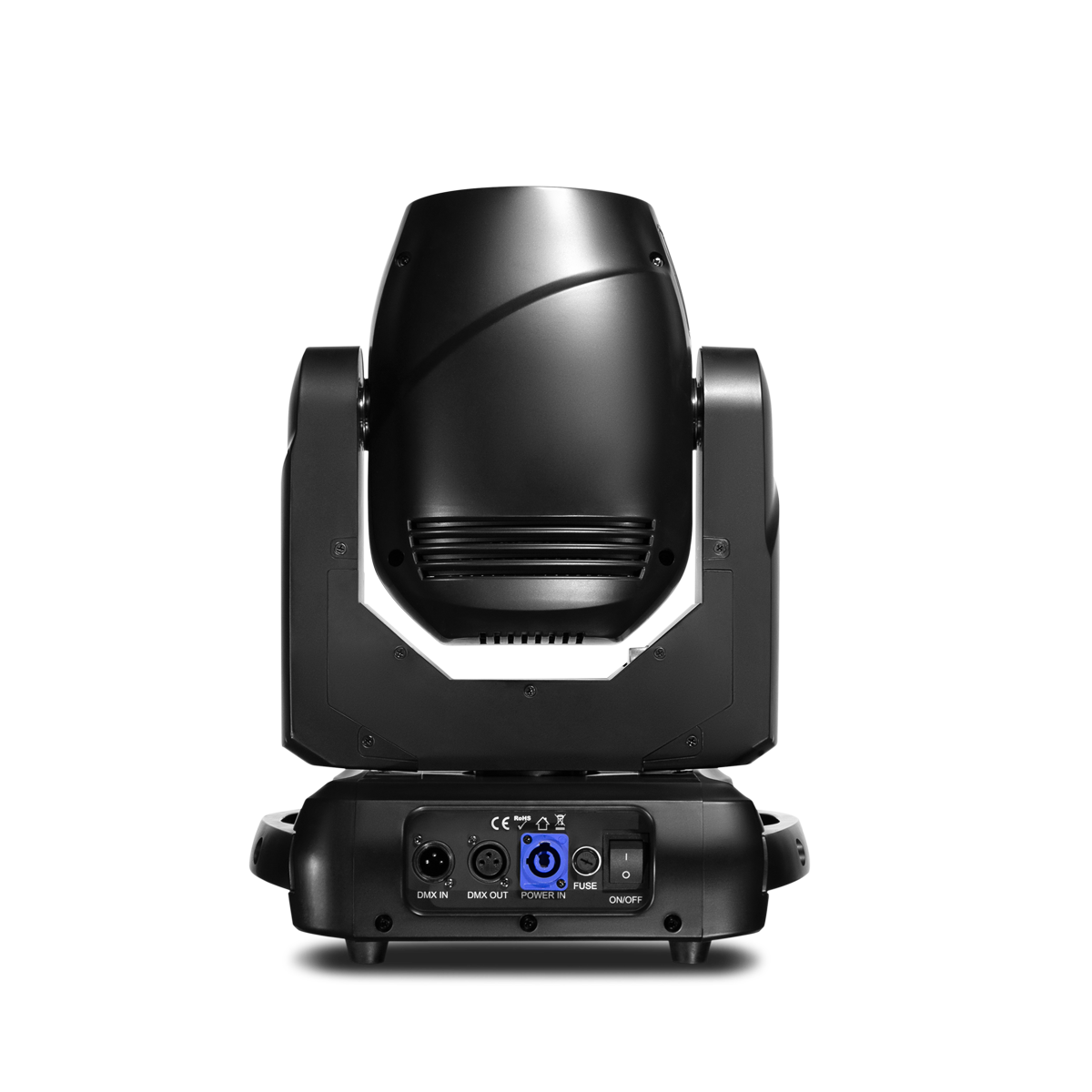

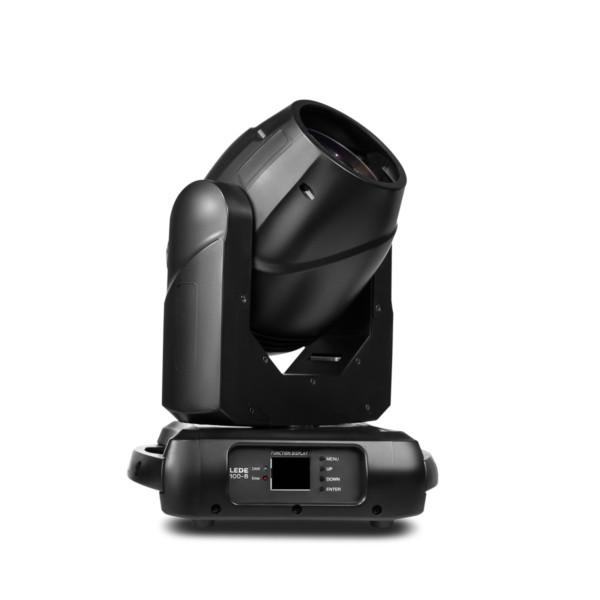

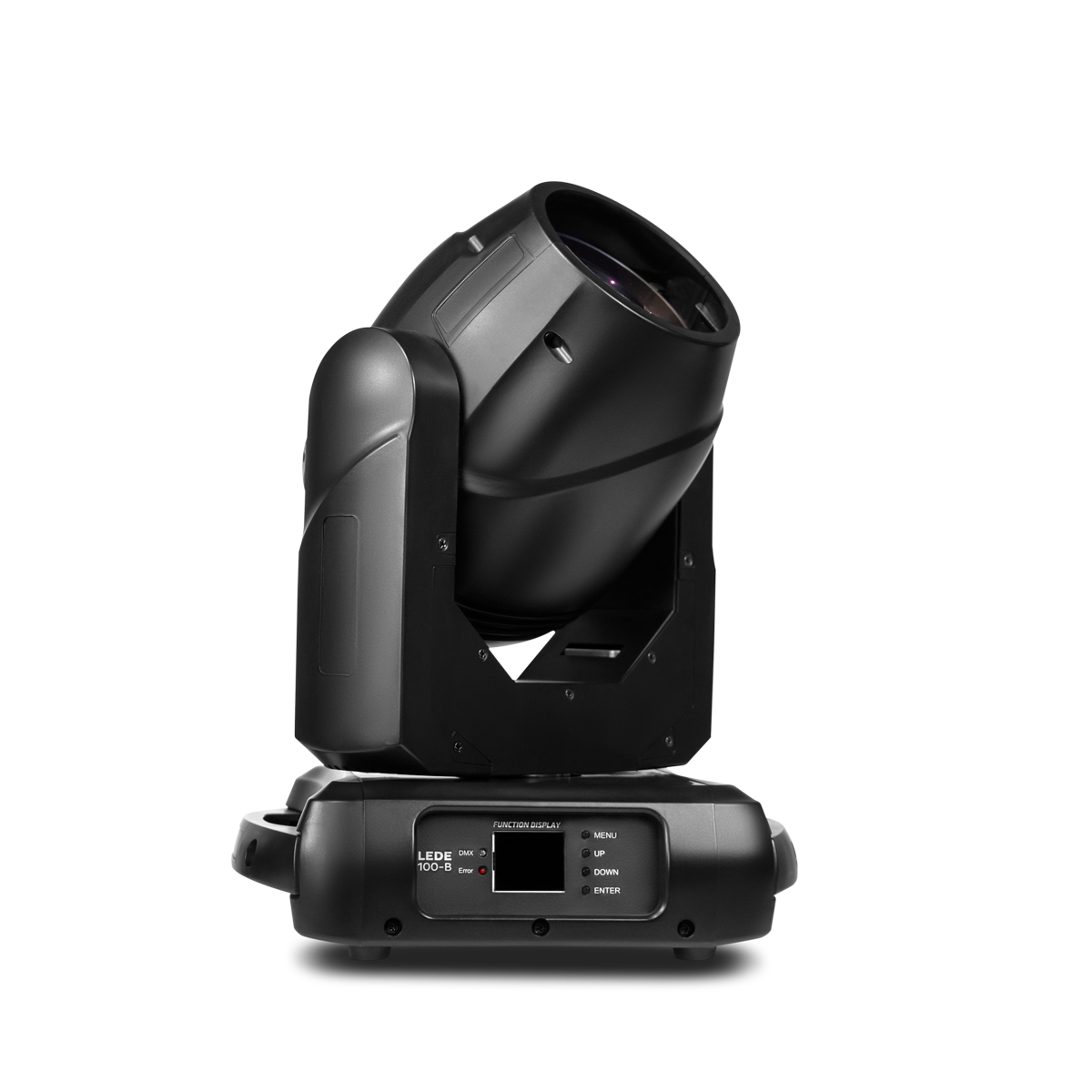

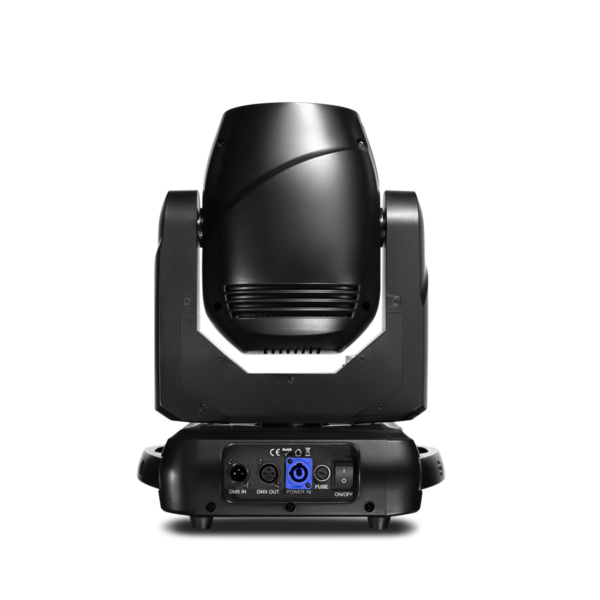

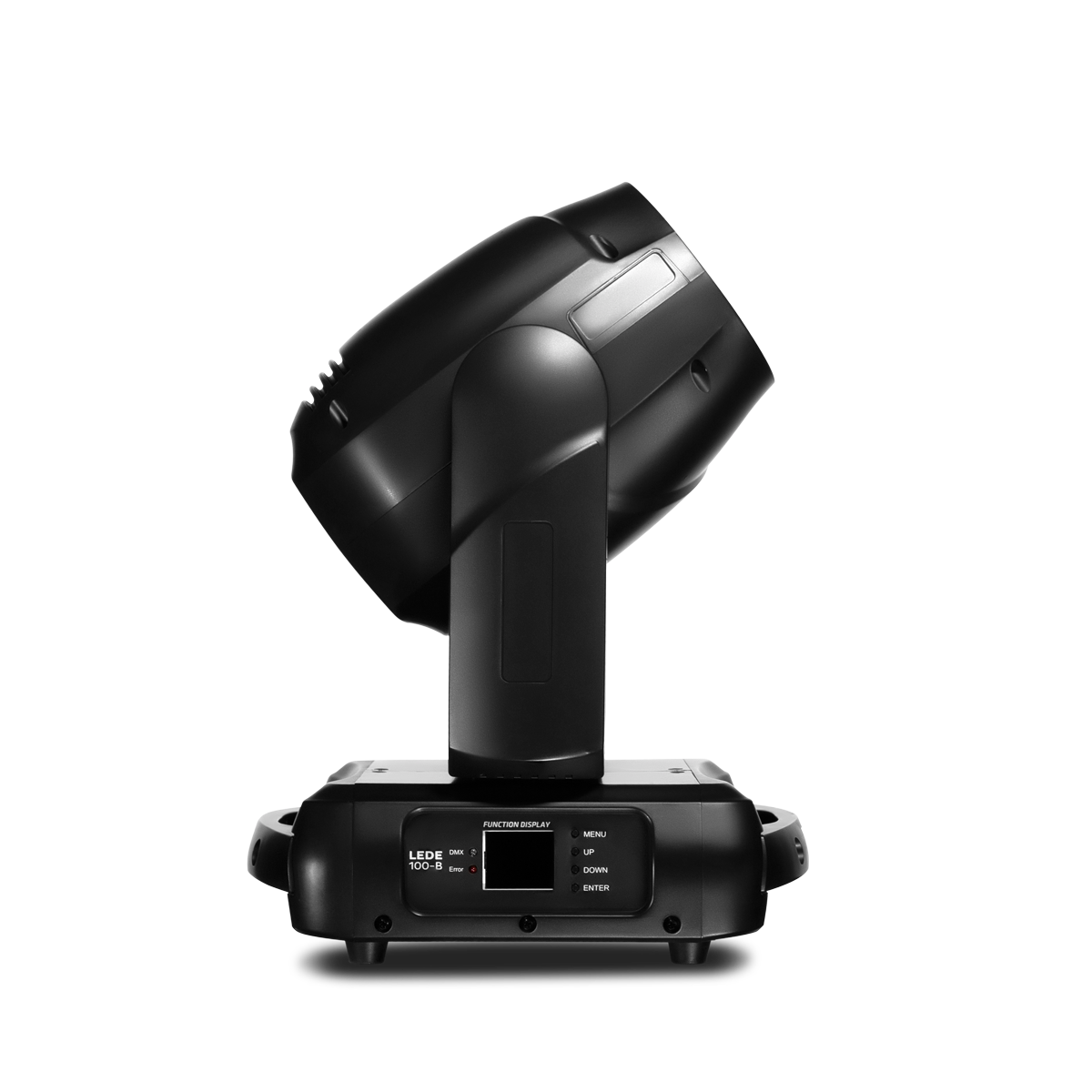

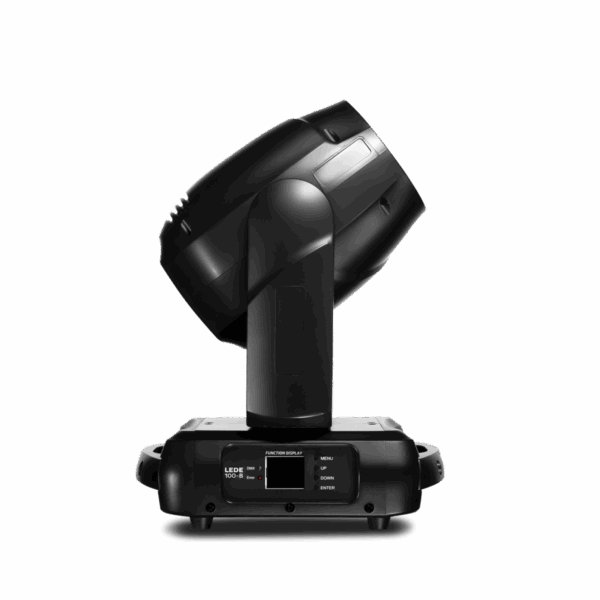

100 watts Compact LED Beam Moving Head

LEDE 100B is a compact LED beam moving head with a very narrow beam angle of 3°. It’s compact size and low power consumption does not compromise on its creative and output effects. It is perfect for small venues, stages, and events application.

Add to quote
SKU: LEDE100B Category: Series: LEDE

SOURCE

  • Light source: 100 watts white LED
  • LED life expectancy: 50,000 Hrs.
  • Color temperature: 6600K
  • CRI 73

OPTICAL SYSTEM

  • Beam angle: 3°
  • Light output: 70,000 Lux @ 4m @ 3°
  • Electronic focus

DYNAMIC EFFECTS

  • Dimmer: linear adjustment
  • Color wheel: 10 colors + open
  • Effect color wheel: 6 colors
  • Electronic variable strobe
  • Static gobo: 13 gobos +open
  • Rotating gobo: 7 gobos + open
  • Gobo shake function
  • Prism: 16-facet circular prism
  • Frost

CONTROL & PROGRAMMING

  • Control protocols: DMX , Sound, Master-Slave, Auto Run
  • Control channels: 16 CHs

MOVEMENT

  • Pan: 540o
  • Tilt: 270o
  • Resolution: 16 bit

ELECTRICAL

  • Input voltage: 100-240V/50-60Hz
  • Power consumption: 100 watts

CONNECTIONS

  • DMX connections: 3 pin XLR In/Out male and female
  • Power connections: PowerCon In

PHYSICAL

  • Dimensions: 333 x 270 x 424mm
  • Net weight: 12.7 Kg
  • Color: Black
  • IP rating: 20
