LEDE 200SPOT

LEDE 200SPOT

Compact LED

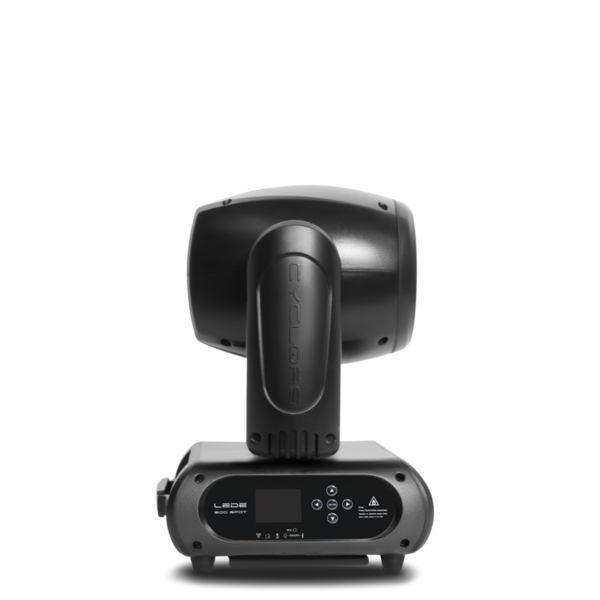

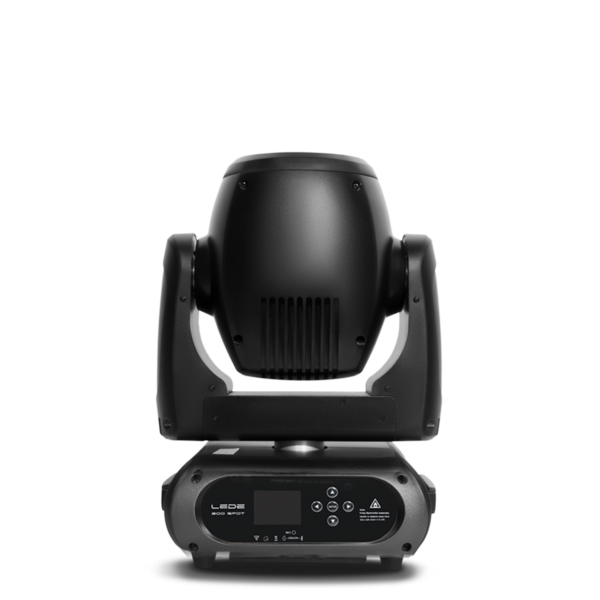

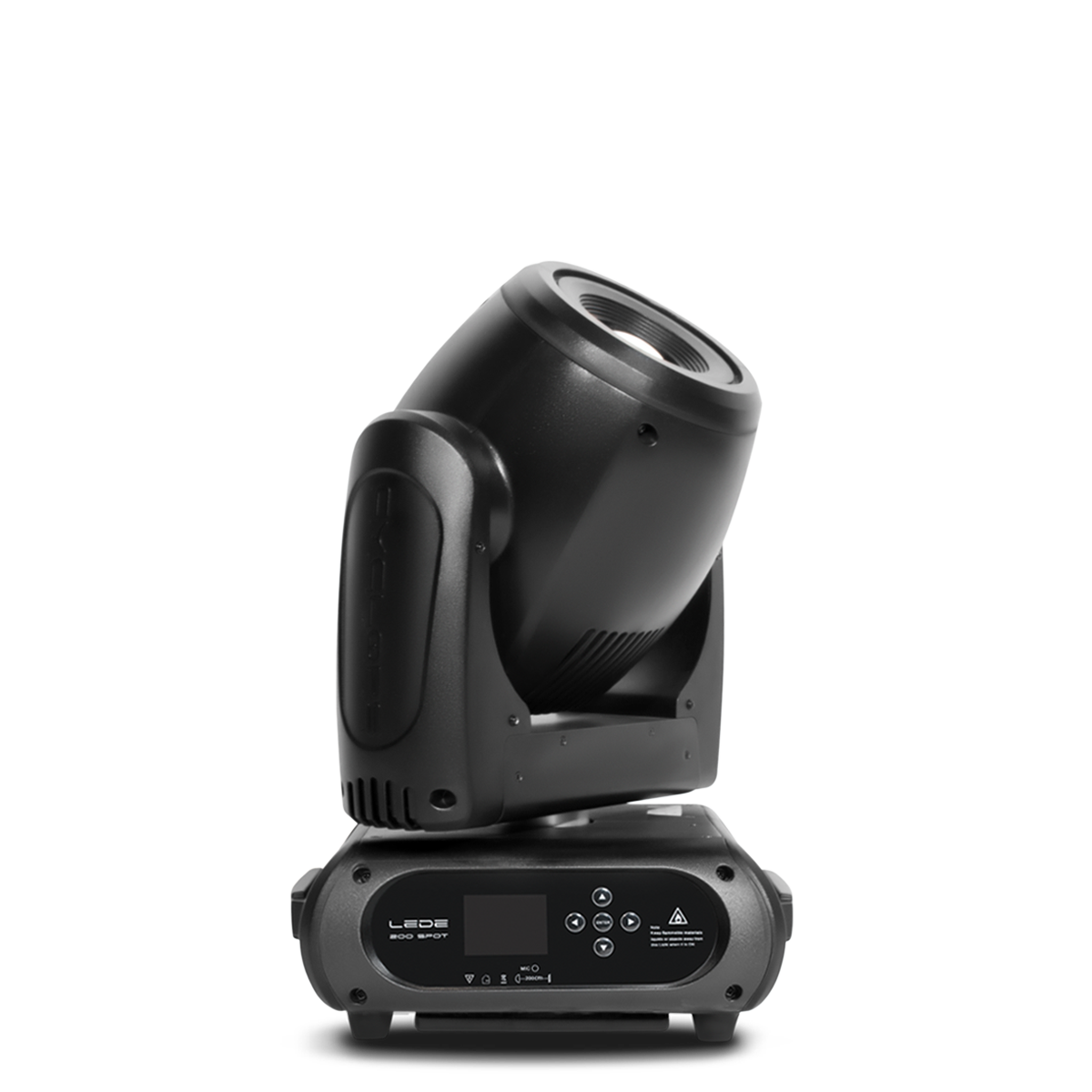

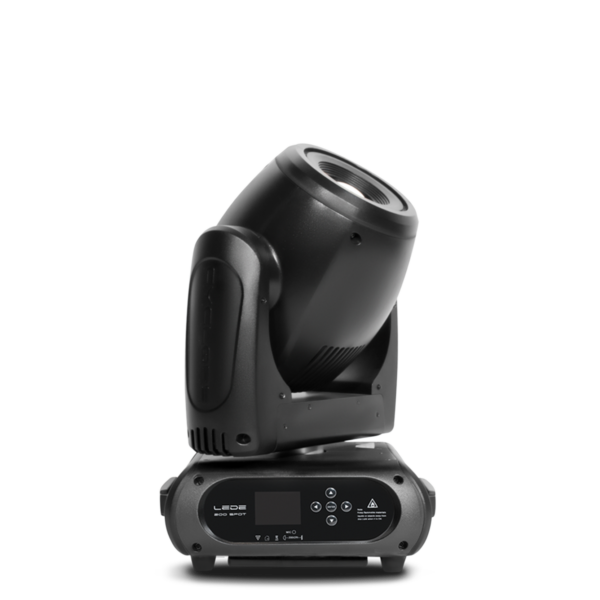

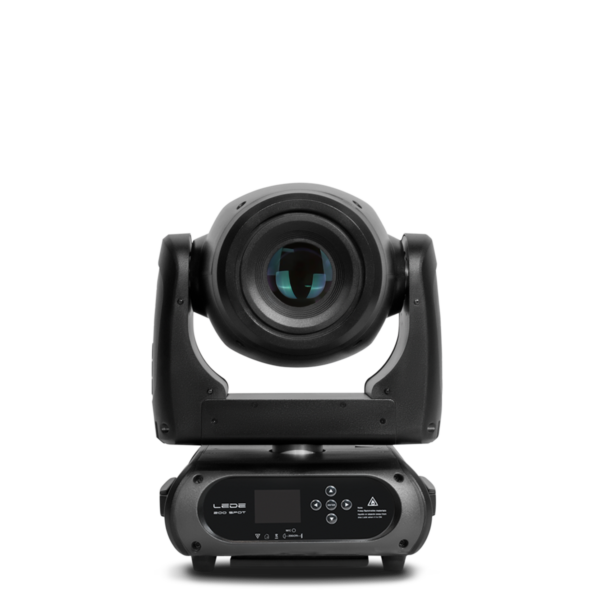

LEDE 200Spot is a compact and bright LED moving head with a 150watts LED source. It delivers a sharp spot of 14° angle with 8 different bright colors and a set of static and rotating colored gobos. In addition of 2 prism wheels and a frost effect, this moving spot is a multipurpose fixture for any indoor and small venues applications.

SKU: LEDE200SPOT Categories: ,

SOURCE

  • Light source: 150 watts white LED
  • LED life expectancy: 50,000 Hrs.

OPTICAL SYSTEM

  • Beam angle: 14°
  • Light output: 25,700 Lux @ 2m @ 14°
  • Electronic focus
  • Iris

DYNAMIC EFFECTS

  • Dimmer: Linear adjustment
  • Color wheel: 8 colors + open
  • Electronic variable strobe
  • Static gobo: 7 gobos + open
  • Rotating gobo: 7 gobos + open
  • Prism: 3 facets and 8 facets prism
  • Frost

CONTROL & PROGRAMMING

  • Control protocols: DMX, RDM
  • Display: 2.4’ colored LCD display, can reverse 180°
  • Control channels: 21, 24, 14, 16 CHs

MOVEMENT

  • Pan: 630o
  • Tilt: 265o
  • Resolution: 16 bit

ELECTRICAL

  • Input voltage: 100-240V/50-60Hz
  • Power consumption: 250 watts

CONNECTIONS

  • DMX connections: 3 pin XLR In/Out male and female
  • Power connections: PowerCon In

PHYSICAL

  • Dimensions: 343 x 262 x 455mm
  • Net weight: 15 Kg
