Name: PIXIDOT
SKU: PDO24RGB161120120-1

PIXIDOT

Outdoor RGB Digital LED String

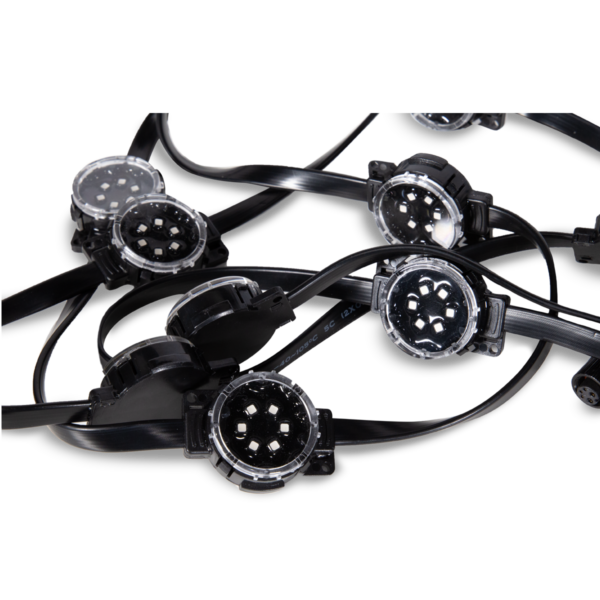

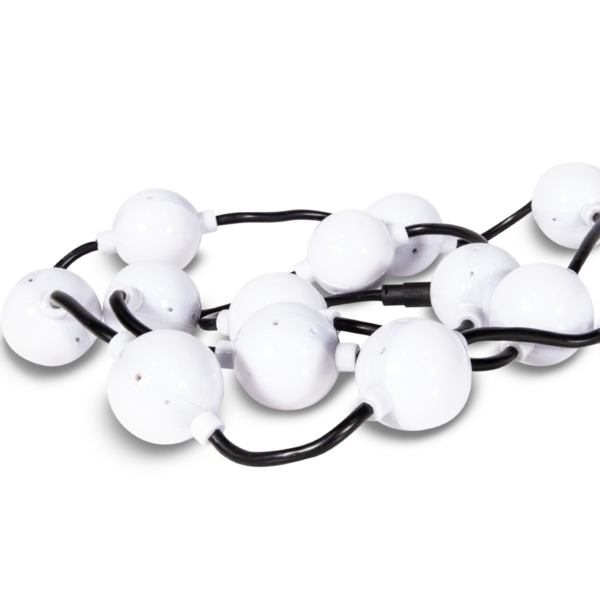

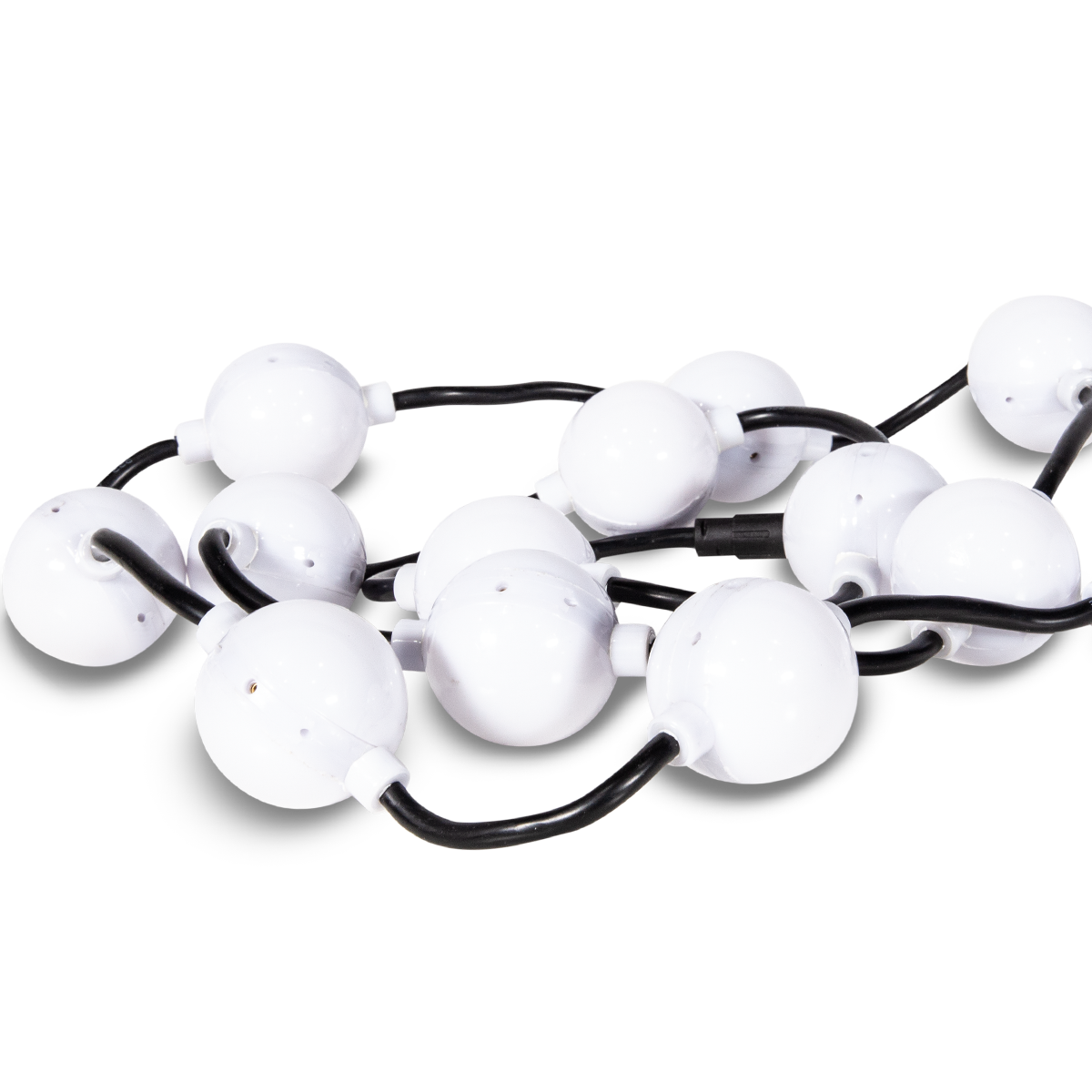

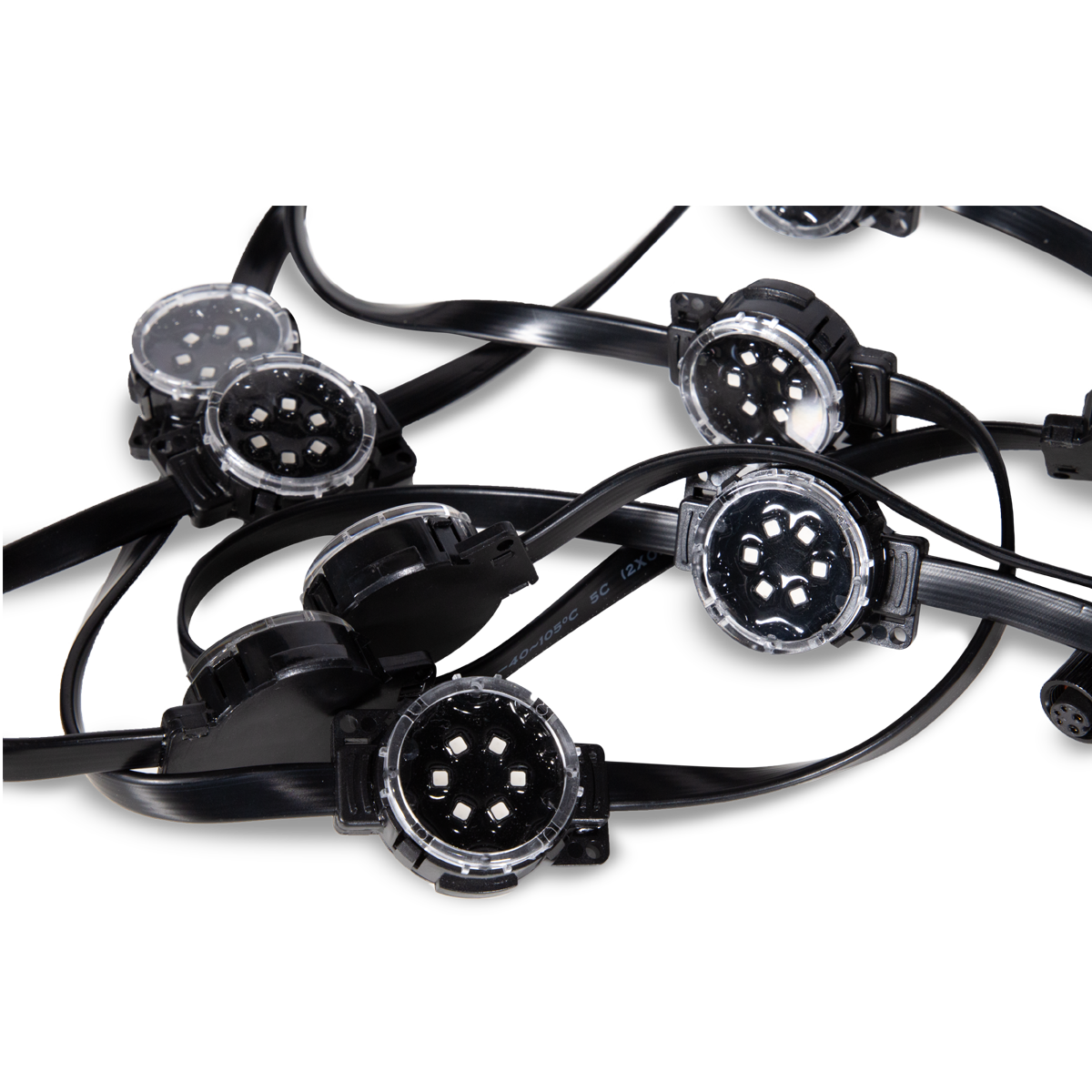

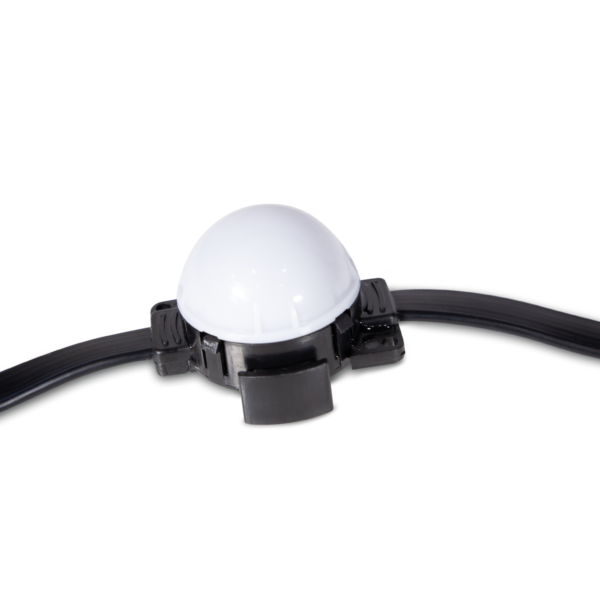

PIXIDOT is a highly versatile, weather-resistant outdoor digital pixel system designed for stunning large-scale architectural and entertainment displays. It adapts to any creative project via two configurations. The PIXIDOT String-OC is a lightweight, customizable string featuring 6 RGB LEDs per pixel with a clear cover. Highly adaptable in length and spacing, it is perfect for sharp pixel mapping on facades, bridges, and retail spaces. The PIXIDOT String-OB features 50mm 3D pixel balls housing 8 RGB LEDs. Designed to hang horizontally or vertically, they create immersive light curtains and 3D matrices for festivals, clubs, and events.

SKU: PDO24RGB161120120-1 Category: Pixels Series: PIXI

SOURCE

Light source: SMD RGB 3535 LEDs
Light Output: 6 x 1.2 watts

OPTICAL SYSTEM

View Angle: 120°

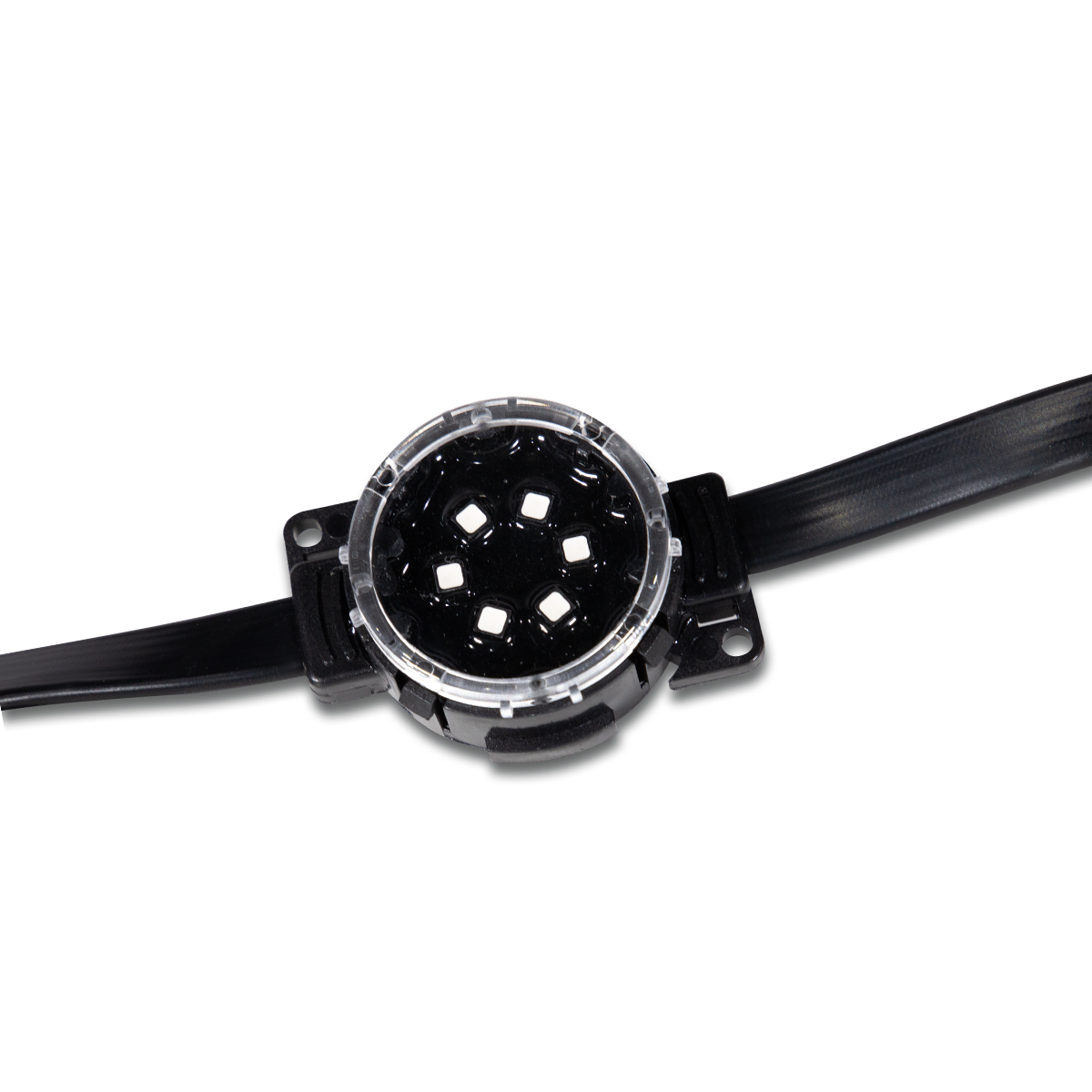

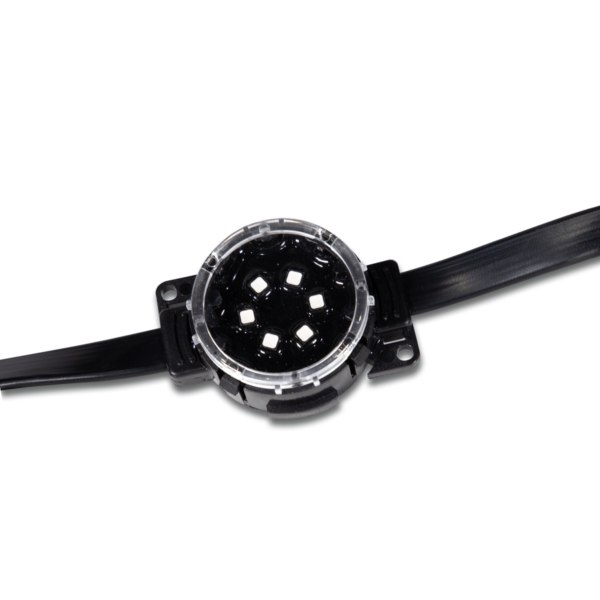

PIXIDOT String-OC: Clear diffuser

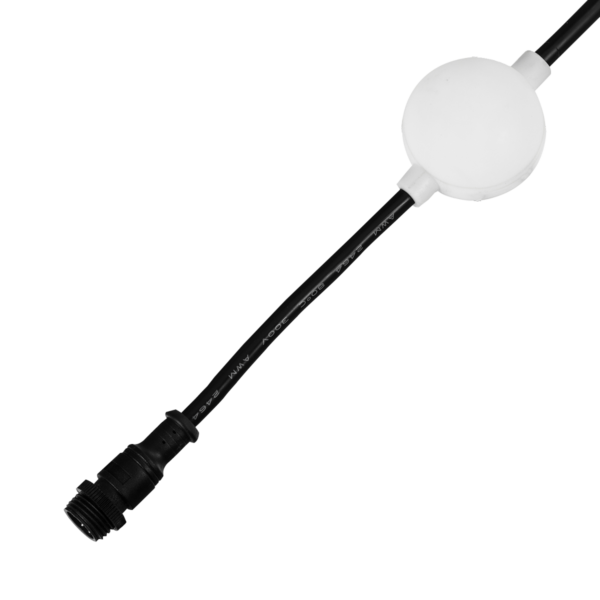

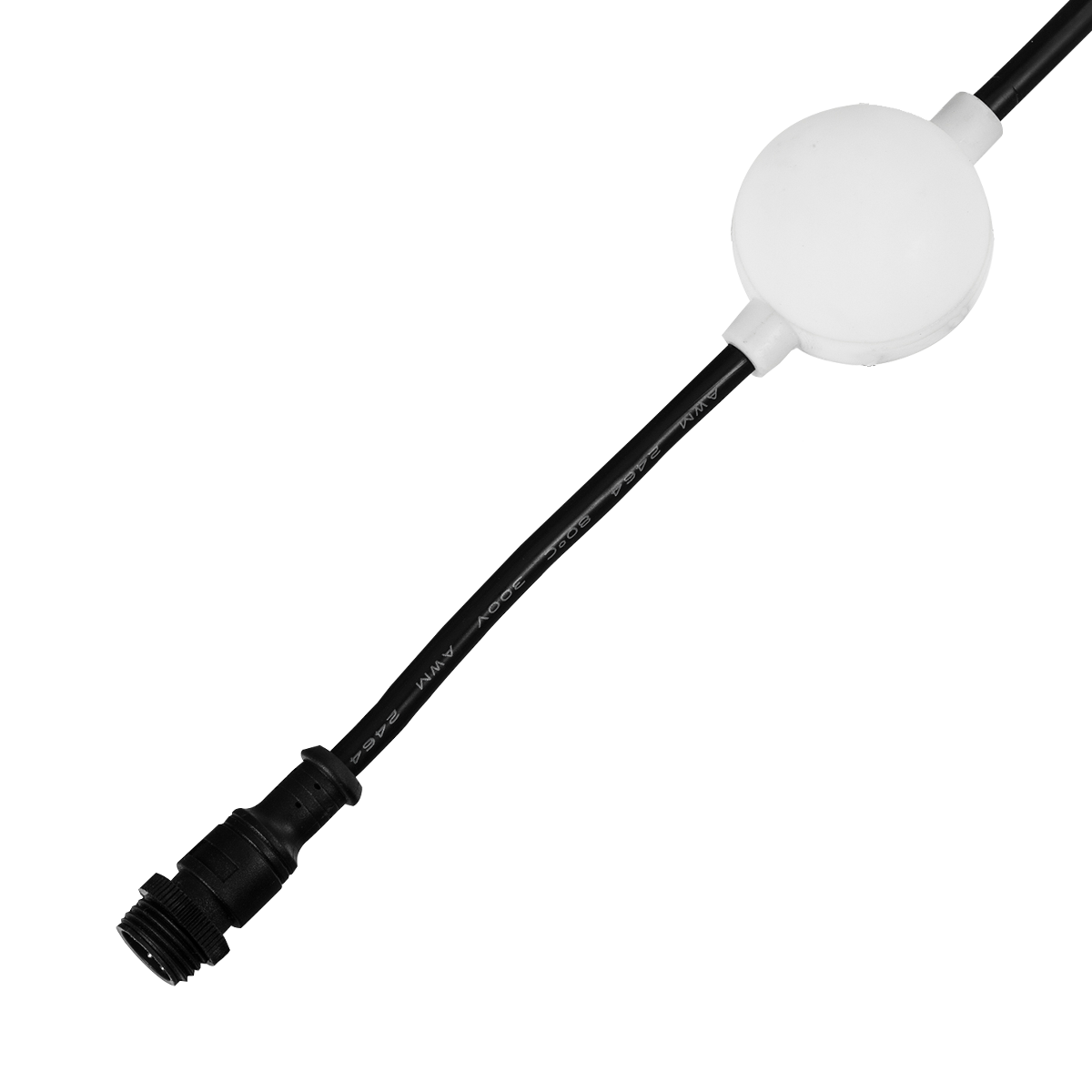

PIXIDOT String-OB: Spherical diffuser

CONTROL & PROGRAMMING

Pixels Control: 1 per dot
Color Mixing: RGB
Control Protocols: DMX, 44 FPS
Control Channels: 3 CHs per dot
Address Setting: Manual

ELECTRICAL

Input Voltage: 24V
Power Consumption: 1.2W per dot

CONNECTIONS

Power and Data Connection: 5 pin female and male connection
Cable Entry: Side

PHYSICAL

Dimensions: PIXIDOT String-OC: 50 x 44 x 20mm; PIXIDOT String-OB: Diameter 50mm, Width 66mm
Color: Black
IP Rating: IP67
Operating Temperature: PIXIDOT String-OC: -40℃/80℃; PIXIDOT String-OB: -20℃/50℃
