PIXIWRITER

PIXIWRITER

USB Powered DMX Addressing Writer

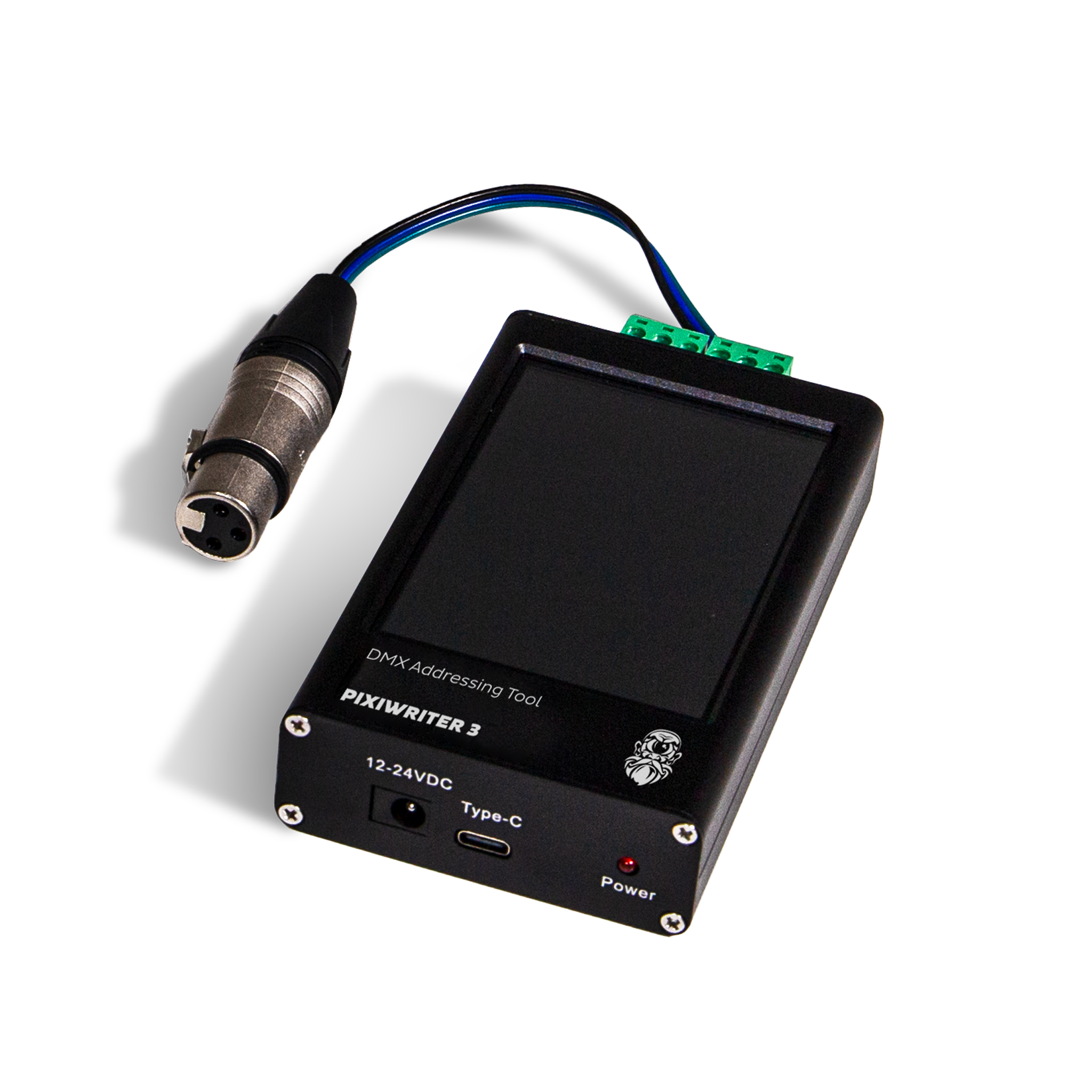

The PIXIWRITER is a portable professional-grade USB powered DMX addressing and testing tool for all PIXI Series LED products. This versatile handheld device features a 4.0-inch LCD multi-touch display and supports 512 DMX channels, allowing users to perform complex tasks such as DMX addressing, advanced IC parameter configuration, and manual color testing directly in the field. Compatible with a wide range of popular DMX and RZ/SPI-based integrated circuits, the PIXIWRITER is an essential utility for technicians and installers seeking a reliable, portable solution for verifying fixture functionality and ensuring data integrity across lighting networks.

SKU: PWI3 Category: Accessories Series: PIXI

CONTROL & PROGRAMMING

Display: 4.0-inch (diagonal) all-screen LCD Multi-Touch display
Control Channels: 512 DMX Channels
Supported DMX IC: M18522PH, SM18522PS, SM18512P, SM18512PS, SM17500, UCS512H4LB, UCS512DH, UCS512C1, UCS512C7, UCS512C8, CD
RZ Code Outputs: SPI
Supported RZ Code IC: SM16703, SM16704, SM16824, SM18703, UCS2903, UCS2904B, UCS8903, UCS8904

THERMAL MANAGEMENT
