PIXIDOT STRING-OB

PIXIDOT STRING-OB

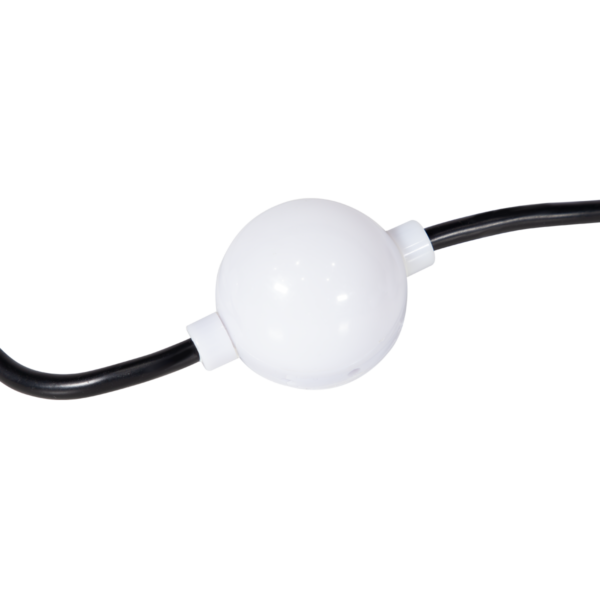

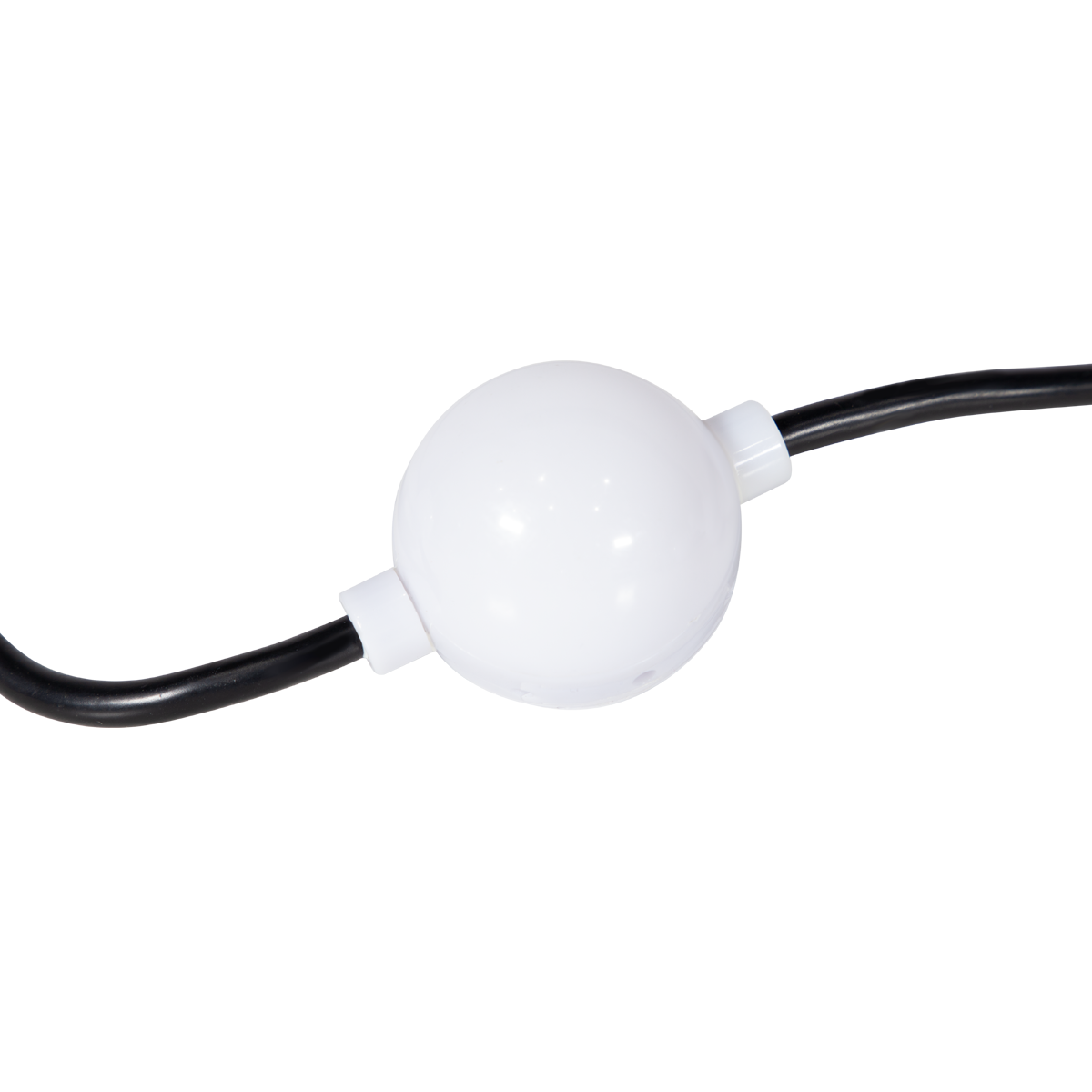

Outdoor RGB LED Pixel Balls String

PixiDot String-OB is an outdoor IP67 rated string of bright 3D pixel balls created in customizable versions with predefined quantities and center to center distance. These 1.2 watts SMD RGB 3535 LEDs, 50mm 3D pixel balls can be used in several ways all leading to exceptional lighting effects. It can be suspended vertically or pulled horizontally forming a light curtain or a 3D pixels matrix shapes in events, clubs facades and all outdoor applications

SKU: PDSOB24RGB404015050 Categories: ,

SOURCE

  • Light source: 1.2 watts SMD RGB 3535 LEDs

OPTICAL SYSTEM

  • Cover: Spherical Diffuser
  • View angle: 120°

CONTROL & PROGRAMMING

  • Pixels control: 1 pixel per ball
  • Color mixing: RGB
  • Control protocols: DMX, 44 FPS
  • Control channels: 3 CHs per dot
  • Address setting: Manual
  • Frames per second: 44

ELECTRICAL

  • Input voltage: 24V
  • Power consumption: 1.2 watts per dot

CONNECTIONS

  • Power and data connection: 5 pin female and male connection
  • Cable entry: Side

PHYSICAL

  • Diameter: 50mm
  • Width: 66mm
  • Color: Black
  • IP rating: 67
  • Operating temperature: -20℃/50℃
