PIXITUBE LASER 16-IC

PIXITUBE LASER 16-IC

Indoor 100cm RGB+Green laser Digital 3D LED Tube with Laser Head

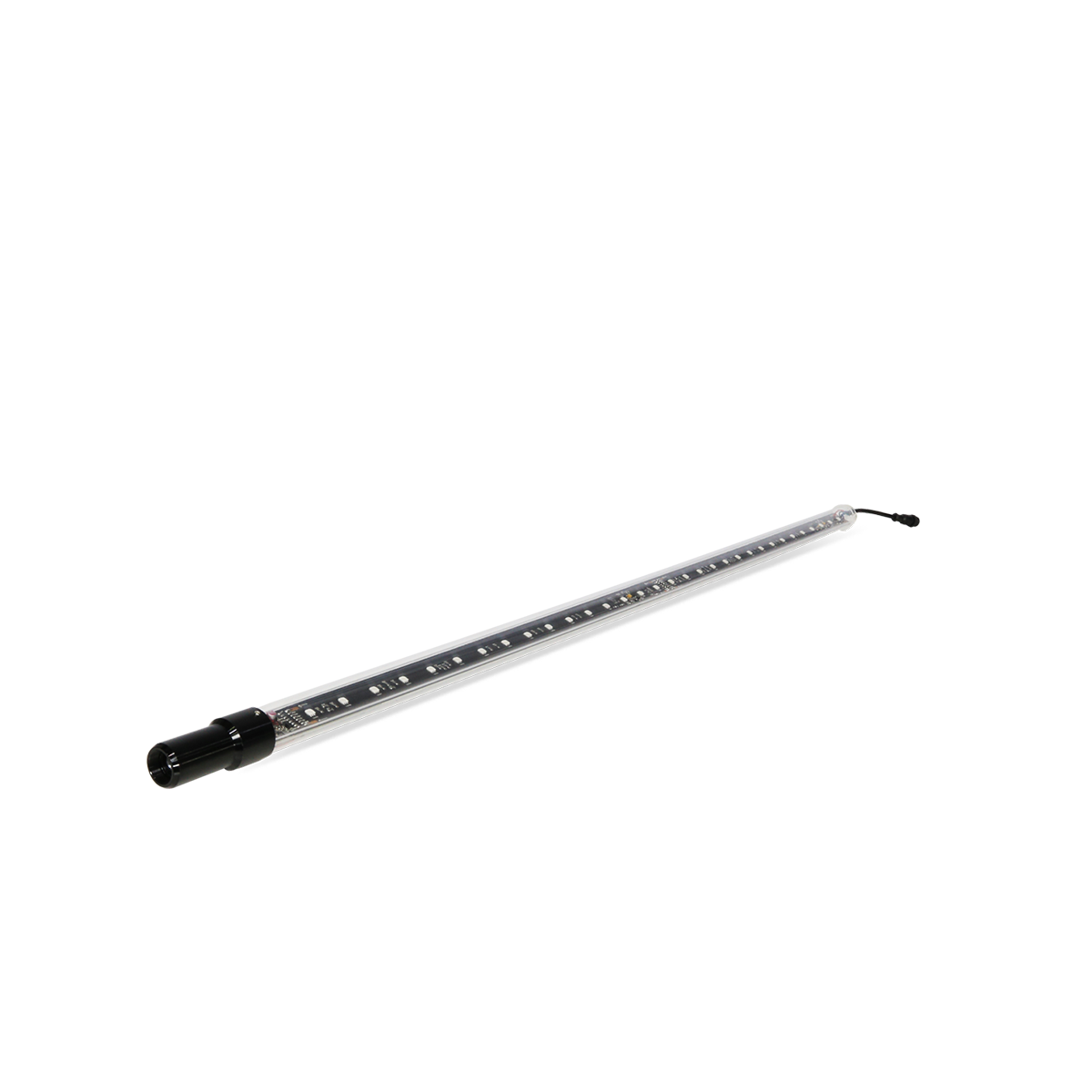

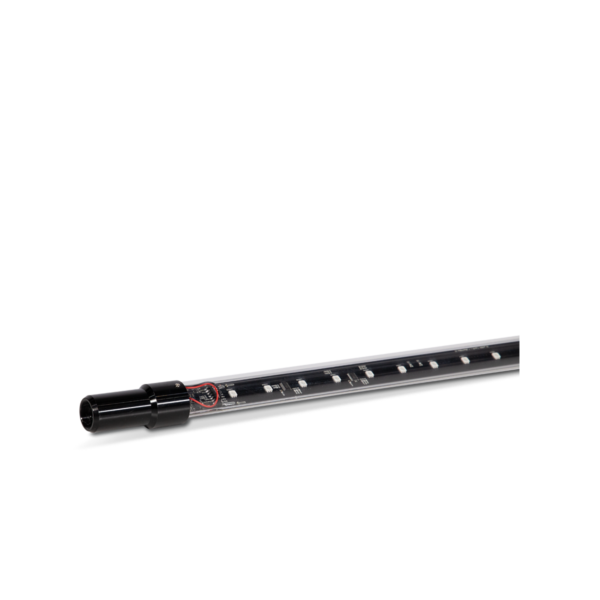

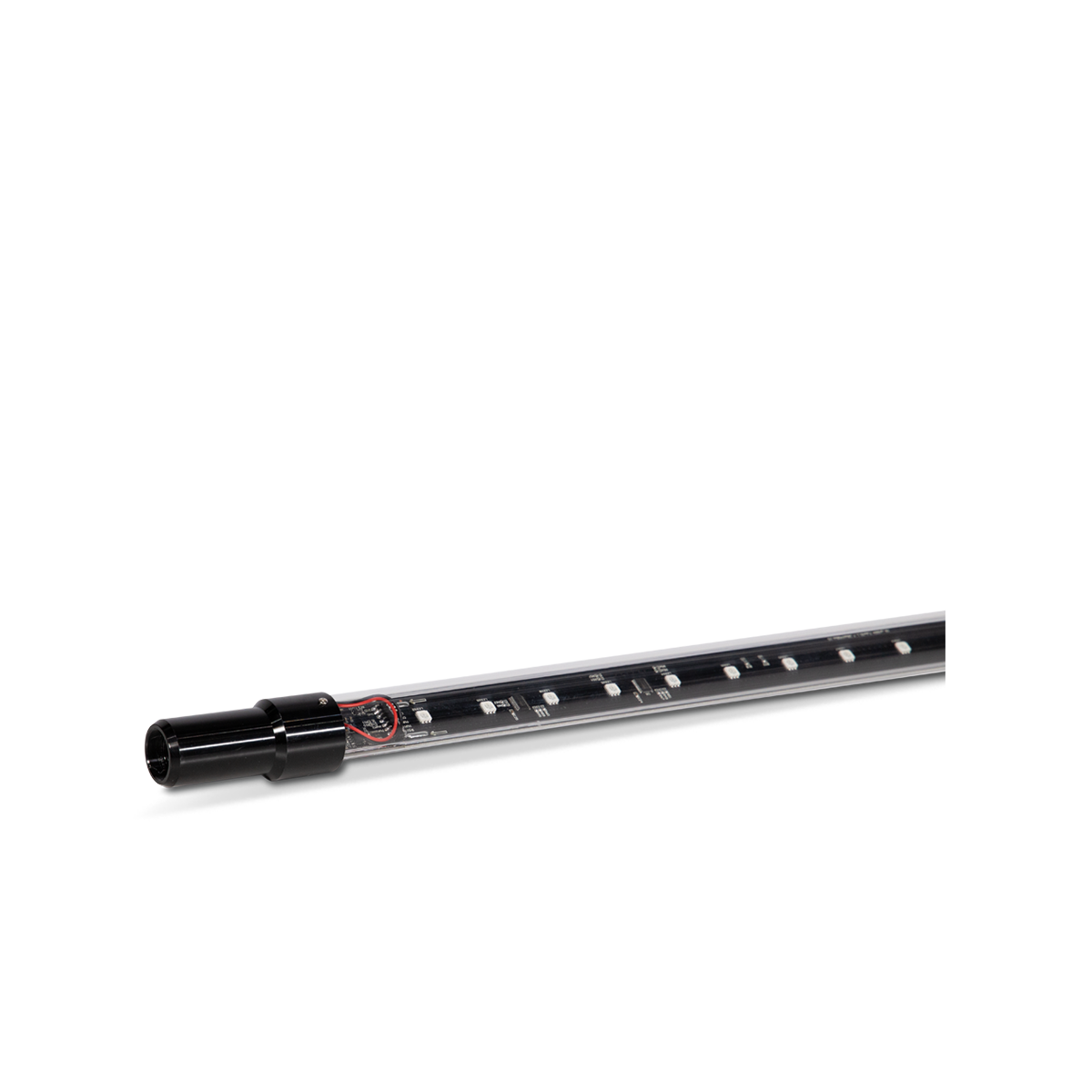

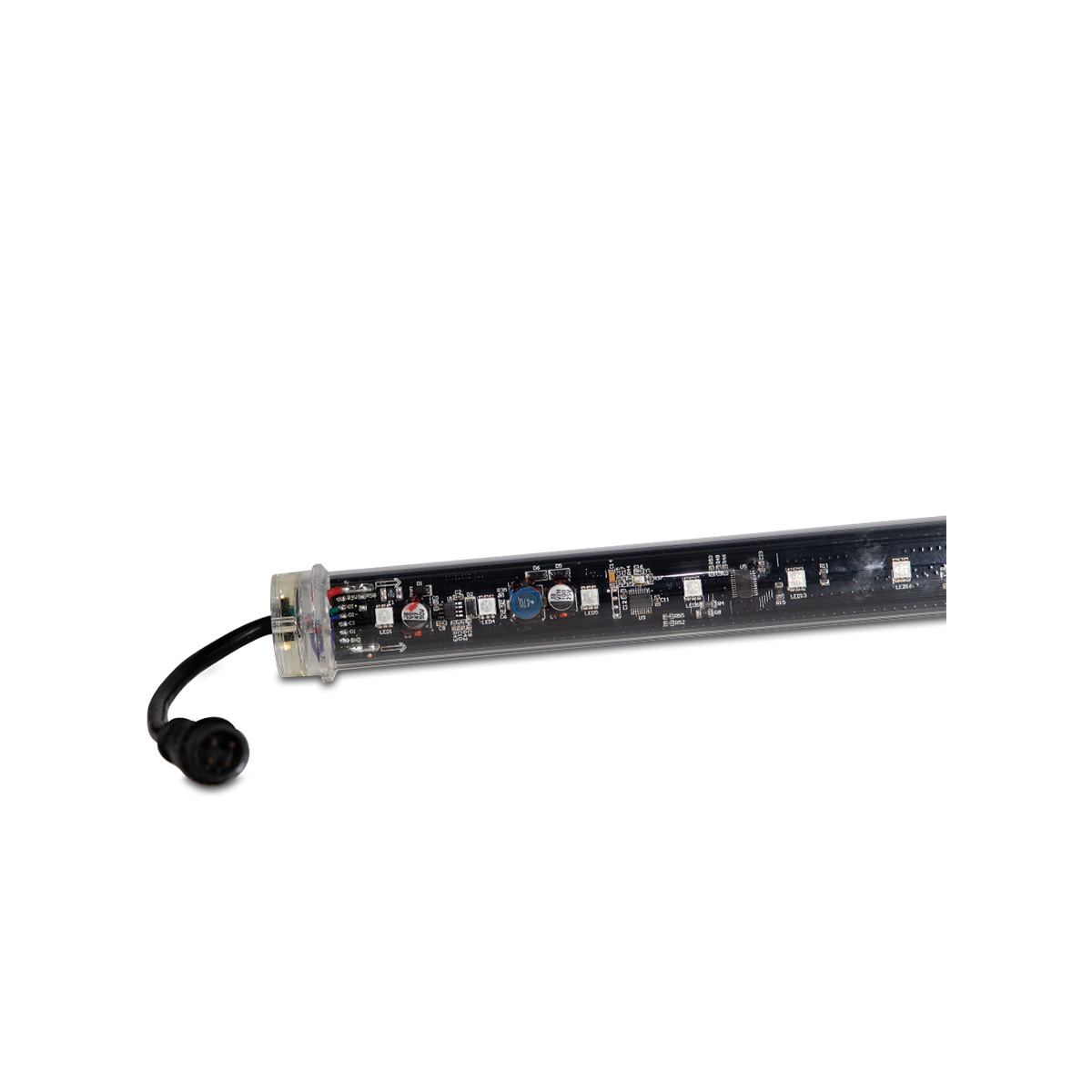

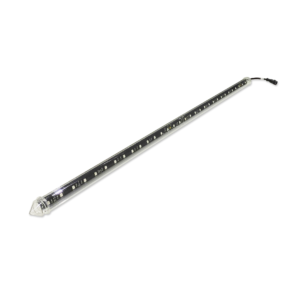

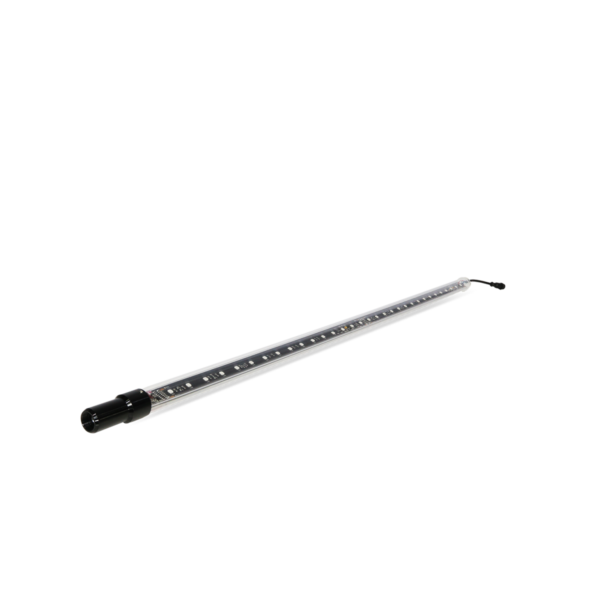

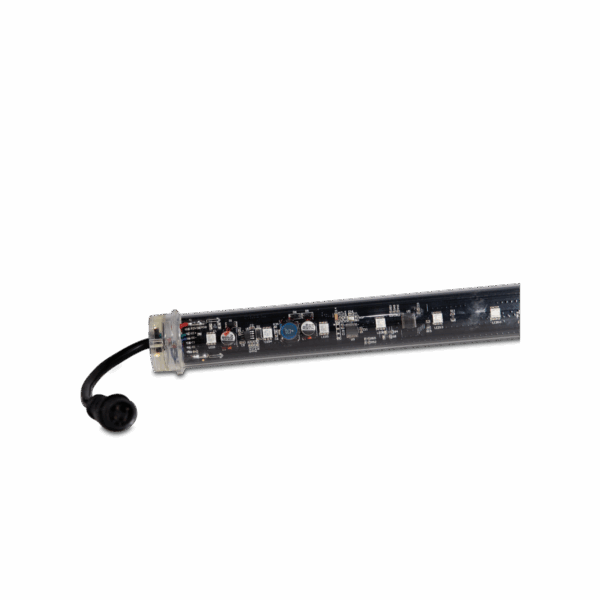

PixiTube Laser 16-IC is a DMX 3D clear tube, with 64 SMD5050 RGB + Green laser and 16 pixels control. It is designed to be suspended from the ceiling in a grid of numerous tubes. With a 360° view of lighting effect and a bright sharp laser pointing down, it is perfect to be the center piece of clubs, stages and all indoor events applications.

SKU: PTLIC24RGB6417100030 Categories: ,

SOURCE

  • Light source: 64 SMD5050 RGB + Green laser

OPTICAL SYSTEM

  • Cover: Clear
  • View Angle:  360°

CONTROL & PROGRAMMING

  • Pixels control: 16
  • Color mixing: RGB + Green laser.
  • Control protocols: DMX
  • Control channels: 51 CHs
  • Address settings: Manual

ELECTRICAL

  • Input voltage: 24V
  • Power consumption: 11 watts

CONNECTIONS

  • Power & data connection: 15cm 5 pin female and male connection

PHYSICAL

  • Diameter: 30mm
  • Length: 1120mm IP
  • rating: 20
  • Operating temperature: -20℃/50℃
