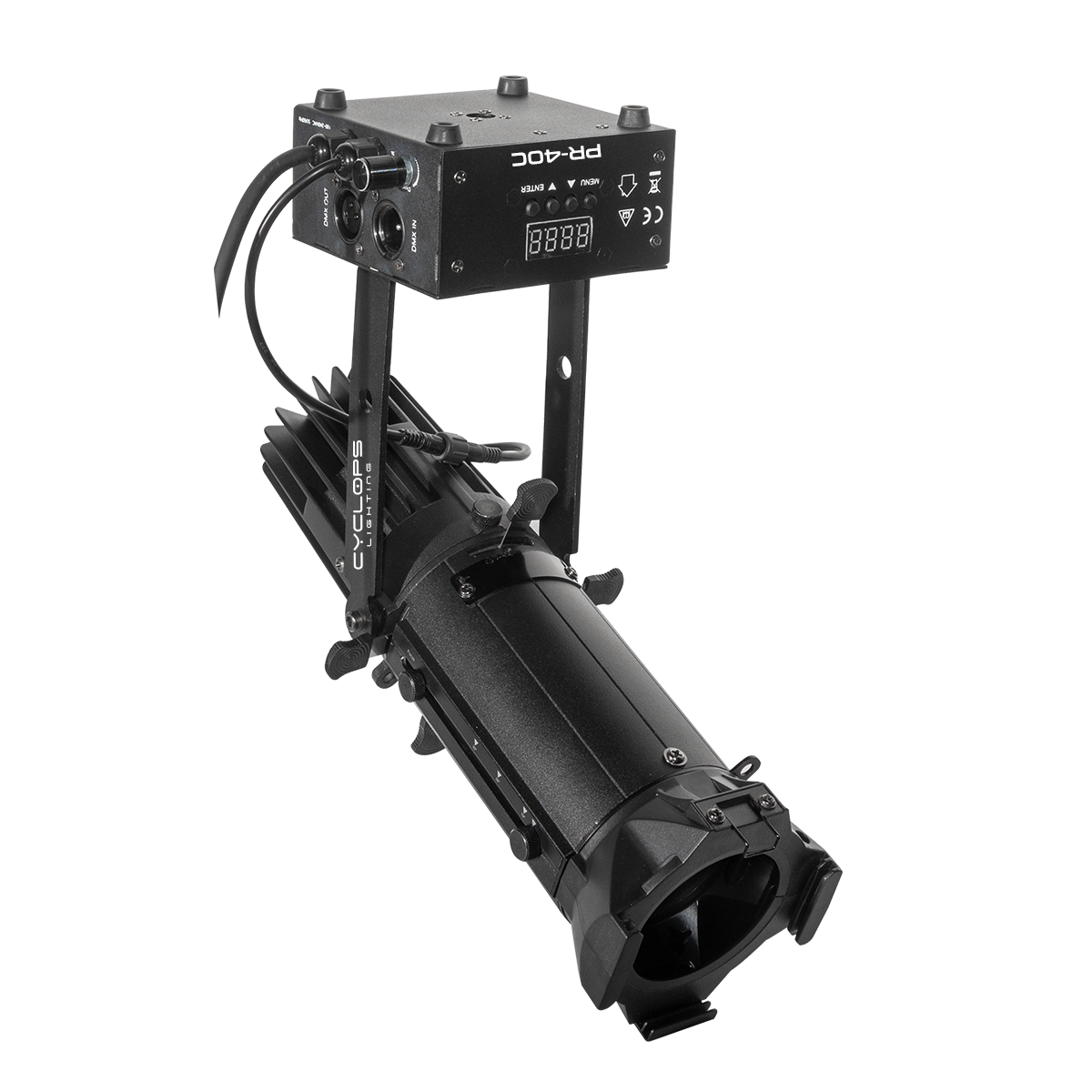

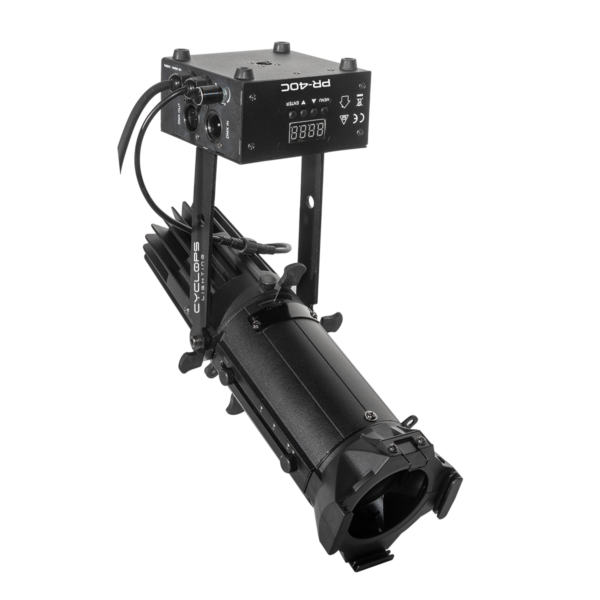

PR 40C

40 watts cool White LED profile spot

PR 40C is a 40 watts, Cool white LED profile spot with a manual zoom function. It features a compact body design, a DMX control a CRI of 92 and 15° to 30° manual zoom. The high quality LED and the optical system creates a flat and even field of light with crisp pattern projection.

Categories: ,

SOURCE

  • Light source: 40 watts Cool white COB LED
  • LED life expectancy: 50,000 Hrs.
  • Color temperature: 5600 K
  • CRI: 92

OPTICAL SYSTEM

  • Manual zoom
  • Zoom range: 15° to 30°
  • Light output: 3,000 Lux @ 2 m @ 10°
  • HQ optical system, clean shutter cuts beam

KEY FEATURES

  • 5 Dimmer curves selectable ; 16 bit
  • Color: Cool white
  • RDM data: Available
  • Video flicker free
  • Gobo Size: 20 mm

 CONTROL & PROGRAMMING

  • Control protocols: Rotary, DMX, RDM
  • Control channels: 1, 2, 3, 4 CHs

ELECTRICAL

  • Input voltage: AC 100-240 V/50-60 Hz

CONNECTIONS

  • DMX connections: 3 pin XLR In/Out male and female
  • Power connections: PowerCon In/Out

PHYSICAL

  • Dimensions: 402 x 180  x 230mm
  • Net weight: 2.3 Kg
  • Color: Black
  • Housing: Aluminum
  • IP rating: 20
  • Operating temperature: -5°C/45°C
