Rotating RGB Laser Bar with Individual Diode Pan

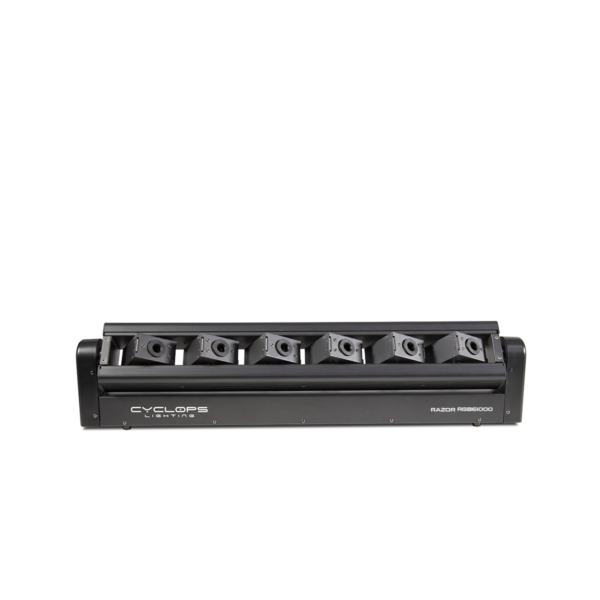

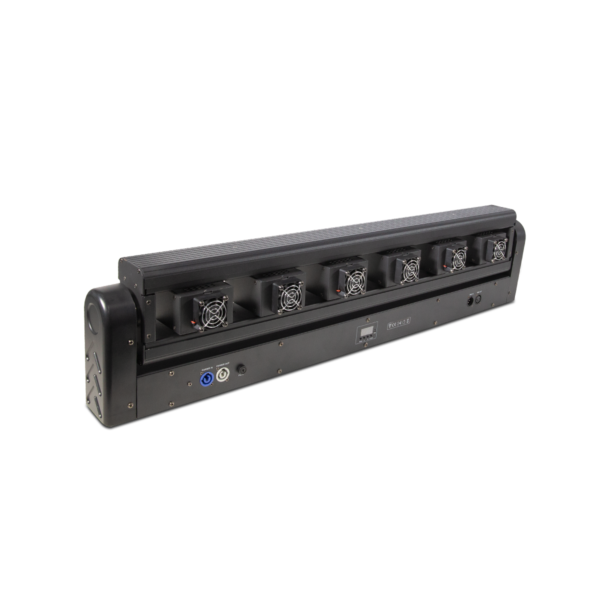

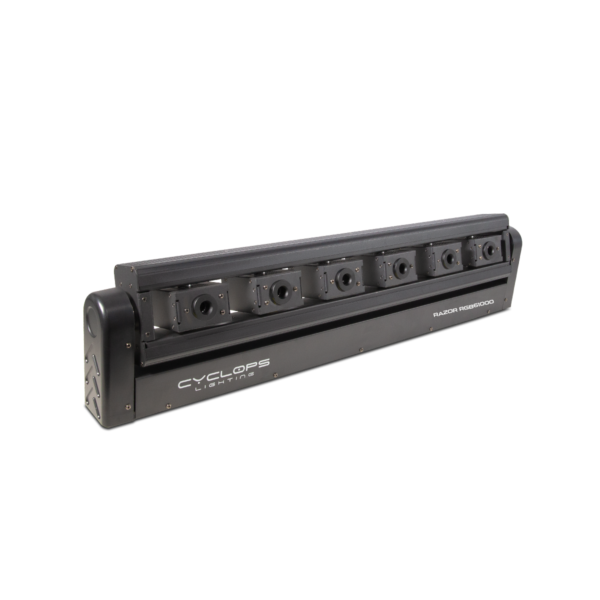

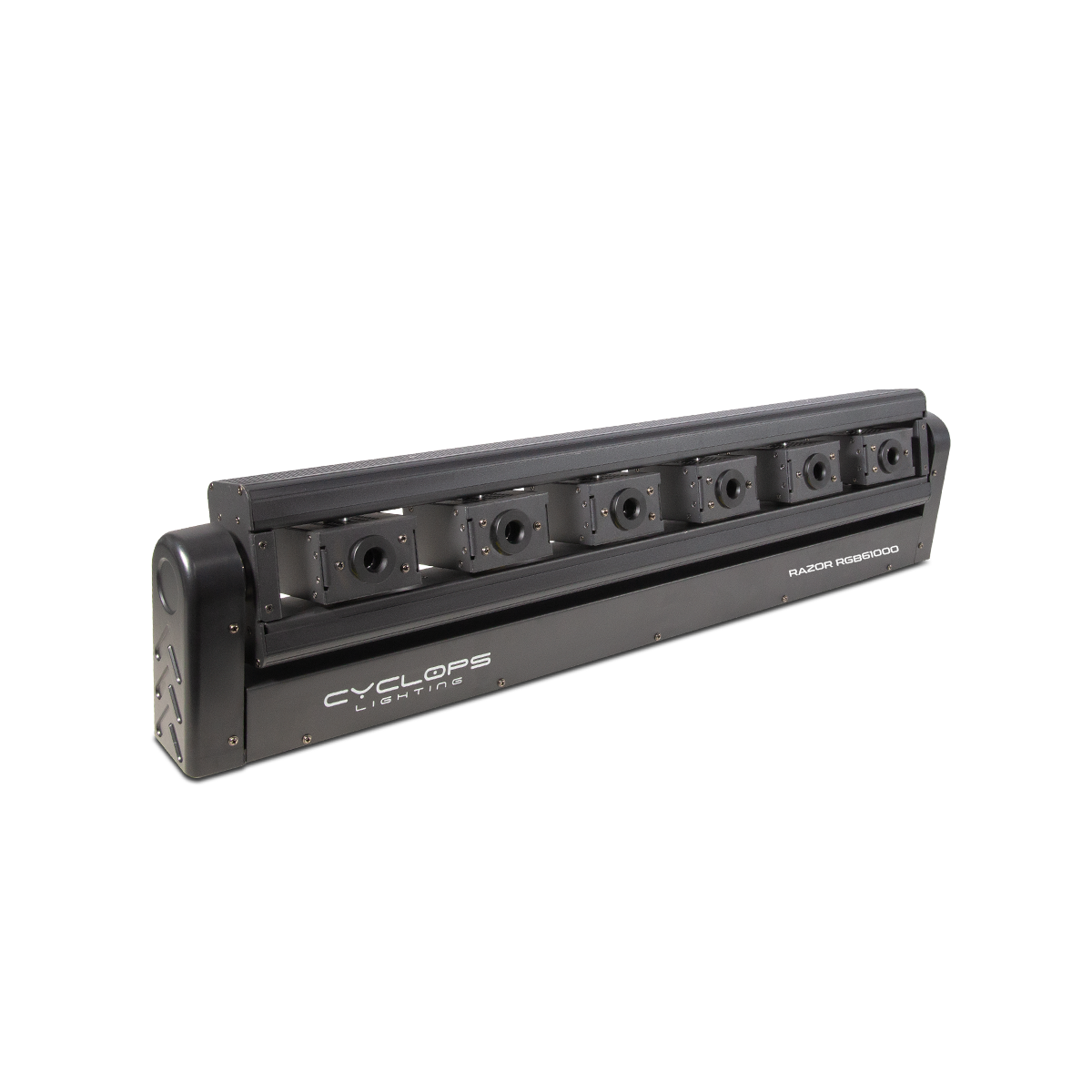

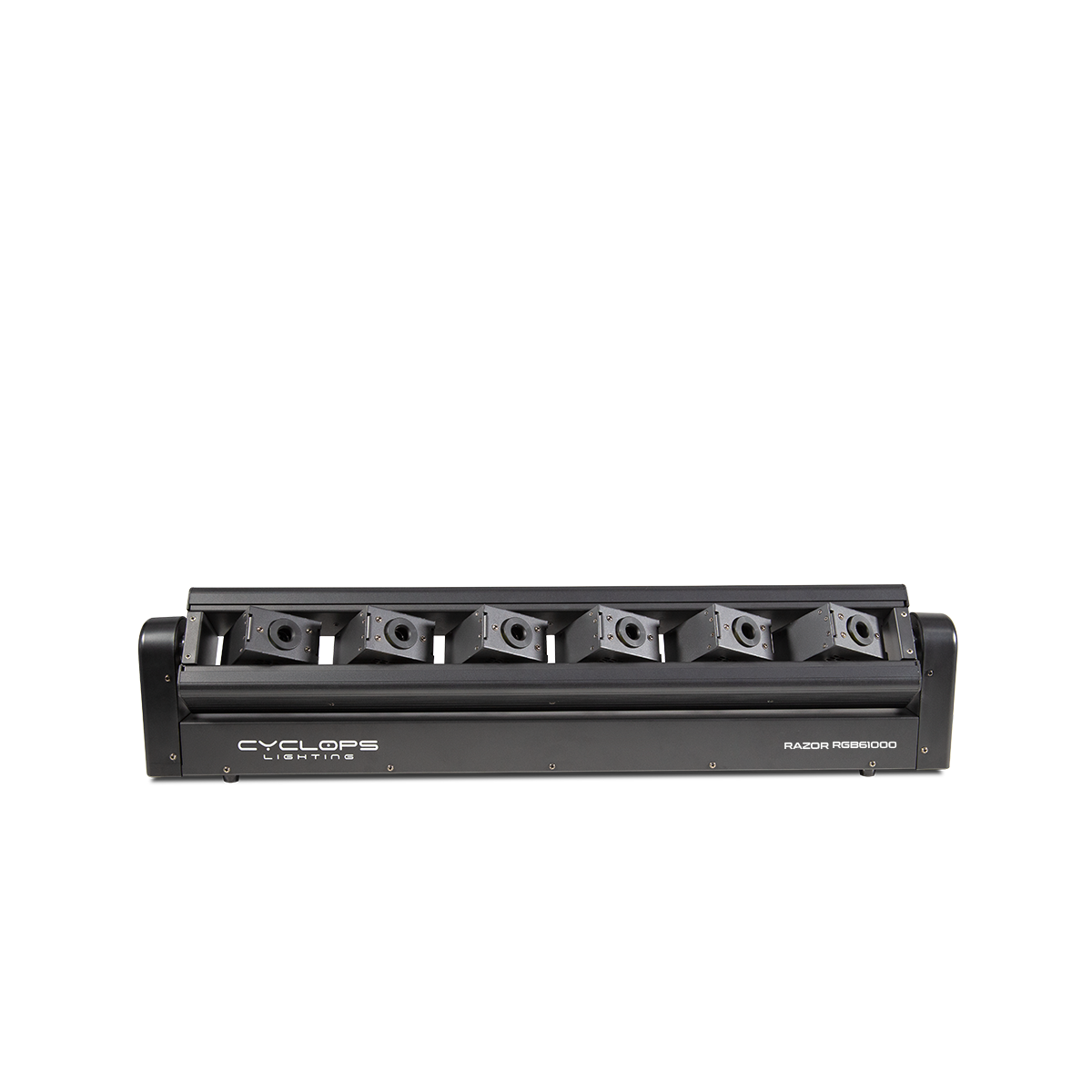

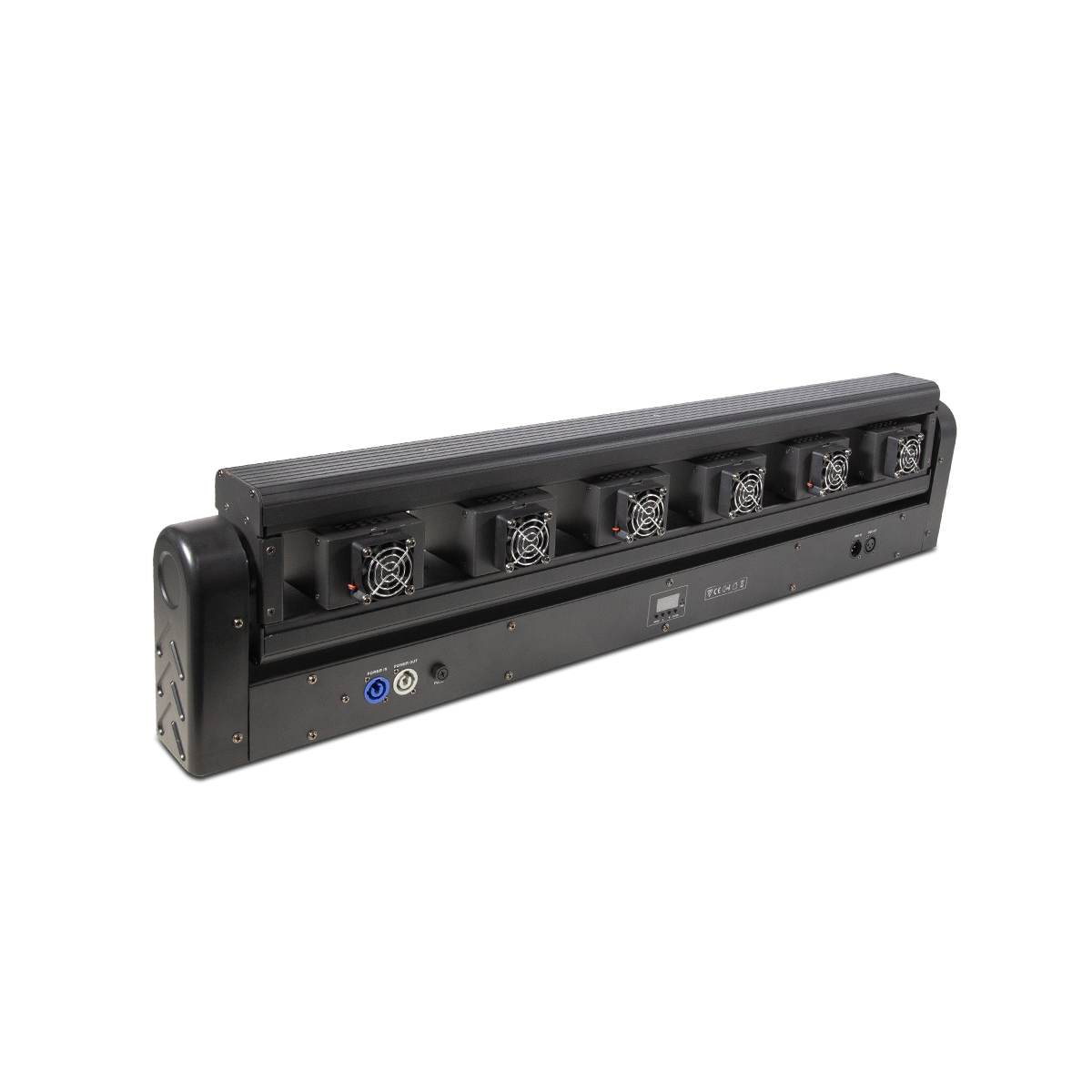

Razor RGB61000 is a moving head diode rotating laser bar equipped with 6 RGB beam laser outlets of 1000mW diodes each. This multi effect laser bar creates fans of large laser beams with broad projection of bright RGB color mixing. It is the ideal effect for stages, live gigs and nightclubs, as well as for TV Shows and show productions.

SKU: LBRGB61000PT Categories: ,

LASER

  • Source: 6 x 1000 mW diodes
  • Power: 6 watts
  • Red power/wavelength: 260mW 638nm
  • Green power/wavelength: 340mW 515nm
  • Blue power/wavelength: 400mW 450nm
  • Color mixing: RGB
  • Beam size: 3.5cm at 3m distance
  • Laser safety: Class 3B
  • Life expectancy: 2000 Hrs.

DYNAMIC EFFECTS

  • Color mixing: RGB
  • Individual diode output control
  • Individual diode pan
  • Electronic strobe: 0-23 Hz
  • Built-in dynamic macros

CONTROL & PROGRAMMING

  • Control protocols: DMX, Auto, Sound, Master-slave
  • Display: LED display with 4 control buttons
  • DMX channels: 9, 19-1, 19-2, 32 CHs

MOVEMENT

  • Pan: 240°
  • Tilt: 90°

ELECTRICAL

  • Input voltage: AC100-240V 50/60Hz
  • Power consumption: 120 watts

CONNECTIONS

  • DMX connections: 3 pin XLR In/Out male and female
  • Power connections: PowerCon In/Out

PHYSICAL

  • Dimensions: 1000 x 146.6 x 223mm
  • Net weight: 14.2 Kg
  • Color: Black
  • IP rating: 20
  • Operating temperature: 10°C/40°C
