RoS - MIRAGE - 800W LED Profile

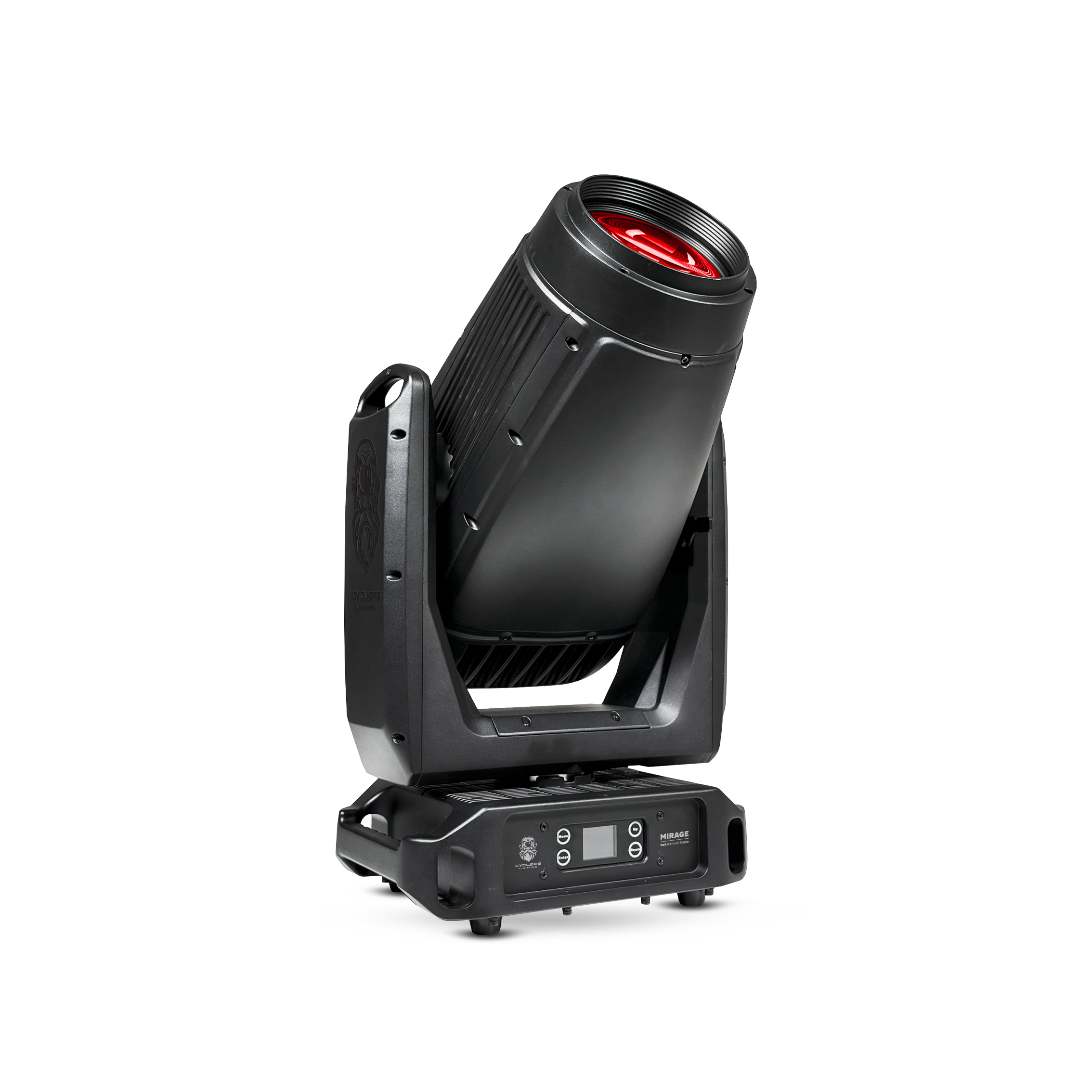

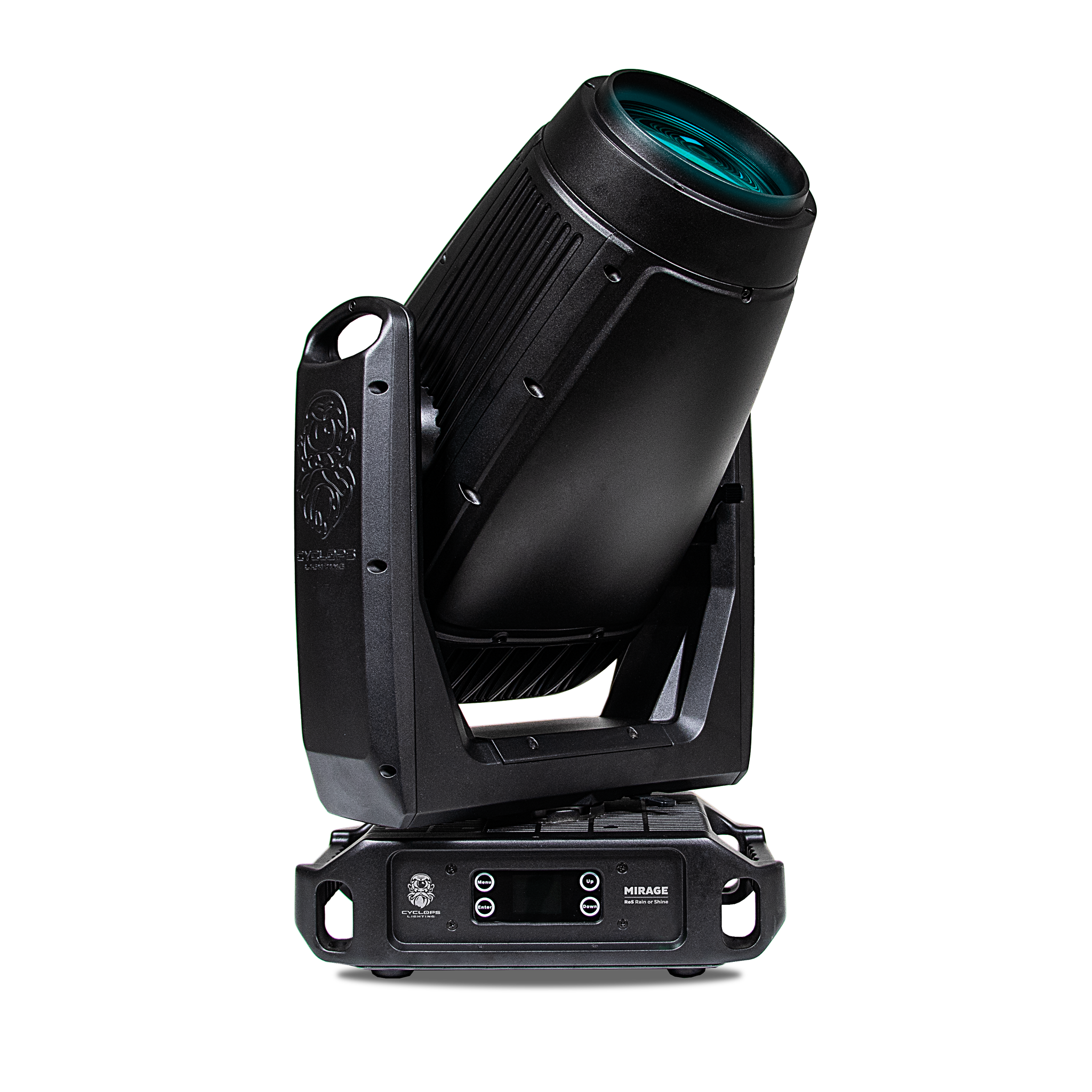

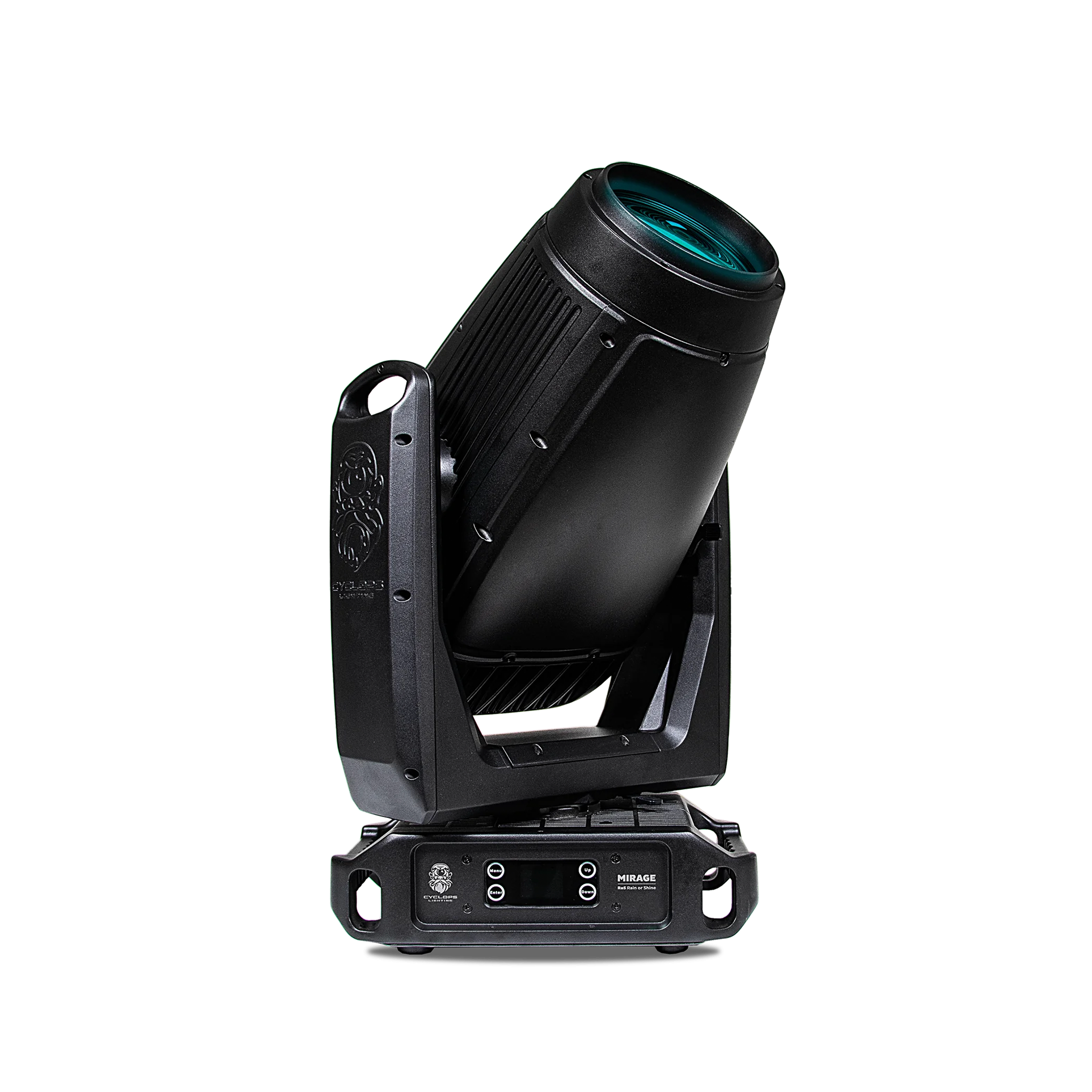

RoS – MIRAGE

800W LED Profile

The RoS (Rain or Shine) MIRAGE is a high-performance 800W LED profile fixture engineered for professional applications. As a key fixture in the RoS series, the Mirage is built with an IP65 housing to withstand the most demanding environments, combining the functionality of a Beam, Spot and Wash light into a single fixture. This versatility is complemented by a precise four-blade motorized framing system for complete control over the beam shape and a graphic animation wheel, with continuous rotation in both directions that can be used alone or in combination with gobos to create stunning water wave effects. An indispensable tool for a wide range of creative outdoor and large venue lighting designs.

SKU: ROSMIRAGE Categories: LED Moving Heads, Moving Tag: NEW Series: RoS

SOURCE

Light Source: 800W LED Engine
Total Output: 52,500 lumens
Color Temperature: 7,000K
Life Expectancy: up to 20,000 hours

OPTICAL SYSTEM

Frontal Lens: 145mm (diameter)
Zoom Range: 4.5˚ to 50˚
Iris: 15% to 100%

DYNAMIC EFFECTS

CMY Mixing: Linear CMY color mixing
CTO Correction: Linear CTO (2,700K – 7,000K)
Color Wheel: 5 colors + CRI filter
CRI Mode (Standard): Ra $> 70$
CRI Mode (HCRI): Ra $\geq 90$
Static Gobo Wheel: 8 gobos (Gobo $Φ15 mm$ , Image: $Φ13 mm$ )
Rotating Gobo Wheel: 7 gobos, plus open
Prism: 2 Combinable Rotating and Indexable (4-facet and 4-mirror, rotatable in both directions)
Filter: 1 combinable medium frost filter
Animation Wheel
