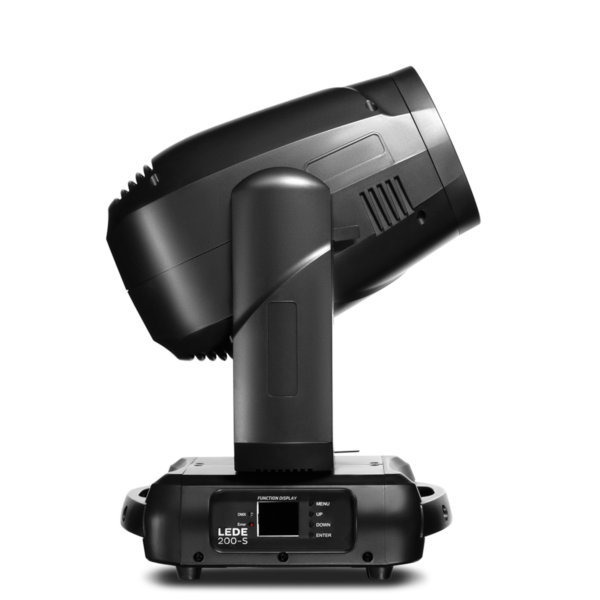

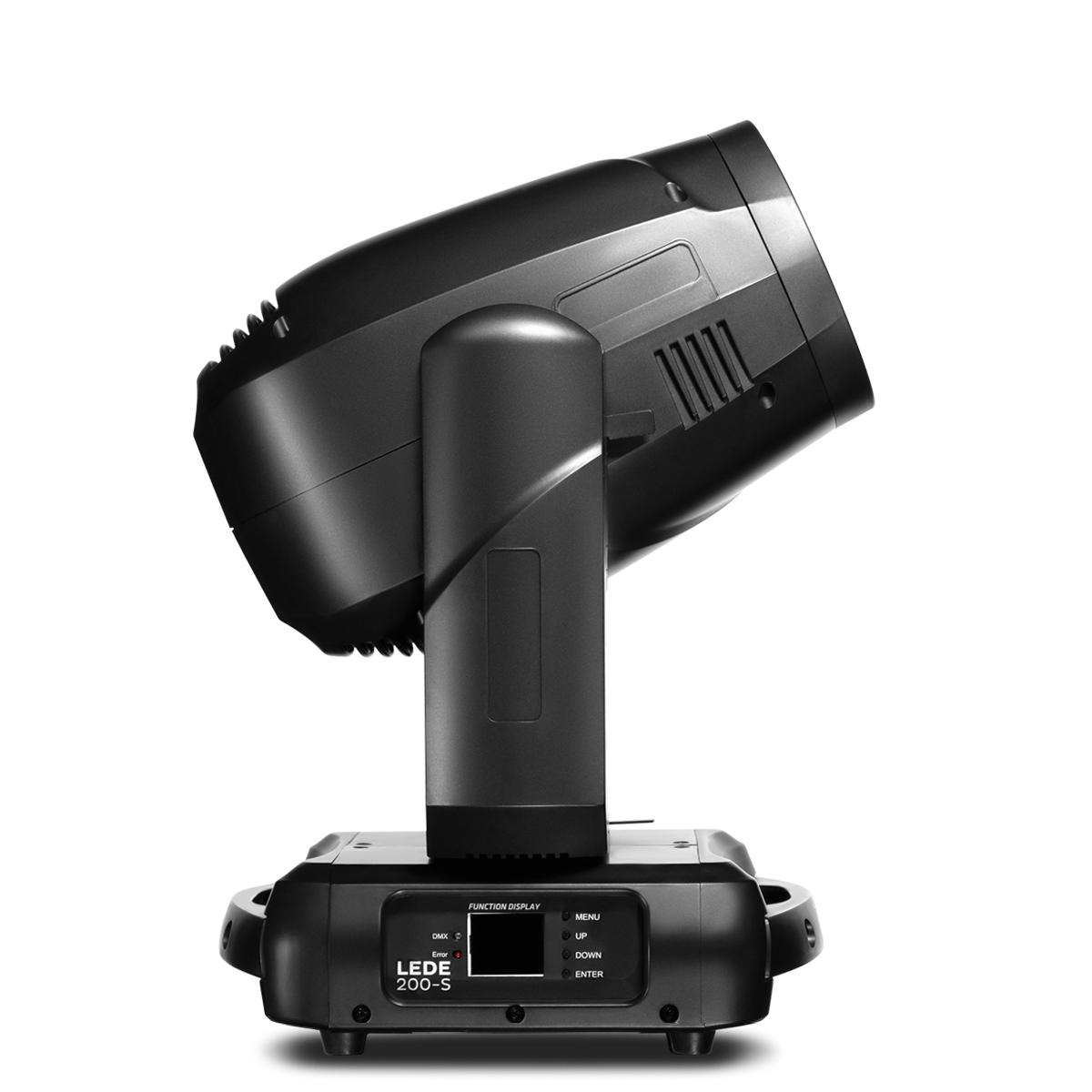

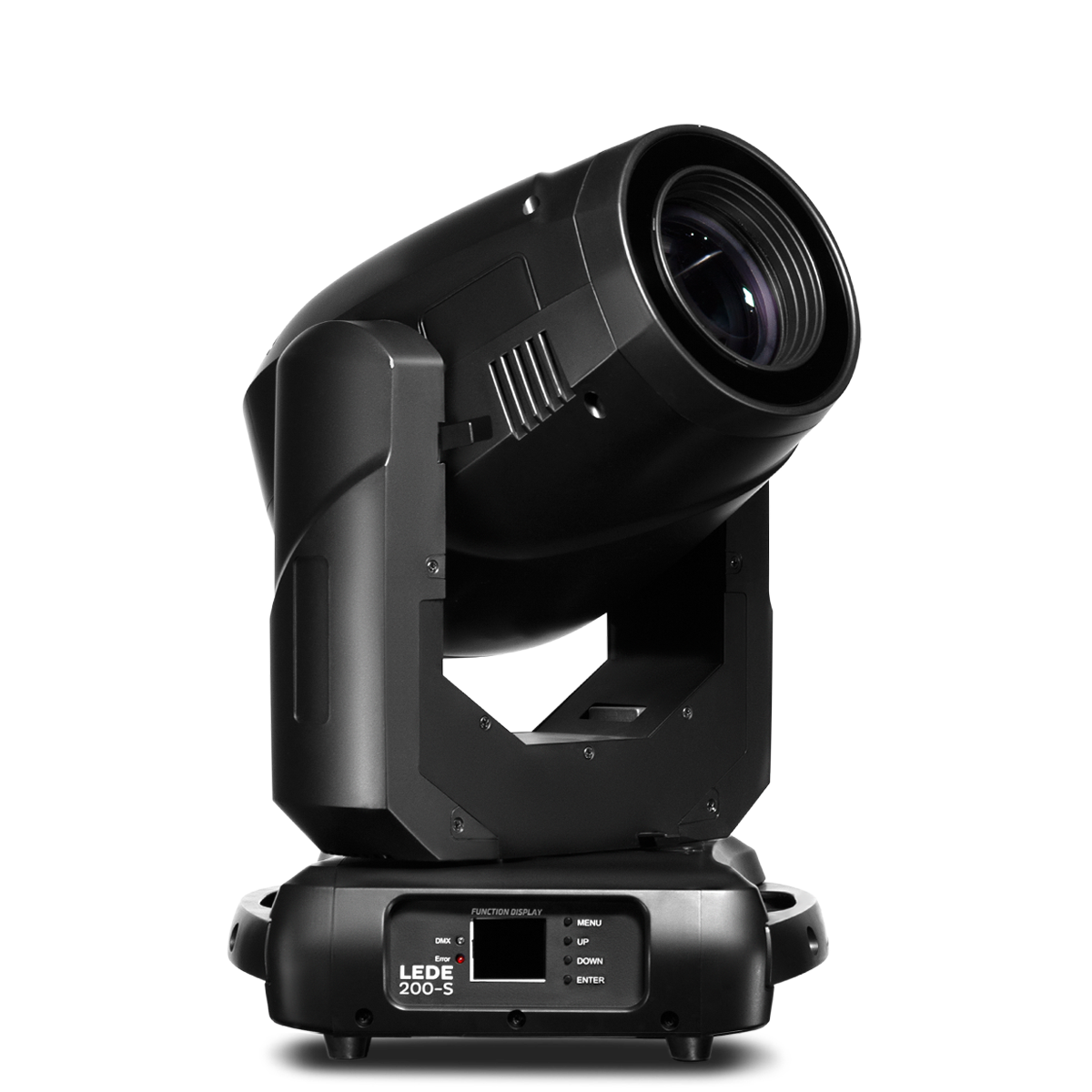

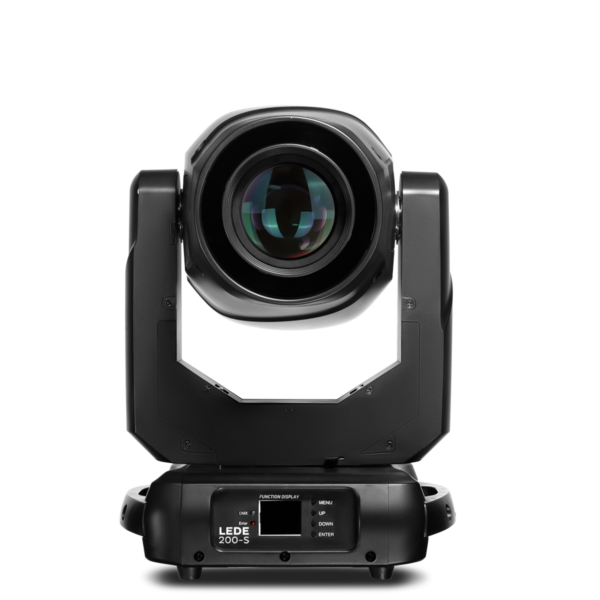

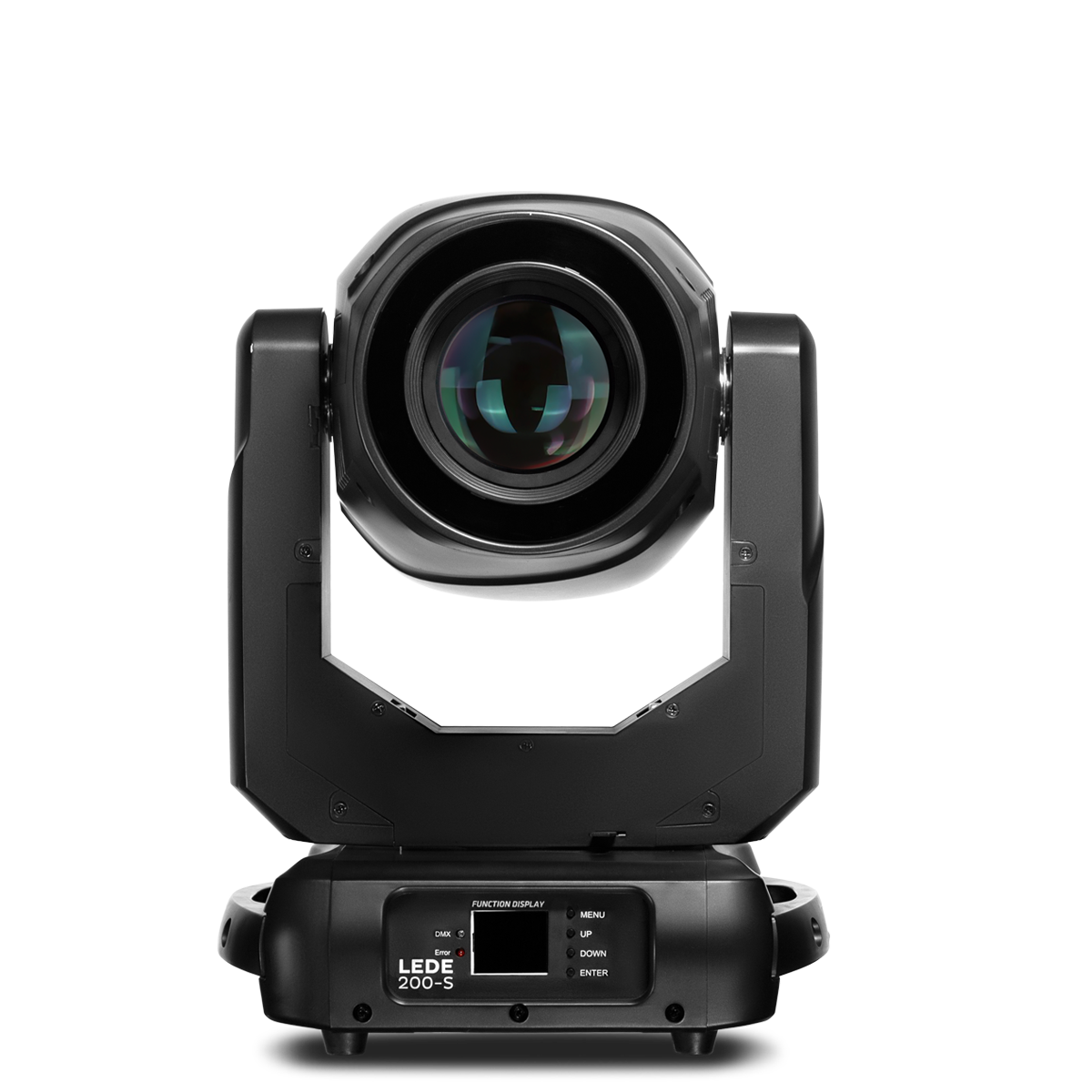

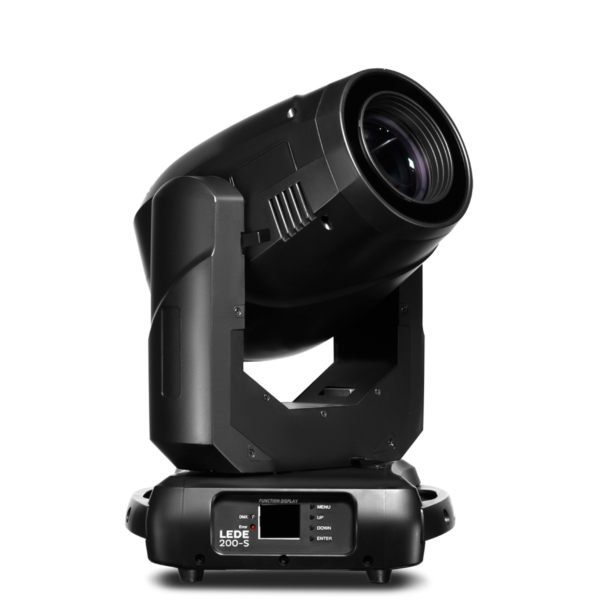

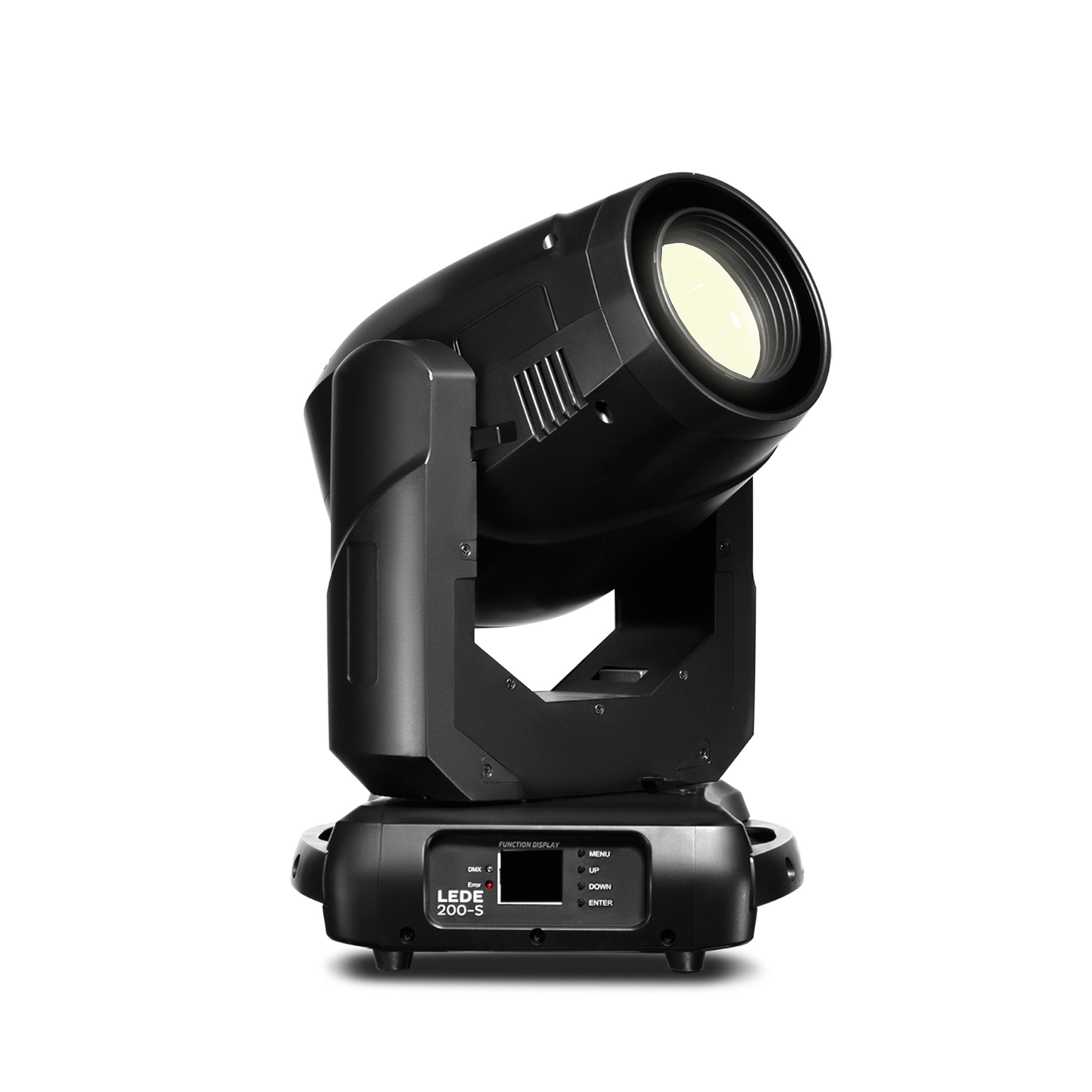

LEDE 200S

200 watts LED Spot moving head

LEDE 200S is a 200 watts LED spot moving head . It has a powerful spot output that varies from 7° to 20° zoom angle. This LED moving head delivers a wide variety of output and creative effects which makes it perfect application for indoor venues and entertainment applications.

Videos

SOURCE

  • Light source: 200 watts white LED
  • LED life expectancy: 50,000 Hrs.
  • Color temperature: 6600K
  • CRI 70

OPTICAL SYSTEM

  • Beam angle: 7° to 20°
  • Electronic focus

DYNAMIC EFFECTS

  • Dimmer: linear adjustment
  • Color wheel: 9 colors + open
  • Electronic variable strobe
  • Static gobo: 9 gobos +open
  • Rotating gobo: 7 gobos + open
  • Gobo shake functions
  • Prism: 3-facet circular prism
  • Frost

CONTROL & PROGRAMMING

  • Control protocols: DMX, Sound, Master-Slave, Auto Run
  • Control channels: 18 CHs

MOVEMENT

  • Pan: 540o
  • Tilt: 270o
  • Resolution: 16 bit

ELECTRICAL

  • Input voltage: 100-240V/50-60Hz
  • Power consumption: 200 watts

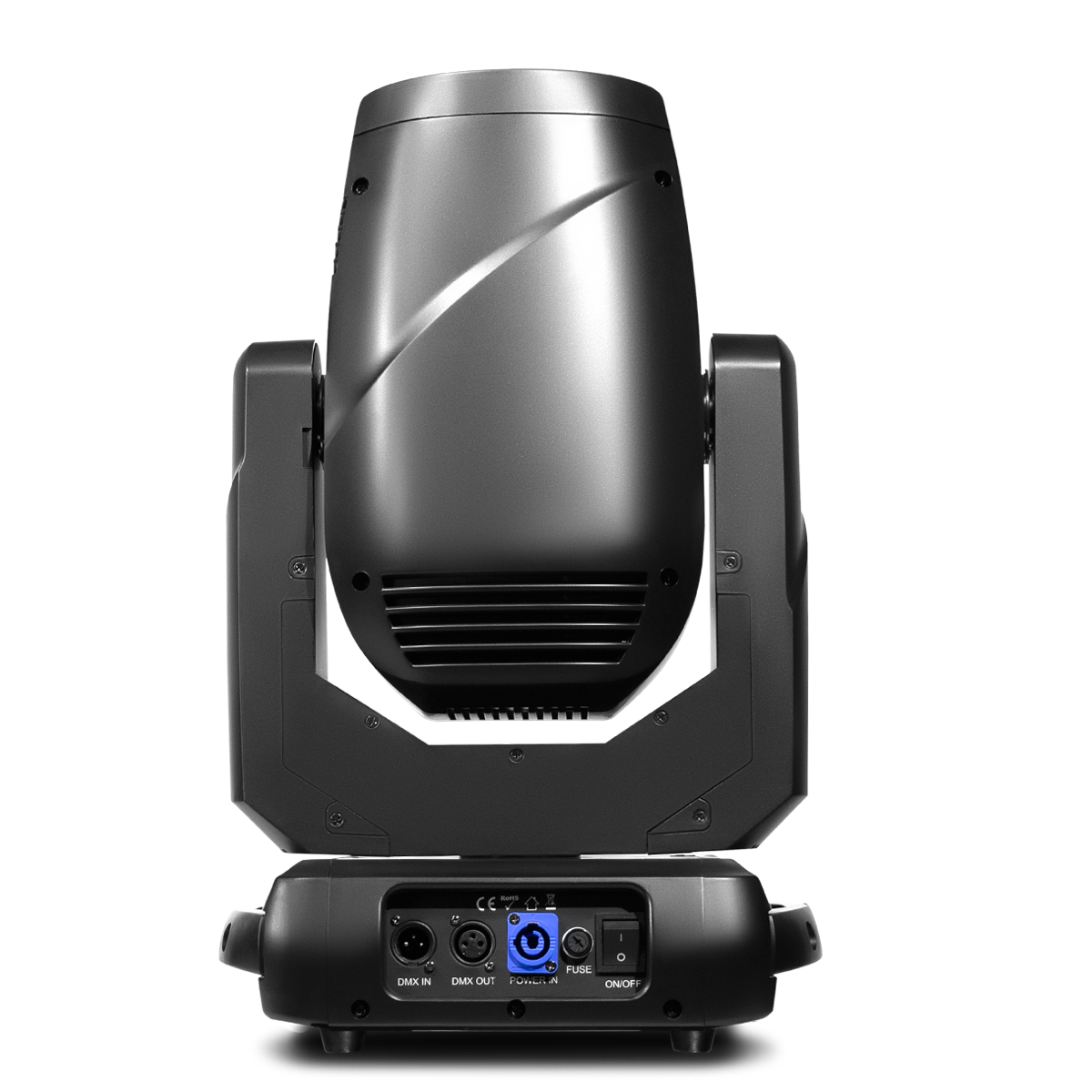

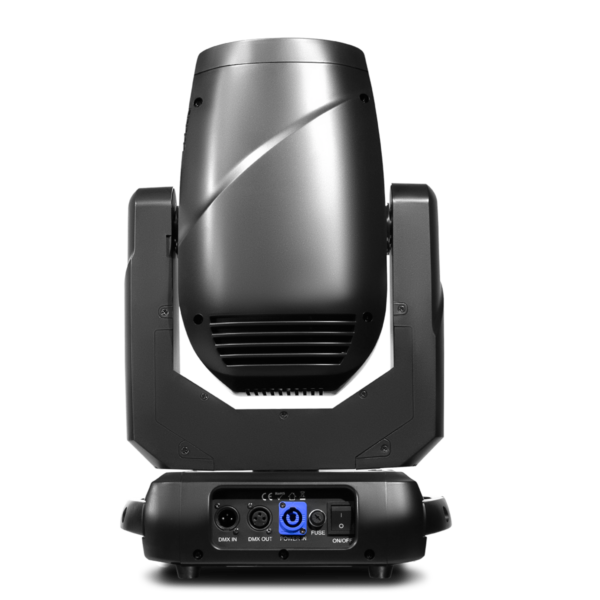

CONNECTIONS

  • DMX connections: 3 pin XLR In/Out male and female
  • Power connections: PowerCon In

PHYSICAL

  • Dimensions: 334 x 270 x 509mm
  • Net weight: 13.7 Kg
  • Color: Black
  • IP rating: 20
