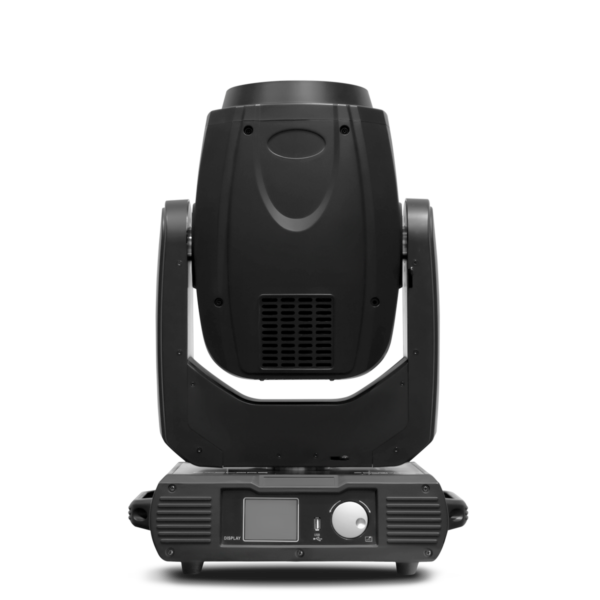

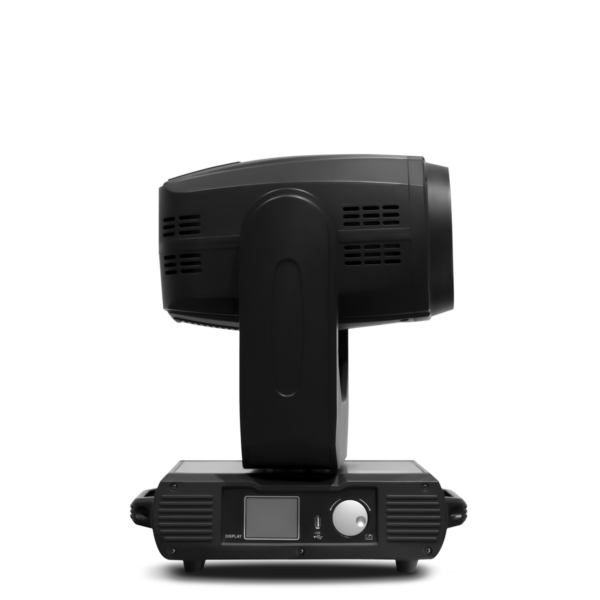

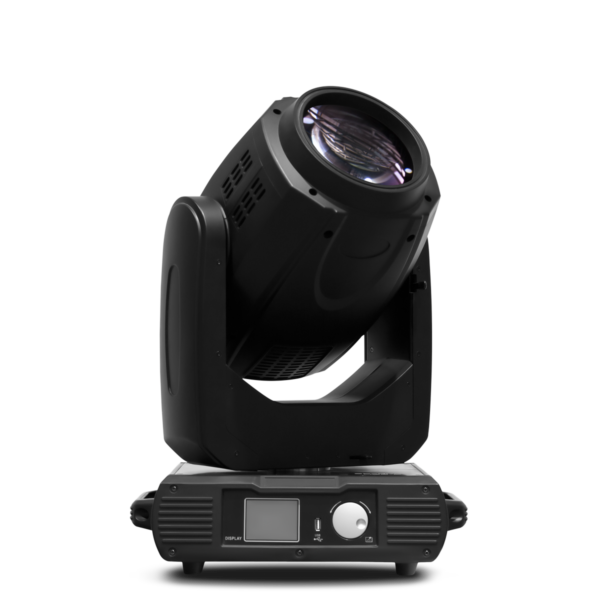

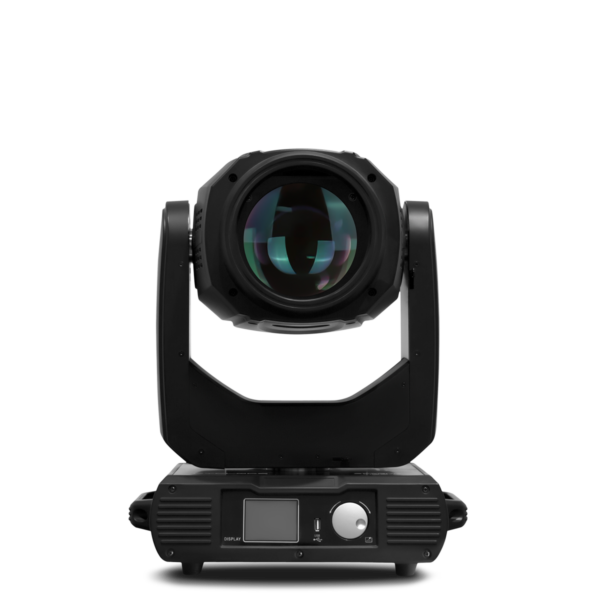

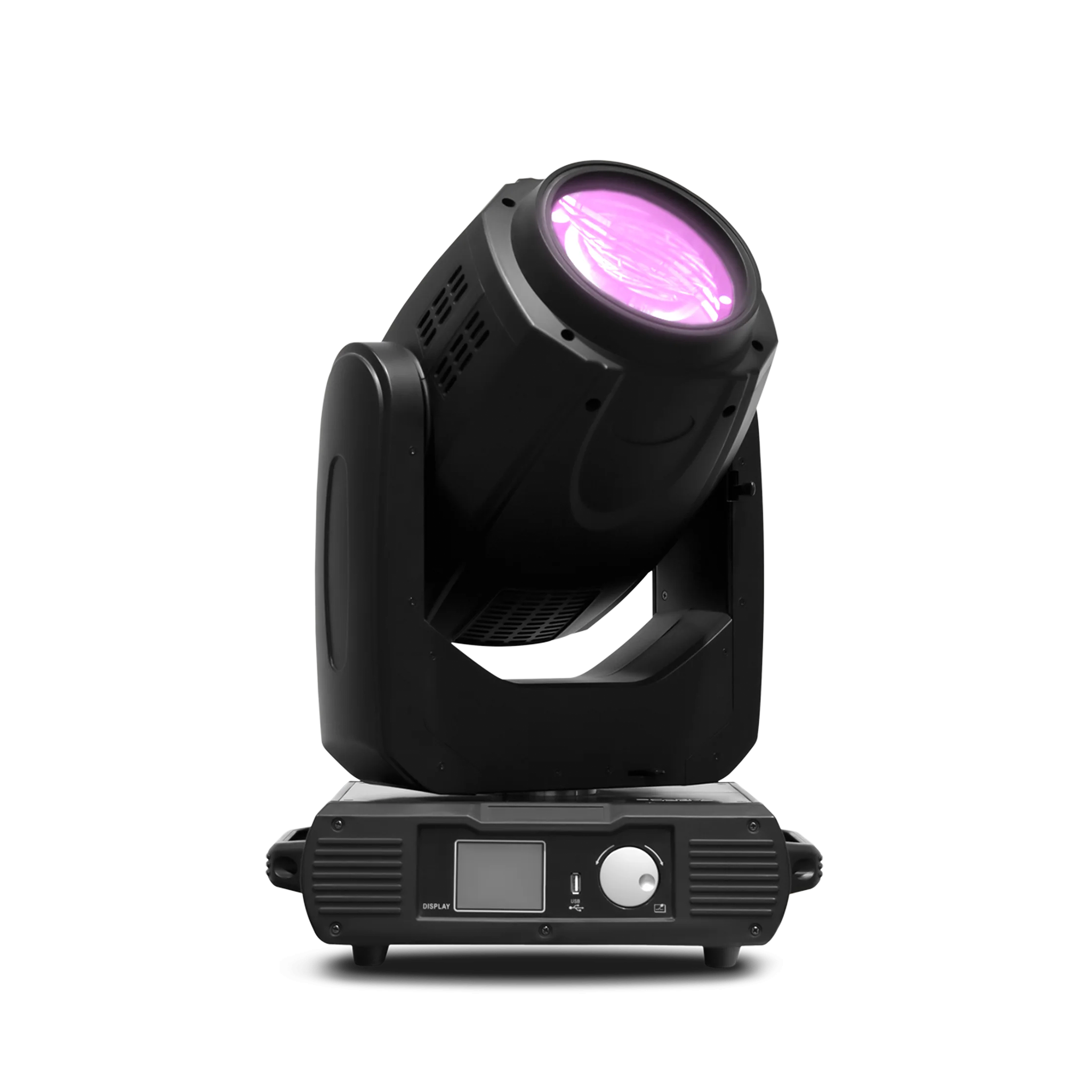

SPARKLY 440B

SPARKLY 440B

High Power Beam Moving Head

SPARKLY 440B is a sharp and super bright 400 watts beam moving head. It features a narrow beam angle of 4° or 6° and delivers high light output and a wide variation of effects with 14 different colors, 14 gobos, two combinable prism wheels offering 11 possible combinations and 1 animation wheel.

SKU: Sparkly440B Categories: ,

SOURCE

  • Light source: 400 watts
  • Lamp life expectancy: 1,500 Hrs.

OPTICAL SYSTEM

  • Beam angle: 4° and 6°
  • Light output: 390,000 Lux @ 10m @ 4°
  • Electronic focus

DYNAMIC EFFECTS

  • Dimmer: Linear adjustment
  • Color wheel: 14 colors + open
  • Electronic variable strobe
  • Static gobo: 14 gobos + open
  • Gobo shake function
  • Prism 1: 16 facet prism – 6 linear facet prism – Frost
  • Prism 2: 32 facet prism – 6 linear facet prism – 1 double prism (6+12)
  • Prism are combinable with independant rotation

CONTROL & PROGRAMMING

  • Control protocols: DMX
  • Display: 2.8’ full color touch screen, reversible 180°
  • Control channels: 16, 19 CHs

MOVEMENT

  • Pan: 540°
  • Tilt: 280°
  • Resolution: 16 bit

ELECTRICAL

  • Input voltage: 100-240V/50-60Hz
  • Power consumption: 600 watts

CONNECTIONS

  • DMX connections: 3 pin and 5 pin XLR In/Out male
    and female
  • Power connections: PowerCon In

PHYSICAL

  • Dimensions: 410 x 350 x 592mm
  • Net weight: 20 Kg
  • Color: Black
  • IP rating: 20
