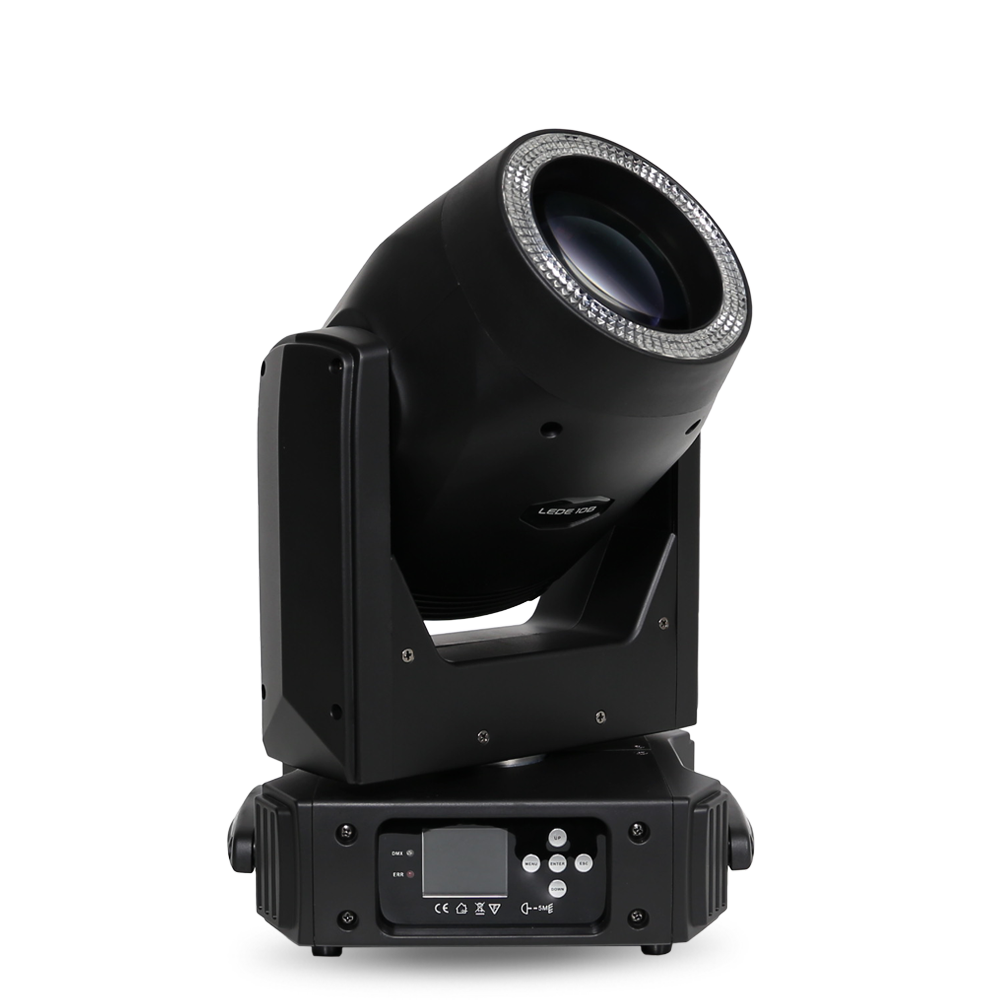

lede 10b tilted
lede 10b front

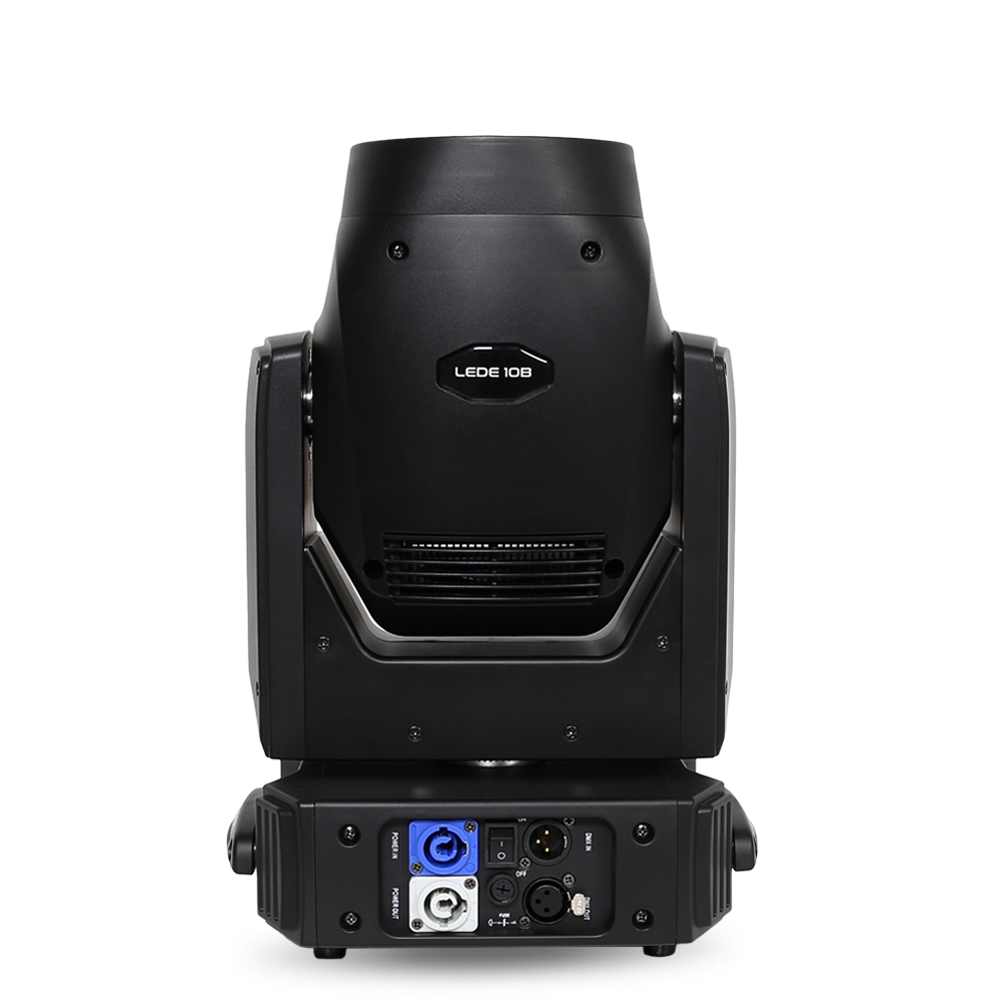

lede 10b back

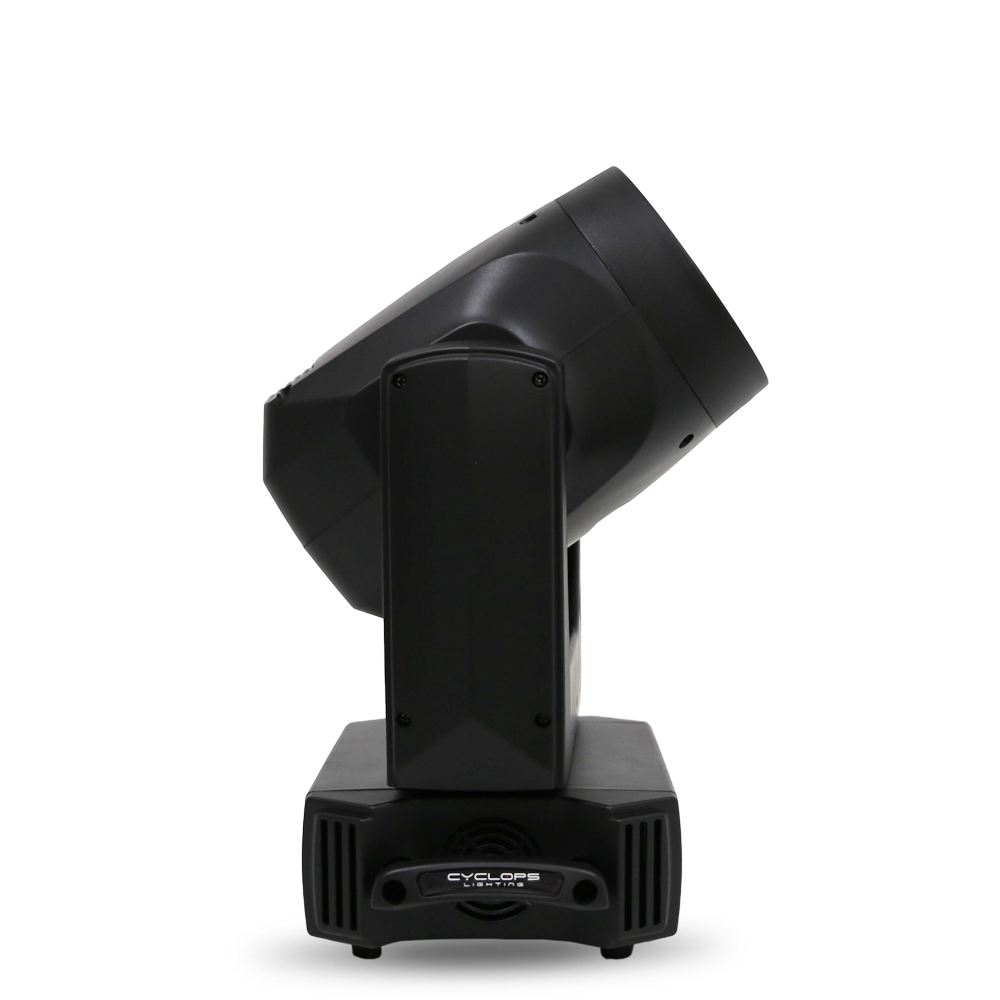

lede 10b side

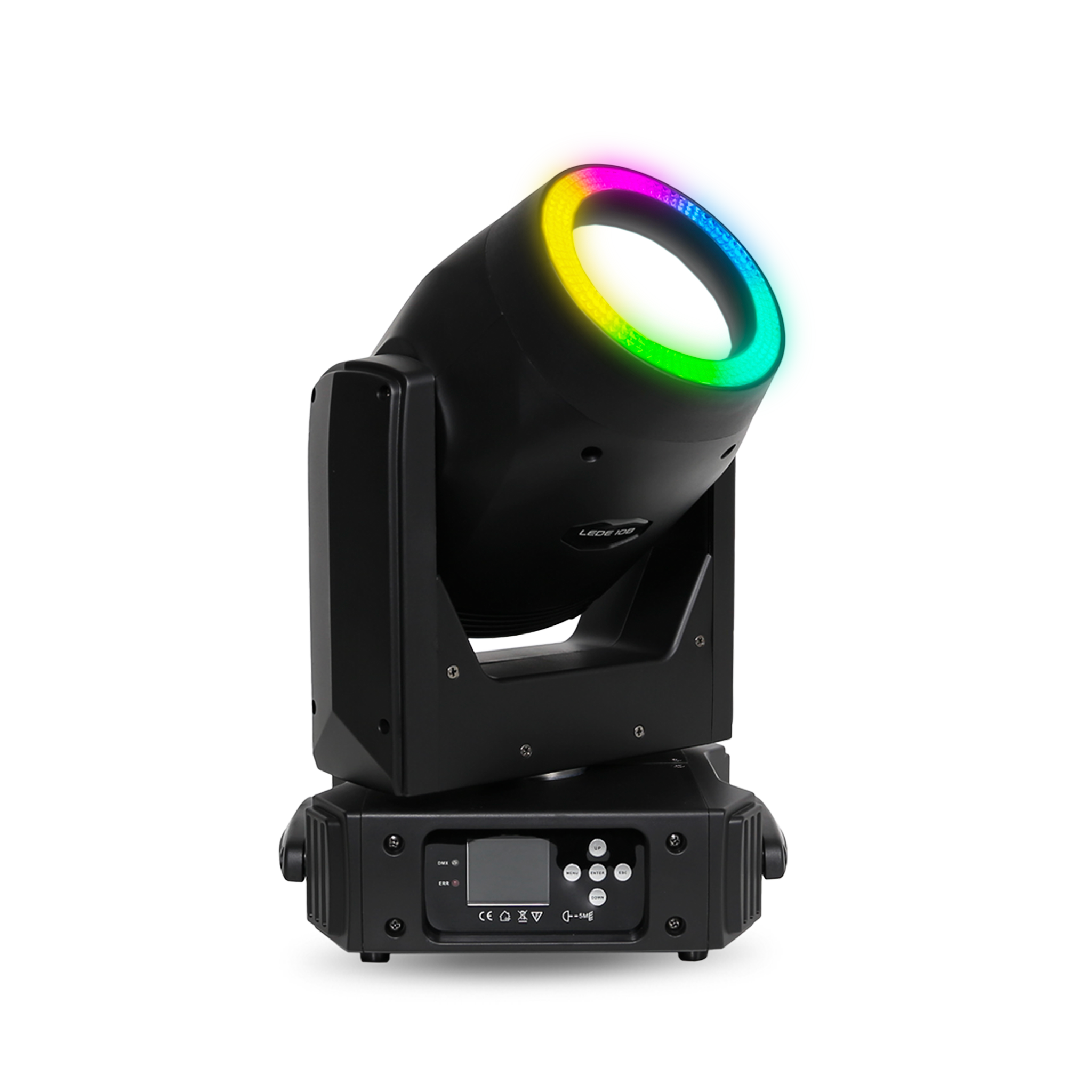

LEDE 10B

LEDE 10B

100 watts LED Beam Moving Head

LEDE 10B is a 100 watts LED Beam moving head with RGB Front Face Ring. It’s compact in size, fast in movement and delivers a bright output. With a narrow 2° beam angle, 13 colors, 19 gobos, 2 prisms and a pixel RGB font ring, this beam is out of the box ready to delivery aerial and dynamic effects in small venues, lounges and clubs.

SKU: LEDE10B Categories: ,

SOURCE

  • Light source: 100 watts white LED
  • LED life expectancy: 50,000 Hrs.
  • Color temperature: 7500K

OPTICAL SYSTEM

  • Beam angle: 2°
  • Electronic focus

DYNAMIC EFFECTS

  • Dimmer: Linear adjustment
  • Color wheel: 13 colors + open
  • Electronic variable strobe
  • Static gobo: 19 gobos + open
  • Prism: 3-facet and 8-facet prism
  • Pixel controlled Front Face Ring with built-in effects

CONTROL & PROGRAMMING

  • Control protocols: DMX, Auto Run
  • Control channels: 20, 28 CHs

MOVEMENT

  • Pan: 540°
  • Tilt: 270°
  • Resolution: 16 bit

ELECTRICAL

  • Input voltage: 100-240V/50-60Hz
  • Power consumption: 200 watts

CONNECTIONS

  • DMX connections: 3 pin XLR In/Out male and female
  • Power connections: PowerCon In/Out

PHYSICAL

  • Dimensions: 182 x 263 x 381mm
  • Weight: 7.9kg
  • Housing: Plastic
  • Color: Black
  • IP rating: 20

Download
