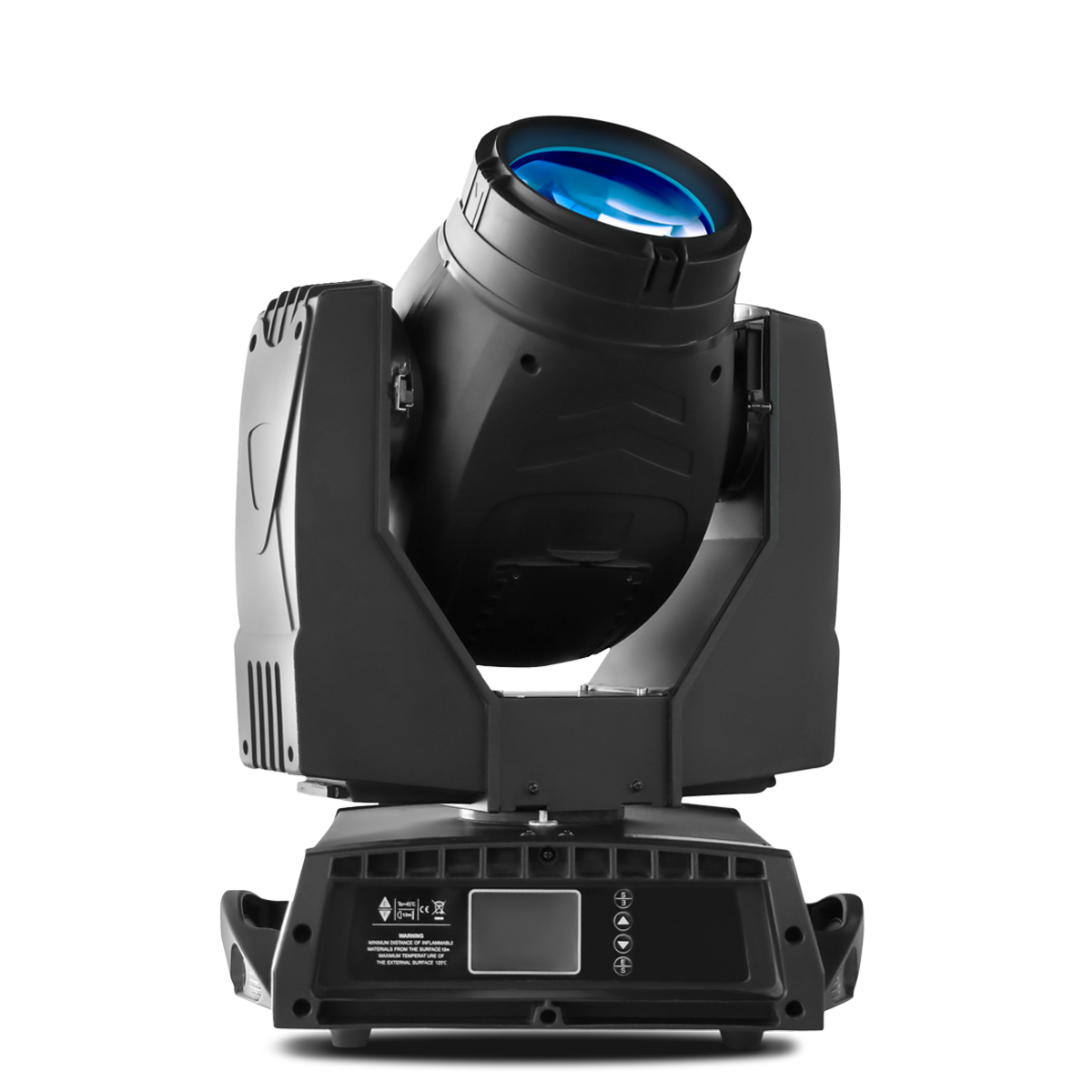

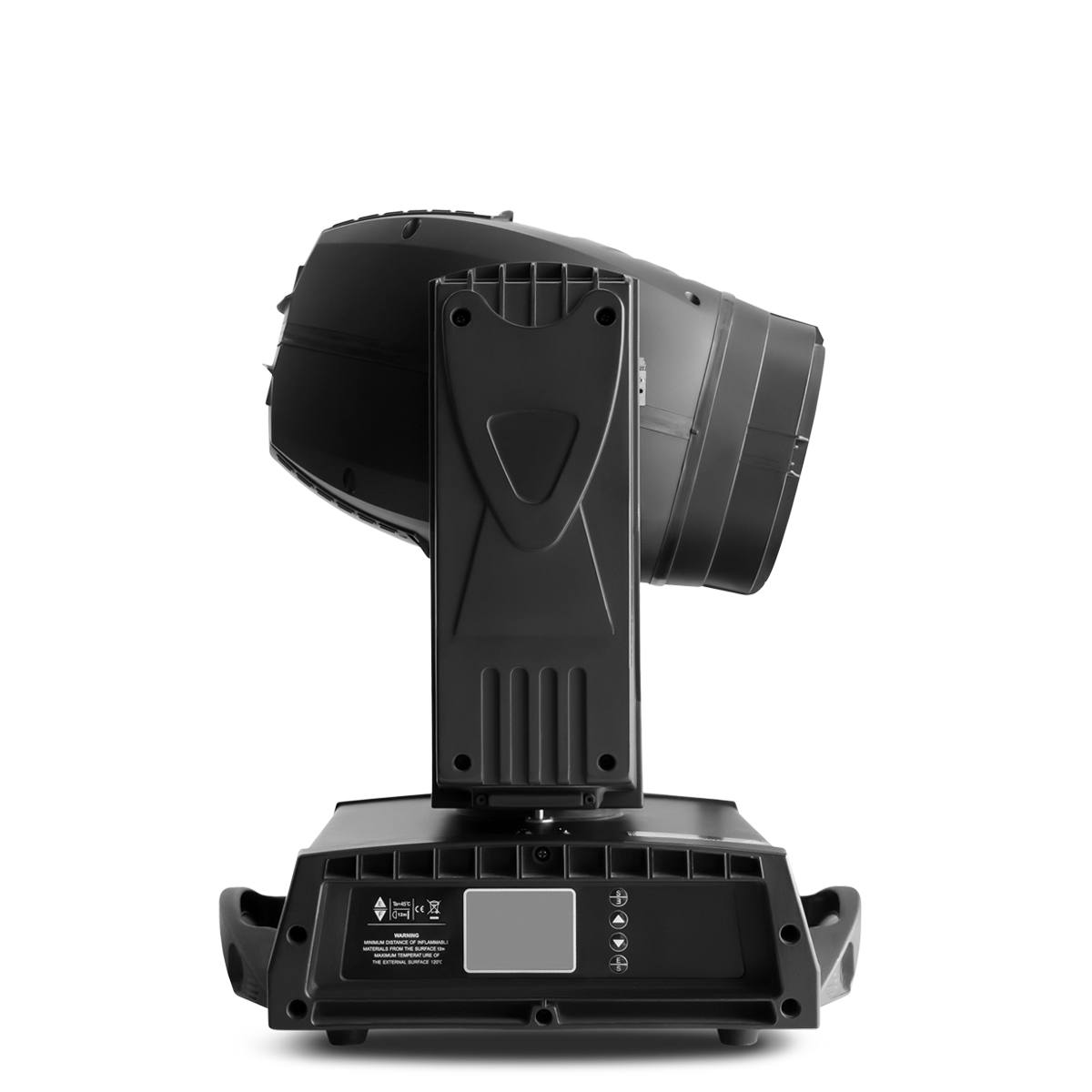

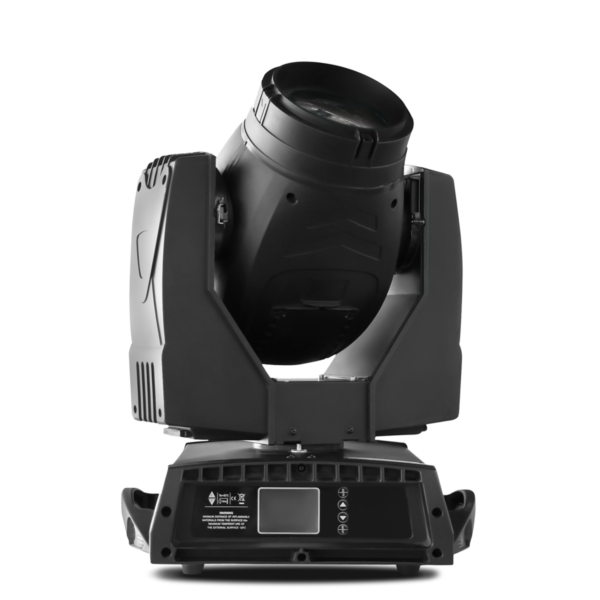

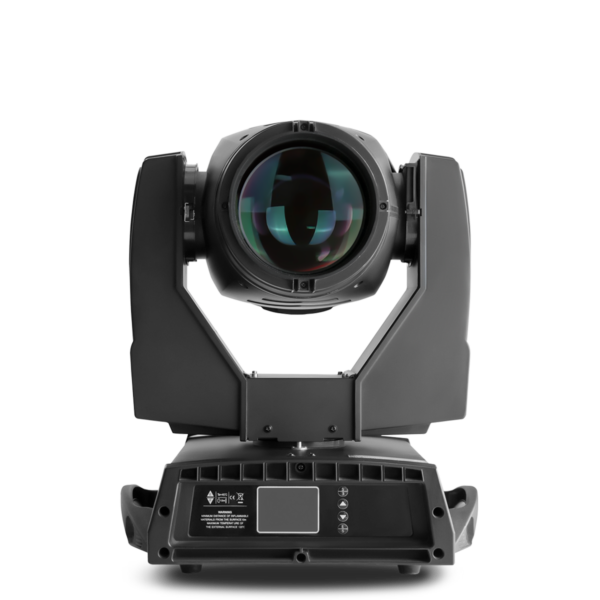

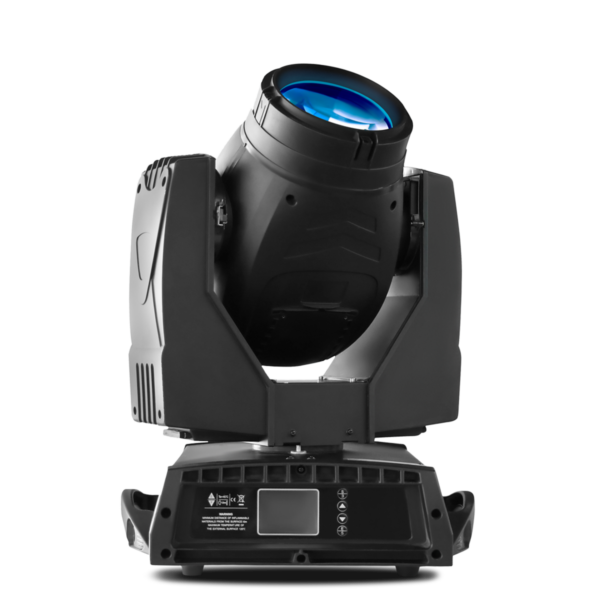

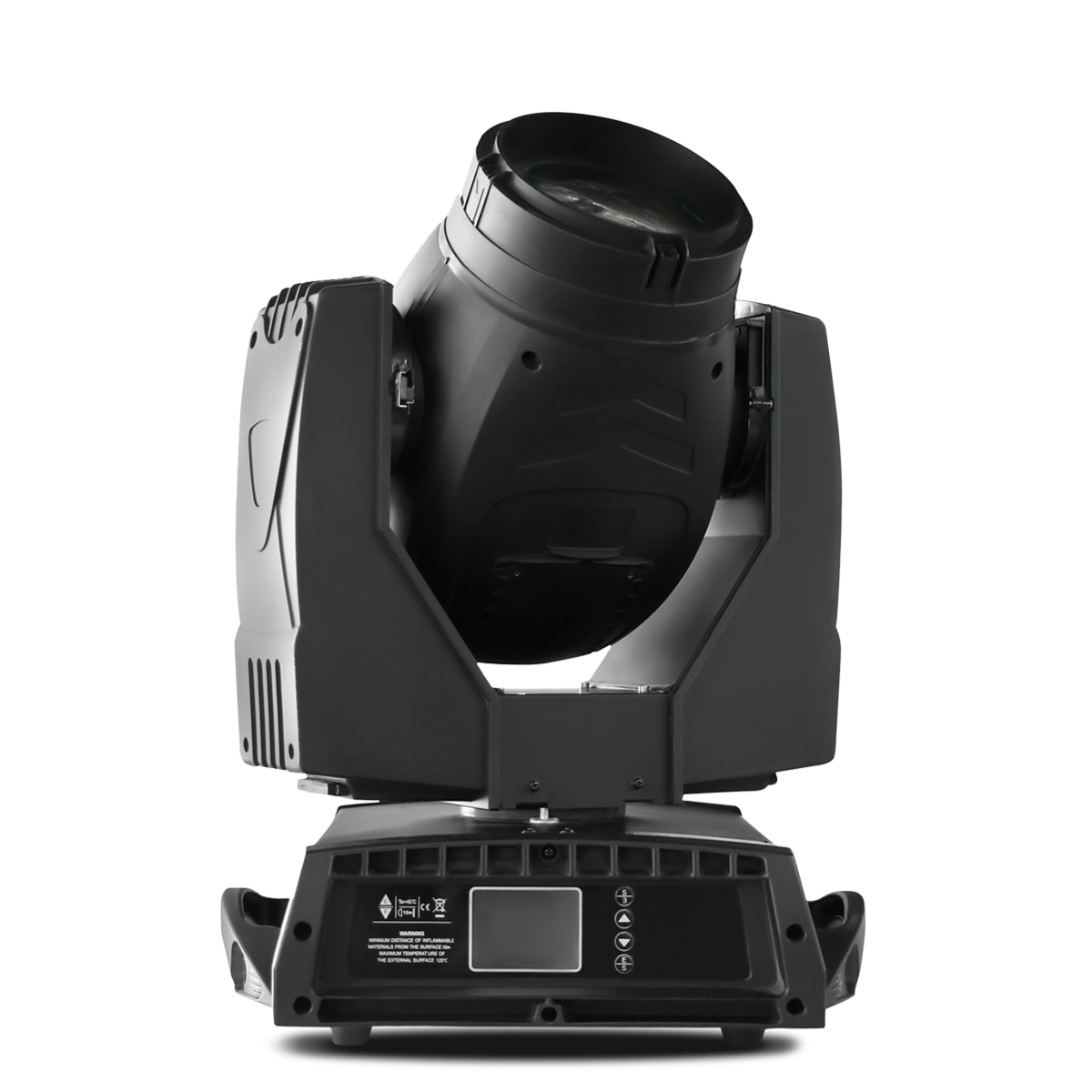

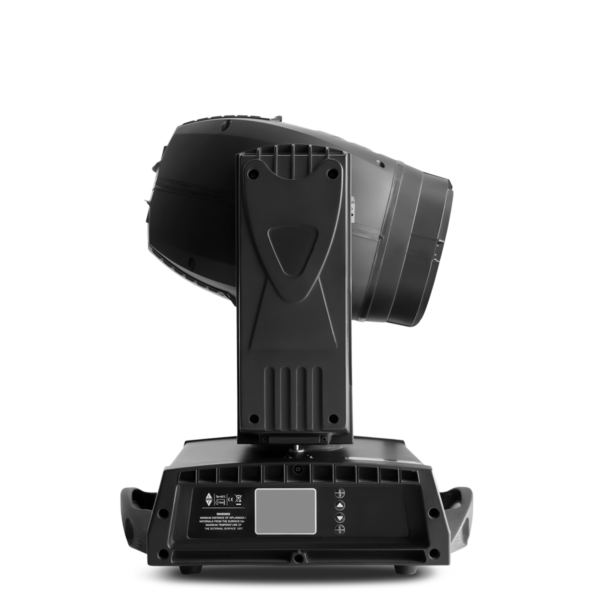

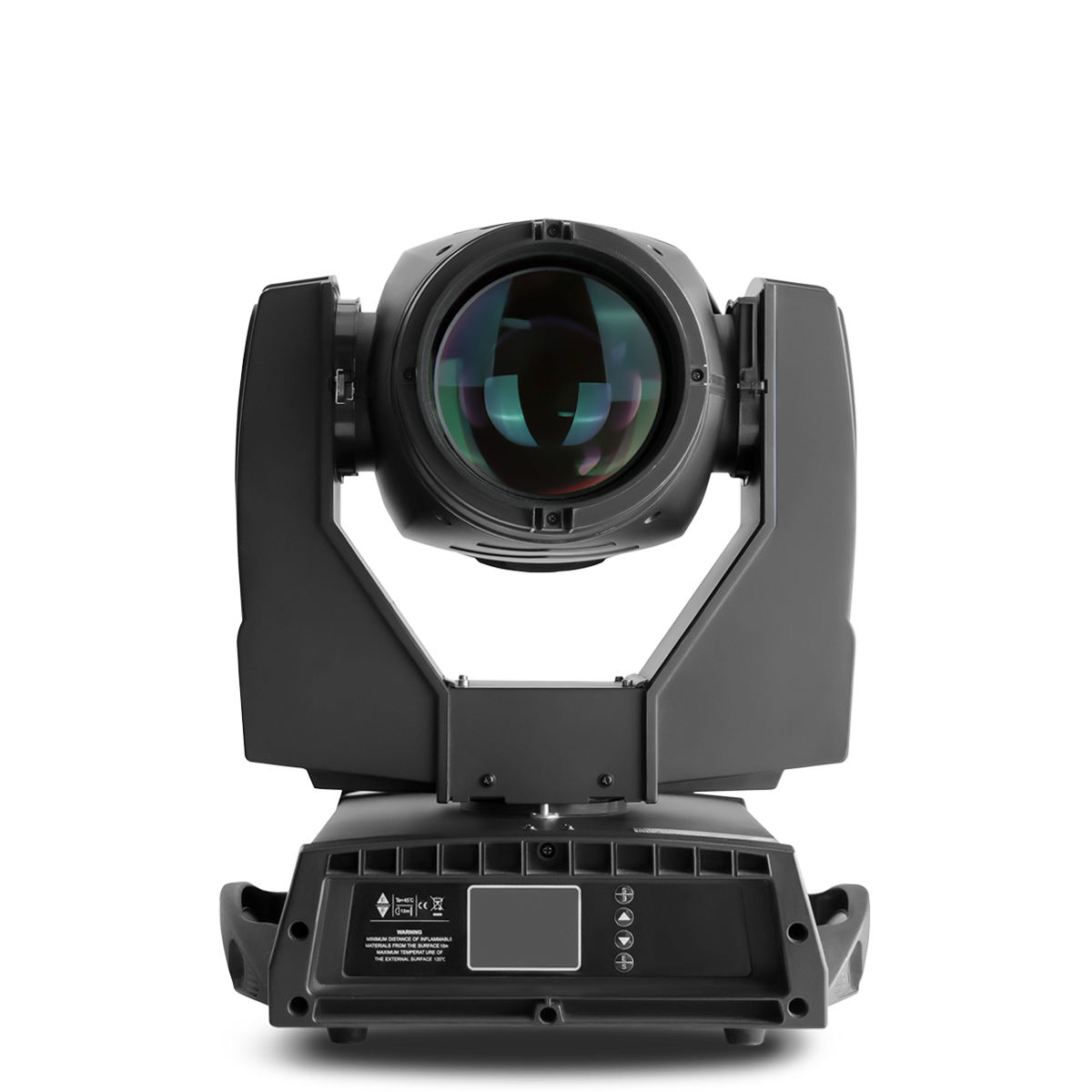

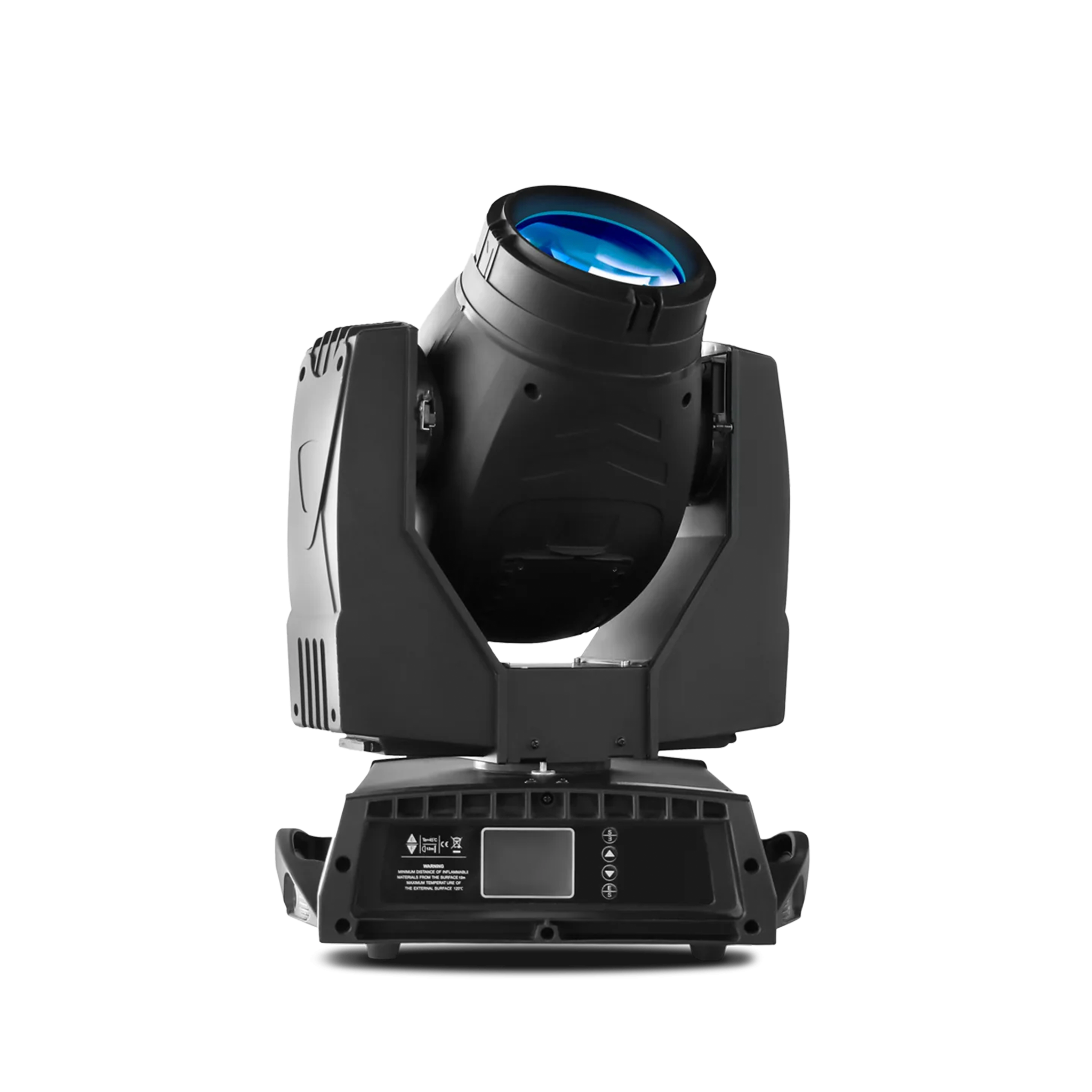

AQUARAY 400B

AQUARAY 400B

Outdoor Beam Moving Head

Aquaray 400B is an outdoor lamp beam moving head with an IP 54 rating. It has a powerful beam output with a narrow angle of 1.3° coupled with a wide variety of lighting effects and color mixing effects. Built in a strong and compact housing this fixture is ideal for any indoor and outdoor venues and entertainment applications.

SKU: Aquaray400B Categories: Entertainment, Lamp Moving Heads

Videos

SOURCE

Light source: 330 watts
Lamp life expectancy: 2,000 Hrs.
Color temperature: 8000 K

OPTICAL SYSTEM

Beam angle: 1.3°
Light output: 318,000 lux @ 10 m @ 1.3°
Large 155 mm diameter front lens
Electronic focus

DYNAMIC EFFECTS

Dimmer: Linear adjustment
Color wheel: 14 colors + open
Strobe: 1-20 flashes per second with built-in macros
Static gobo: 16 gobos + open
Gobo shake function
Prism: 2 combinable prisms, 16-facet prism + 6 linear prism
Prism zoom effect
Frost effect with variable light

CONTROL & PROGRAMMING

Control protocols: DMX
Display: 2.8′ full color touch screen, reversible 180°
Control channels: 16, 17, 18, 20 CHs

MOVEMENT

Pan: 540°
Tilt: 280°
Resolution: 16 bit

ELECTRICAL

Input voltage: 100-240V/50-60Hz
Power consumption: 550 watts

CONNECTIONS

DMX connections: 3 pin XLR In/Out Male and Female
Power connections: IP rated PowerCon In

PHYSICAL

Dimensions: 400 x 372 x 540mm
Net weight: 20 Kg
Color: Black
IP rating: 54
