SOURCE
- Light source: OSRAM 380 watts
- Lamp life expectancy: 2,500 Hrs.
OPTICAL SYSTEM
- Beam angle: 4° to 37°
- Electronic focus
DYNAMIC EFFECTS
- Dimmer: Linear adjustment
- Color mixing: CMY
- CTO filter
- Color wheel: 11 colors + open
- Static gobo: 16 gobos + open
- Rotating gobo: 9 gobos + open
- Gobo shake function
- Prism: 2 rotatable and combinable prisms, 8-facet prism + 6 linear prism
- Frost
CONTROL & PROGRAMMING
- Control protocols: DMX, Wireless DMX
- Display: 2.8’ full color touch screen, reversible 180°
- Control channels: 21, 25 CHs
MOVEMENT
- Pan: 540°
- Tilt: 280°
- Resolution: 16 bit
ELECTRICAL
- Input voltage: 100-240V/50-60Hz
- Power consumption: 470 watts

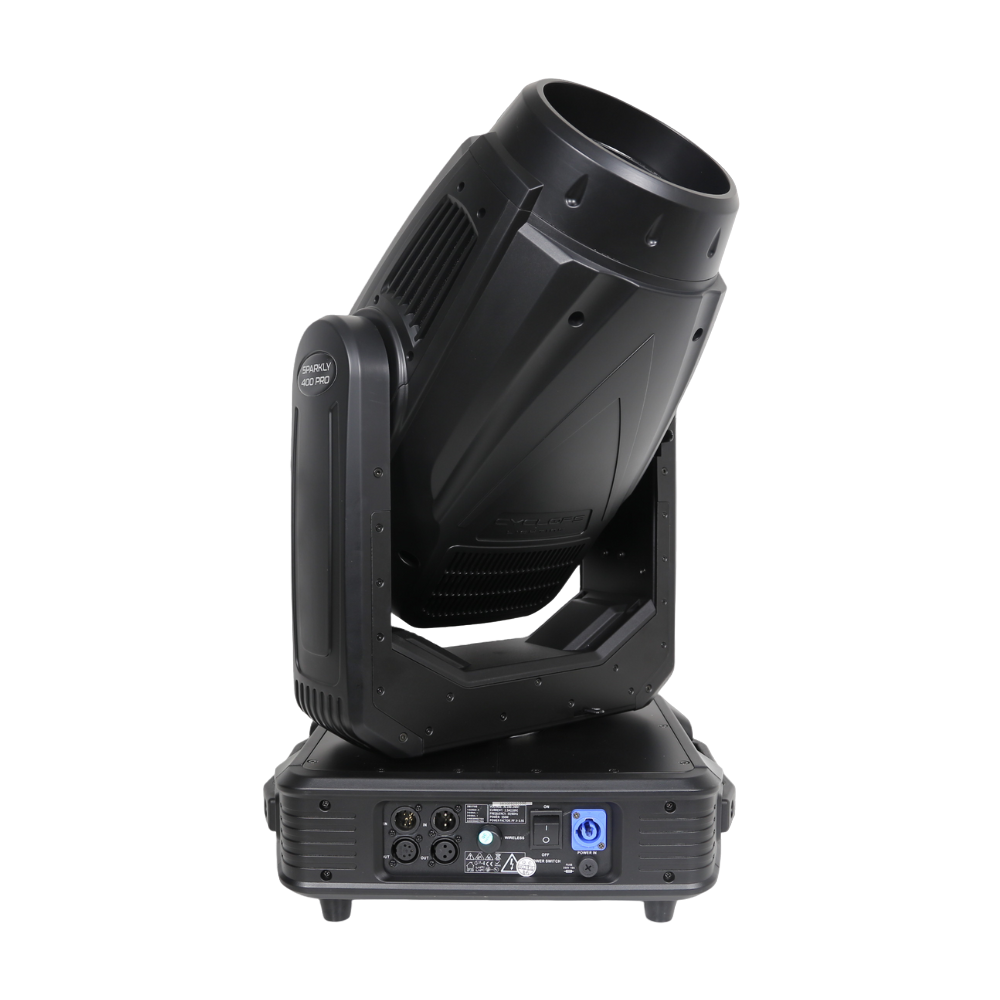

CONNECTIONS
- DMX connections: 3 pin and 5 pin XLR In/Out male and female
- Power connections: PowerCon In
PHYSICAL
- Dimensions: 410 x 250 x 690mm
- Net weight: 25 Kg
- Color: Black
- IP rating: 20
