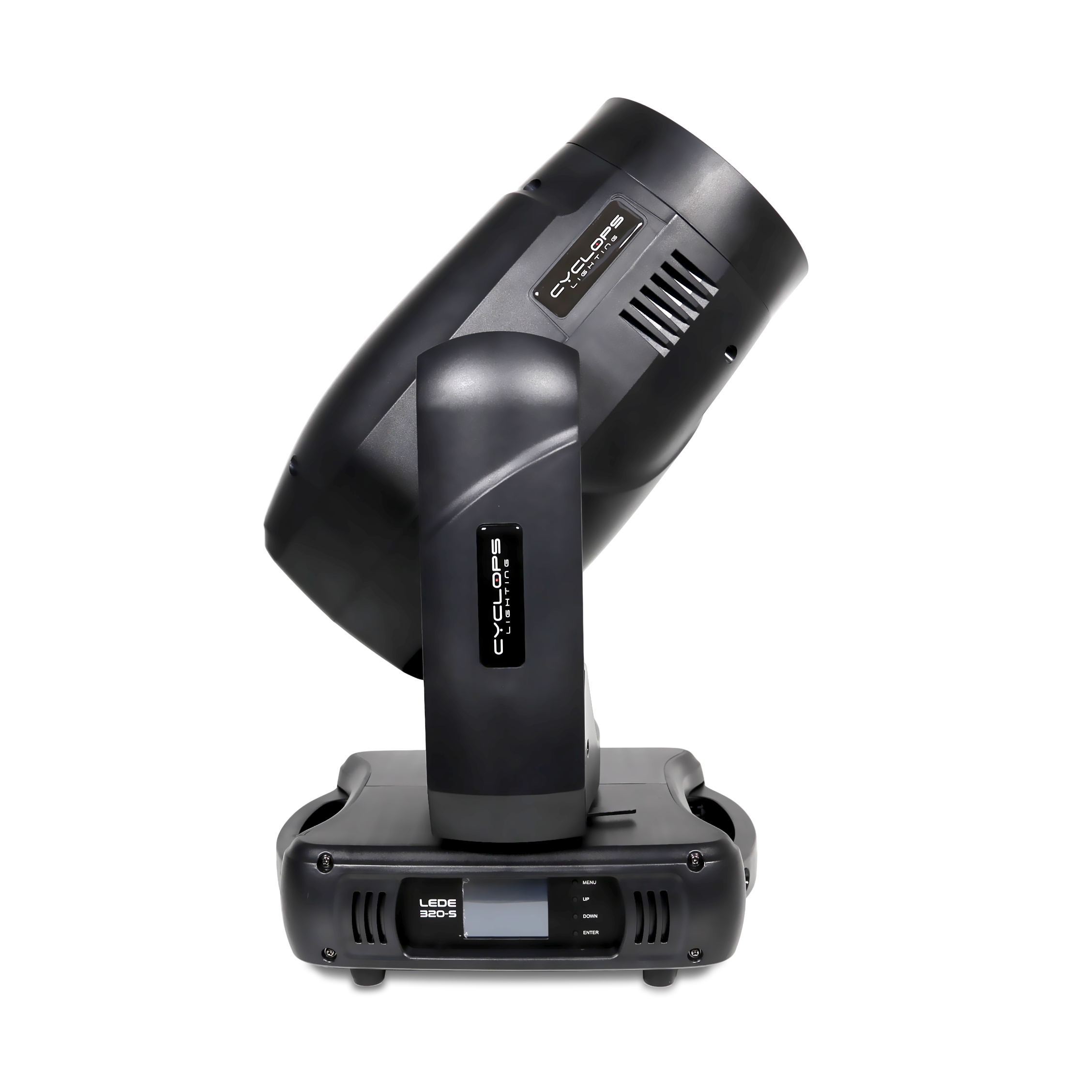

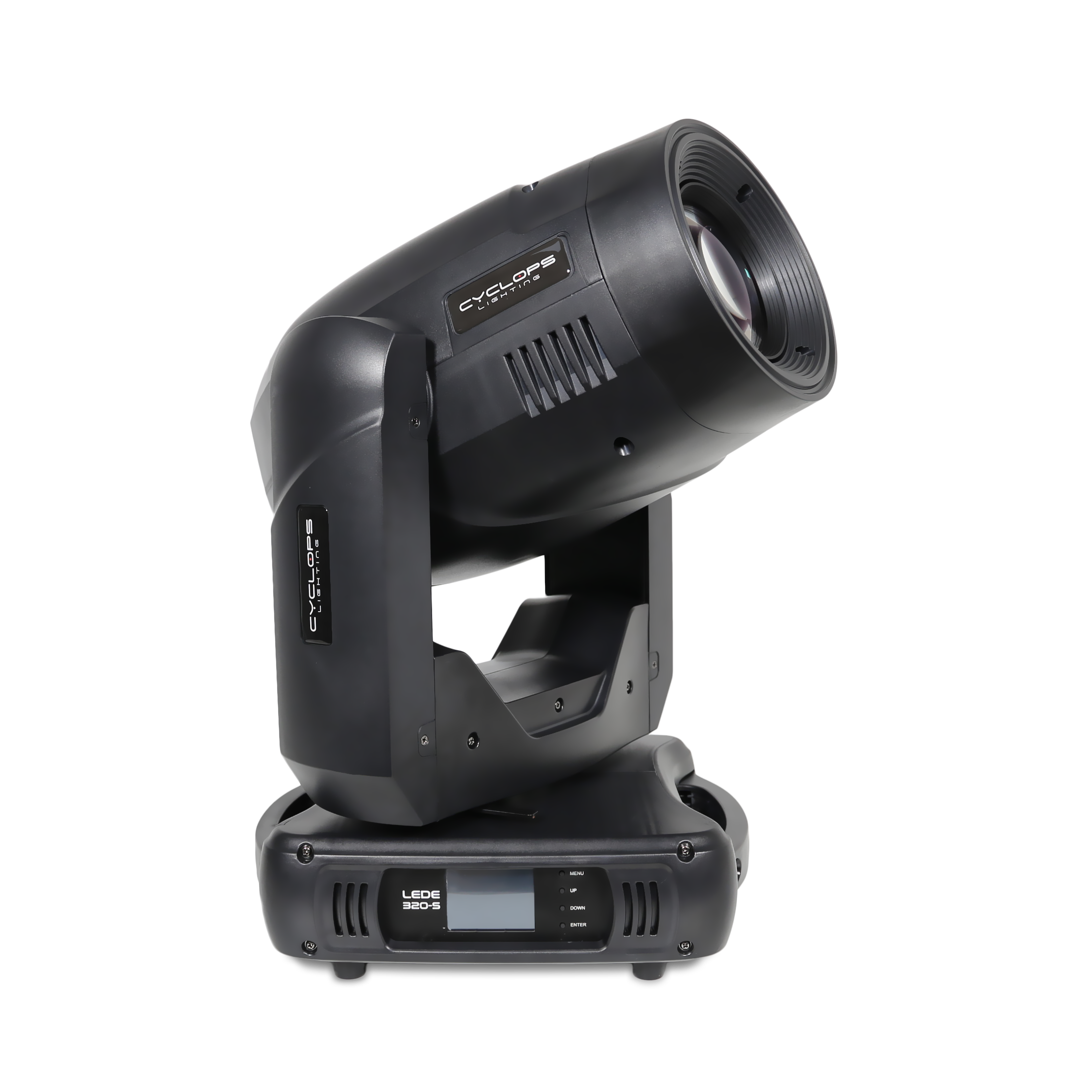

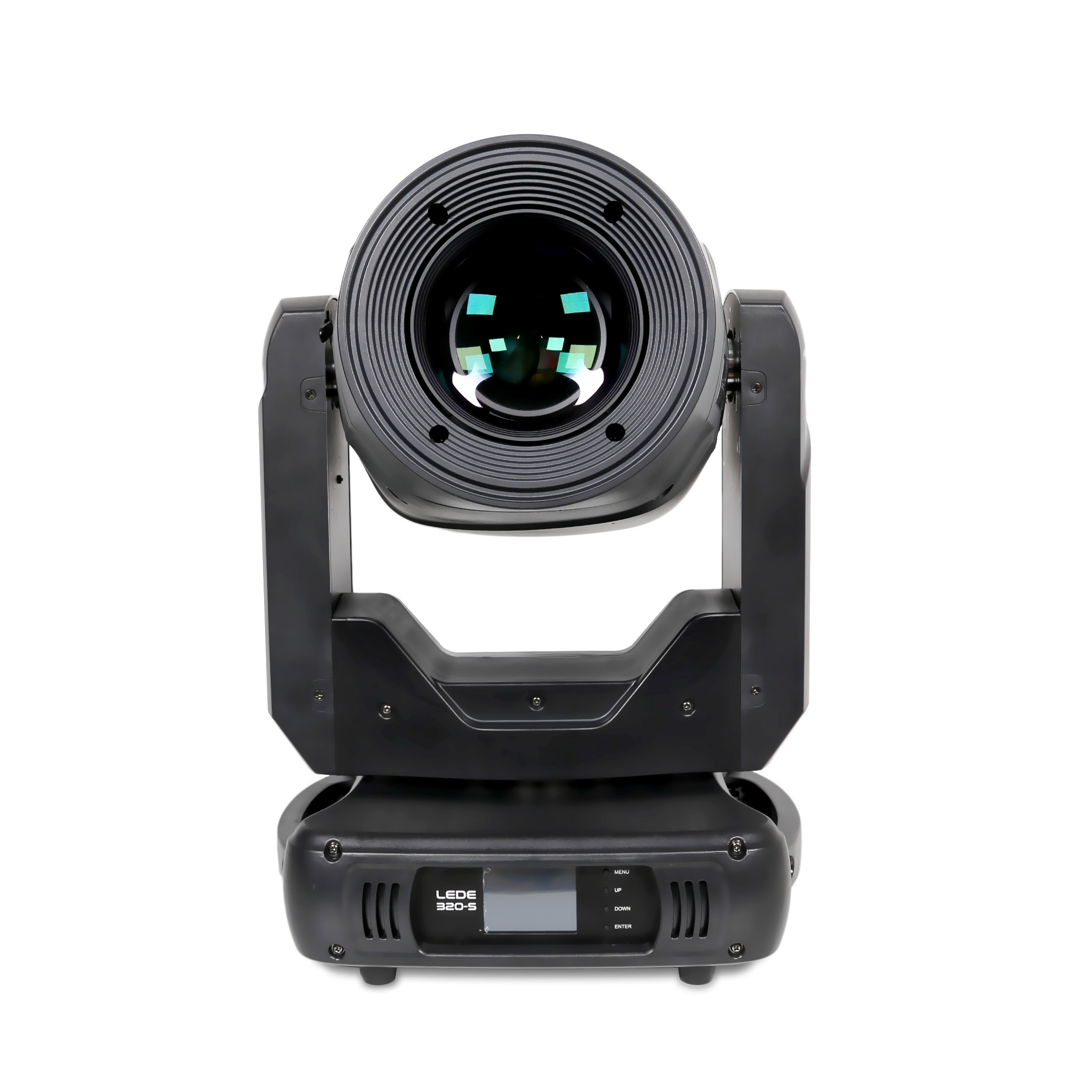

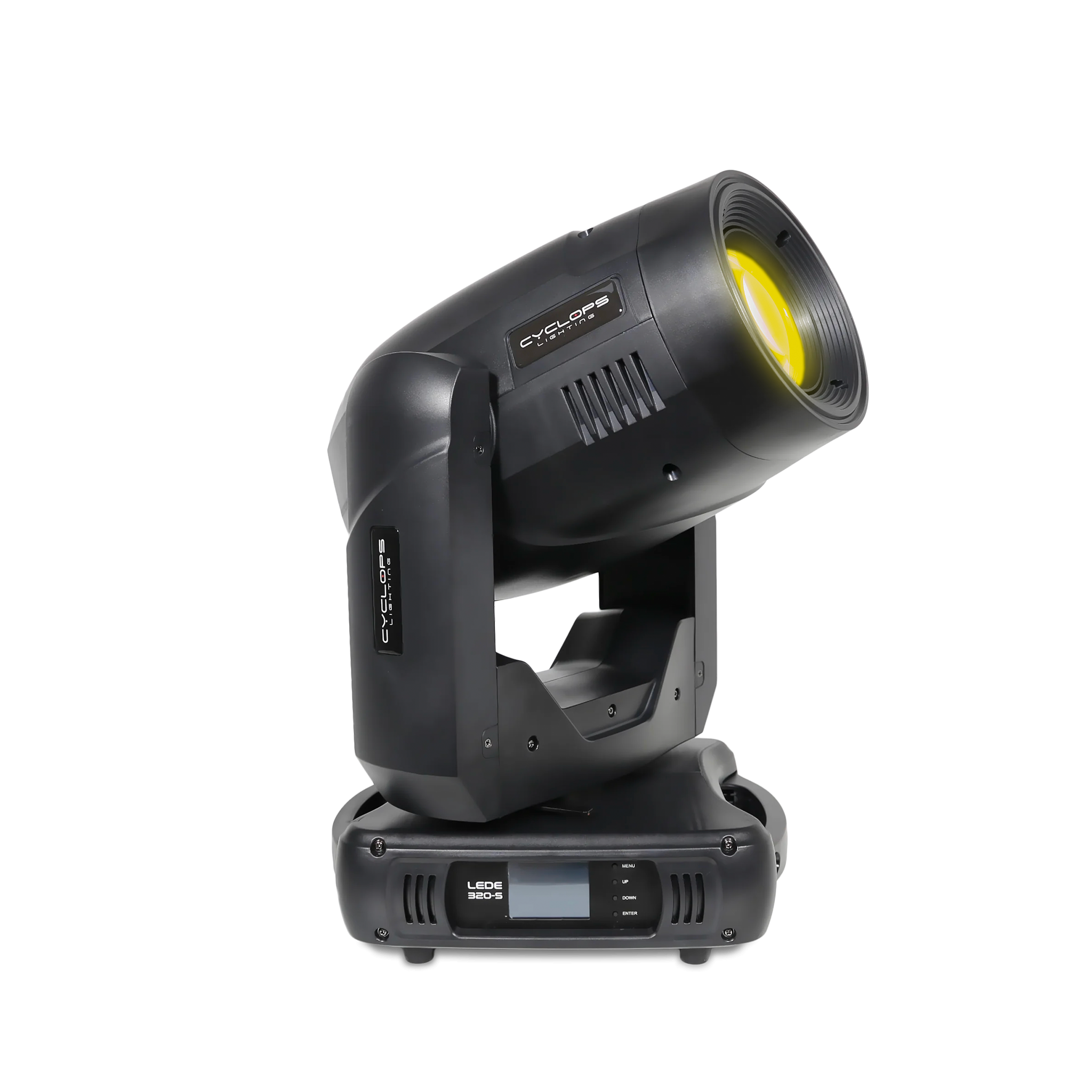

LEDE 320S

300 watts LED moving head spot profile

LEDE 320S is a 300 watts LED moving head spot profile that delivers a high light output and a variety of aerial and animation effects. With a quite engine, 2 gobos wheels, prism, 3 rotating animation effects and 7 bright colors, the LEDE 320S fits all applications from event stages to theatres and venues installations.



SKU: LEDE320S Categories: ,

SOURCE

  • Light source: 300 watts white LED
  • LED life expectancy: 50,000 Hrs.
  • Color temperature: 6600K
  • CRI 70

OPTICAL SYSTEM

  • Beam angle: 13° to 44°
  • Light output: 60,000 Lux @ 2m @ 13°
  • Electronic focus

DYNAMIC EFFECTS

  • Dimmer: Linear adjustment
  • Color wheel: 7 colors + open
  • Electronic variable strobe
  • Rotating gobo: 7 gobos + open
  • Static gobo: 8 gobos +open
  • Gobo shake function
  • Animation wheel: 3 continuous bi-directional rotation animation wheel
  • Prism: 3-facet circular prism
  • Iris
  • Frost filter

CONTROL & PROGRAMMING

  • Control protocols: DMX, Auto Run, Master-Slave
  • Control channels: 19, 24 CHs

MOVEMENT

  • Pan: 540°
  • Tilt: 270°
  • Resolution: 16 bit

ELECTRICAL

  • Input voltage: 100-240V/50-60Hz
  • Power consumption: 300 watts

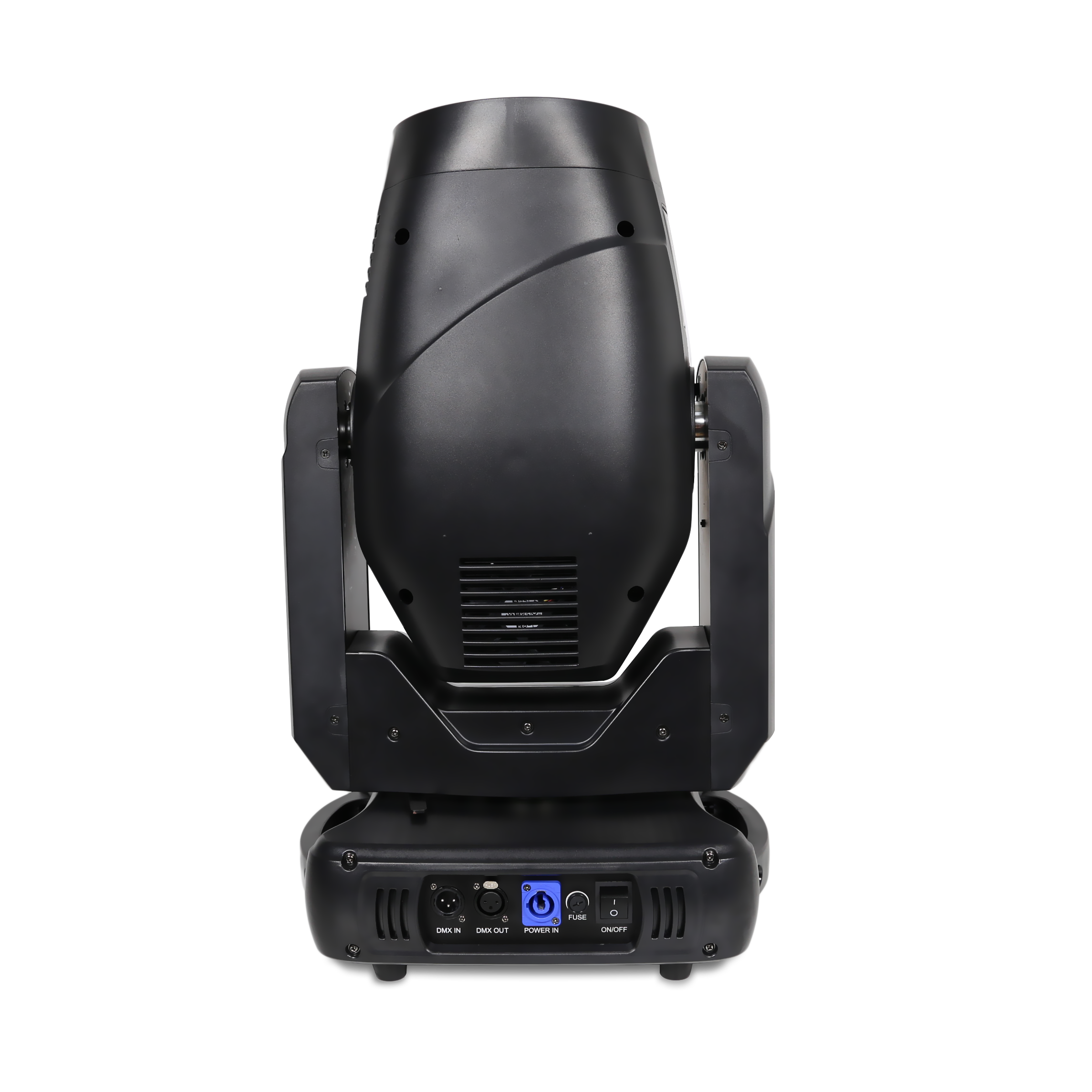

CONNECTIONS

  • DMX connections: 3 pin XLR In/Out male and female
  • Power connections: PowerCon In

PHYSICAL

  • Dimensions: 369 x 292x 599mm
  • Weight: 18.6kg
  • Housing: Plastic
  • Color: Black
  • IP rating: 20
