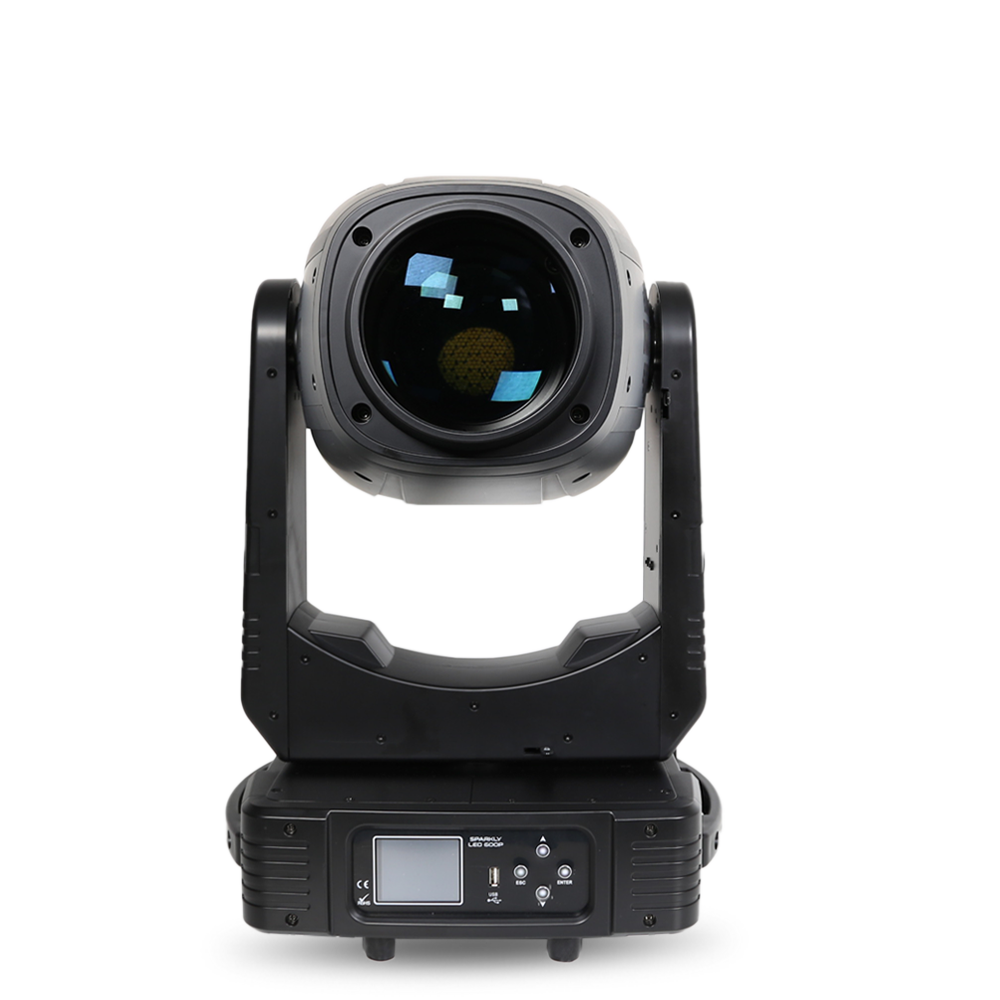

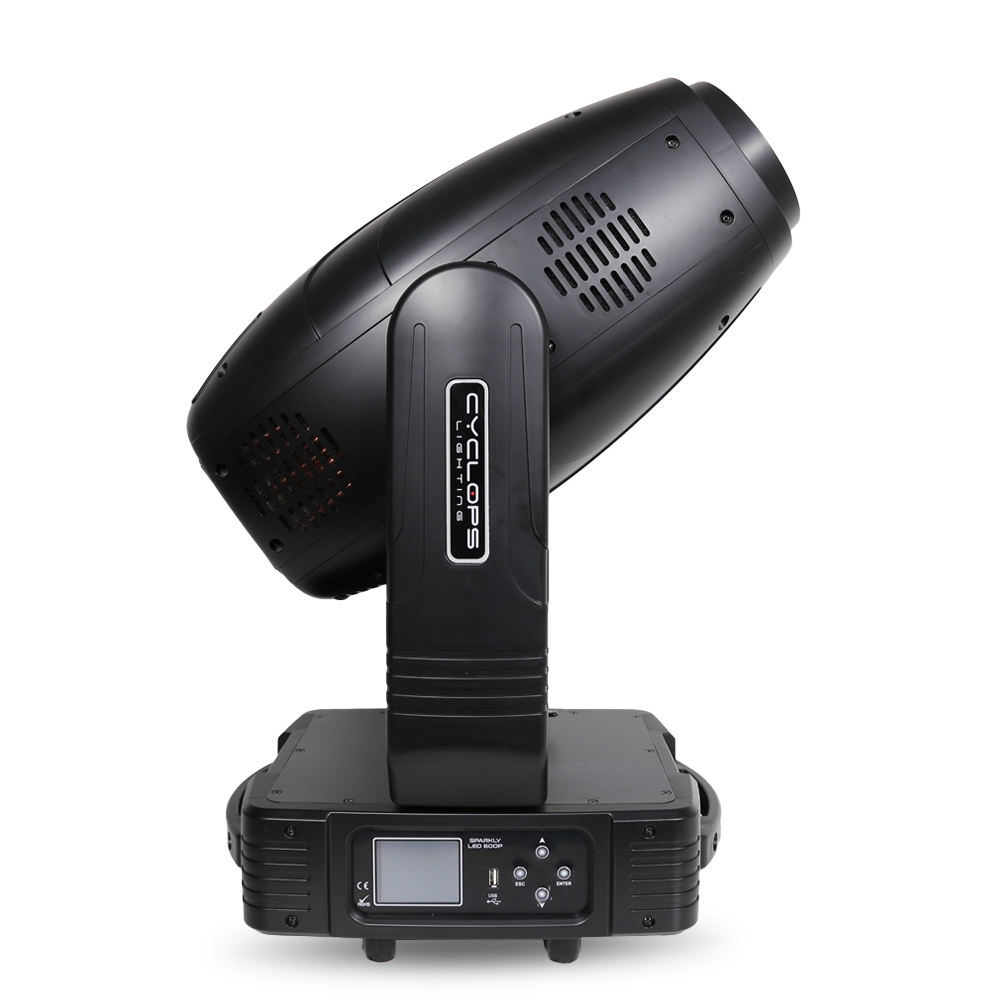

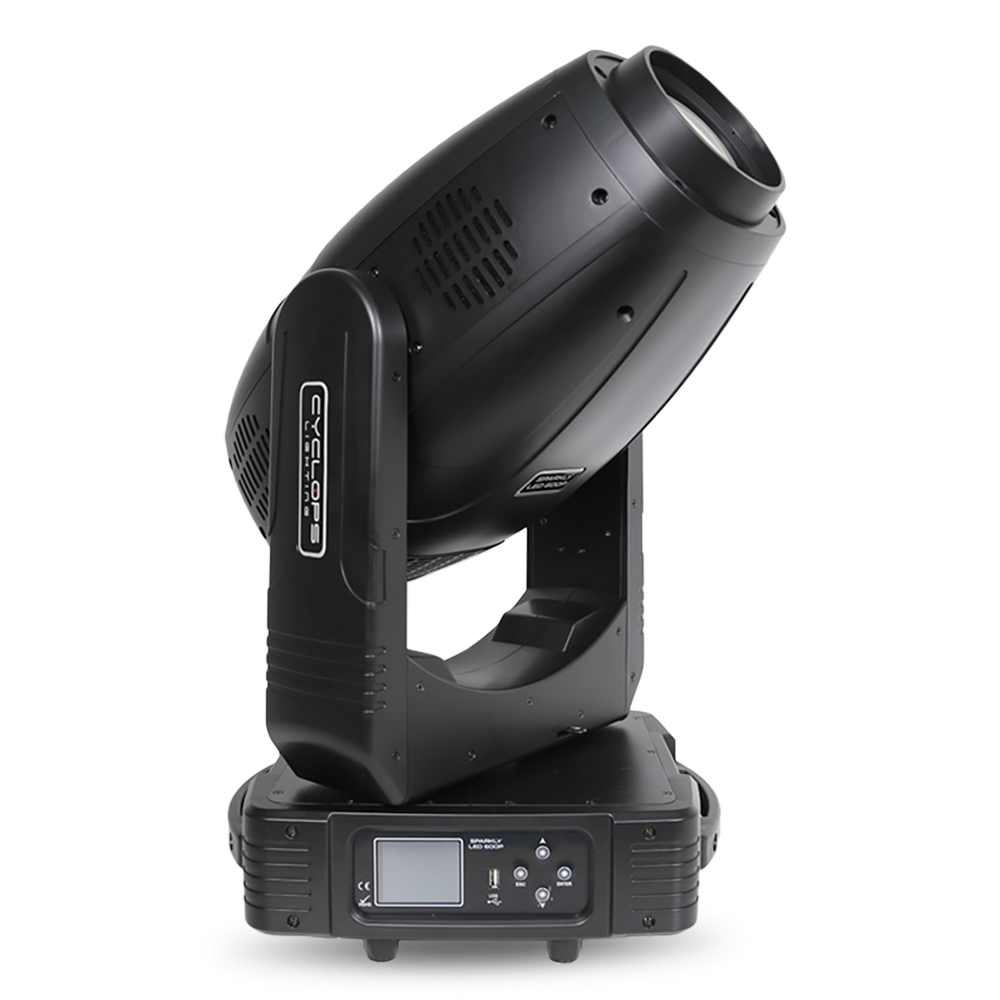

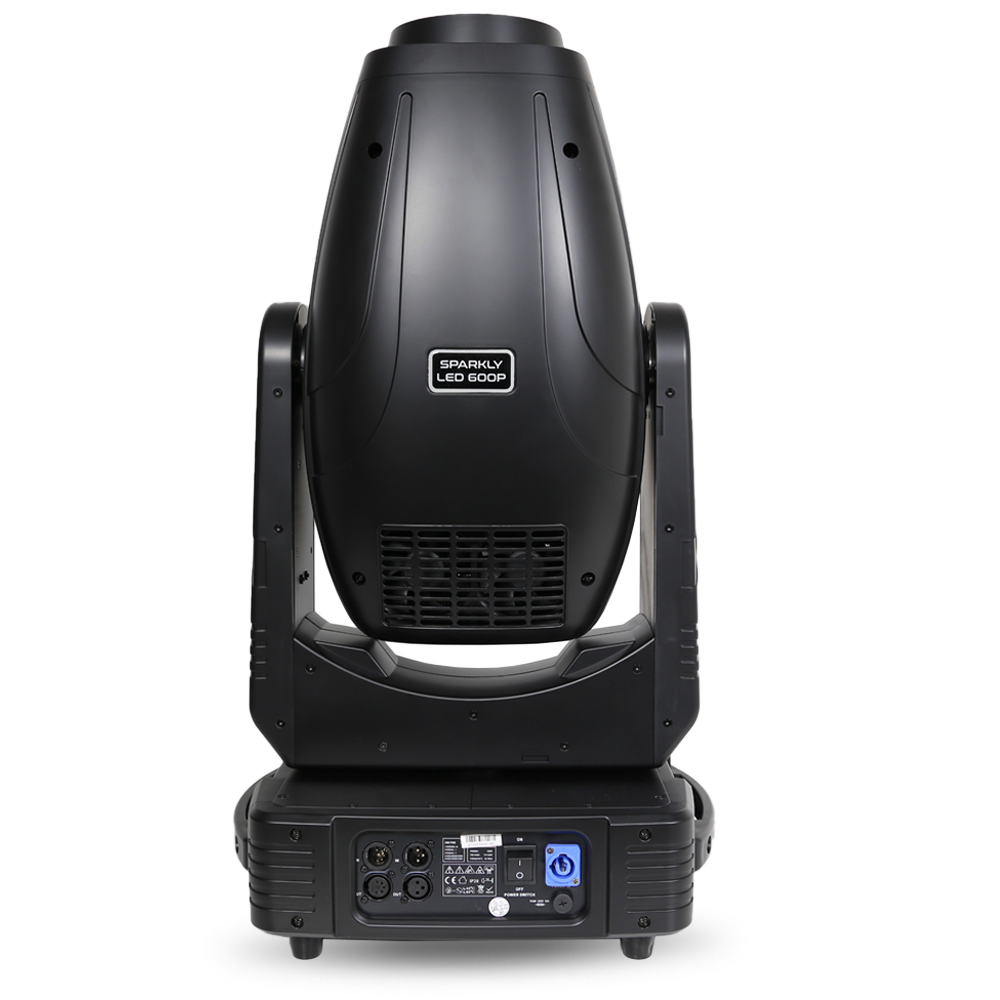

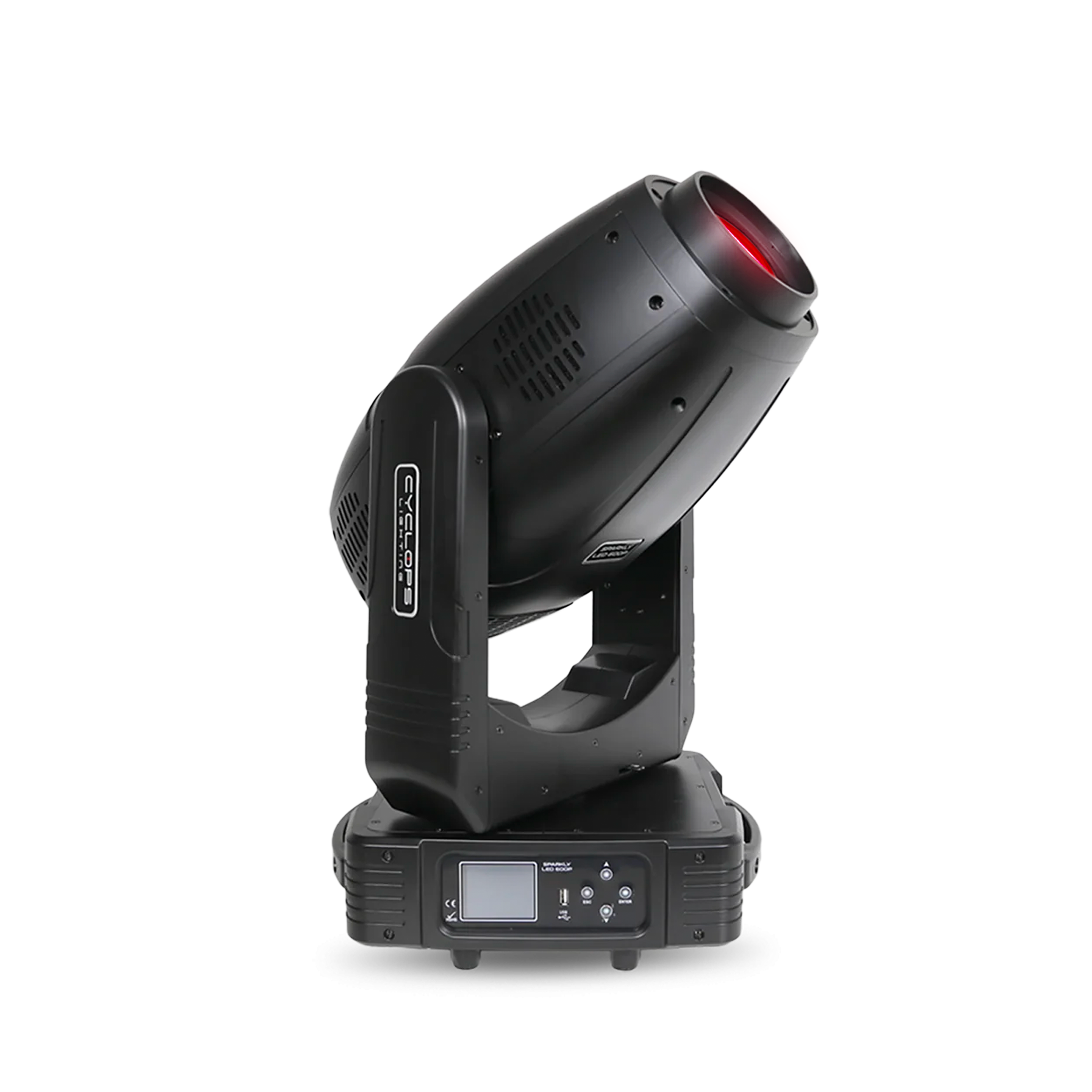

SPARKLY LED 600P

SPARKLY LED 600P

470 Watts LED Moving Head Profile

SPARKLY LED 470P is a 470 watts LED moving head profile. It features four 180° rotatable shutter blades, iris and a zoom range from 6 to 42 degrees offering a full control on the light beam and coverage. It also has static and rotatable gobo wheels and a rotatable prism for a wide variety of effects. The output color is fined tuned with a CMY color mixing system and a CTO filter (2800-5600K) making it ideal for temporary and permanent theatrical, studio and stage applications.

Add to wishlist
SKU: SparklyLED470P-1 Categories: ,

SOURCE

  • Light source: 600 watts white LED
  • LED life expectancy: 20000 Hrs.
  • CRI > 75 (High CRI > 90 SKU: SparklyLED600PH)

OPTICAL SYSTEM

  • Beam angle: 6° to 42°
  • Four shutter blades, 180° rotatable
  • Electronic focus
  • Iris

DYNAMIC EFFECTS

  • Dimmer: 0-100% linear adjustment
  • Color mixing: CMY
  • Color wheel: 7 colors + white
  • CTO filter, 3200K to 6000K
  • Static gobo: 8 gobos + open
  • Rotating gobo: 6 gobos + open
  • Prism: 4 facet prism
  • Frost

CONTROL & PROGRAMMING

  • Control protocols: DMX, Master-Slave, Auto Run
  • ECO Mode
  • Display: 2.8’ color LCD display, reversible 180°
  • Control channels: 16, 24 CHs

MOVEMENT

  • Pan: 540°
  • Tilt: 270°
  • Resolution: 16 bit

ELECTRICAL

  • Input voltage: 110-240V/50-60Hz
  • Power consumption: 700 watts

CONNECTIONS

  • DMX connections: 3 pin/5 pin XLR In/Out male and female
  • Power connections: Powercon In

PHYSICAL

  • Dimensions: 404 x 306 x 736 mm
  • Net weight: 32 Kg
  • Color: Black
  • IP rating: 20
