SPT516

5 Pin Truss Mounted DMX Splitter

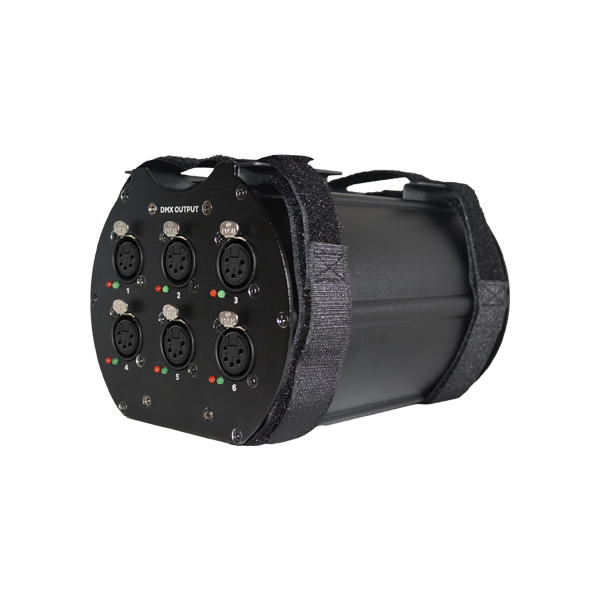

SPT 516 is a truss mounted DMX Splitter. It splits, boosts and distributes the DMX signal through 6 optically isolated DMX outputs preventing any signal distortions or disturbance. It’s designed to be installed on trusses next to the lighting fixtures for a convenient data distribution structure for events and touring.

FEATURES

  • Split and boost the DMX signal
  • Power and data optically isolated DMX ports
  • High voltage protection
  • High brightness Power and Data Status LED indicators
  • DMX line Termination On/Off Switch
  • Velcro straps for ease of installation

CONTROL & PROGRAMMING

  • DMX Pass-Thru
  • Termination on/off switch
  • Power and Data LED indicators

CONNECTIONS

  • Data inputs: 1 x Neutrik 5 pin XLR
  • Data thru: 1 x Neutrik 5 pin XLR
  • Data outputs: 6 x Neutrik 5 pin XLR
  • Power input: powerCon

ELECTRICAL

  • Input Voltage: AC 88-256V 50/60 Hz

PHYSICAL

  • Dimensions: 186 x 128 x 124 mm
  • Net Weight: 0.85 Kg
  • Color: Black
