LASER
- Source: 15000mW diode
- Red power/wavelength: 3500mW/638nm
- Green power/wavelength: 4000mW/520nm
- Blue power/wavelength: 7500mW/445nm
- Color mixing: RGB
- Safety class: 4
- Modulation: Analogue
SCANNER
- Scan system: ILDA 40K pps
- Scanning angle: ±30°
CONTROL & PROGRAMMING
- Control protocols: ILDA, DMX, Auto, Sound, Master-slave
- Display: LCD
- Internal patterns: 256
- Control channels: 17 CHs
ELECTRICAL
- Input voltage: AC100-240V 50/60Hz
- Power consumption: 160 watts

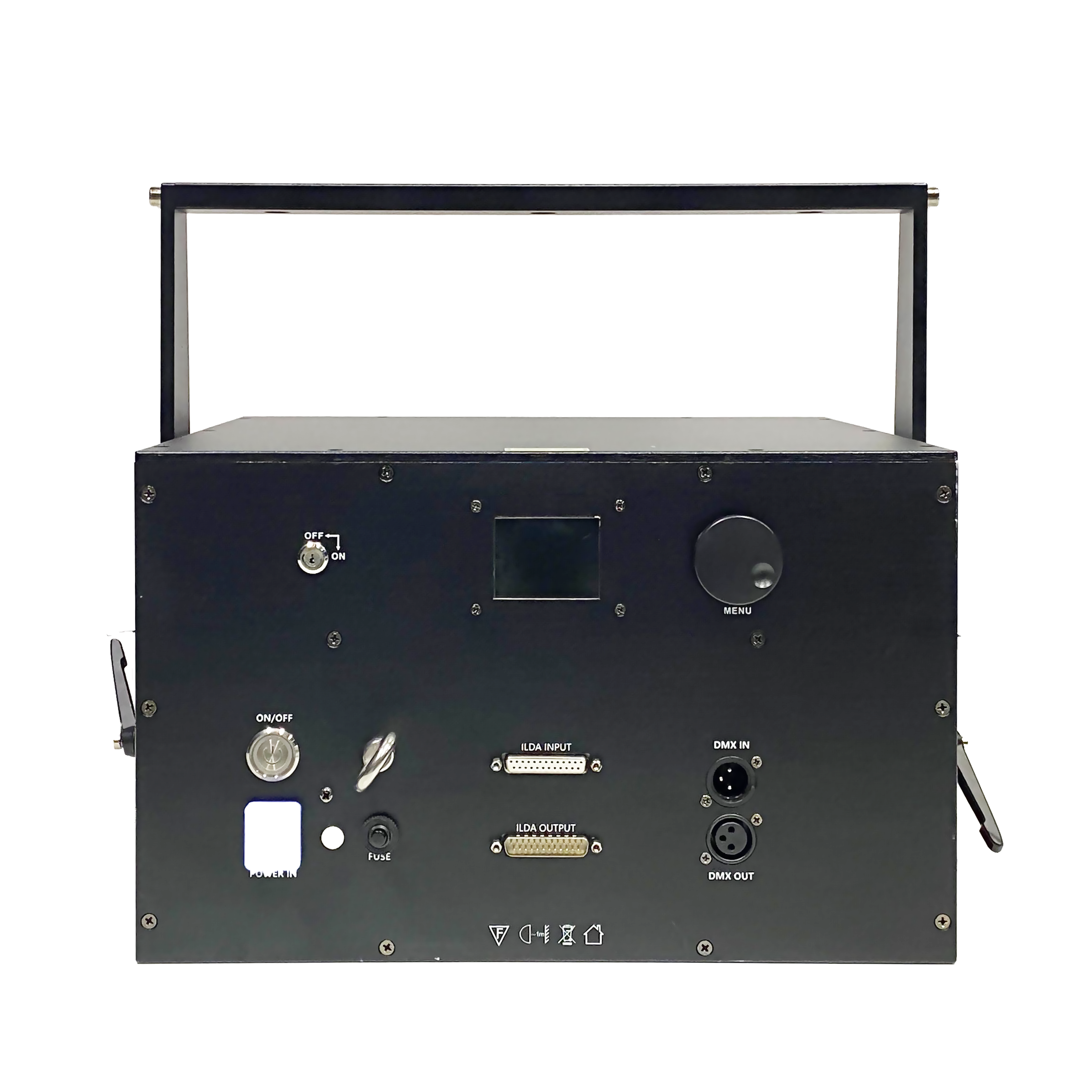

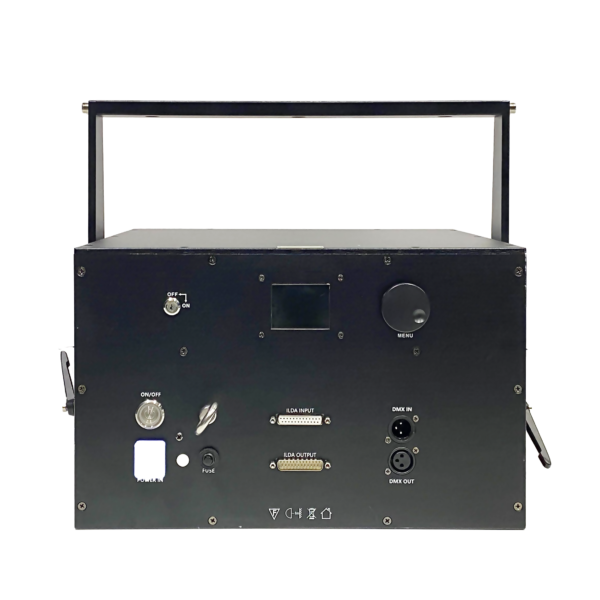

CONNECTIONS
- DMX Connections: 3 pin XLR In/Out male and female
- Power connections: PowerCon In
PHYSICAL
- Dimensions: 390 x 380 x 240mm
- Net weight: 27 Kg
- Color: Black
- IP rating: 20
- Operating temperature: 0°C/40°C
