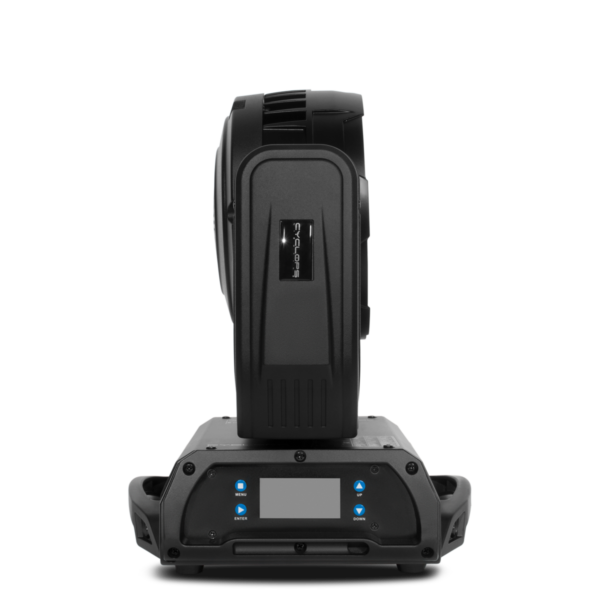

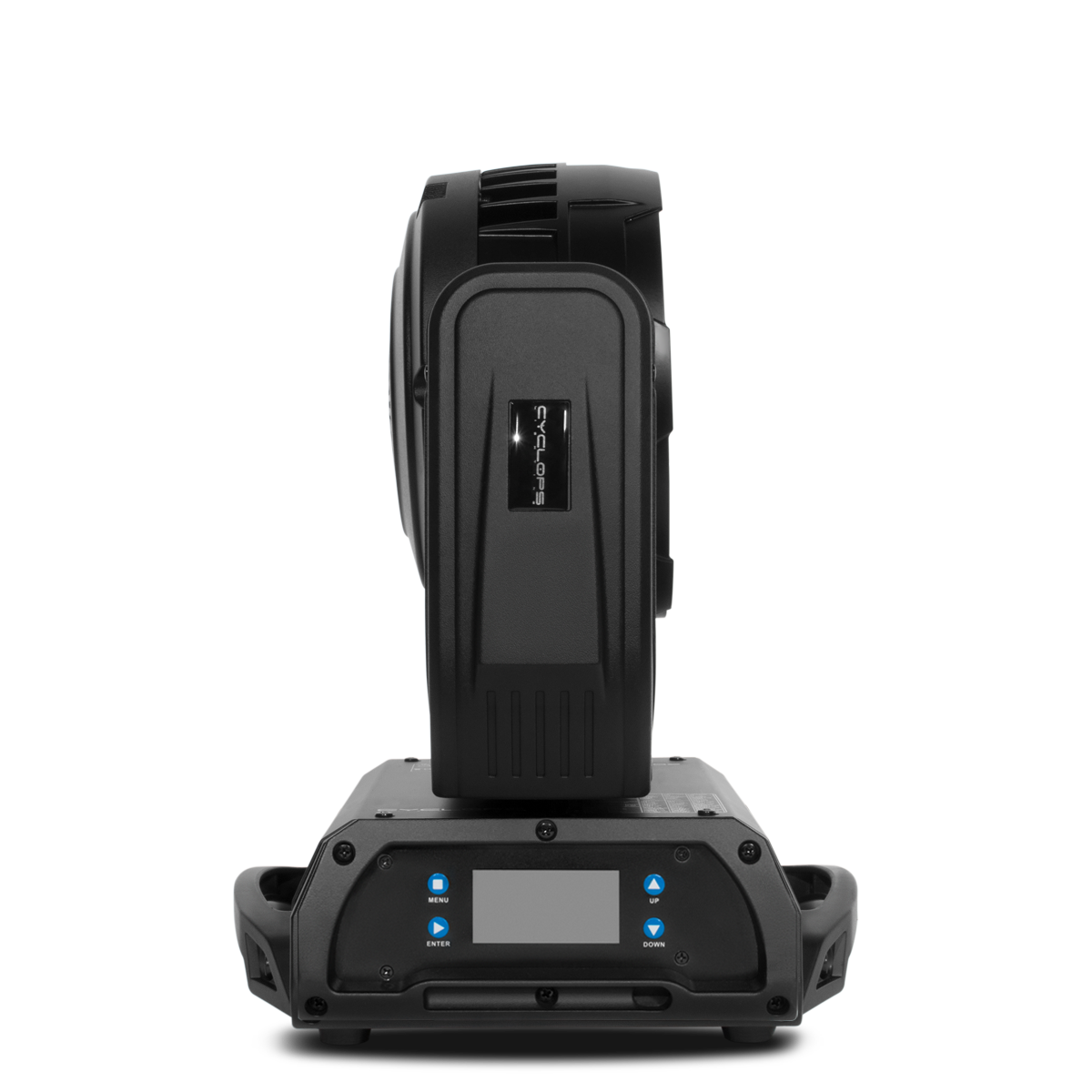

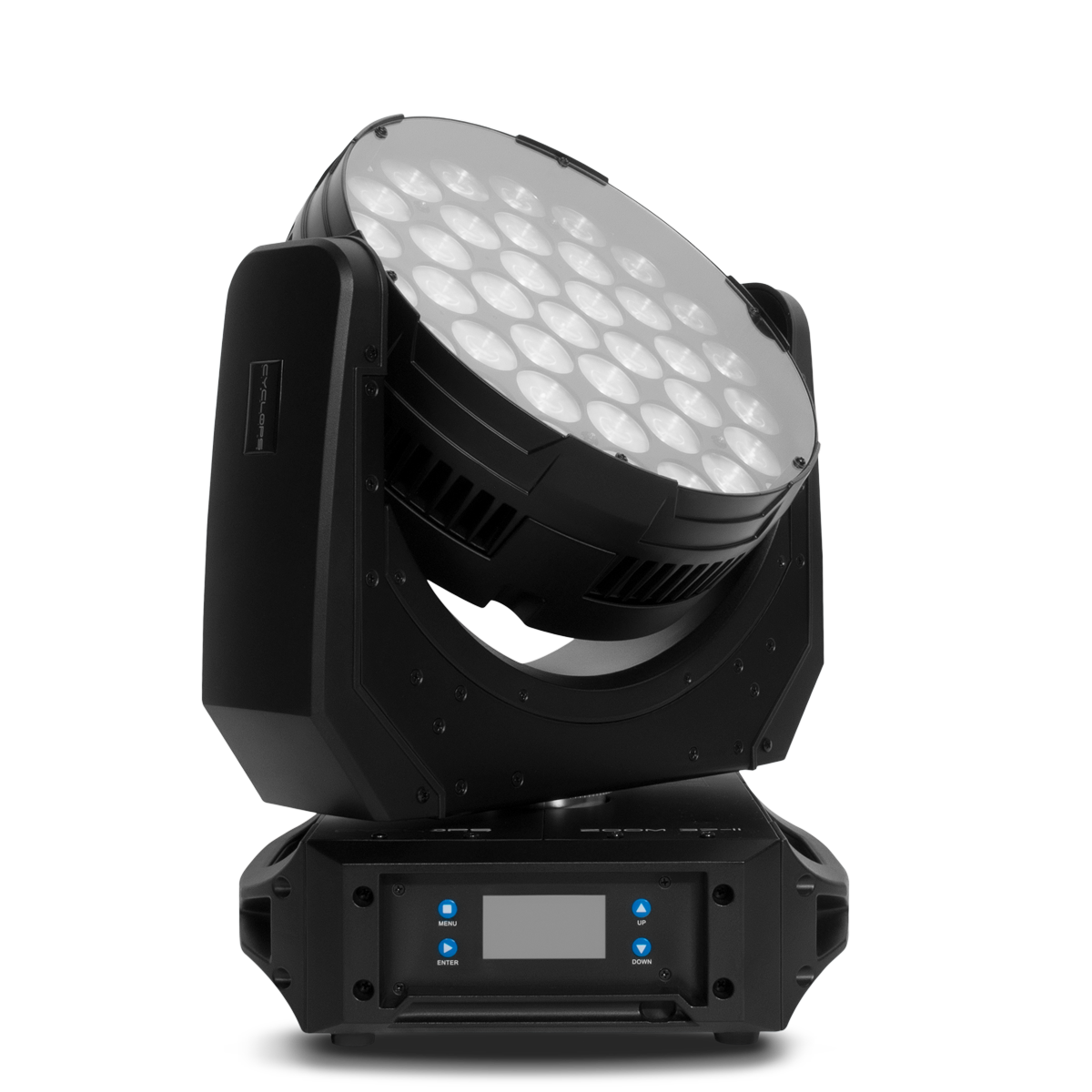

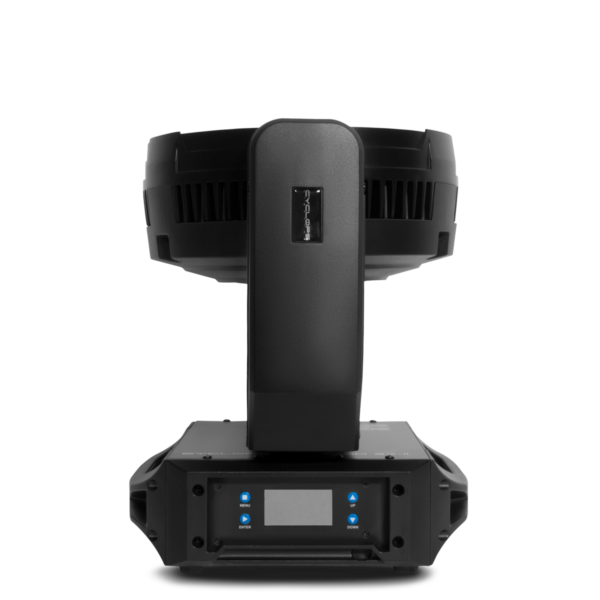

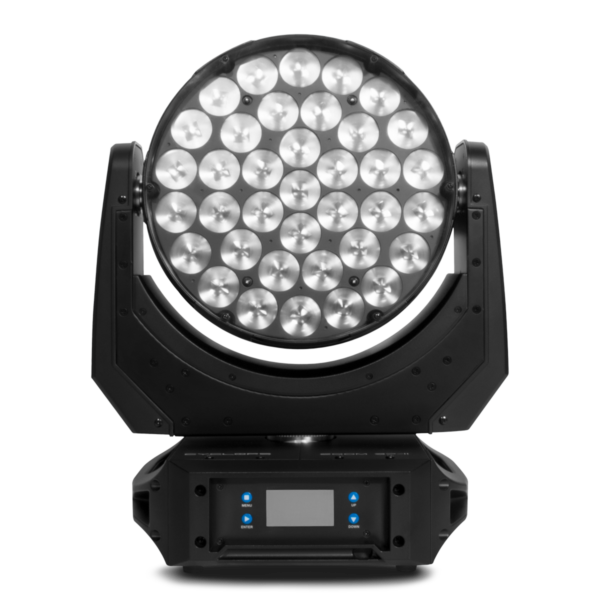

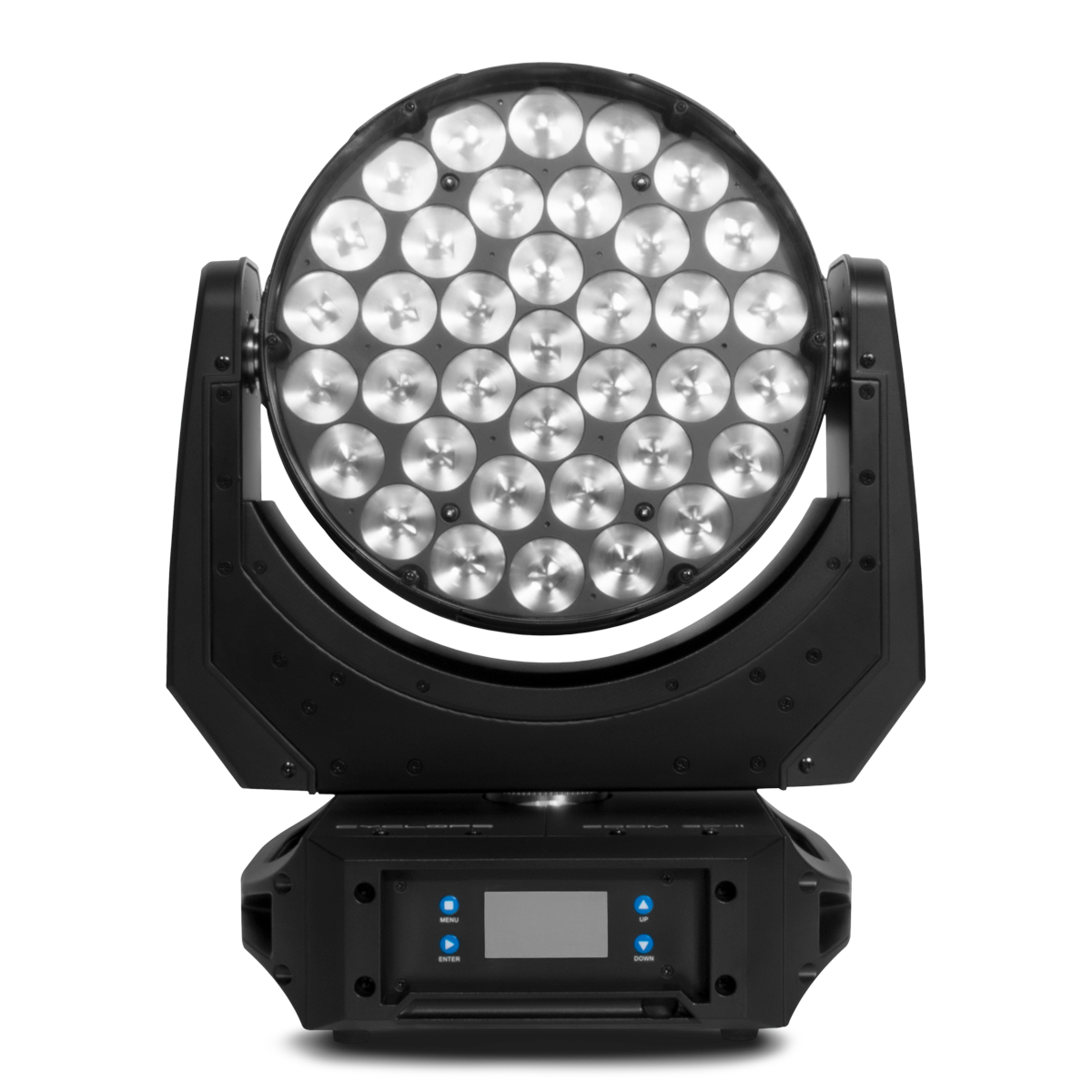

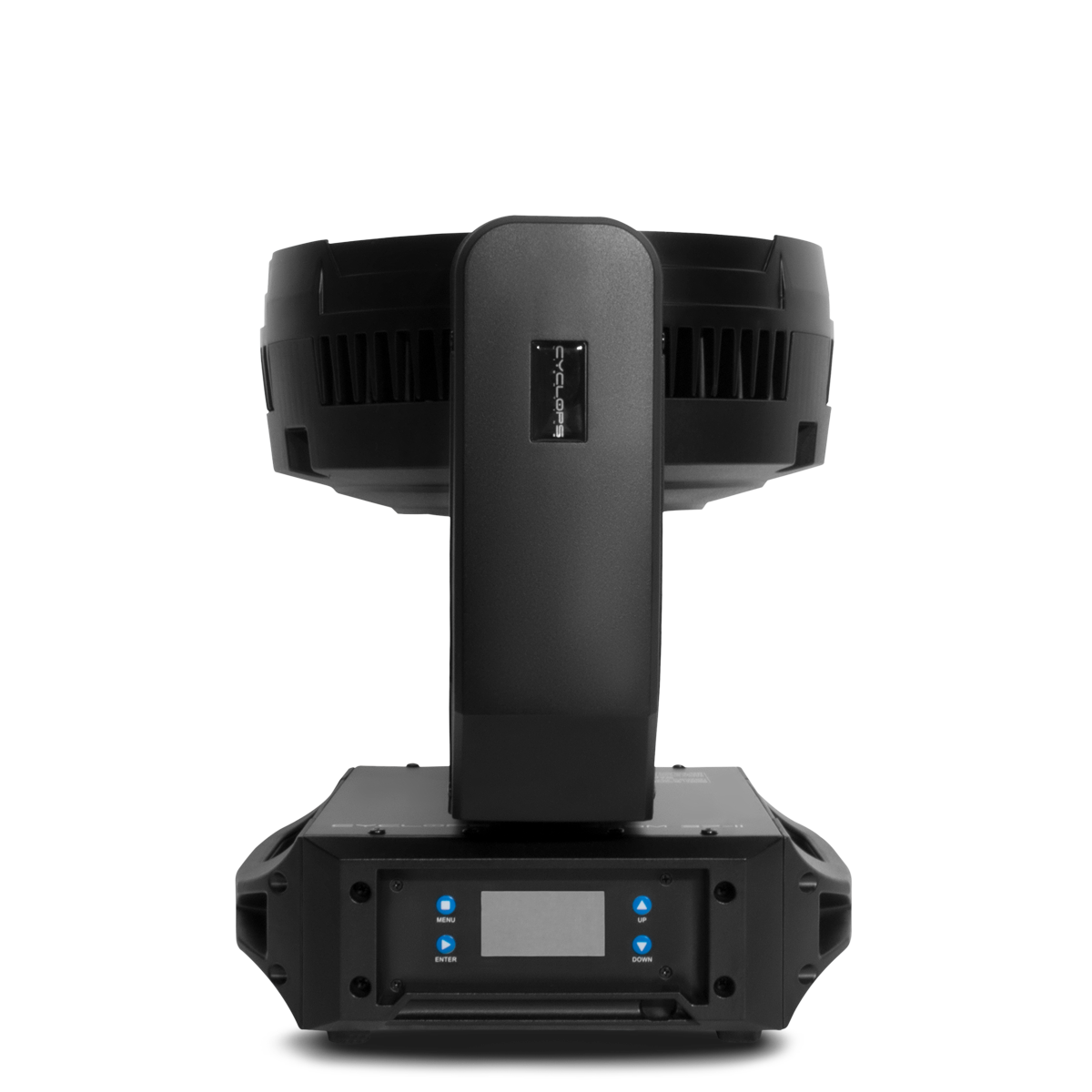

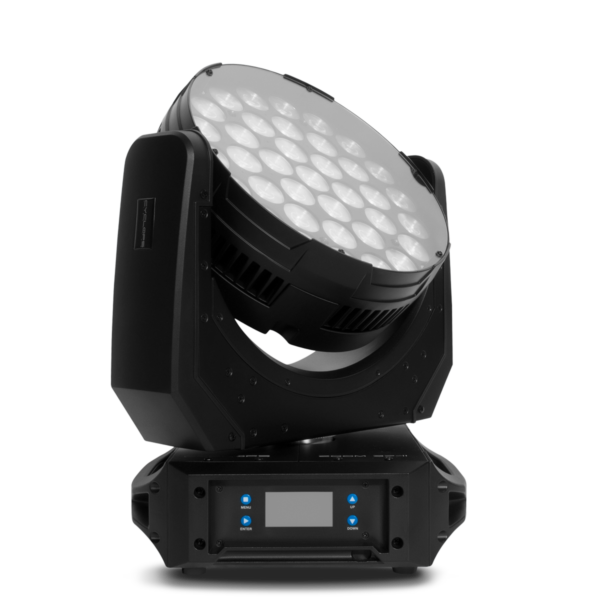

ZOOM 37 II

ZOOM 37 II is a compact and rapid moving head wash fixture. It has an output of over 70,900 Lux and incredible peak intensity of more than 270,000 cd combined with a versatile 8° to 40° zoom. It is ideal for indoor applications such as theaters, nightclubs, churches and concert halls.



SKU: ZOOM37MKII Categories: ,

Videos

ZOOM 37 II is a compact and rapid moving head wash fixture. It has an output of over 70,900 Lux and incredible peak intensity of more than 270,000 cd combined with a versatile 8° to 40° zoom. It is ideal for indoor applications such as theaters, nightclubs, churches and concert halls.

SOURCE

  • Light source: 37 x 15 W RGBW Multichip OSRAM
  • LED life expectancy:  50,000 Hrs

OPTICAL SYSTEM

  • Beam Angle: 4°
  • Zoom Range: 8° to 40°
  • Light output: 70,900 Lux @ 2m
  • Lumen Output: 6700 lm
  • Peak intensity: 270000 cd

DYNAMIC EFFECTS

  • Dimmer: 0 – 100%
  • Color Mixing: 4 in 1 RGBW – LEDs
  • Strobe: 0 – 20 Hz
  • Ring control
  • Auto programs

CONTROL & PROGRAMMING

  • Control Protocols: DMX 512
  • Control Channels: 10, 21, 8, 25, 58, 21 CHS

MOVEMENT

  • Pan movement: 540 °
  • Tilt movement: 270 °

ELECTRICAL

  • Input Voltage Range: 100 – 240 V / 50-60 Hz
  • Power Consumption: 650 W

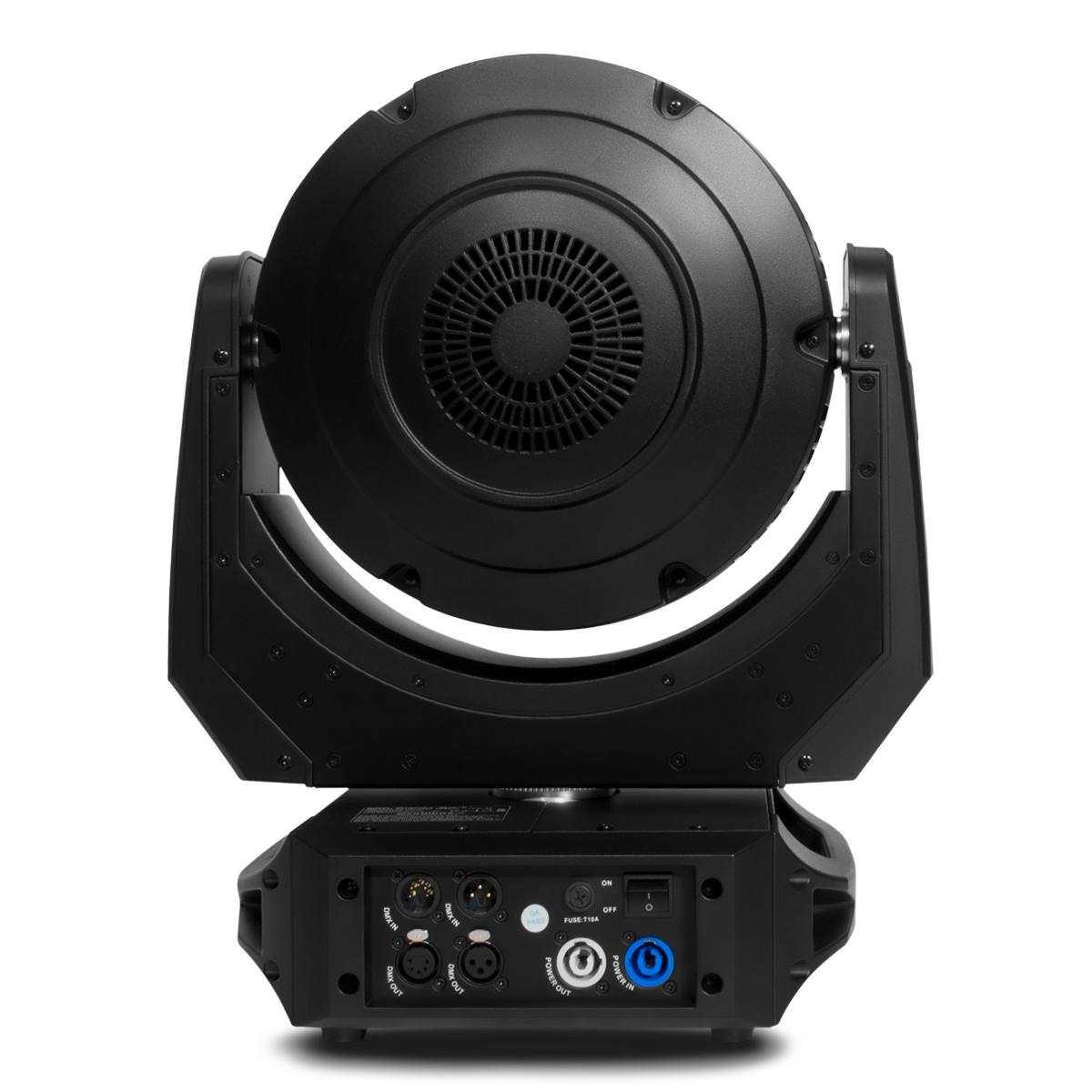

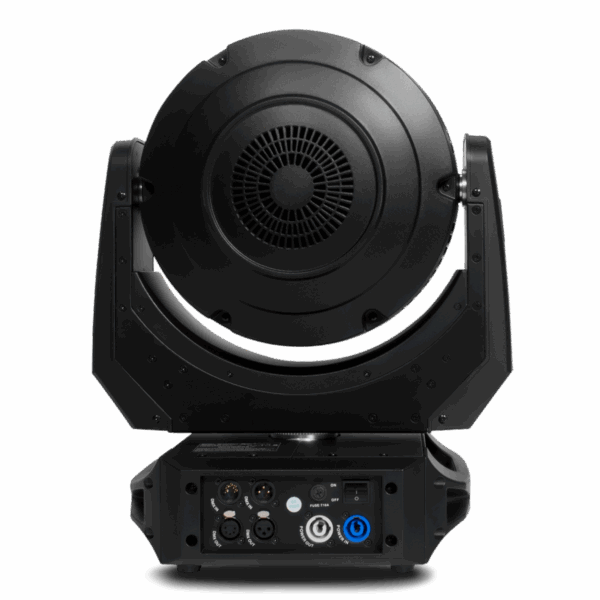

CONNECTIONS

  • AC connection: Powercon IN / OUT
  • DMX data in/out: 3 pin XLR male, 3 pin XLR female
    5 pin XLR male, 5 pin XLR female

PHYSICAL SPECIFICATIONS

  • Dimensions: 10 mm X 310 mm X 396 mm
  • Net Weight: 16 KG
  • Color: Black
  • Housing: Flame retardant plastic, aluminum cast
  • IP Rating: 20
  • Operation Temperature: 20°/ 45° C
