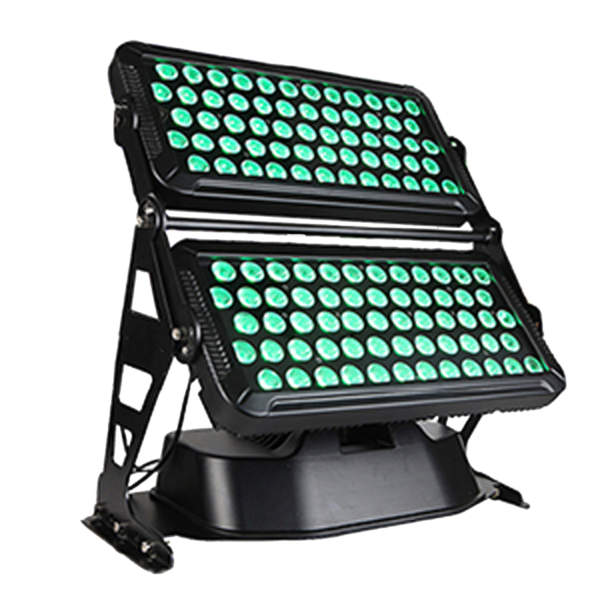

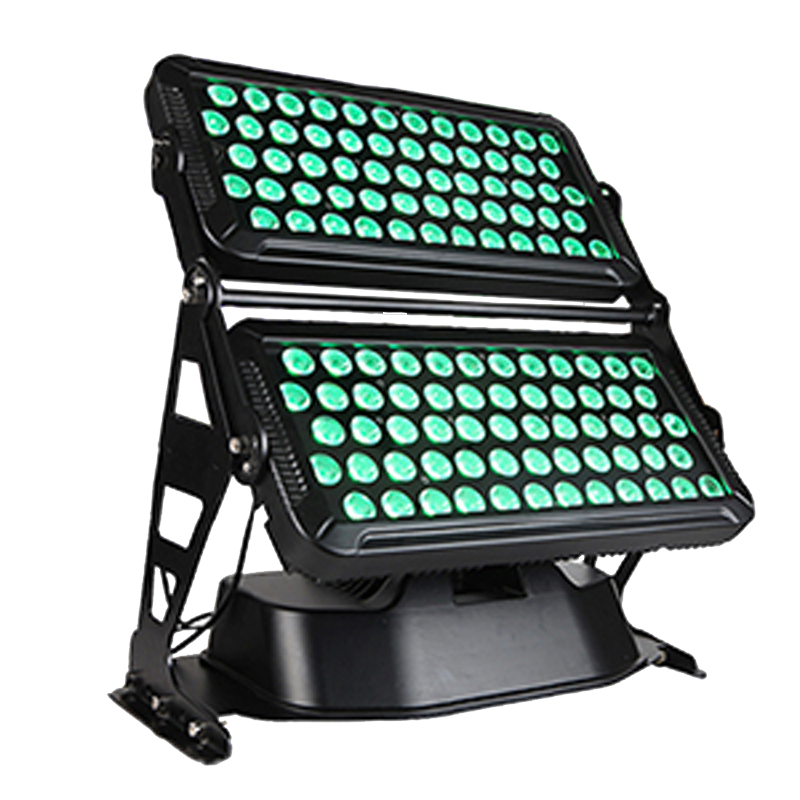

CPX 4120

120x12 watts RGBW Outdoor LED Wash

CPX 4120 is an outdoor LED RGBW twin head city wash. Its powerful output is able to illuminate large architectural facades or canvas, stage areas and arenas. In a rugged robust body, it features two heads that be angled and controlled separately.



SKU: CPX4120RGBW Categories: ,

SOURCE

  • Light source: TX high power 12 watts x 120 pcs
  • LED life expectancy: 50,000 Hrs.

OPTICAL SYSTEM

  • Beam angle: 30° to 45°
  • Light output: 18000 Lux @ 2m @ 12°

DYNAMIC EFFECTS

  • Dimmer: Linear adjustment
  • Color mixing: RGBW
  • 4 dimmer curves
  • Variable strobe
  • Individual head control
  • Built-in color and dynamic macros

CONTROL & PROGRAMMING

  • Control protocols: DMX, Master Slave
  • Display : 4 button LED Displayer
  • Control channels: 4, 7, 11 CHs

MOVEMENT

  • Pan: 540o
  • Tilt: 270o

ELECTRICAL

  • Input voltage: 100-240V/50-60Hz
  • Power consumption: 1500 watts

CONNECTIONS

  • DMX Connections: IP DMX In/Out cables with 3 pin screw lock connectors
  • Power Connections: IP power In/Out cable, 3 pin screw lock connectors

PHYSICAL

  • Dimensions: 650 x 580 x 670mm
  • Net weight: 50 Kg
  • Housing: Aluminum
  • IP rating: 66
