CPX 436IP

12x3 watts LED Bar, Beam light pixel mapping

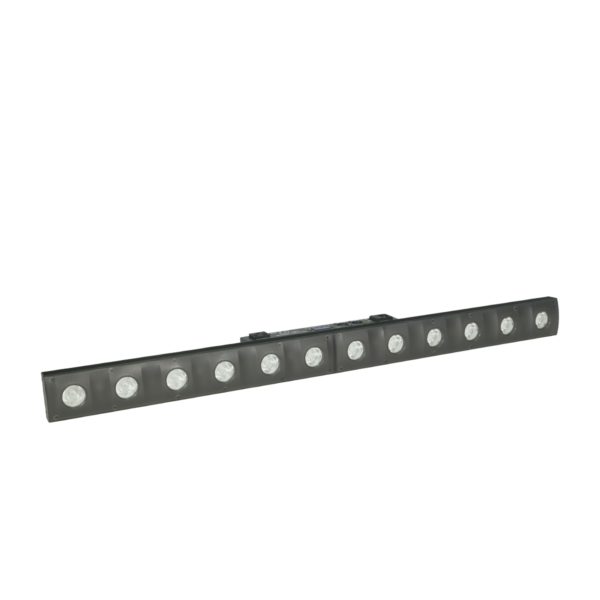

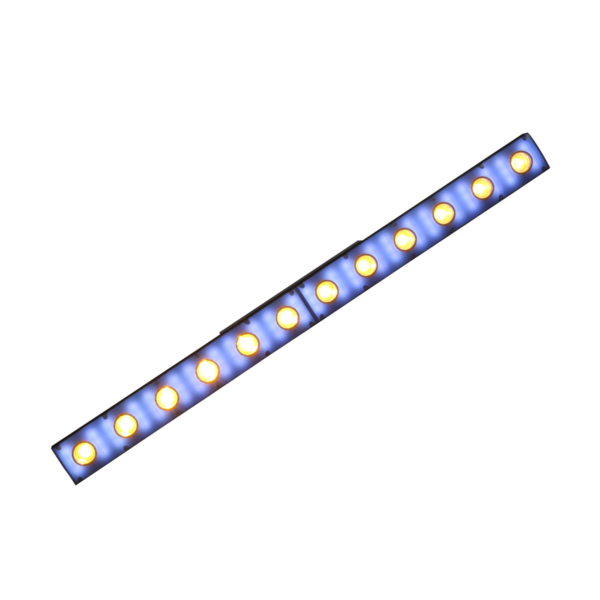

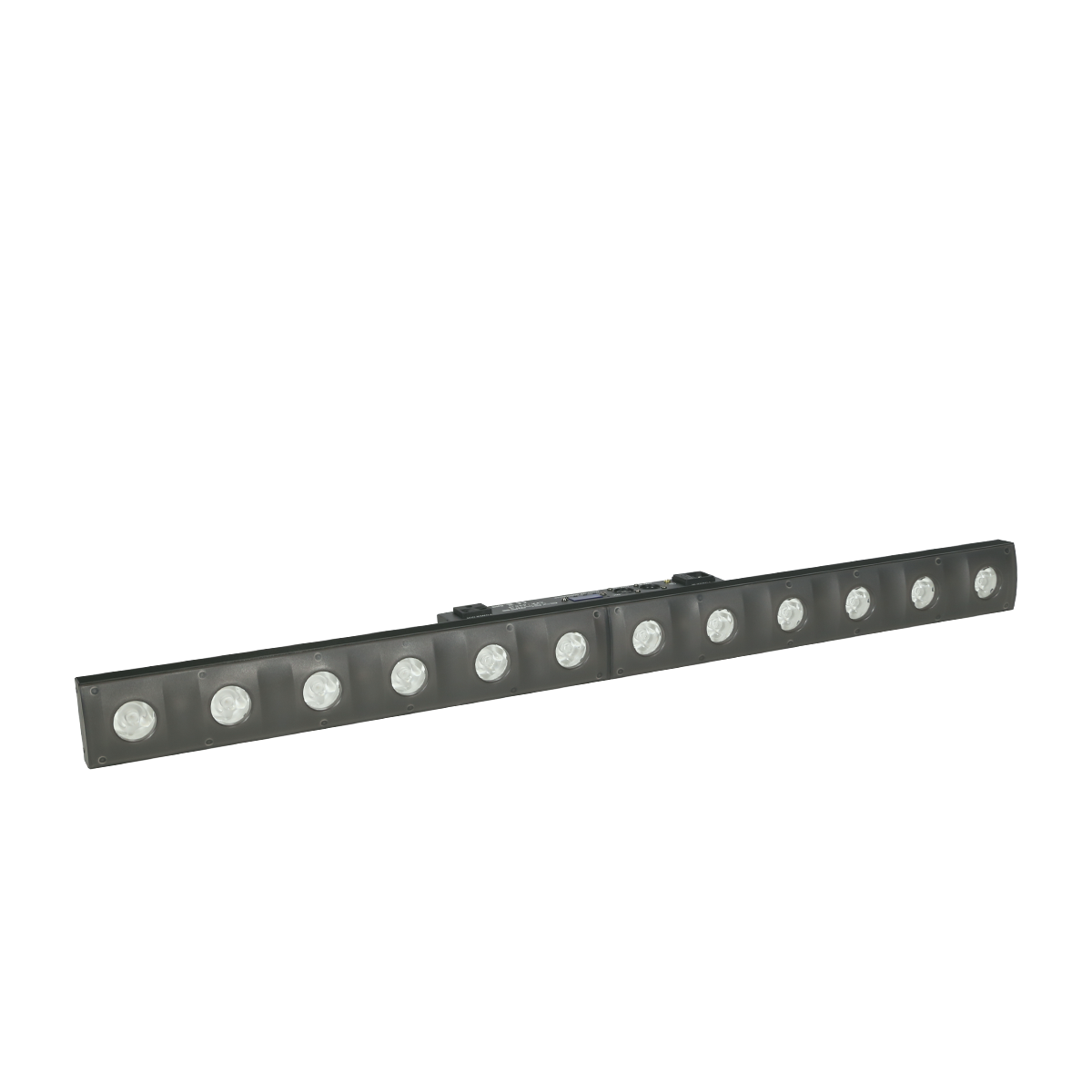

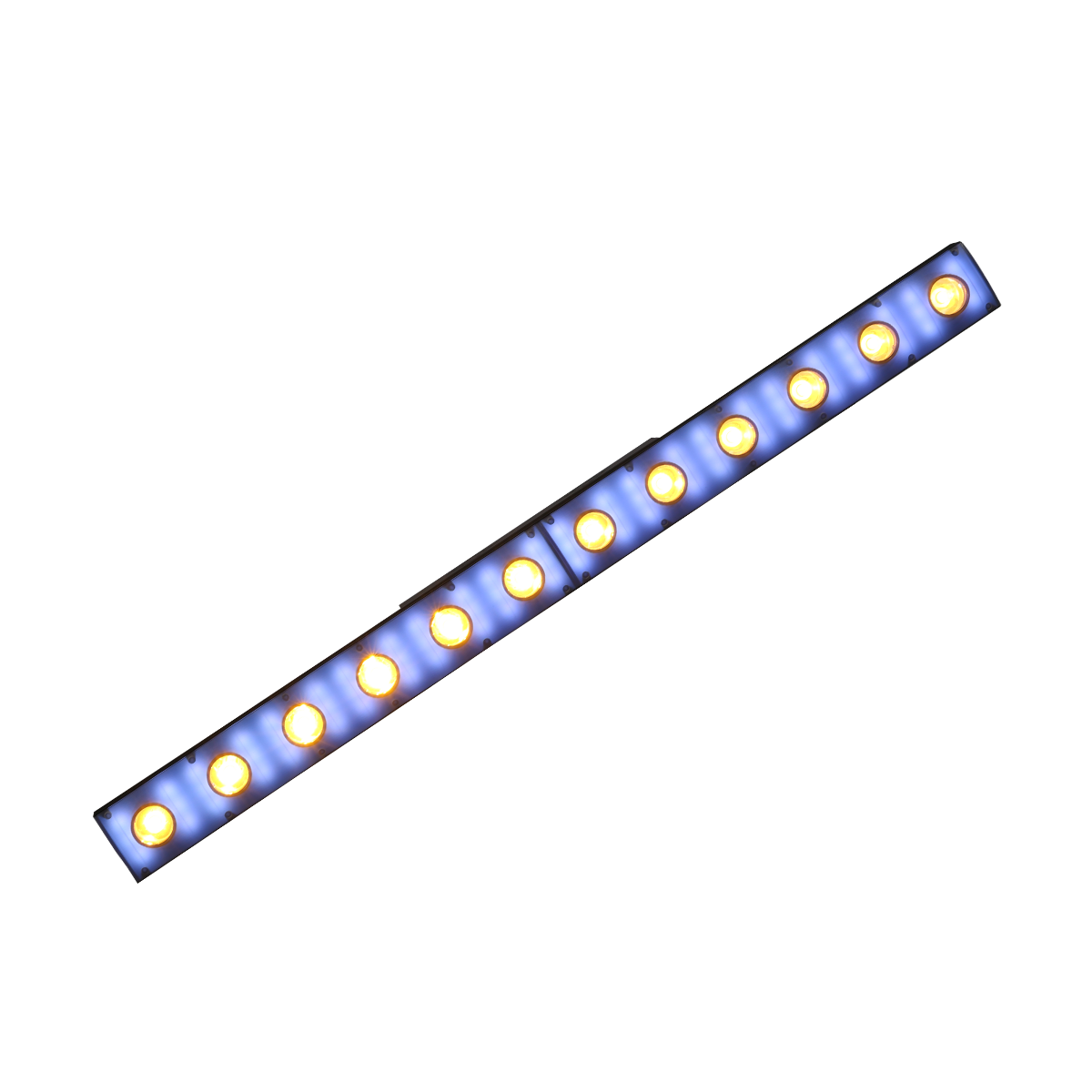

CPX 436IP is an effect LED Bar with 12 x 3 watts LEDs as main beam light with amber color output and 24 RGB pixels x 3 SMD 5050 as back-light. It is a versatile stage lighting fixture that offers RGB pixel mapping in addition to impressive beam effects. Multiple bars can be linked together to create vivid special effects.

SKU: CPX436IP-I Categories: ,

SOURCE

  • Light source: 12×3 watts Amber LEDs as main beam light +24 Pixel RGB x 3 SMD 5050 as back-light
  • LED life expectancy: 50,000 Hrs

OPTICAL SYSTEM

  • Optics: 4° Beam light
  • 80° Backlight

DYNAMIC EFFECTS

  • Dimmer: Linear adjustment
  • Color mixing: Amber (main light) / RGB (back light)
  • Effects: Wash, pixel mapping

CONTROL & PROGRAMMING

  • Control protocols: DMX, Sound,  Master-Slave, Auto Run
  • Control channels: 6, 9, 84, 89 CHs

ELECTRICAL

  • Input voltage: AC90-240V 50/60HZ
  • Power consumption: 80 watts

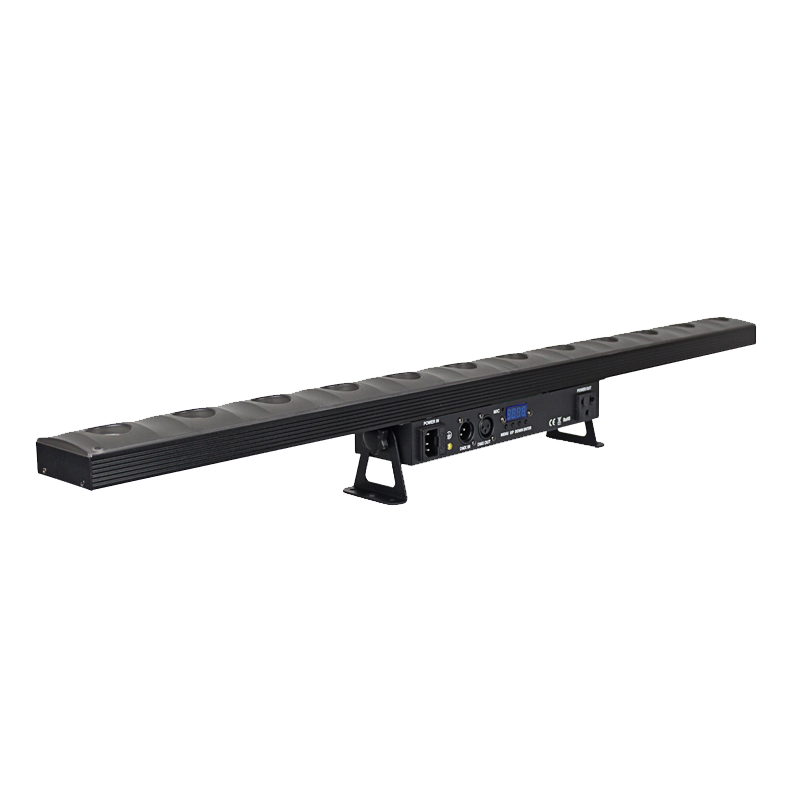

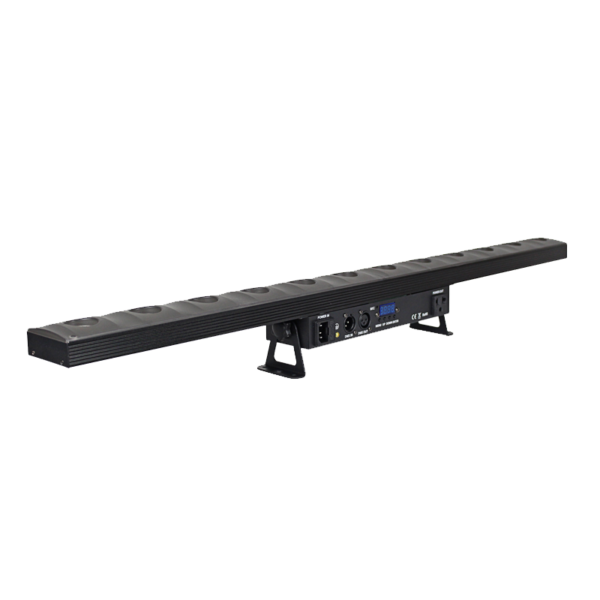

 CONNECTIONS

  • DMX connections: 3 pin XLR In/Out male and female
  • Power Connections: PowerCon In/Out

PHYSICAL

  • Dimensions: 940 x 75 x 165mm
  • Net weight: 2.7 Kg
  • Color: Black
  • Housing: Aluminum + Plastic
  • IP rating: 20
