Name: FR 200
SKU: 9603

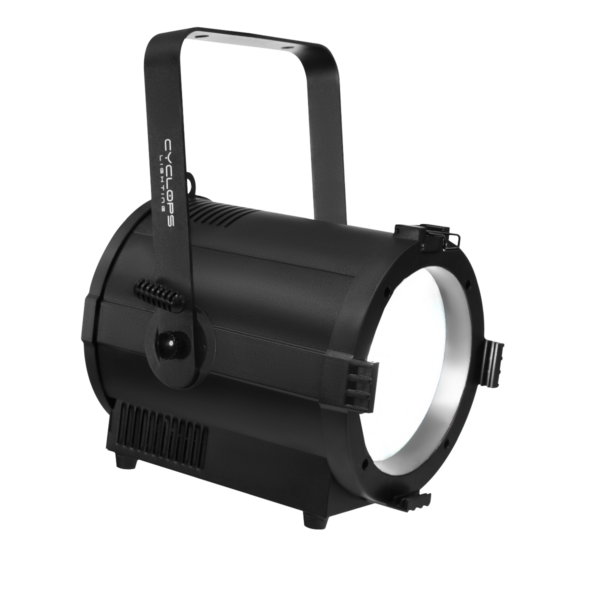

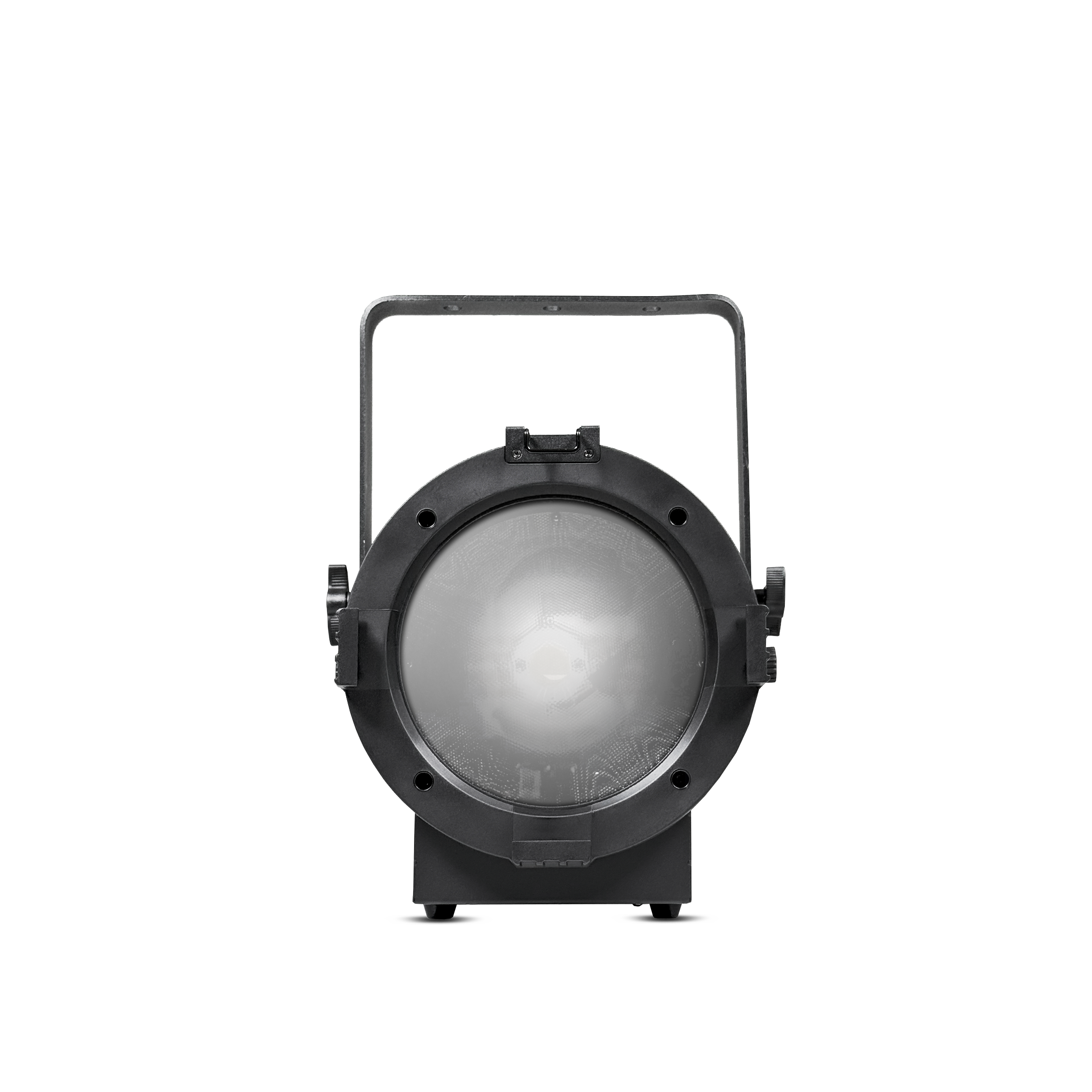

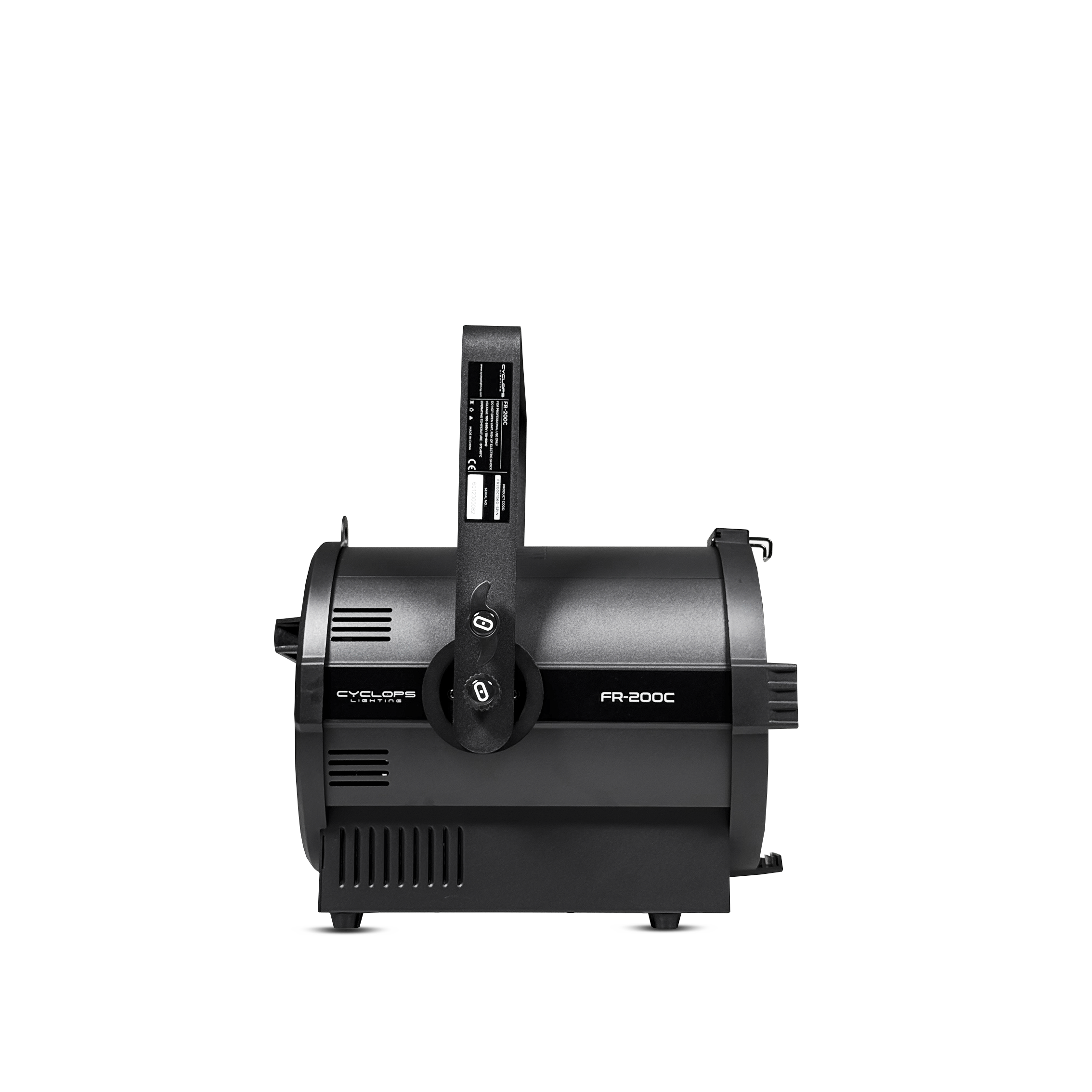

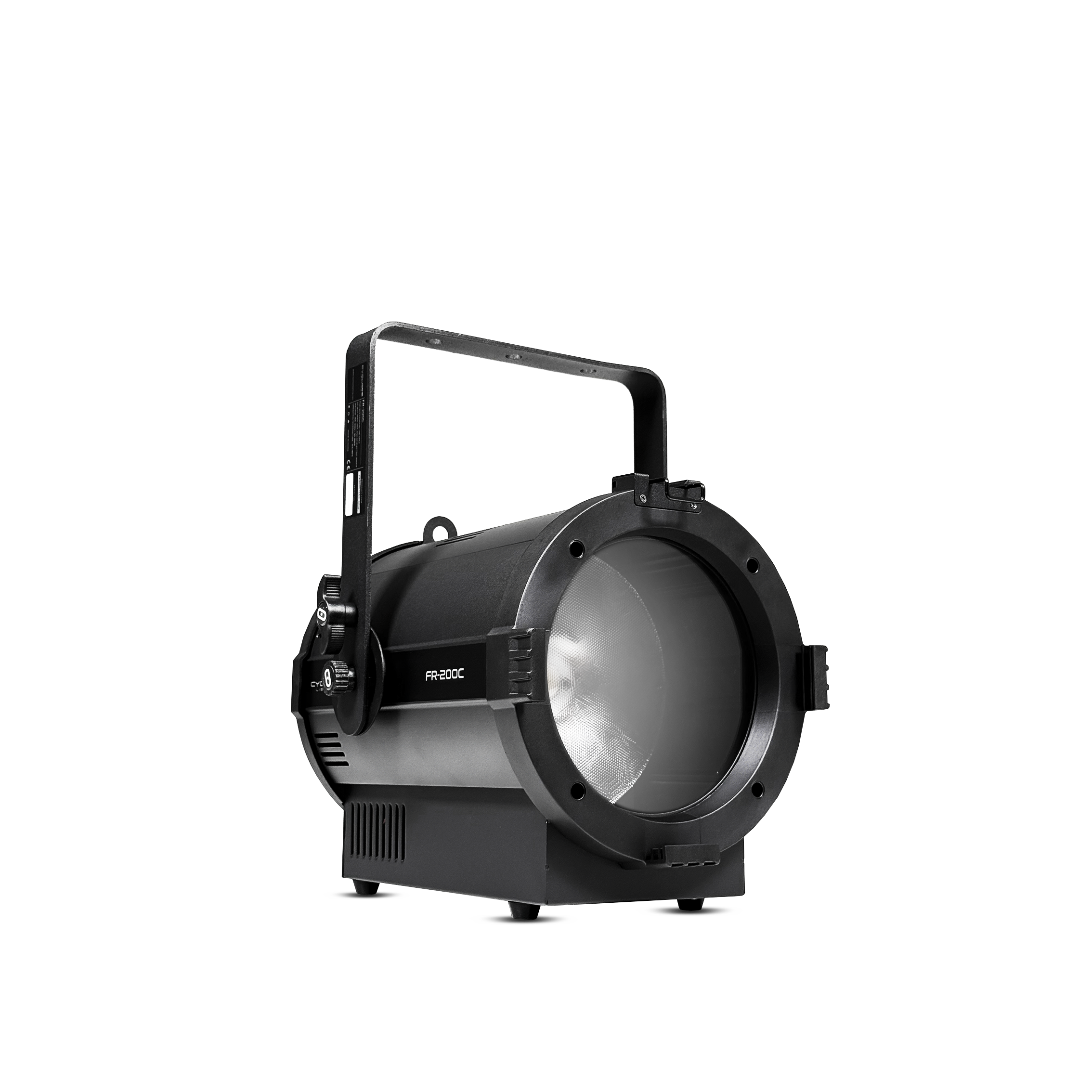

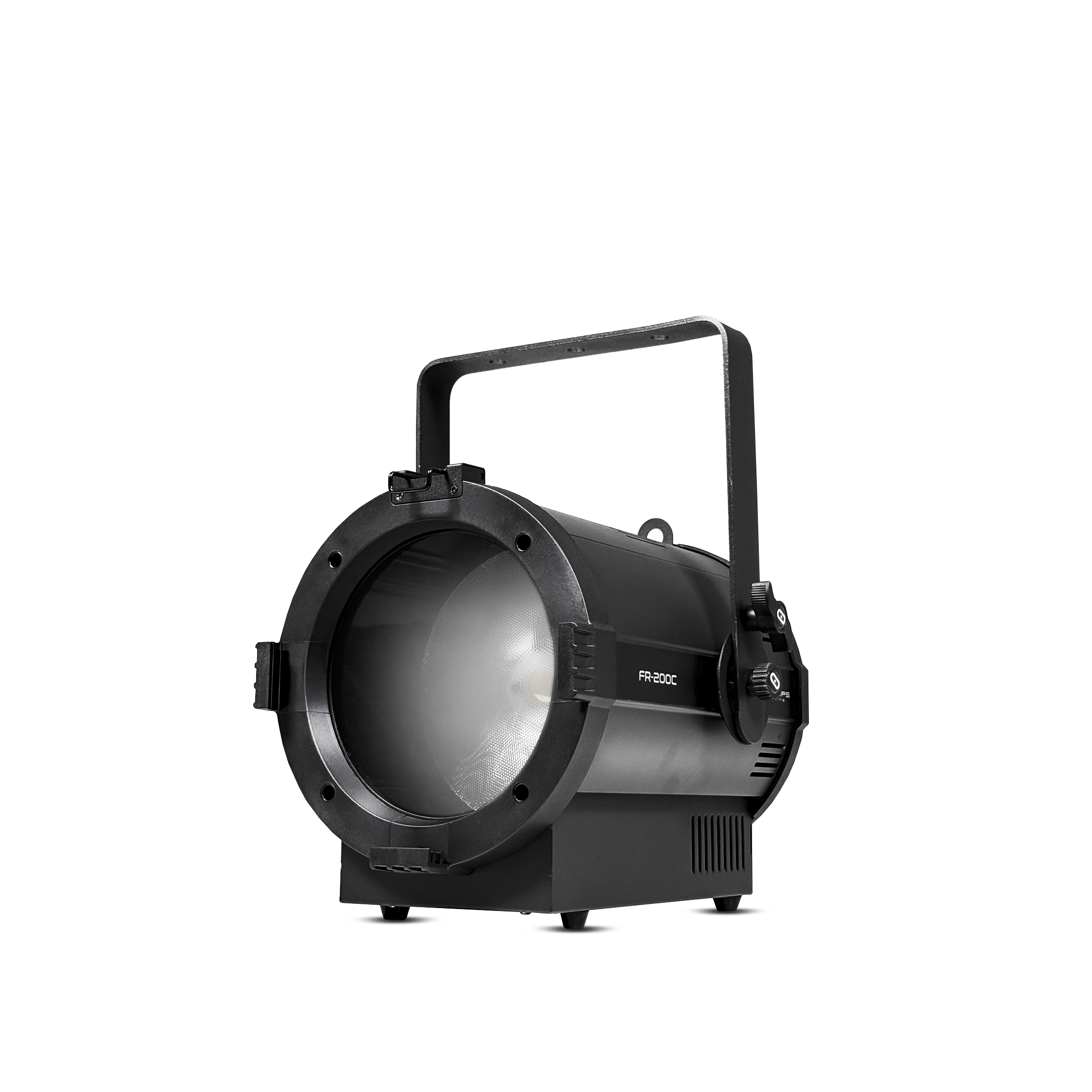

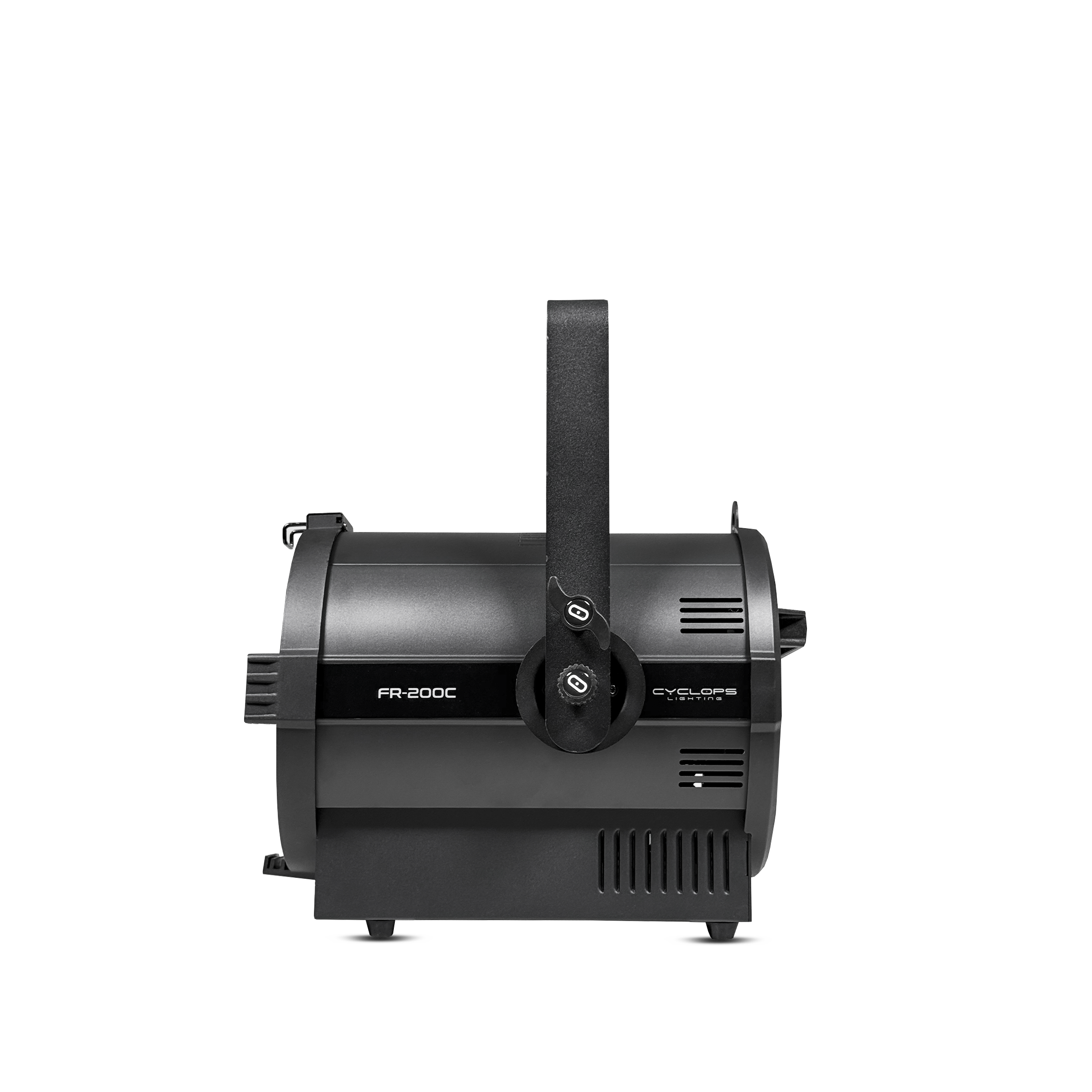

FR 200

200W LED Fresnel – Cool White, Warm White or RGBW with Motorized Zoom

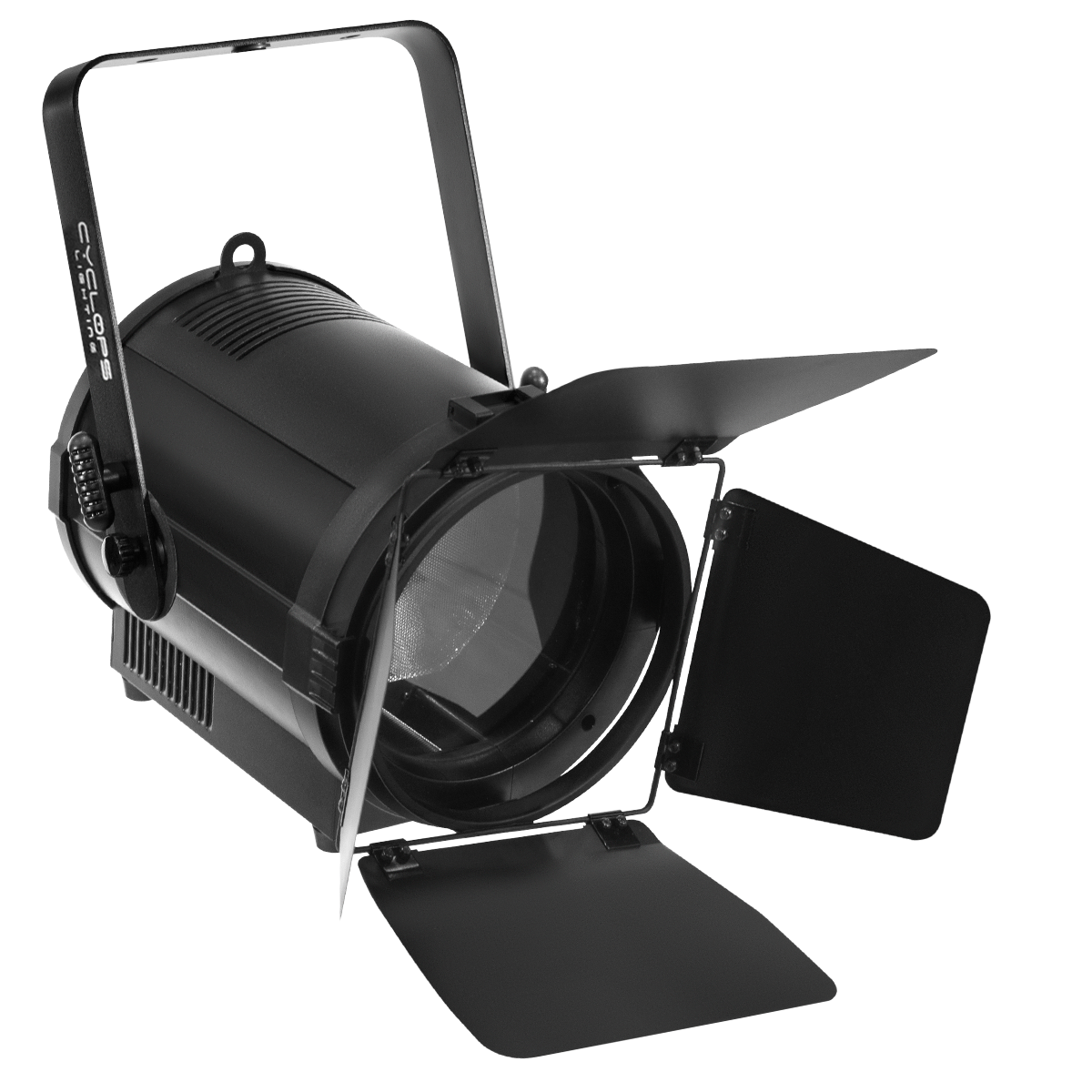

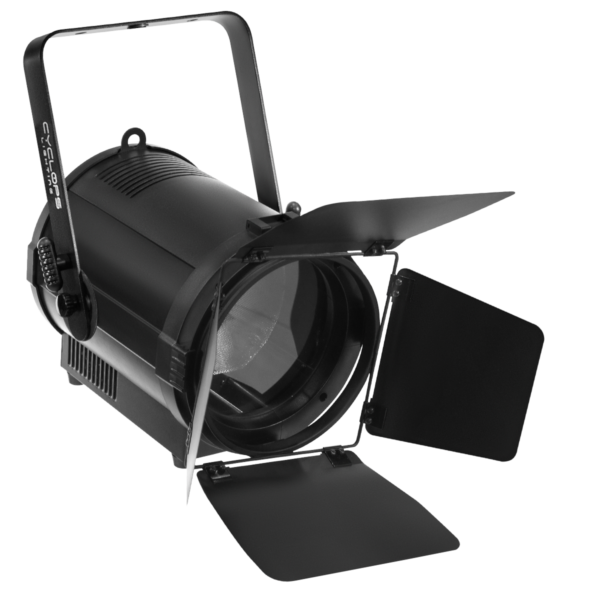

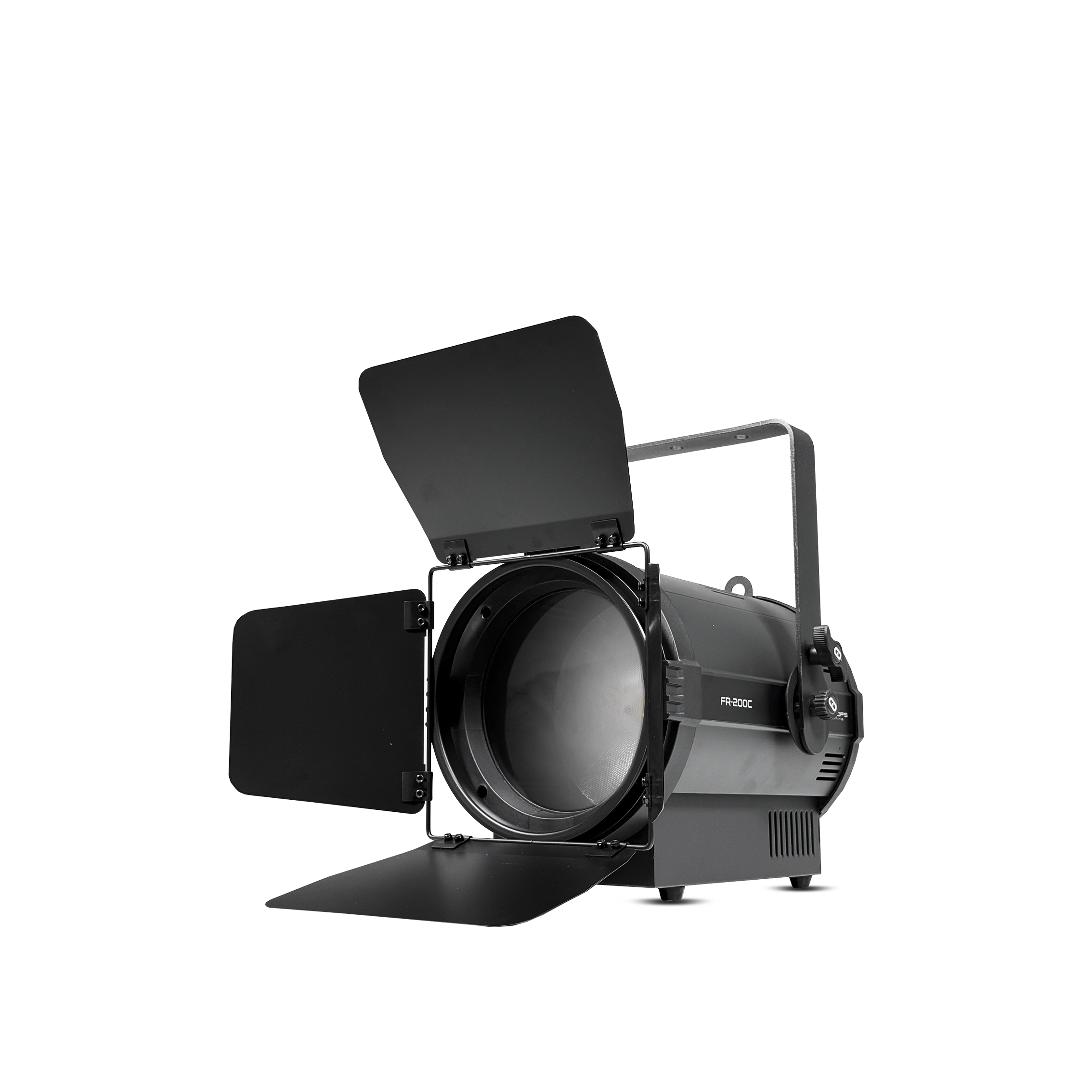

FR 200 offers a range of high-performance LED Fresnels designed to meet the needs of lighting designers in multi-purpose theatres and studios. Whether you’re seeking a cool, warm, or RGBW light source, the FR 200 series has you covered with three versatile variations: the FR 200C, FR 200W, and FR 200F. Each model features a powerful 200W COB LED and a motorized zoom range of 15° to 60°, allowing for smooth, even washes of light and precise control. With a superior CRI of 96, these fresnels deliver exceptional color rendering. The FR 200C offers a 5600K Cool White light, while the FR 200W provides a 3200K warm white, both perfect for achieving natural, flattering lighting. For dynamic color effects, the FR 200 give you a full spectrum of vibrant color hues. All models are RDM capable and come with barndoors for shaping and sculpting light, offering ultimate flexibility for any lighting design.

SOURCE

Light source: 200 W COB LED
LED life expectancy: 50,000 Hrs.

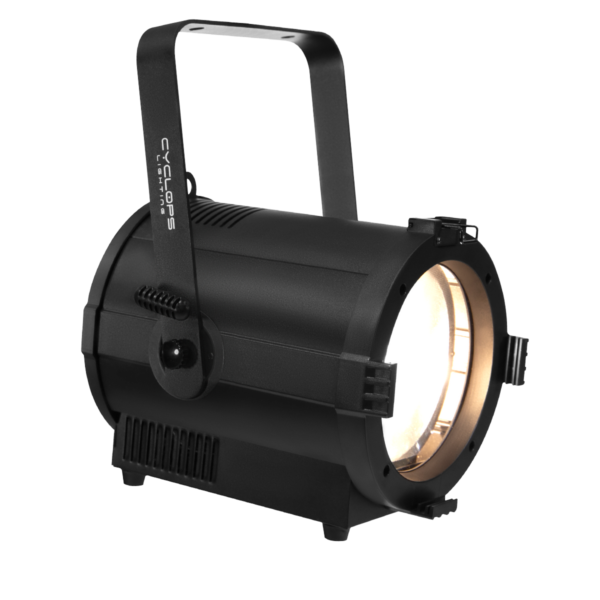

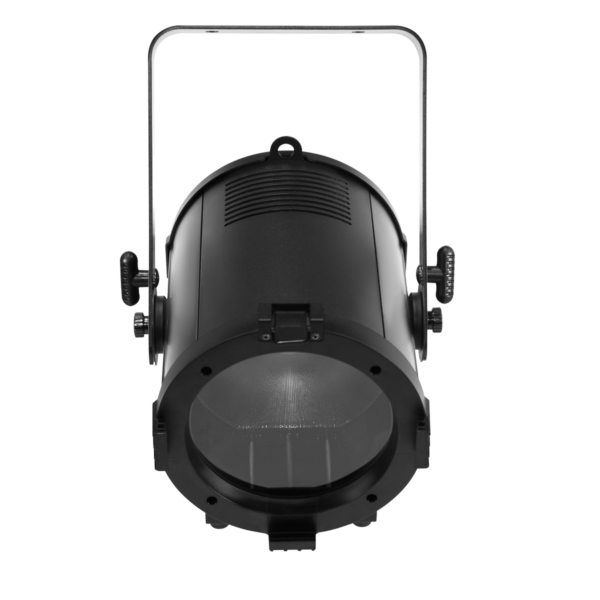

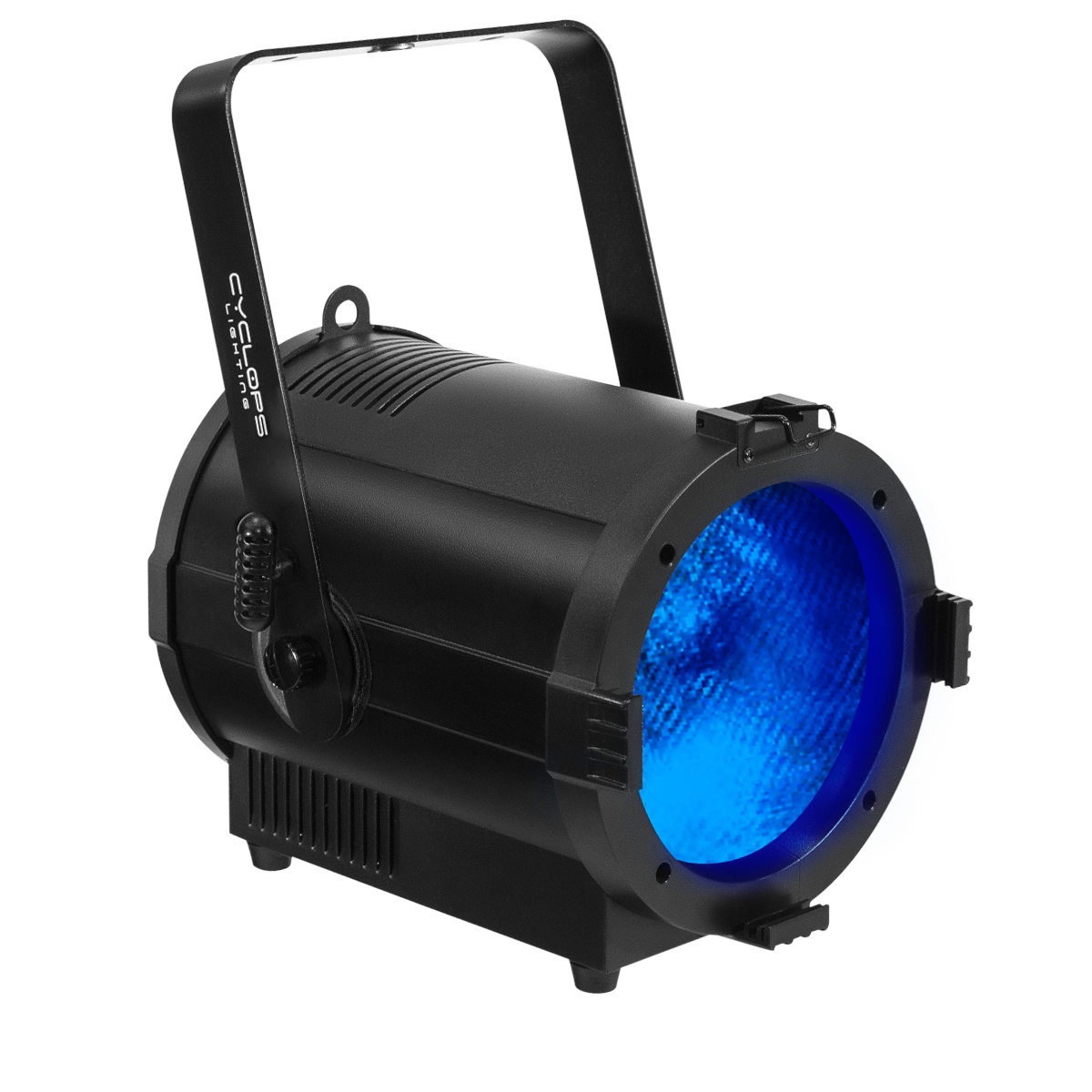

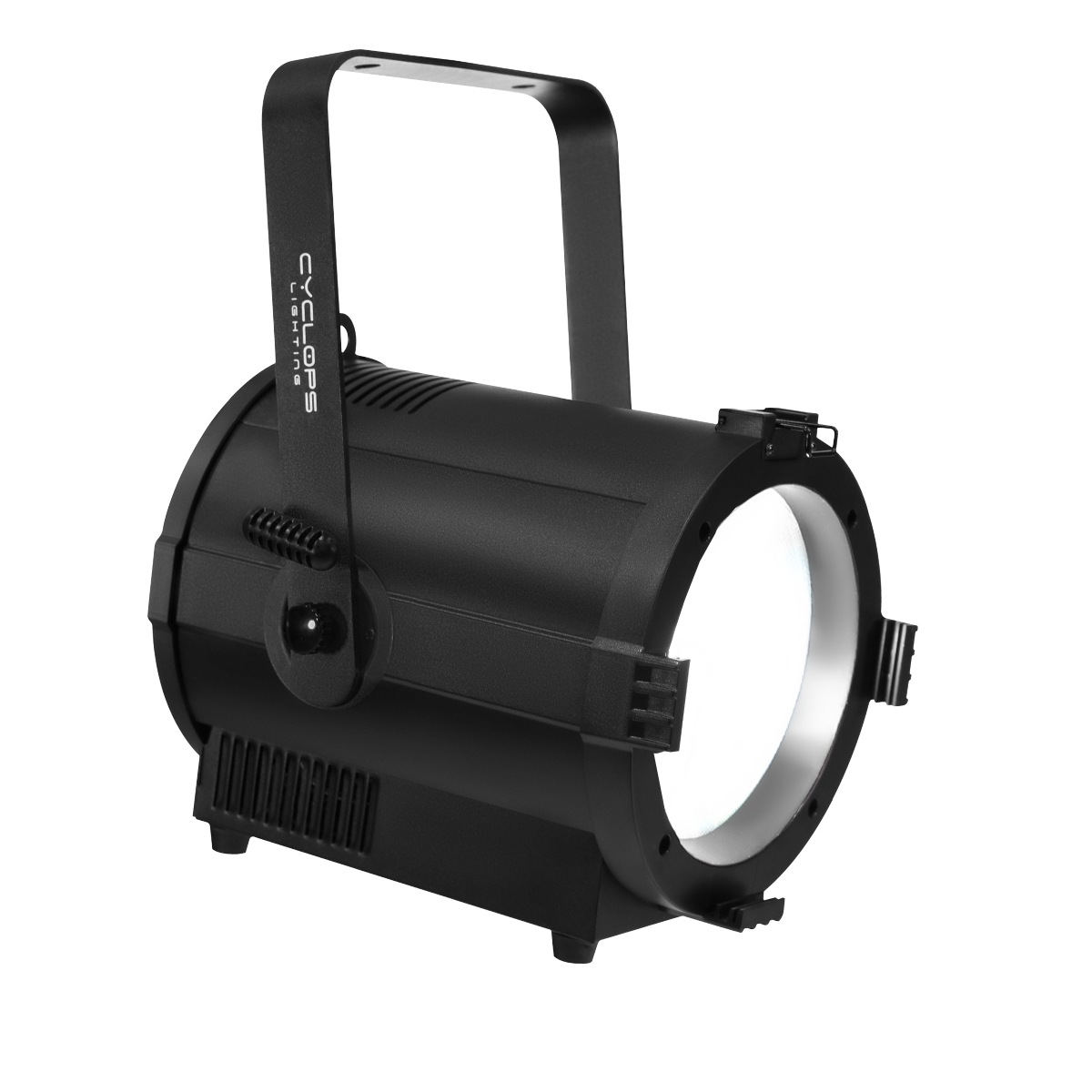

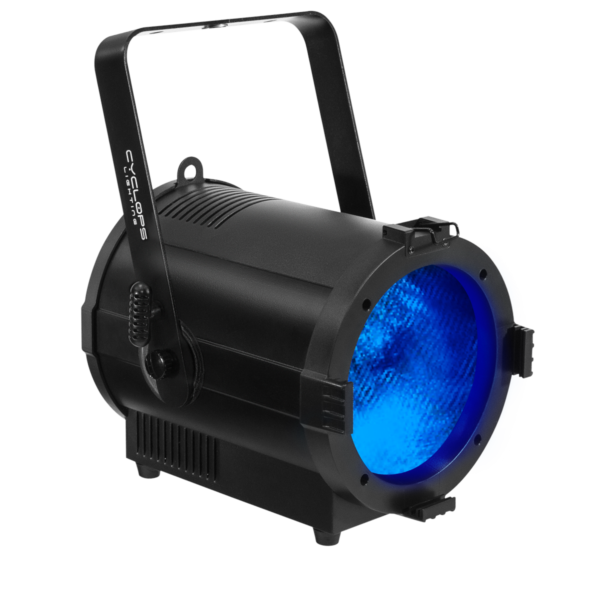

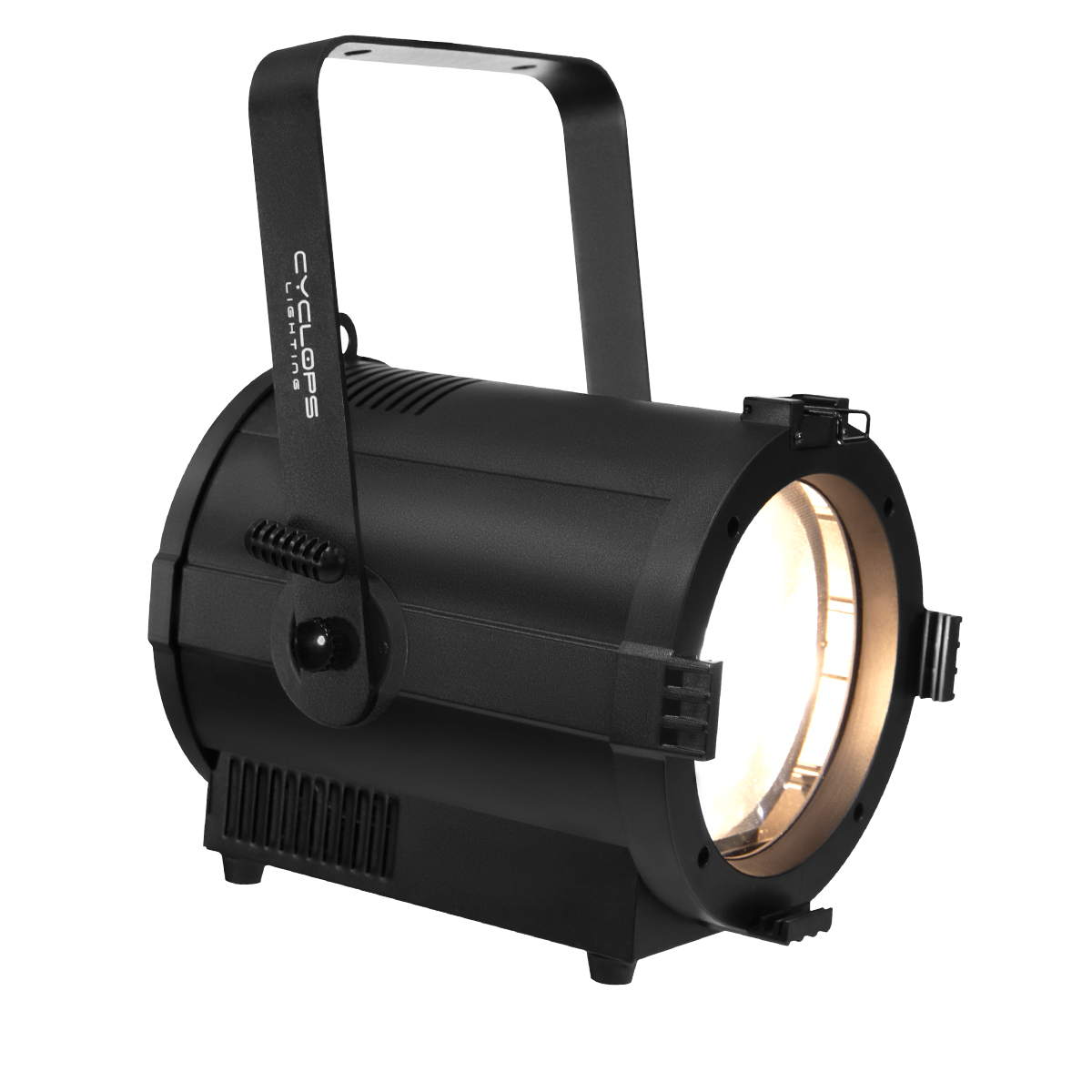

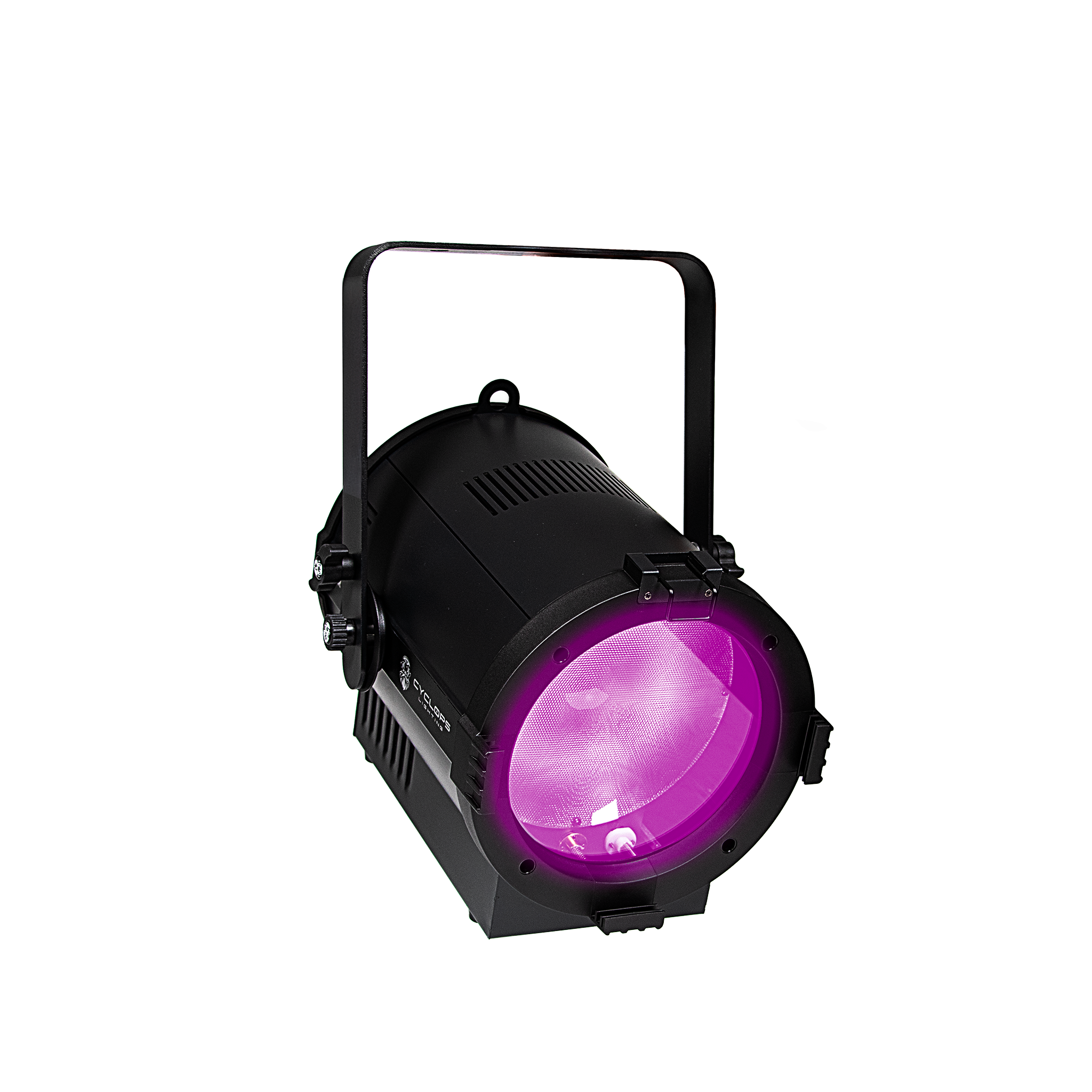

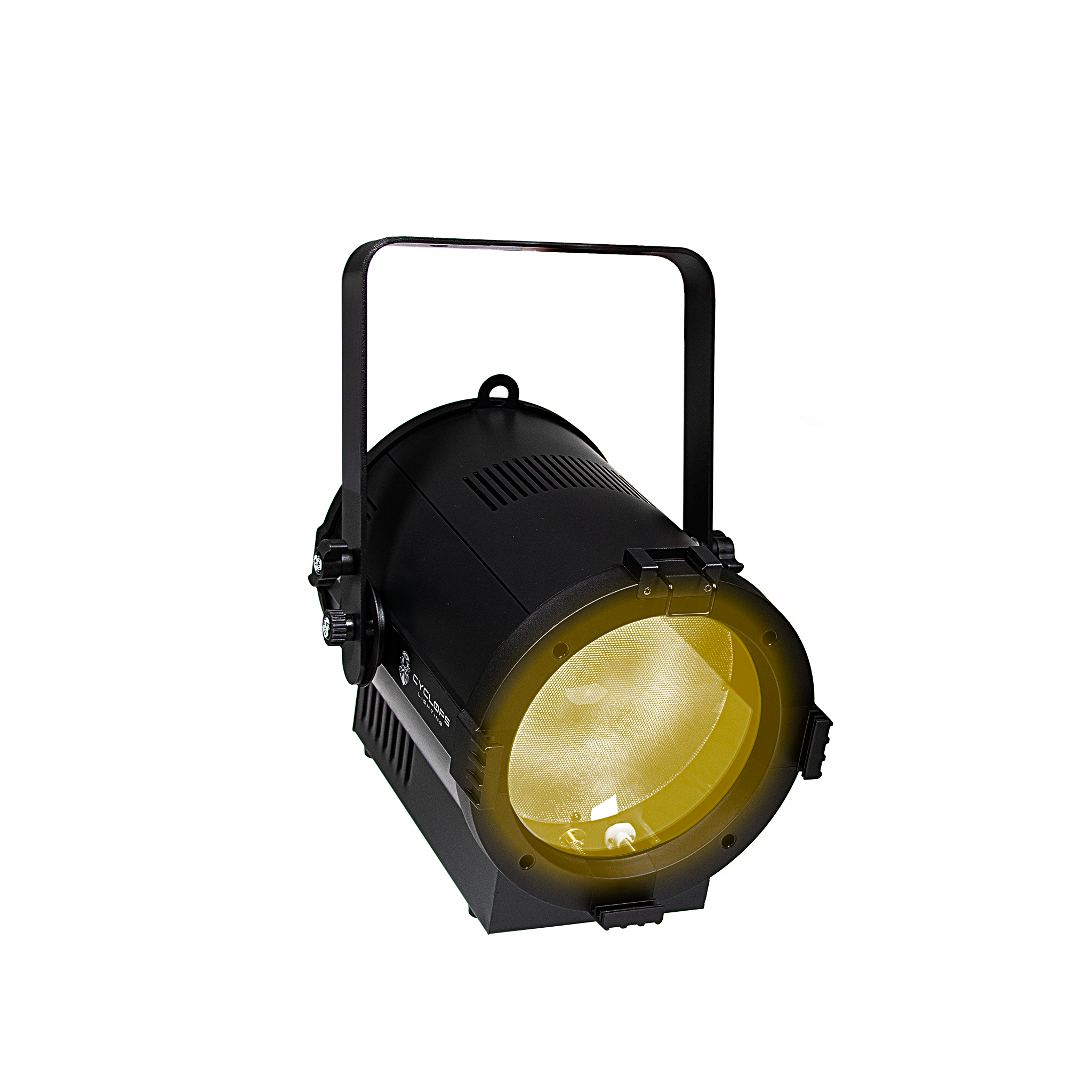

Color temperature: 5600K (FR 200C), 3200K (FR 200W), RGBW (FR 200F)
CRI: 96 (FR 200C, FR200W), 75 Ra (FR 200F)
R9: >90 (FR 200C, 200W)
TLCI: 98 (FR 200C, 200W)

OPTICAL SYSTEM

Zoom: Electronic motorized zoom
Zoom Range: 15° – 60°
Light Output: 1820lux @ 5m (FR 200C, FR 200W), 2308lux @ 3m (FR 200F) at 15°
Lens: PMMA polymethyl methacrylate lens

DYNAMIC EFFECTS

Strobe

CONTROL & PROGRAMMING

Control channels: 2, 3, 4, 5 CHs (FR 200C & 200W), 3CH (ARC.1), 4CH (AR1.D, ARC.2), 5CH (AR2.D), 6CH (AR2.S), 3CH (HSV), 12CH (STAG) (FR 200F)

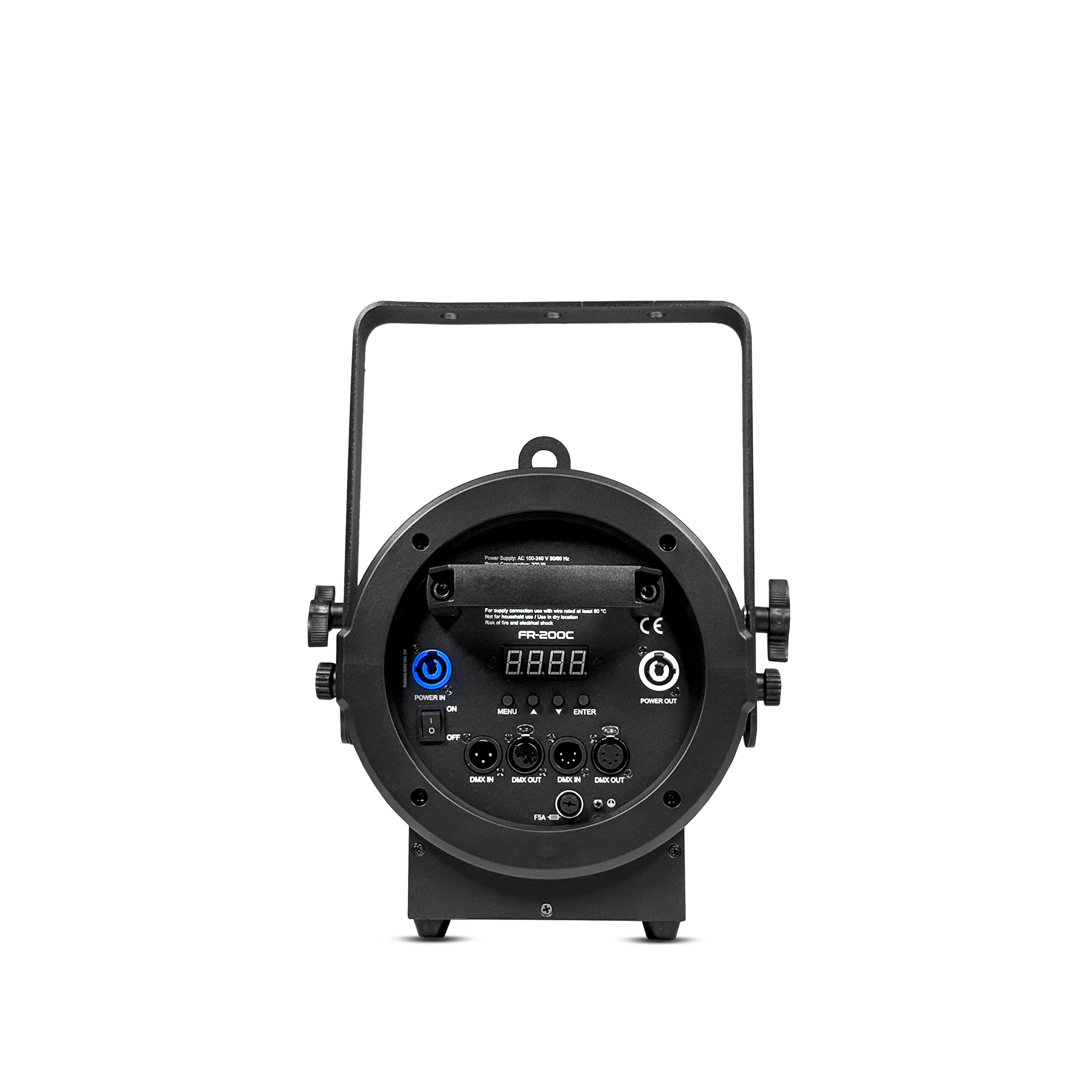

Control protocols: Rotary, DMX, RDM
Dimming curves: 5 selectable dimming curves
LED Frequency: Video flicker free with selectable PWM
Fan: Silent operation
Temperature control: Intelligent temperature control

ELECTRICAL
