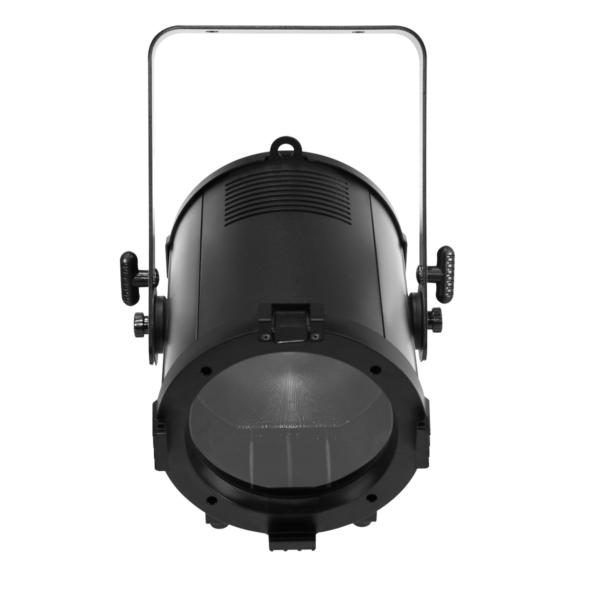

FR 200W

200 watts Warm White powered LED Fresnel

FR 200W is a 200 watts 3200K Warm white LED Fresnel with motorized zoom. With a powerful COB LED source and a zoom range of 15 to 60°, this Fresnel can deliver a smooth even wash of a superior CRI of 96. It is RDM capable and comes with barn doors to sculpt and shape the light. It’s the perfect and the most flexible match for lighting designers in multi-purpose theatres and studios.

SKU: FR200W Categories: ,

Videos

SOURCE

  • Light source: 200 watts Warm white COB LED
  • Color temperature: 3200K
  • LED life expectancy: 50,000 Hrs.
  • CRI: 96, R9>90
  • TLCI: 98

OPTICAL SYSTEM

  • Electronic zoom
  • Zoom range: 15° to 60°
  • Light output: 40,200 Lux @ 1m @ 15°

KEY FEATURES

  • 5 Dimmer curves
  • Strobe
  • Video flicker free with selectable PWM
  • Intelligent temperature control
  • Silent operation
  • PMMA polymethyl methacrylate lens

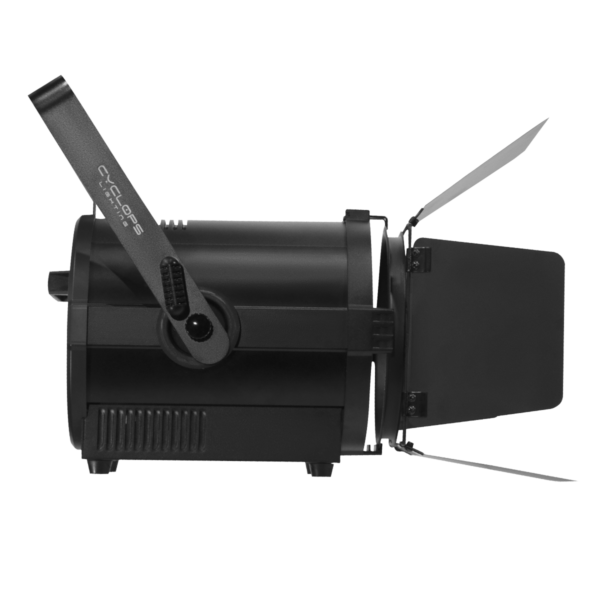

  • Barn doors included

CONTROL & PROGRAMMING

  • Control protocols: DMX, RDM
  • Control channels: 2, 3, 4, 5 CHs

 ELECTRICAL

  • Input voltage: AC100-240V/50-60Hz

 CONNECTIONS

  • DMX connections: 3 pin XLR In/Out male and female
  • Power connections: PowerCon In/Out

PHYSICAL

  • Dimensions: 315 x 296 x 330mm
  • Net weight: 8 Kg
  • Color: Black
  • Housing: Aluminum
  • IP rating: 20
  • Operating temperature: -5°C/45°C
