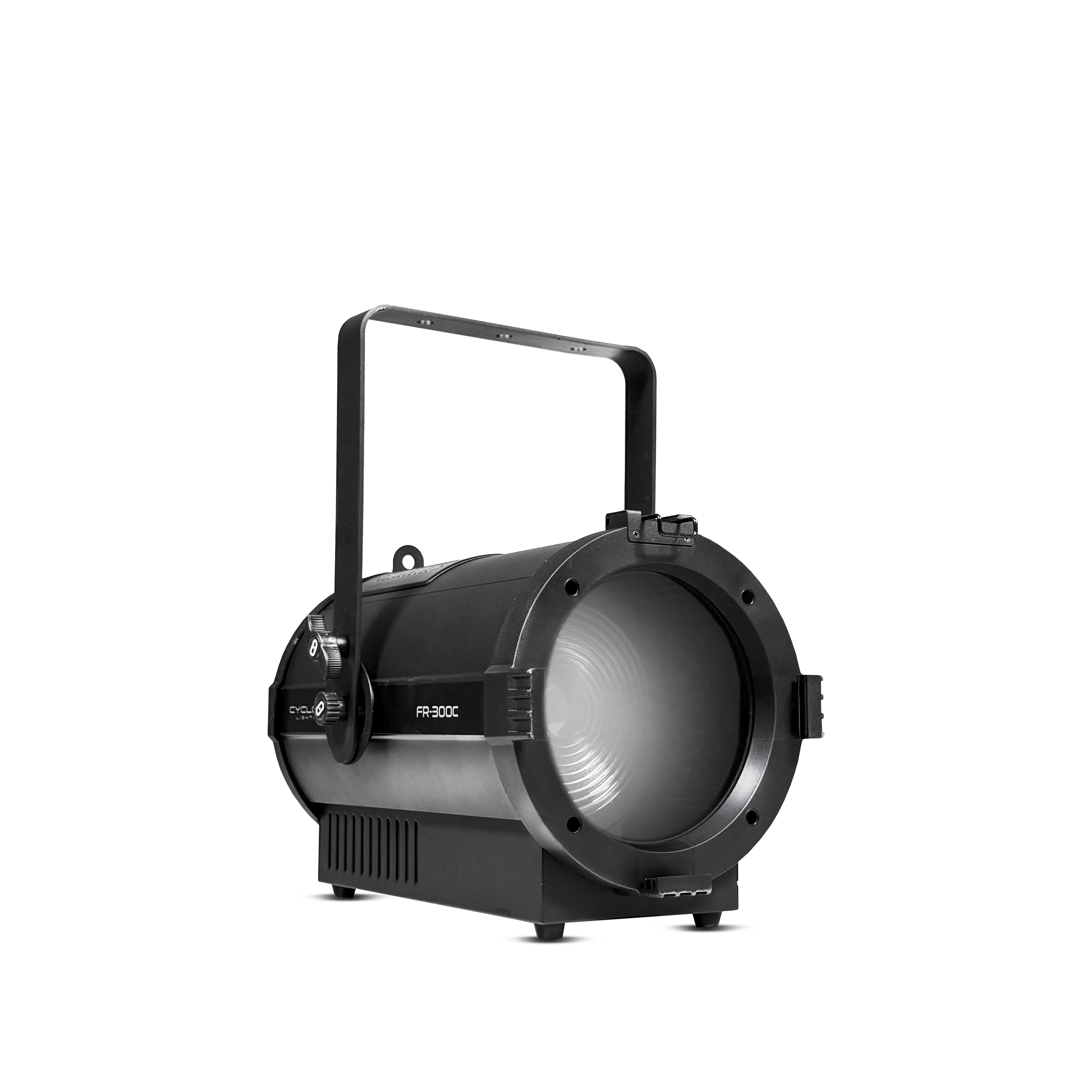

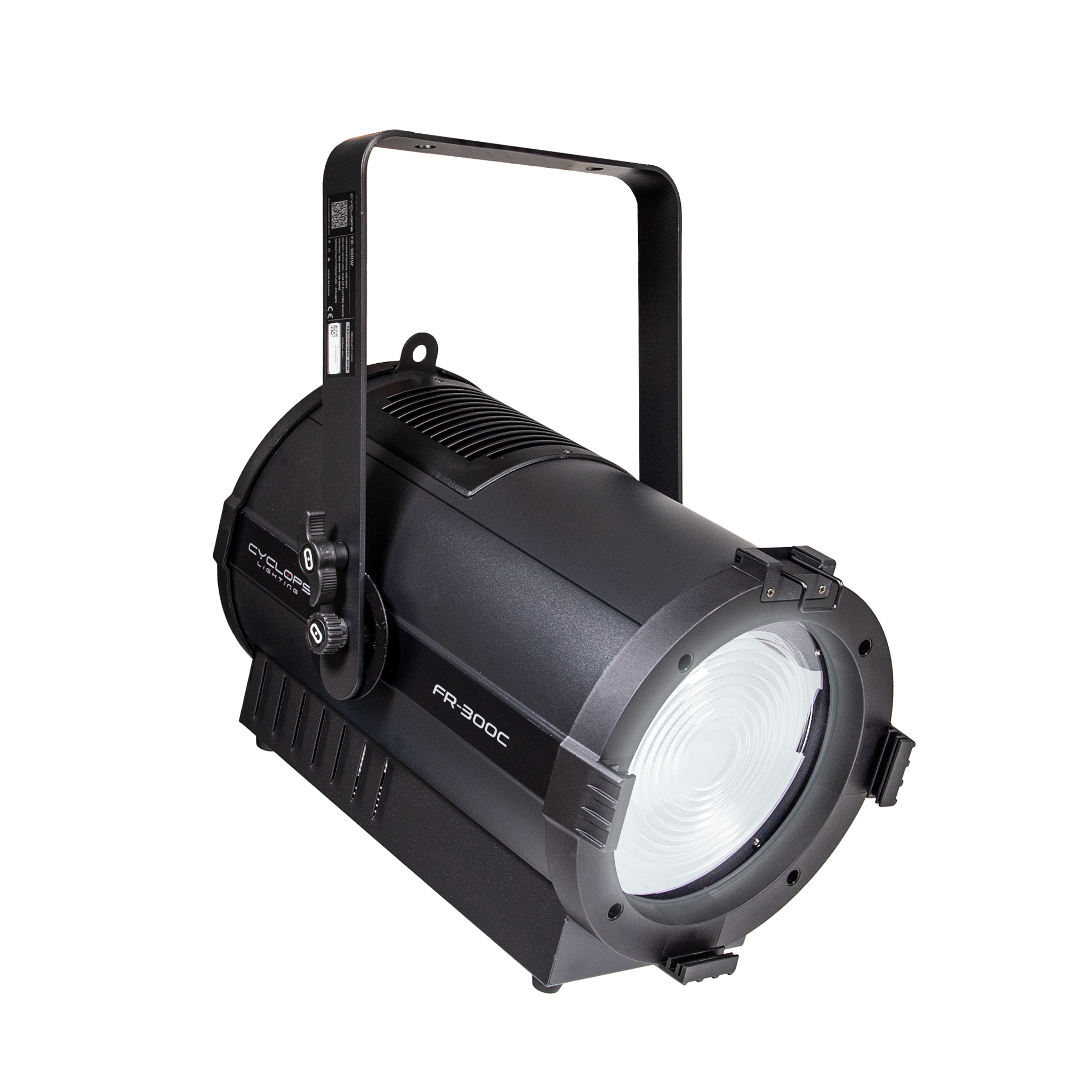

FR 300C - Main

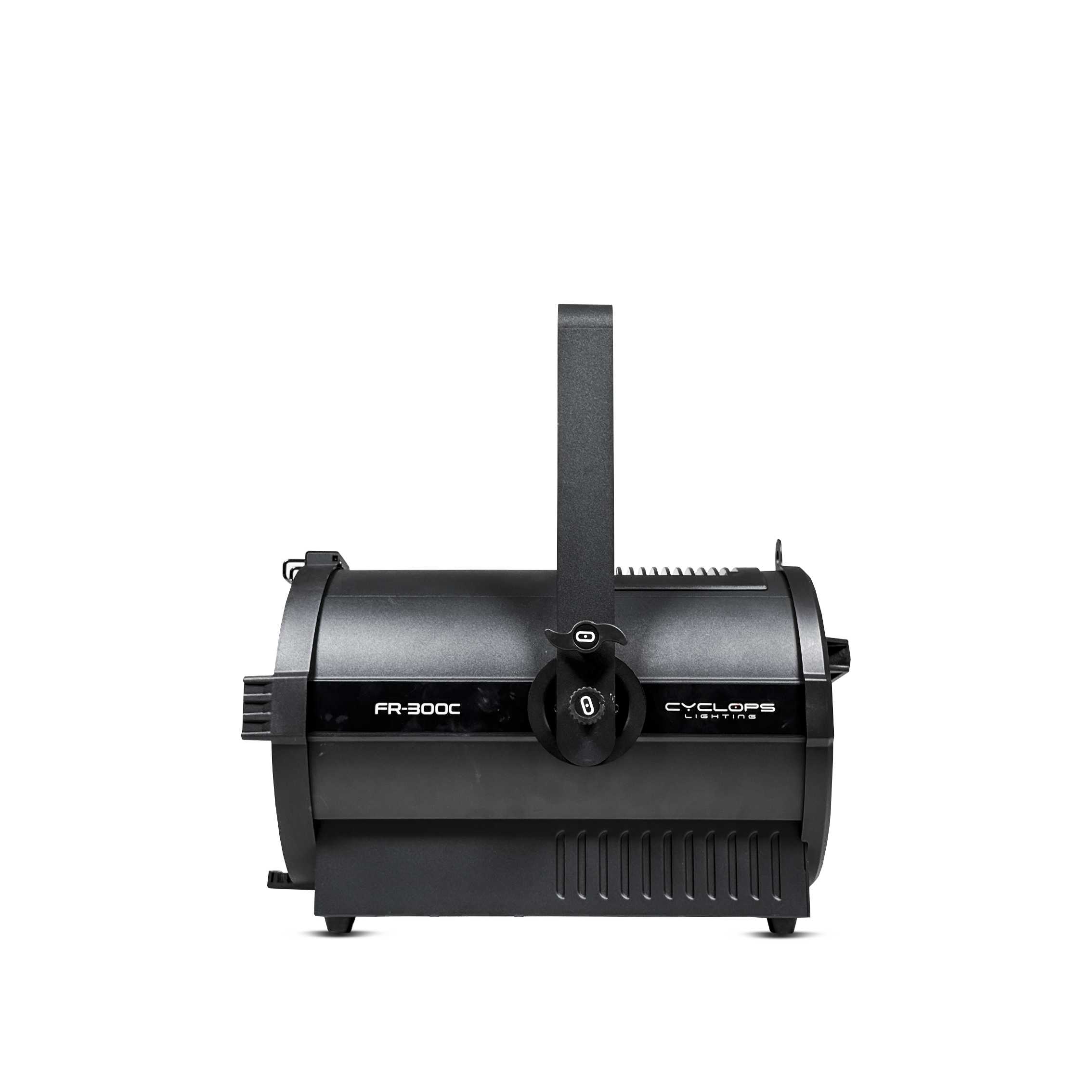

FR 300C - Angle left

FR 300

FR 300

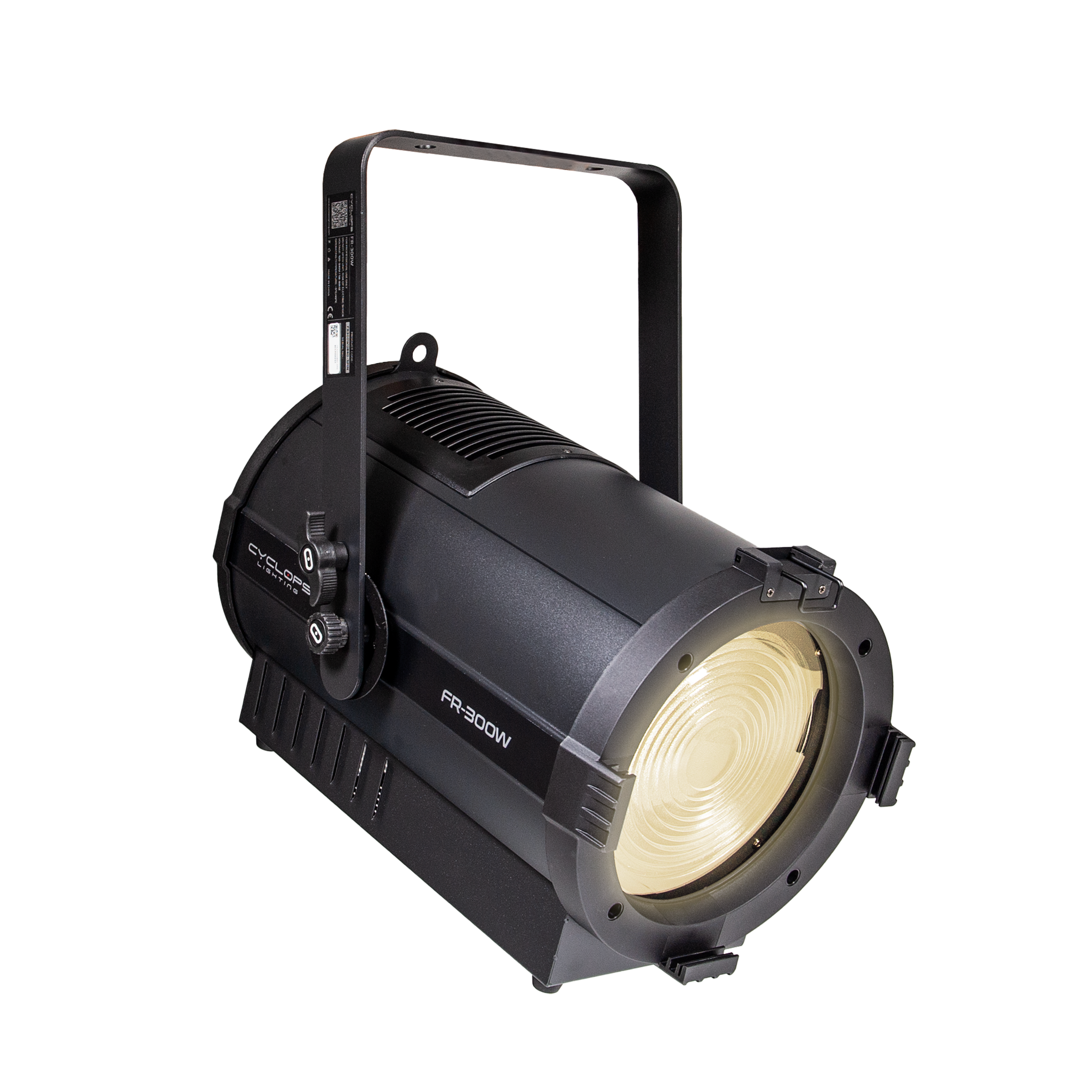

300W LED Fresnels – Cool White or Warm White with Motorized Zoom

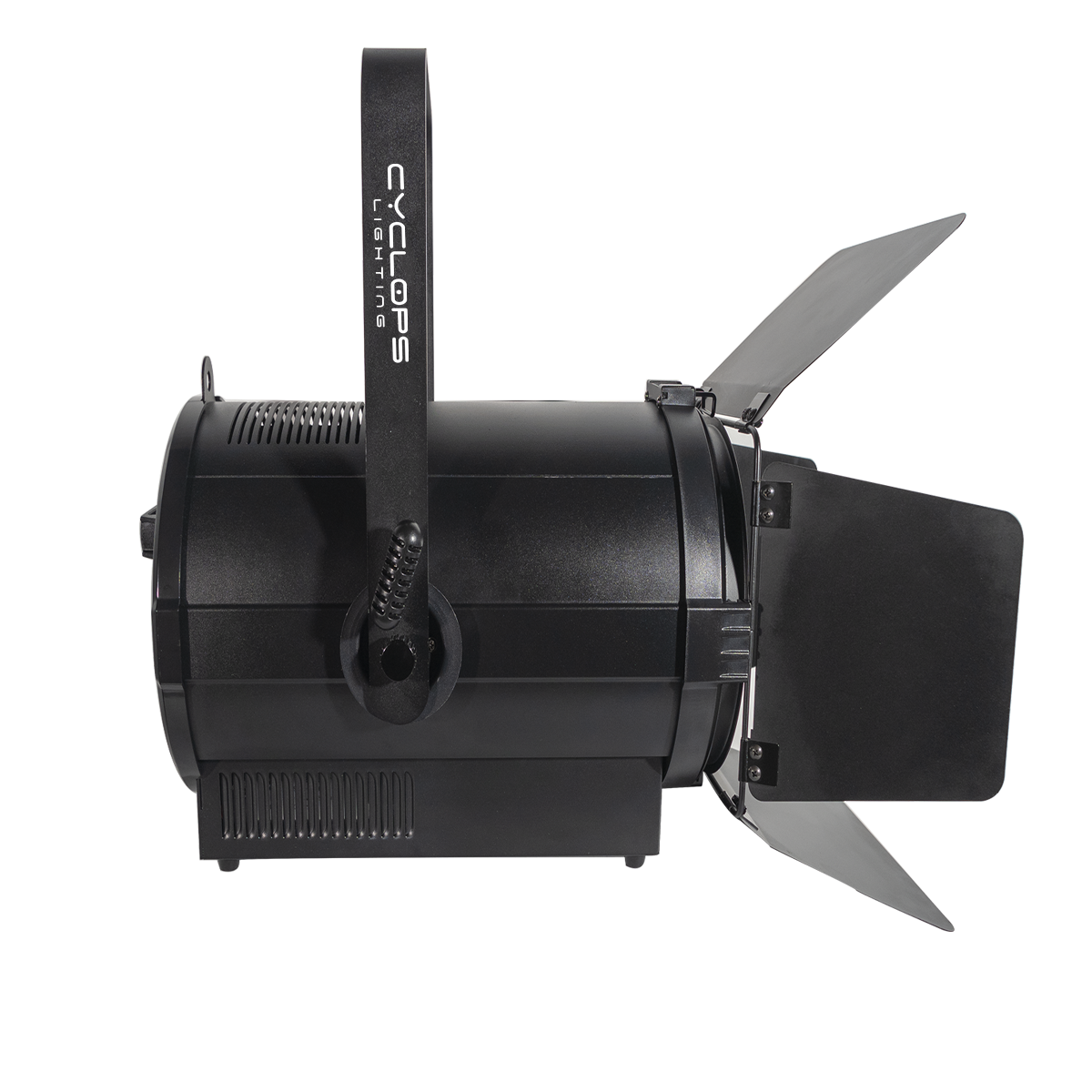

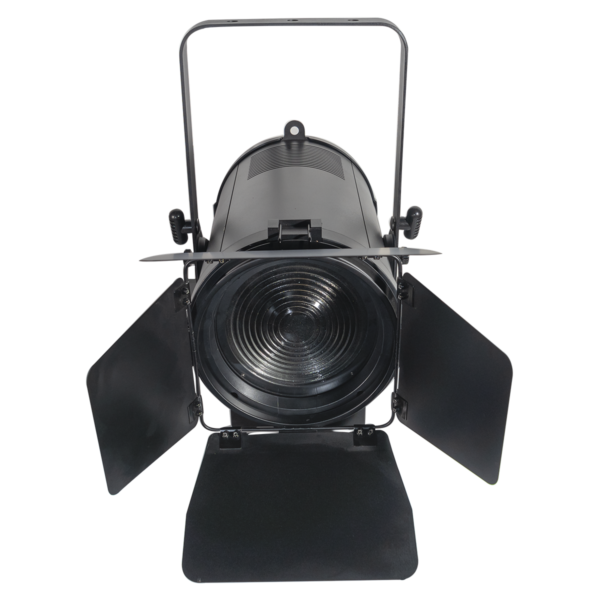

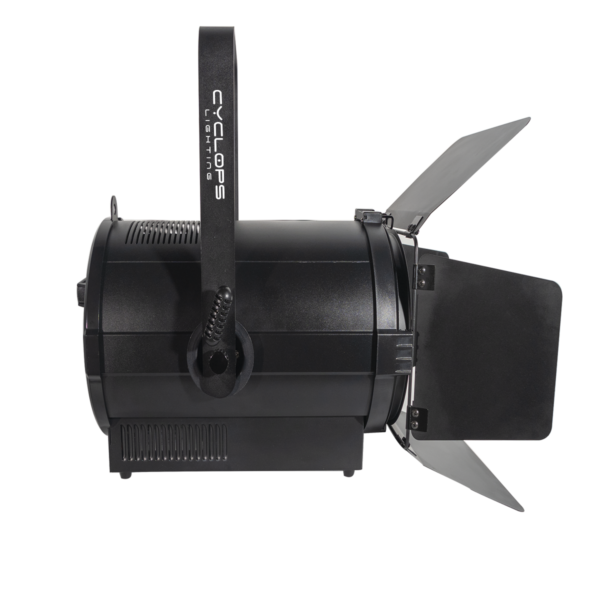

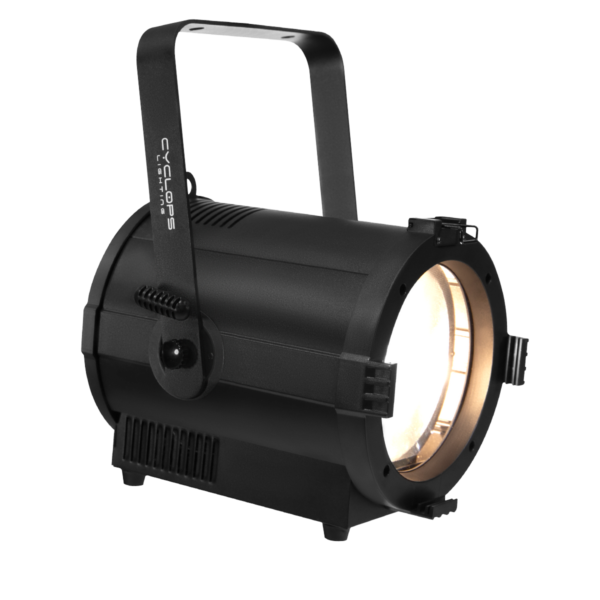

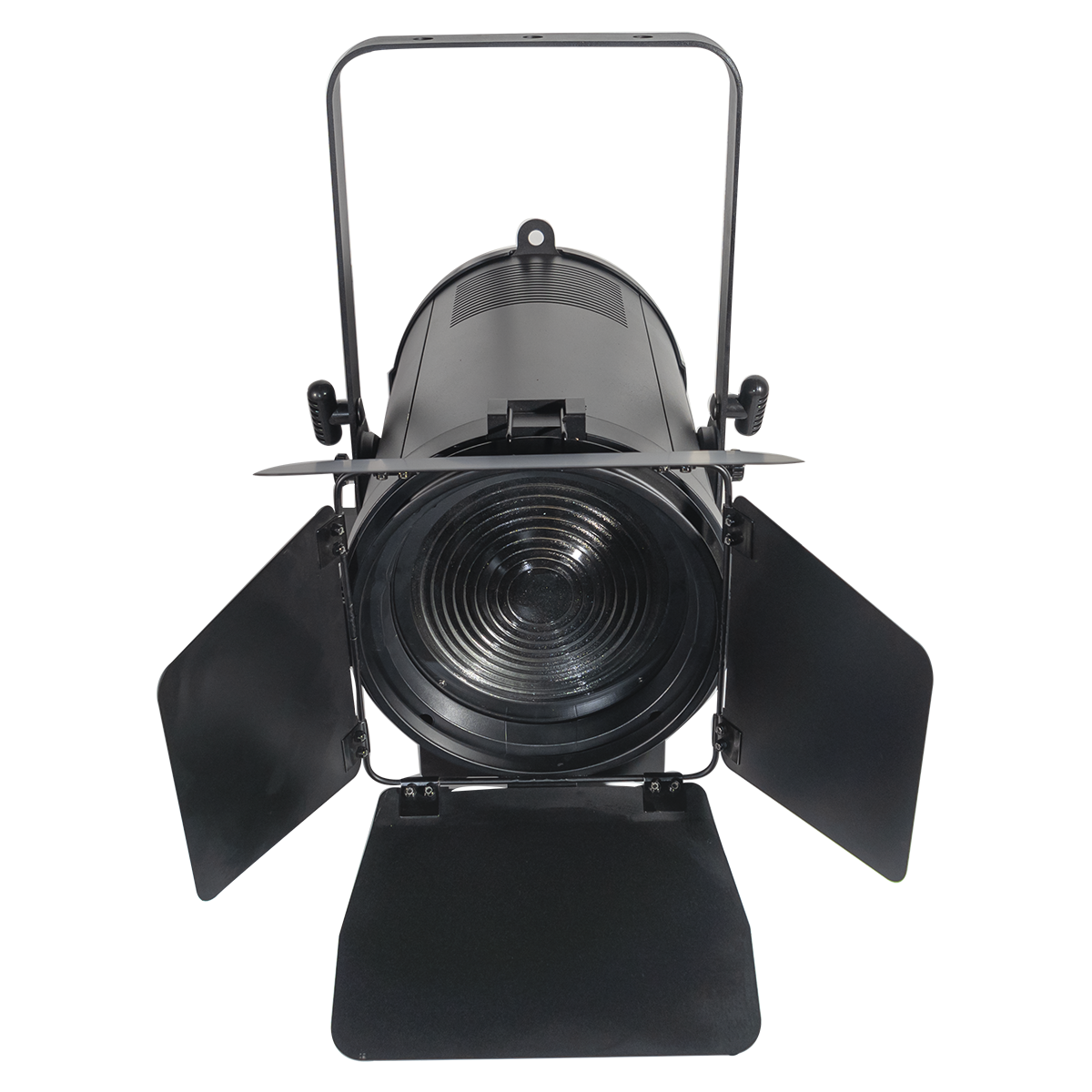

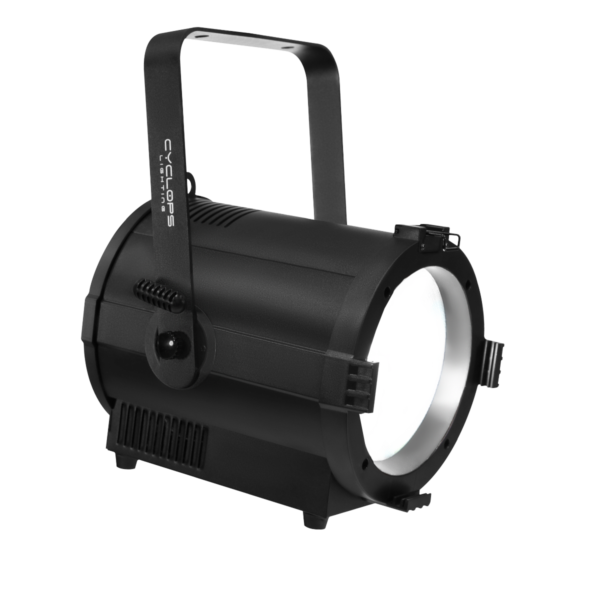

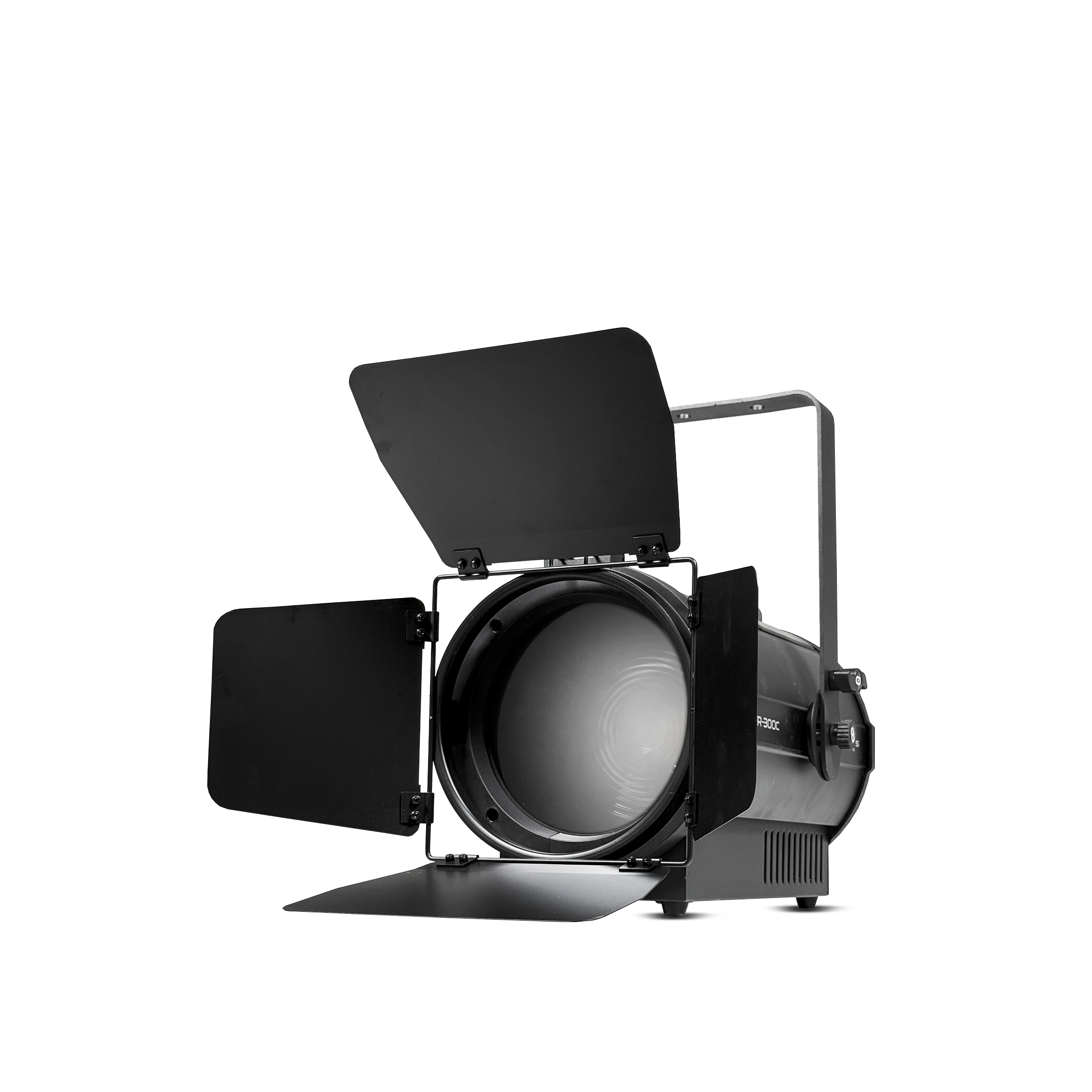

FR 300 features two powerful LED Fresnels—FR 300C (Cool White, 5600K) and FR 300W (Warm White, 3200K)—both offering 300 watts of output. Each model boasts a motorized zoom range from 15° to 50°, high light power, and exceptional color rendering (CRI 97, TLCI 96 for FR 300C and CRI 97, TLCI 98 for FR 300W). With versatile control protocols and a soft wash effect, these Fresnels are ideal for precise lighting control in any setting. Both come with a barn door for light shaping, making them perfect for professional productions.

SKU: N/A Categories: LED Fresnels, Theatrical Series: FR

Specifications
Downloads

SOURCE

Light source: 300 watts Cool white COB LED/Warm white COB LED
1000-1800W tungsten equivalent
LED life expectancy: 50,000 Hrs.
Color temperature: 5600 K (Cool white) and 3200 K (Warm White)
CRI: 97, R9: ≥90
TLCI≥ 96 (Cool White) and 98 (Warm White)

OPTICAL SYSTEM

Zoom range: 15° to 50° motorized
Light Output: 5600K 8340lux @5m 8°

CONTROL & PROGRAMMING

5 Dimmer curves
Color: Cool white & Warm White
Control protocols: Rotary, DMX, RDM
Control channels: 1, 2, 3, 4 CHs
Flicker free with selectable PWM

ELECTRICAL

Input voltage: AC100-240V/50-60Hz

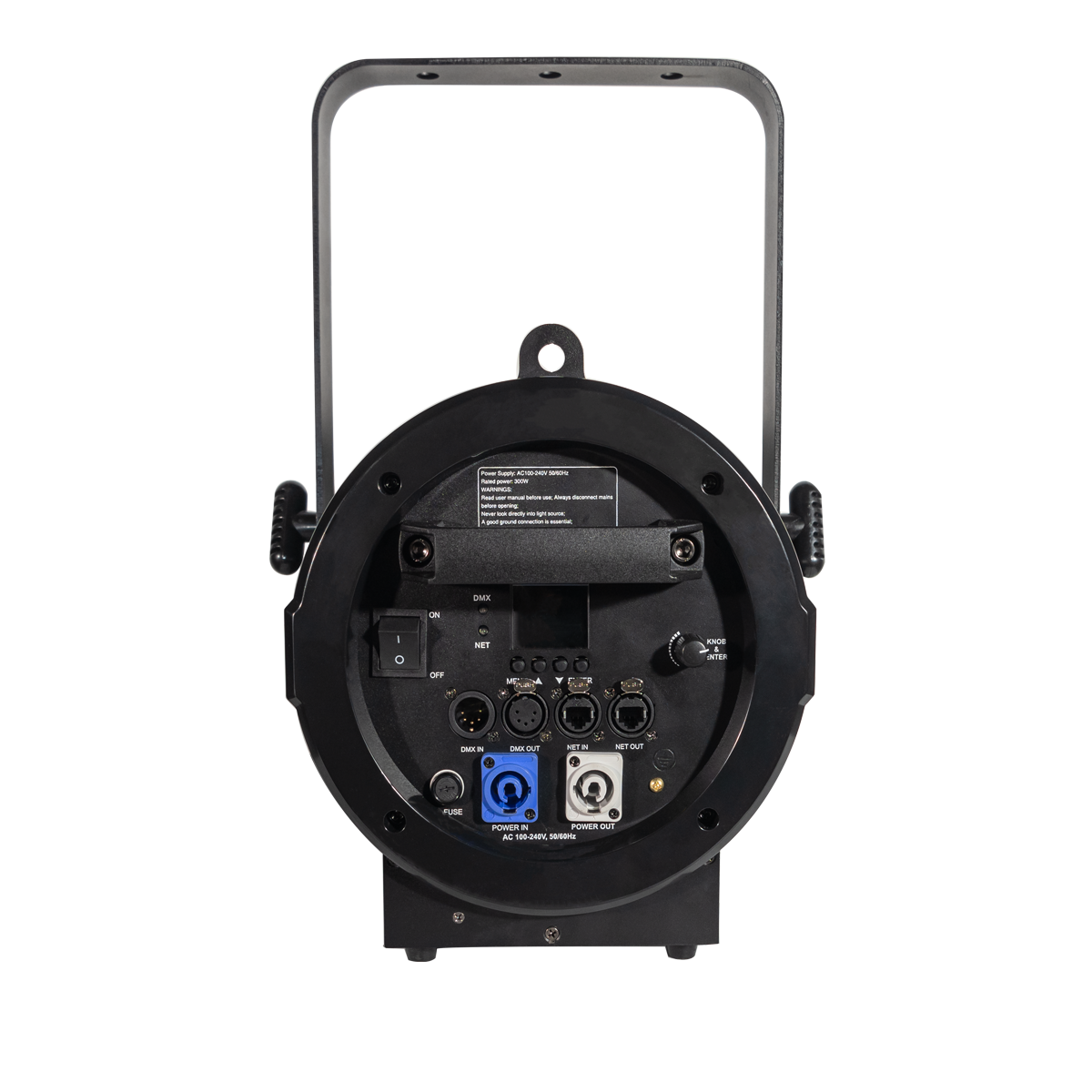

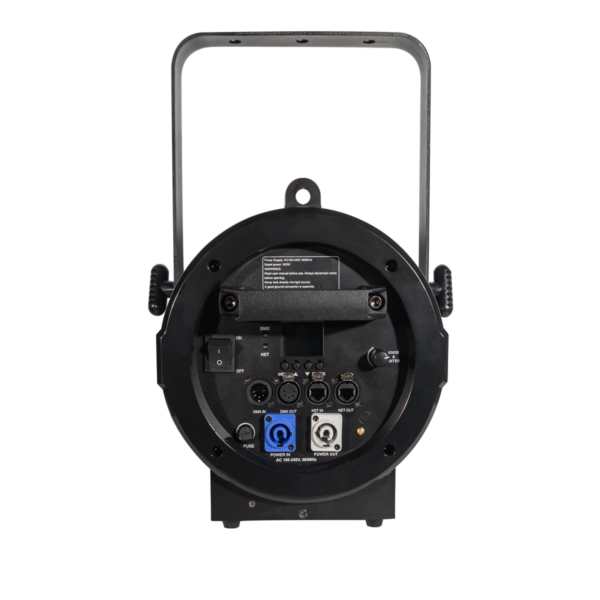

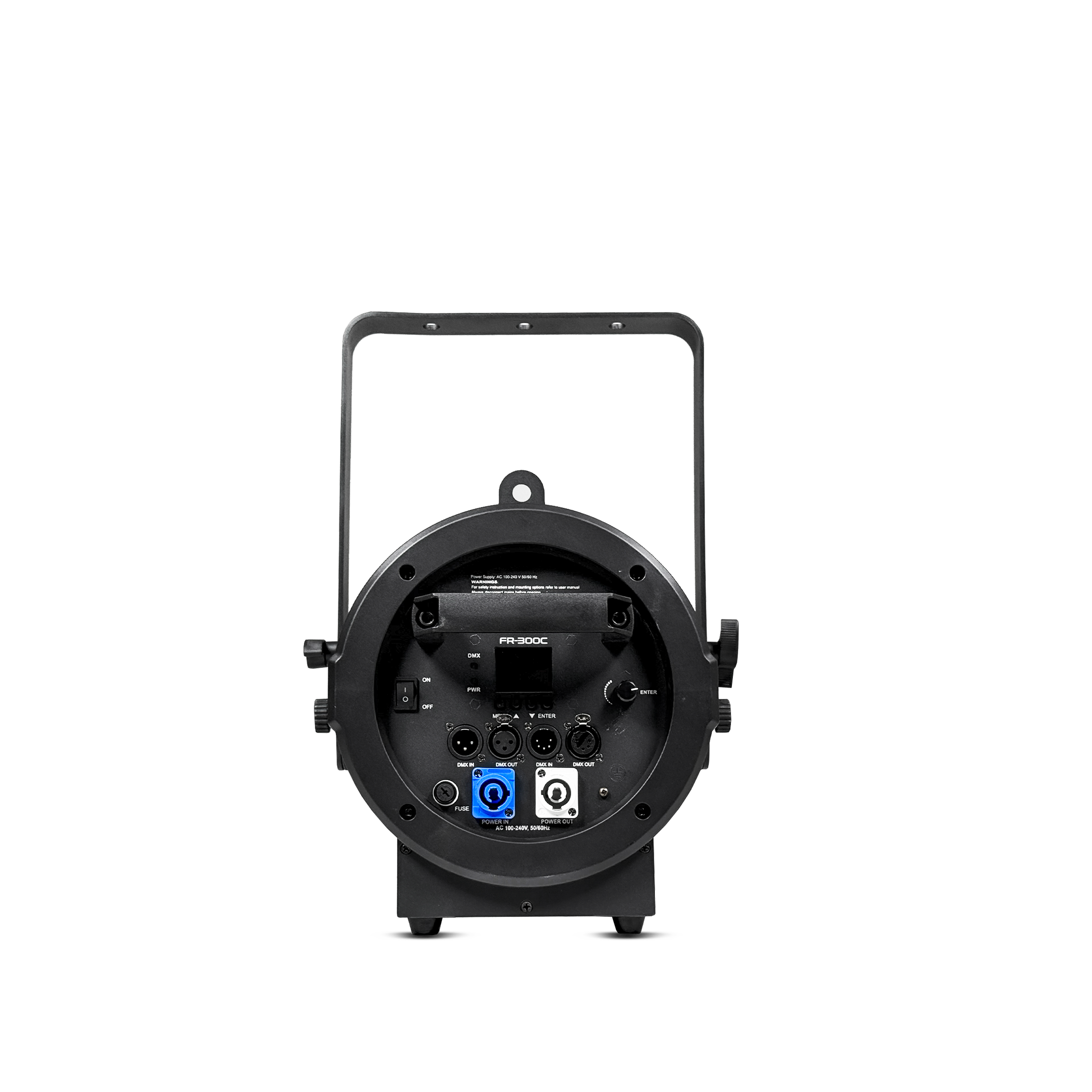

CONNECTIONS

AC connection: PowerCON In/Out
DMX connections: 5 pin XLR In/Out male and female

PHYSICAL

Dimensions: 428 x 295 x 451mm
Net weight: 11 Kg (including barn door)
Color: Black
Housing: Aluminum
IP rating: 20
