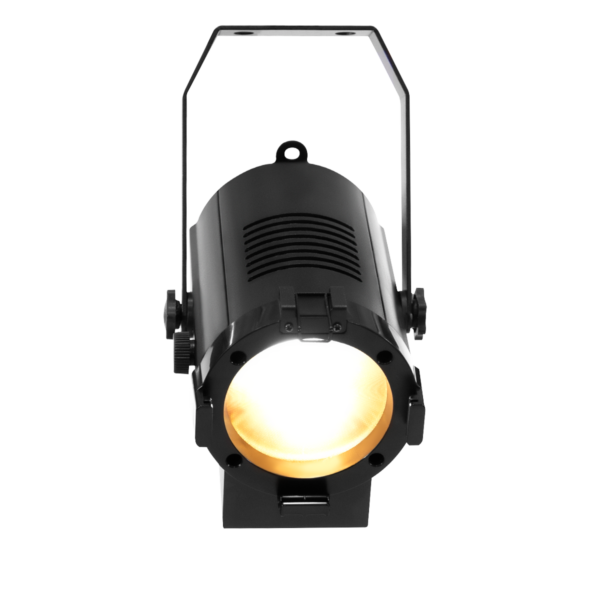

FR 40W

Warm White Super Compact, LED Fresnel

FR 40W is designed for short distance wash. It is a super compact, easy for setup LED Fresnel powered by 40 watts 3200K tungsten. Featuring 25 to 90° zoom, 97 CRI, 90 R9, rotary control of dimmer. It delivers a smooth, soft and flat field of light. A barn door is included to shape the light.

Add to wishlist
SKU: FR40W Categories: ,

SOURCE

  • Light source: 40 watts Warm white COB LED
  • Color temperature: 3200K
  • LED life expectancy: 50,000 Hrs.
  • CRI: 97; R9≥90
  • TLCI: 98

OPTICAL SYSTEM

  • Manual zoom
  • Zoom range: 25° to 90° manual
  • Light output: 14,000 Lux @ 1m @ 25°

KEY FEATURES

  • 5 Dimmer curves
  • Strobe
  • Video flicker free
  • PMMA polymethyl methacrylate lens
  • Barn doors included

CONTROL & PROGRAMMING

  • Control protocols: Rotary, DMX, RDM
  • Control channels: 1, 2, 3, 4 CHs

 ELECTRICAL

  • Input voltage: AC100-240V/50-60Hz

 CONNECTIONS

  • DMX Connections: 3 pin XLR In/Out male and female
  • Power connections: PowerCon In

PHYSICAL

  • Dimensions: 230 x 156 x 279mm
  • Net weight: 1.7 Kg (barn door included)
  • Color: Black
  • Housing: Aluminum
  • IP Rating: 20
  • Operating temperature: -5°C/45°C
