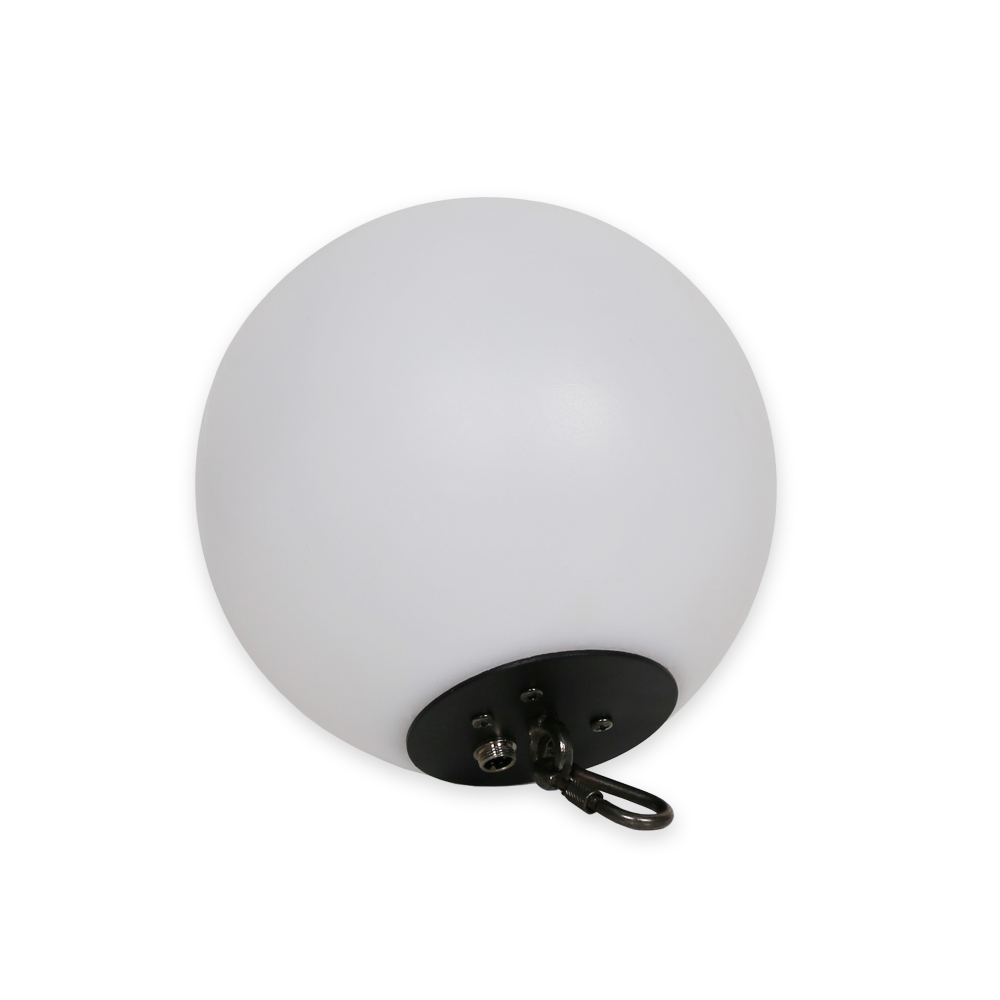

RGB LED Ball 20cm for Kinetic Winch

KW-B20 is a 20cm RGB LED Ball that connects to the KW Kinetic Winch series. It has a light source of 42 SMD LED delivering a bright and saturated RGB color output. It is power and DMX driven with the Kinetic Winch 4 core wire.

SKU: KW-B20 Category:

OUTPUT

  • Light Source: 42 RGB SMD LED
  • Viewing angle: 360°

PHYSICAL

  • Diameter: 20cm
  • Diffuser: White LDPE Sphere
  • Weight: 0.6kg
  • Working Temperature: -10° to 45°
  • IP Rating: 20

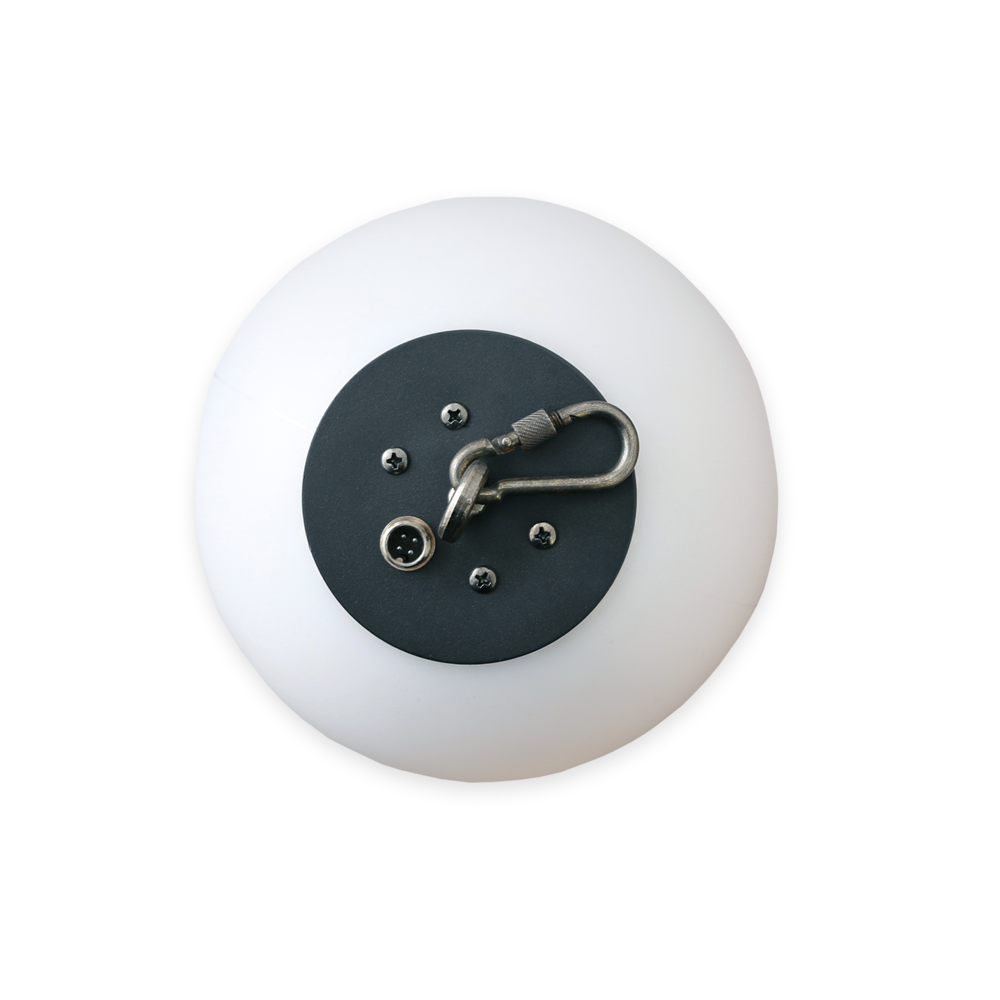

  • Hanging: Safety snap hook

CONTROL & PROGRAMMING

  • Control protocols: DMX (from the KW Winches)
  • DMX channels: 5, 6, 9, 10 CHs

CONNECTIONS

  • Winch Cable: 4 Core Power and Data cable 1-24V DC
  • Winch DMX connections: 3 pin and 5 pin XLR In/Out male and female
  • Winch Power connections: PowerCon In and Out
