LumiGo™ BAR810

LumiGo™ BAR810

Battery-operated IP65 LED Bar with CRMX and App Control

The LumiGo™ BAR810 is a 50cm battery-powered outdoor LED bar featuring integrated CRMX wireless control and intuitive iOS, Android, and Windows application compatibility for effortless customization.

Equipped with eight individually pixel-controllable 10W RGBW LEDs, the BAR810 delivers a bright and uniform wash with a native 20° beam angle. Its IP65 rating ensures reliable performance in any outdoor environment, making it a versatile fixture ideal for wash effects, stage illumination, and professional film lighting applications.

This versatility is enhanced by the VISION CONTROL APP, which allows for comprehensive remote adjustments across all major operating systems. For high-demand productions, the built-in Lumen Radio CRMX receiver provides stable, real-time DMX management, eliminating the need for complex cable runs and ensuring rapid deployment in fast-paced event environments.

Download the App



The kit includes:

6 x LumiGo™ BAR810 (LGBAR810)
6 x 10°x60° Magnetic Frost Filter (FF1060-LGBAR810)

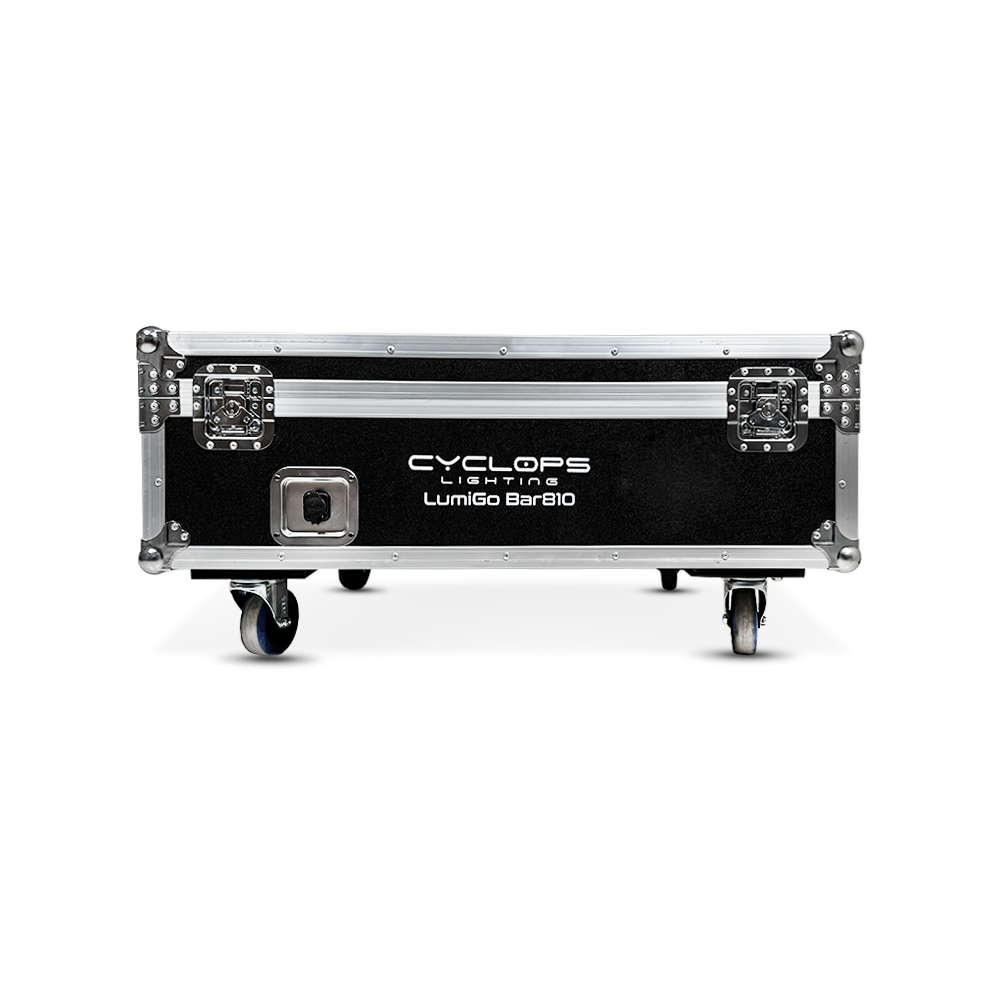

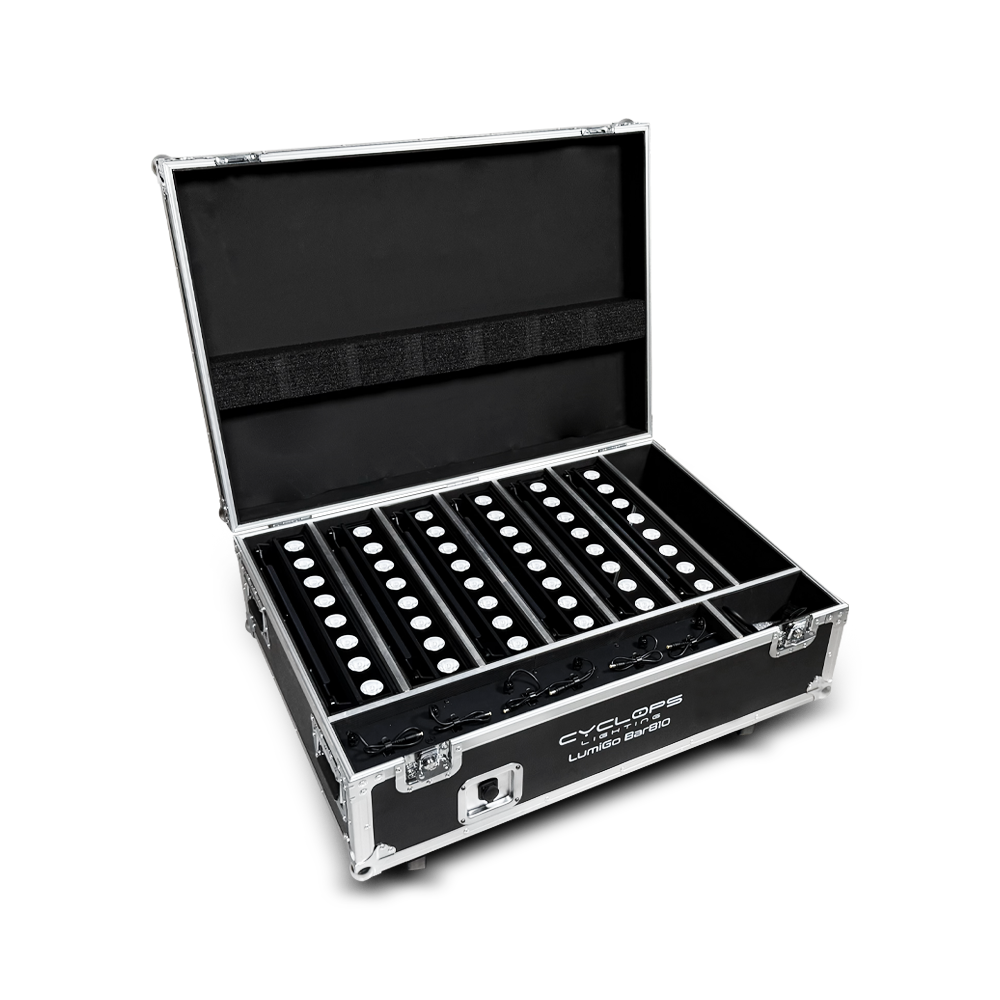

1 x Durable Flight Case (FC-LGBAR810)

SKU: LGBAR810-KIT6 Category: Tag: Series: LUMIGO

SOURCE

  • Light Source: 8x10W RGBW LED
  • Total Output: 1,478 lm (all LEDs on), 294 lm (red), 629 lm (green), 103 lm (blue), white (495 lm)
  • Illuminance: 4,402 Lux @ 2m, 704 Lux @ 5m, 275 Lux @ 8m, 179 Lux @ 10m
  • LED Life Expectancy: 50,000 Hrs
  • Color Temperature: 3000 to 10000K

OPTICAL SYSTEM

  • Beam Angle: 20°
  • Frost filter: 10×60°

COLORS

  • Color Mixing: RGBW

DYNAMIC EFFECTS

  • Dimmer: 0-100% linear adjustment
  • Strobe: 0-20 Hz Electronic strobe

CONTROL & PROGRAMMING

  • Display: TFT Display
  • Control Channels: 3, 8, 12, 32, 37 CHs
  • Control Protocols: DMX/RDM, CRMX Wireless DMX, iOs/Android/Windows Application control, Remote control, Manual
  • Dimming Curves: 4 selectable dimming curves
  • LED Frequency: 15kHz PWM for flicker-free performance and silent operation

BATTERY

  • Battery Life: Up to 19H
  • Battery Usage: 16 options selection between 4H to 19H with 1 hour increments (Battery Boost/4H/5H/6H/7H/8H/9H/10H/11H/12H/13H/14H/15H/16H/17H/18H/19H)
  • Battery Charge Time: 5 – 6 Hrs

ELECTRICAL

  • Input voltage : DC 15V
  • Power consumption: 58 W

PHYSICAL

  • Dimensions: 500 x 95 x 132 mm
  • Weight: 3.3 Kg
  • Housing: Aluminum
  • Operating Temperature: -20°~50°C
  • Humidity: 0–98% Relative Humidity
  • IP Rating: IP65
  • IK Rating: IK07
