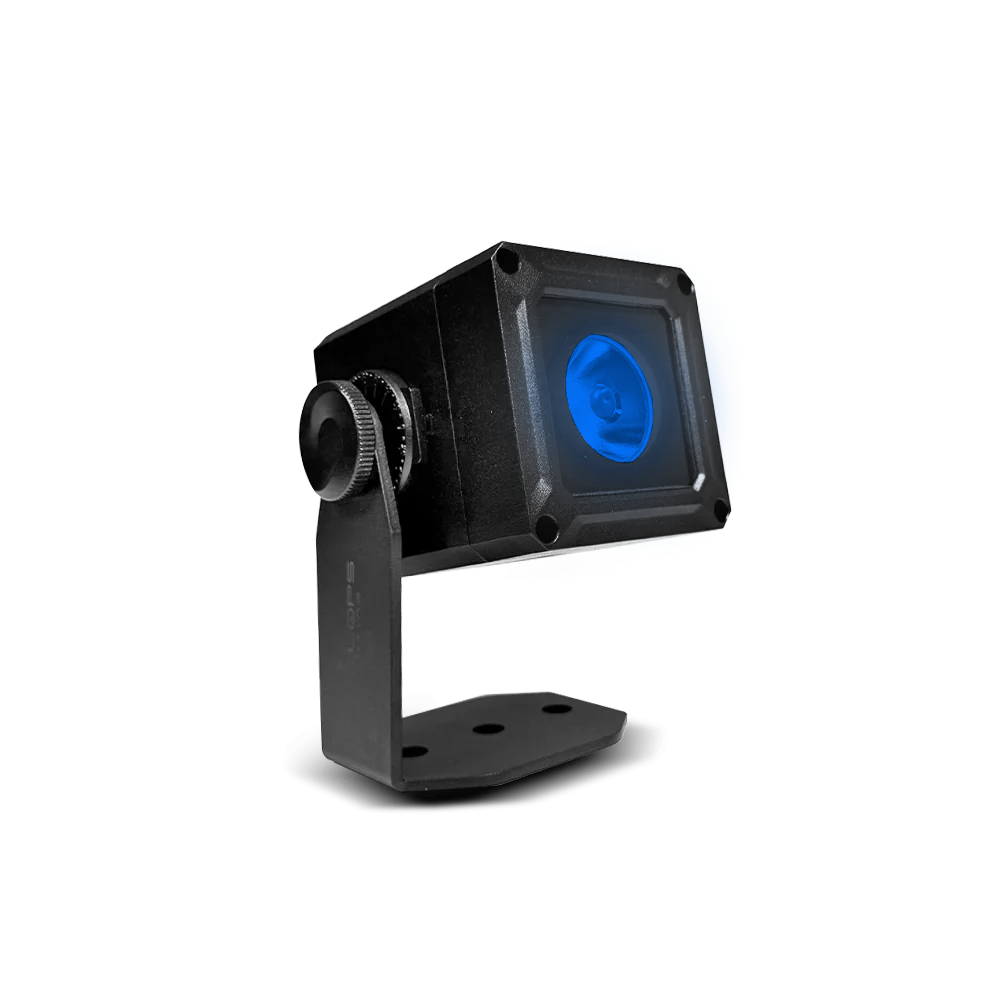

LumiGo™ CUBE120

LumiGo™ CUBE120

Battery-operated Outdoor LED spotlight with CRMX and APP Control

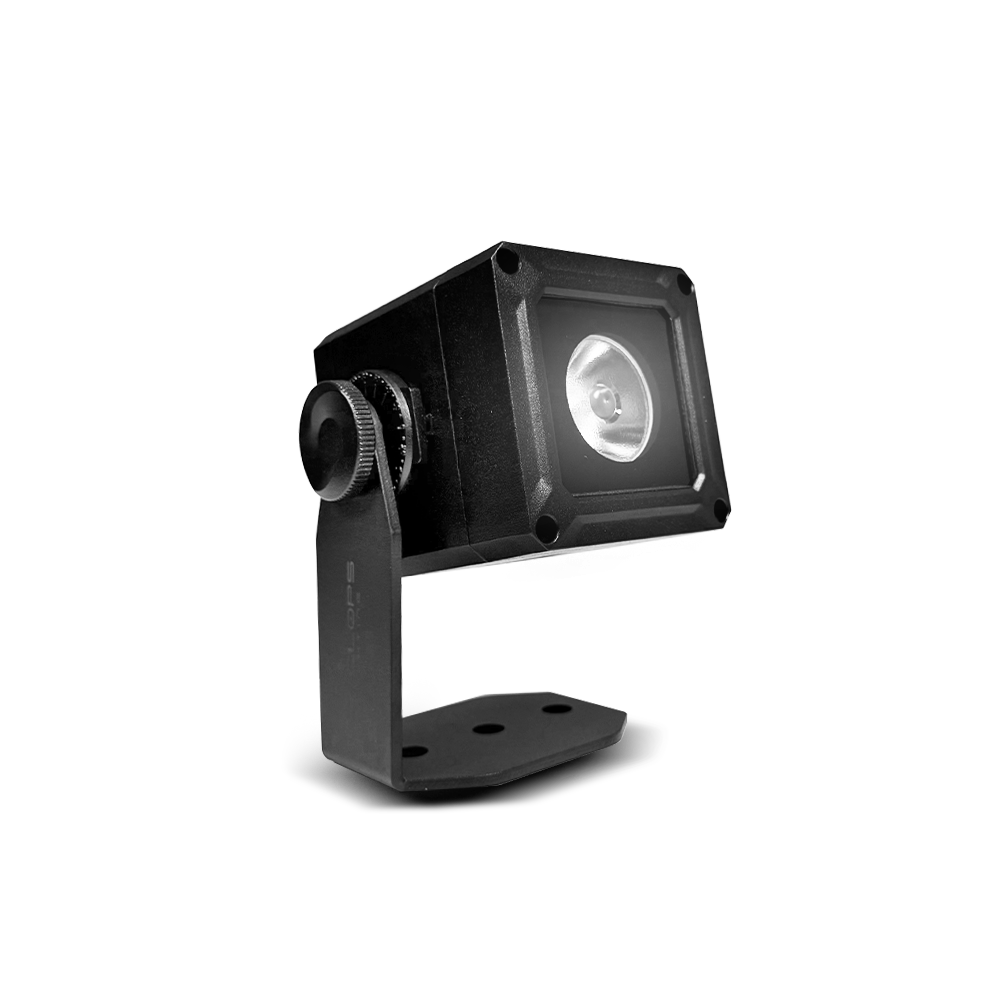

LumiGo™ CUBE120 is a battery-operated outdoor LED Spotlight that combines CRMX wireless control with iOS / Android Windows app compatibility, offering seamless customization and operation.



Powered by a single 20W RGBW LED, it delivers a powerful and vibrant light output while maintaining a compact and lightweight design. Due to its small size, lightweight and powerful output, the LumiGo CUBE120 is a multi-purpose up-light, effect and wash light for any indoor or outdoor application. A durable hard case, all necessary accessories, and a convenient charging box are included in the kit, ensuring portability and ease of use for any event or installation.



Control LumiGo™ CUBE120 easily via iOS, Android, and Windows apps for convenient remote adjustments. CRMX wireless DMX enables effortless, real-time management during events, installations, and productions, eliminating complex setups for dynamic control in fast-paced environments.

Download the App

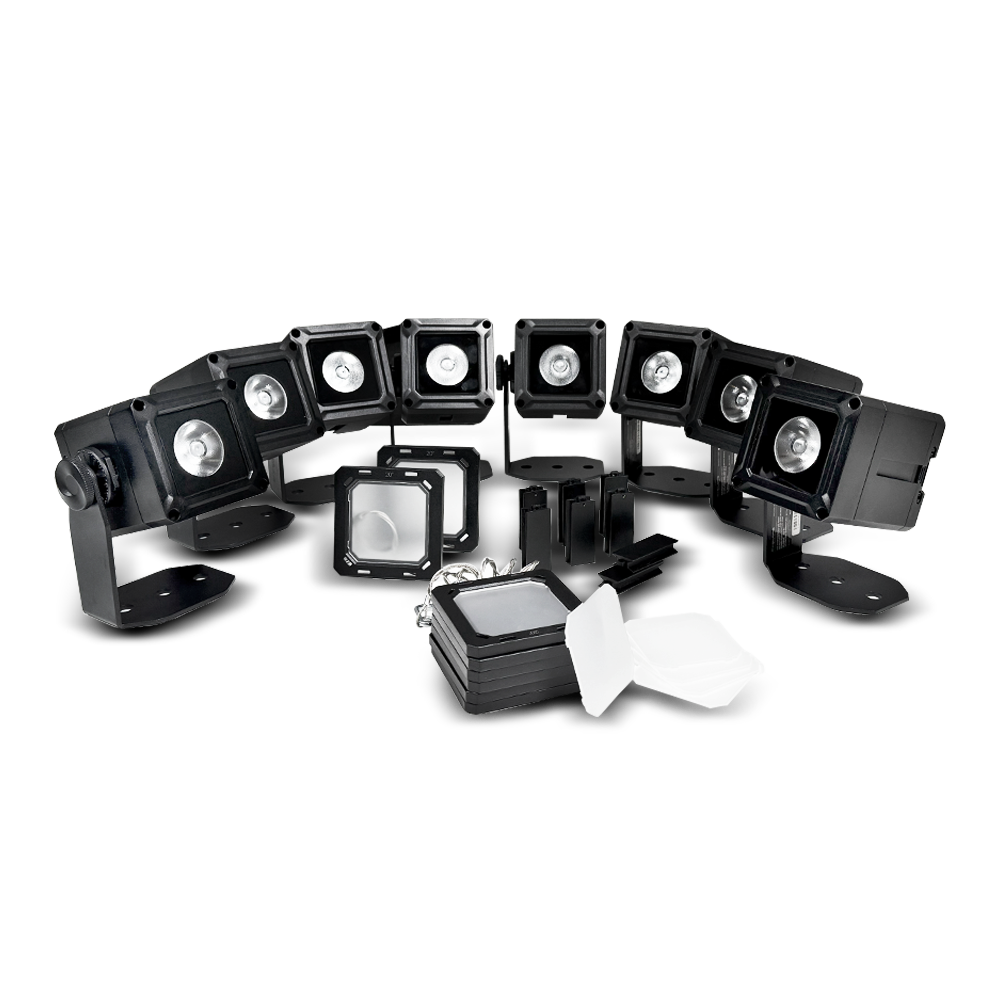

The kit includes:

8 x LumiGo™ CUBE120 (LGCUBE120)

8 x 20° Magnetic Frost Filter (FF20-LGCUBE)

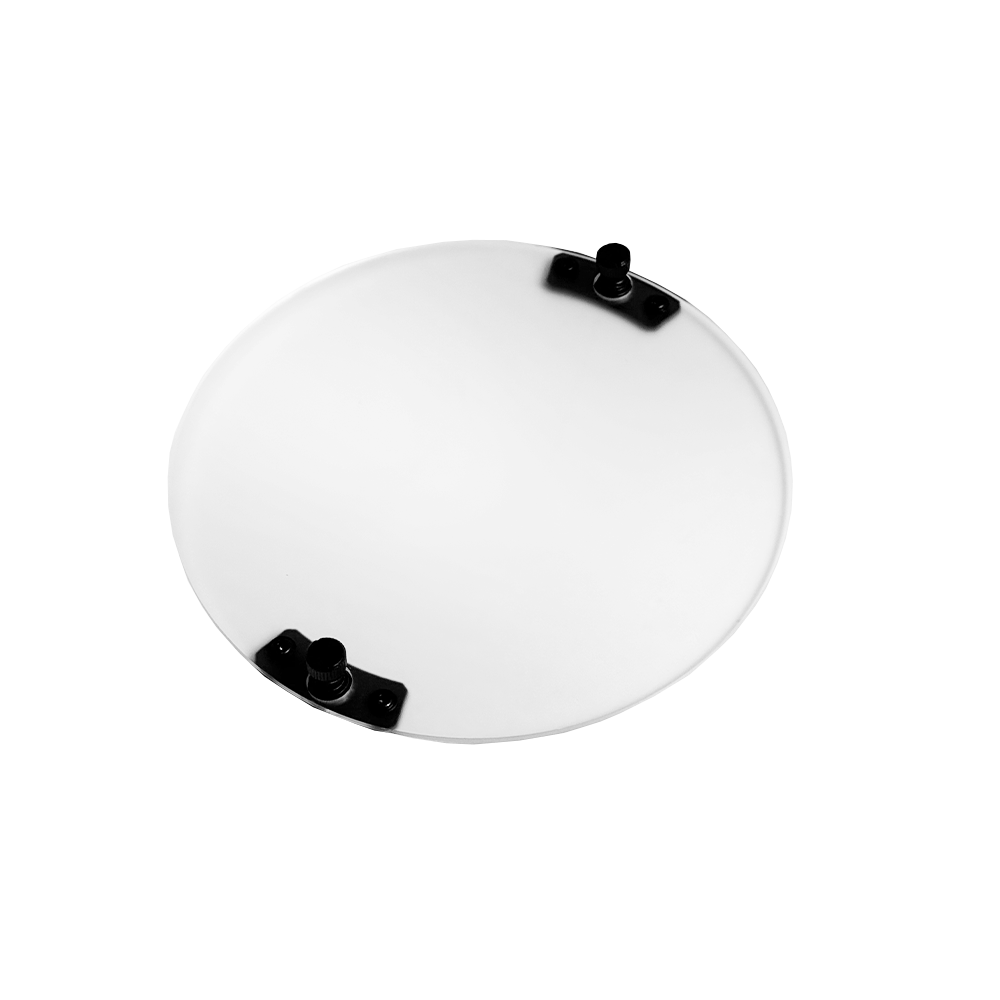

8 x Heavy Frost Filter (FFH-LGCUBE)

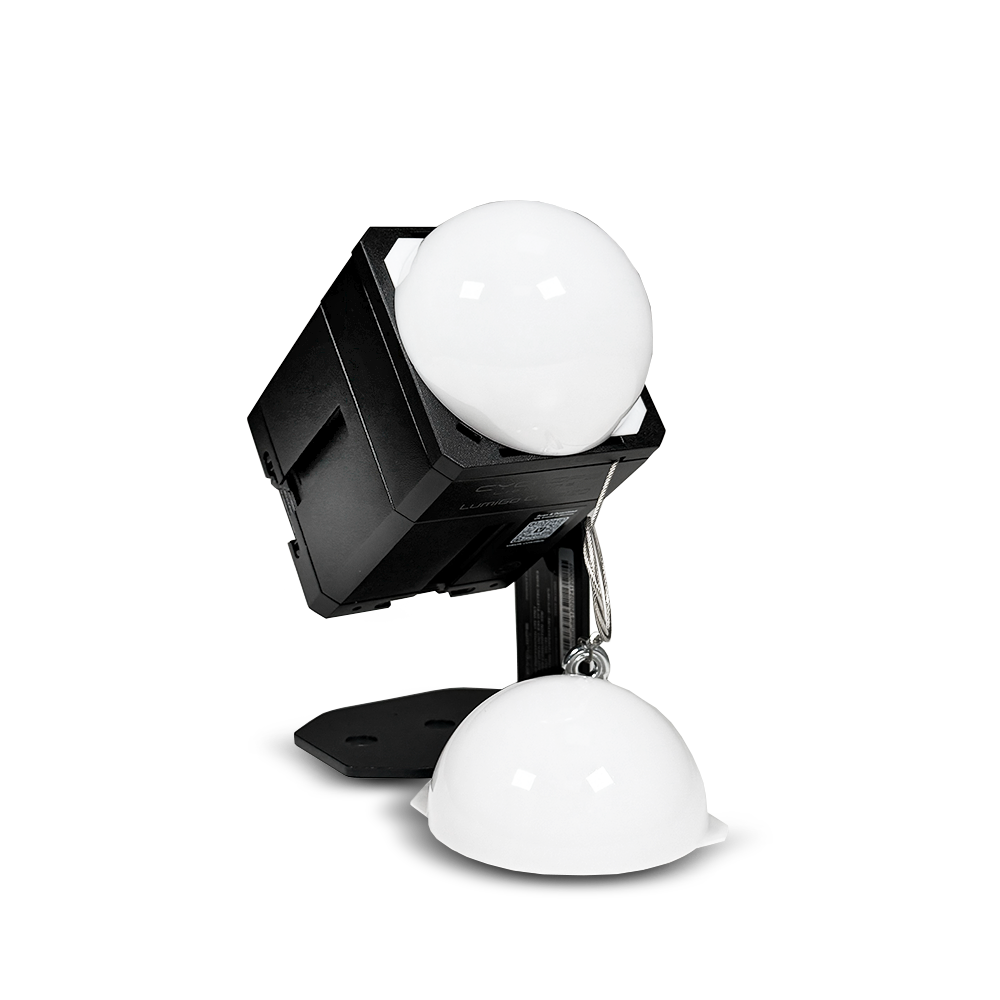

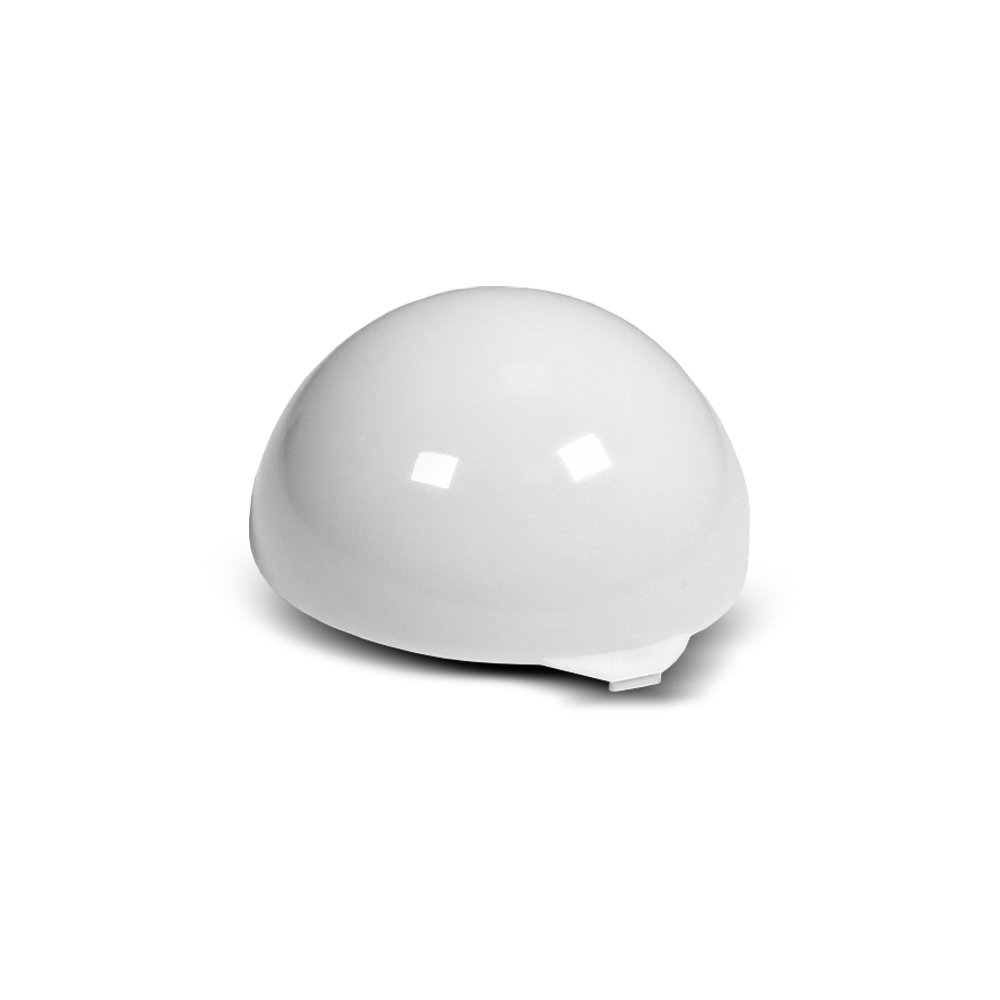

8 x Dome Softener Diffuser (SD-LGCUBE)

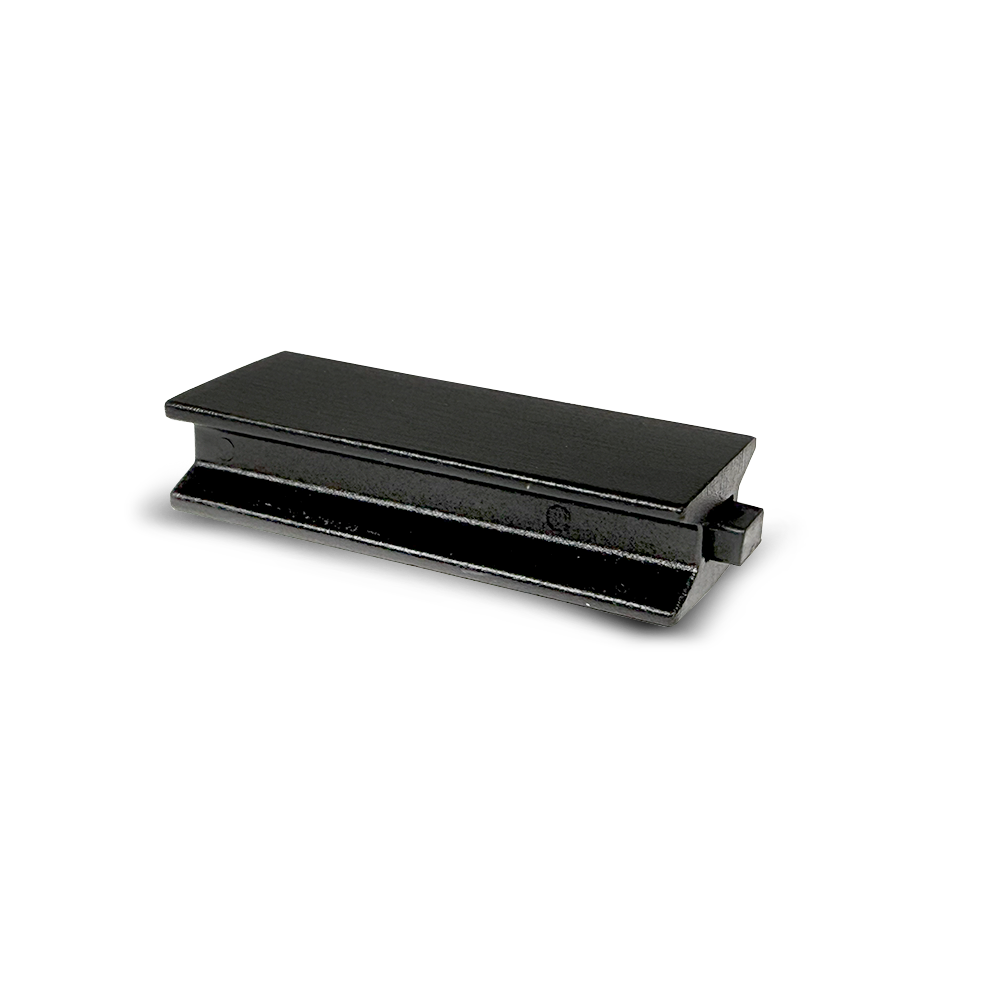

8 x Cube Slide Connectors (C2LINE-LGCUBE)

1 x Charging Box (LG-CPBX)

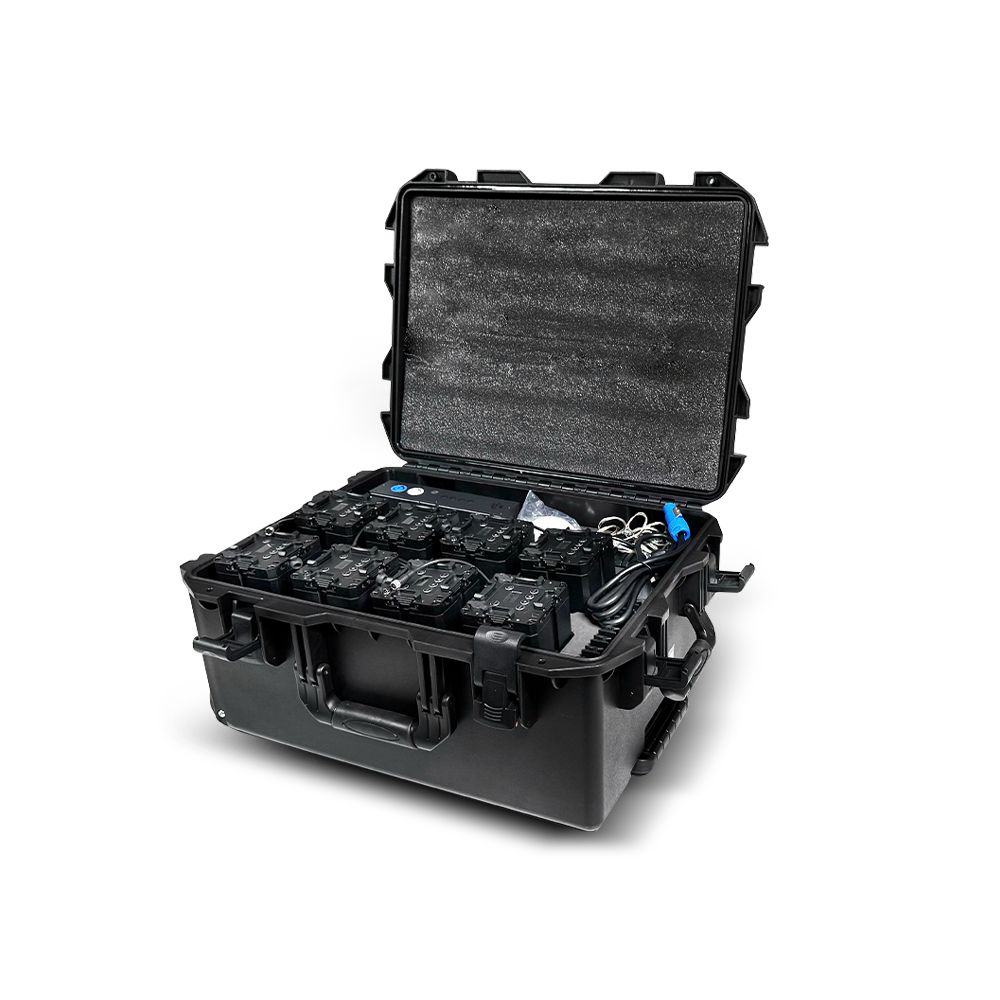

1 x Hard Case (CASE-LGCUBE)

SKU: LGCUBE120-KIT8 Category: Tag: Series: LUMIGO

SOURCE

  • Light source: 1x20W RGBW LED
  • Output:

– Light output all LEDs on:647 lm
– Light output red:160 lm
– Light output green:250 lm
– Light output blue:57 lm
– Light output white:373 lm

  • Illuminance:

– Lux @ 2m:2470 lx
– Lux @ 5m:395 lx
– Lux @ 8m:154 lx
– Lux @ 10m:99 lx

  • LED Life expectancy: 50,000 hours

OPTICAL SYSTEM

  • Beam angle: 10°
  • Optional Frost filter: 20° (SKU: FF20-LGCUBE – included in kit LGCUBE120-KIT8)

DYNAMIC EFFECTS

  • Dimmer: 0-100% linear adjustment
  • Four dimming curves
  • Color mixing: RGBW
  • Color temperature adjustments: 3000 to 10000K
  • Electronic Strobe: 0-20 Hz

CONTROL & PROGRAMMING

  • Control Protocols: DMX/RDM, CRMX Wireless DMX, iOs/Android/Windows Application control, Remote control, Manual
  • Channel mode: 2, 3, 5, 8, 11, 15 channels

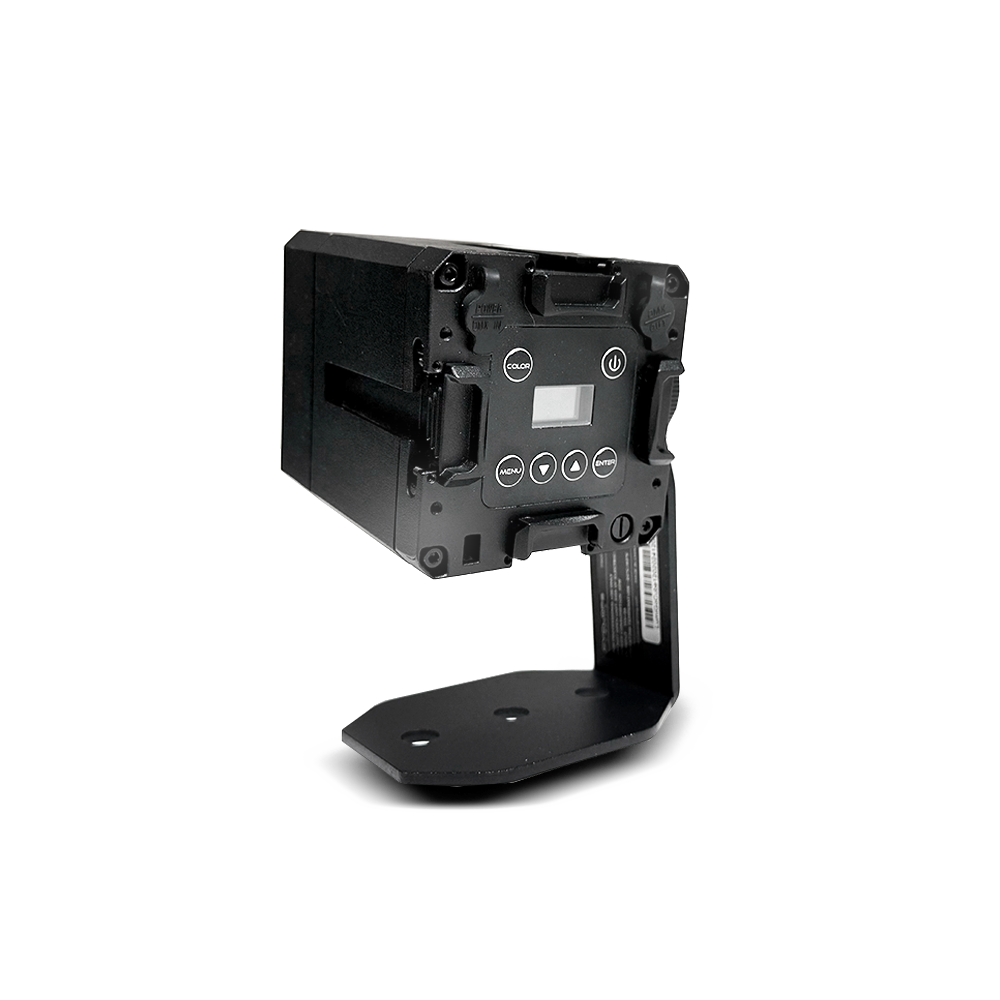

  • Display: LCD

BATTERY

  • Battery Life: Up to 19H
  • Multiple battery usage option: 16 options selection between 4H to 19H with 1 hour increments

– Battery Boost/4H/5H/6H/7H/8H/9H/10H/11H/12H/13H/14H/15H/16H/17H/18H/19H

  • Battery charge time: 4.5H

ELECTRICAL

  • Input voltage Rating: DC 18V-20V
  • Maximum Power consumption: 42W
  • LED PWM Frequency: 600/1.2K/2.4K/4.8K/12K/18K (hz)

PHYSICAL

  • Material: Aluminum
  • IP Rating: 65
  • IK Rating: IK07
  • Operating Temperature: -20°~50°C
  • Humidity: 98%
  • Dimensions: 120 x 117 x 163 mm
  • Weight: 1.5 Kg
