PIXIDOT 120-O

PIXIDOT 120-O

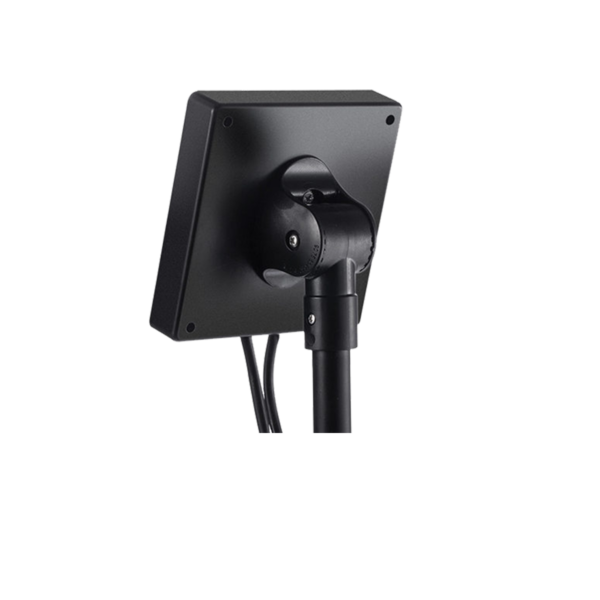

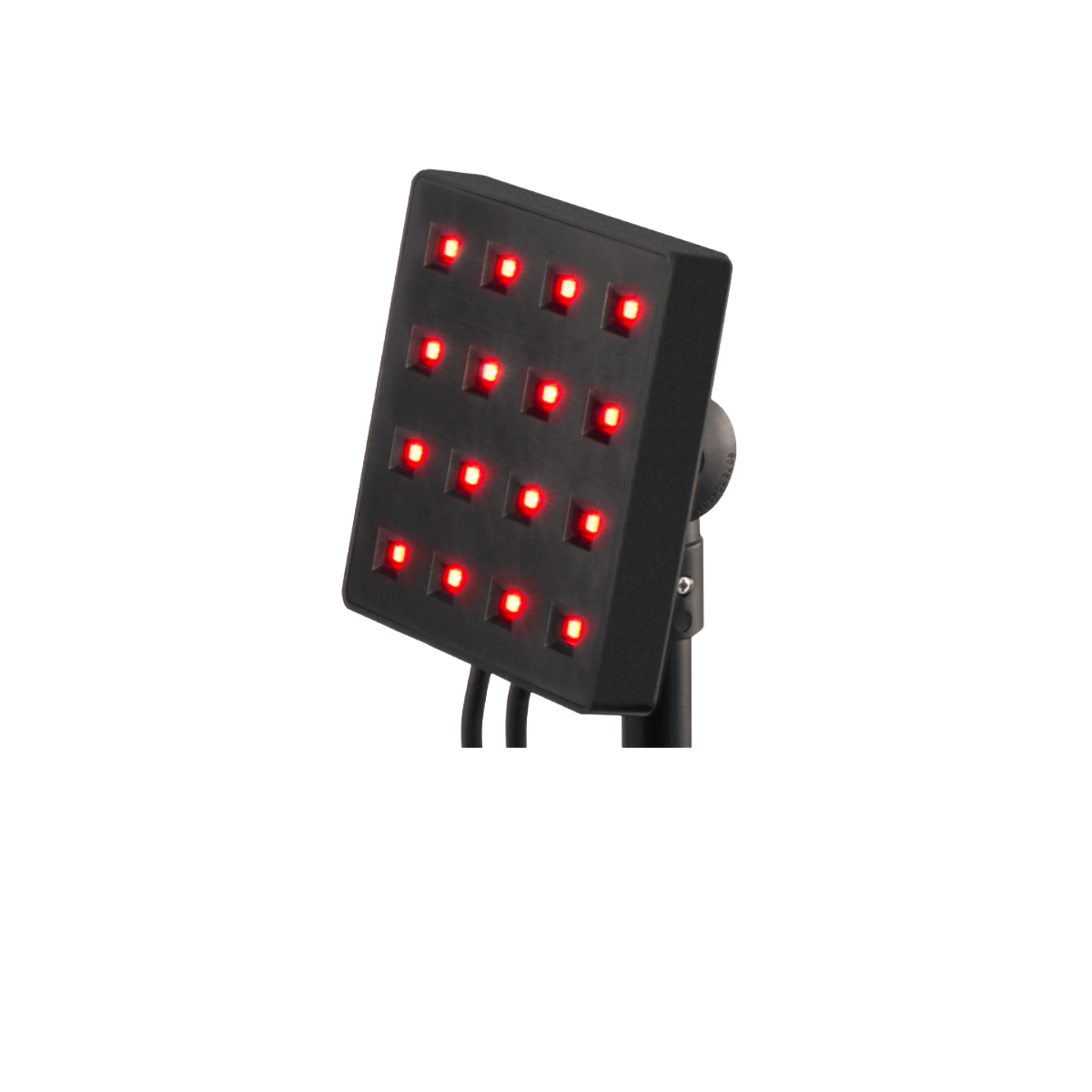

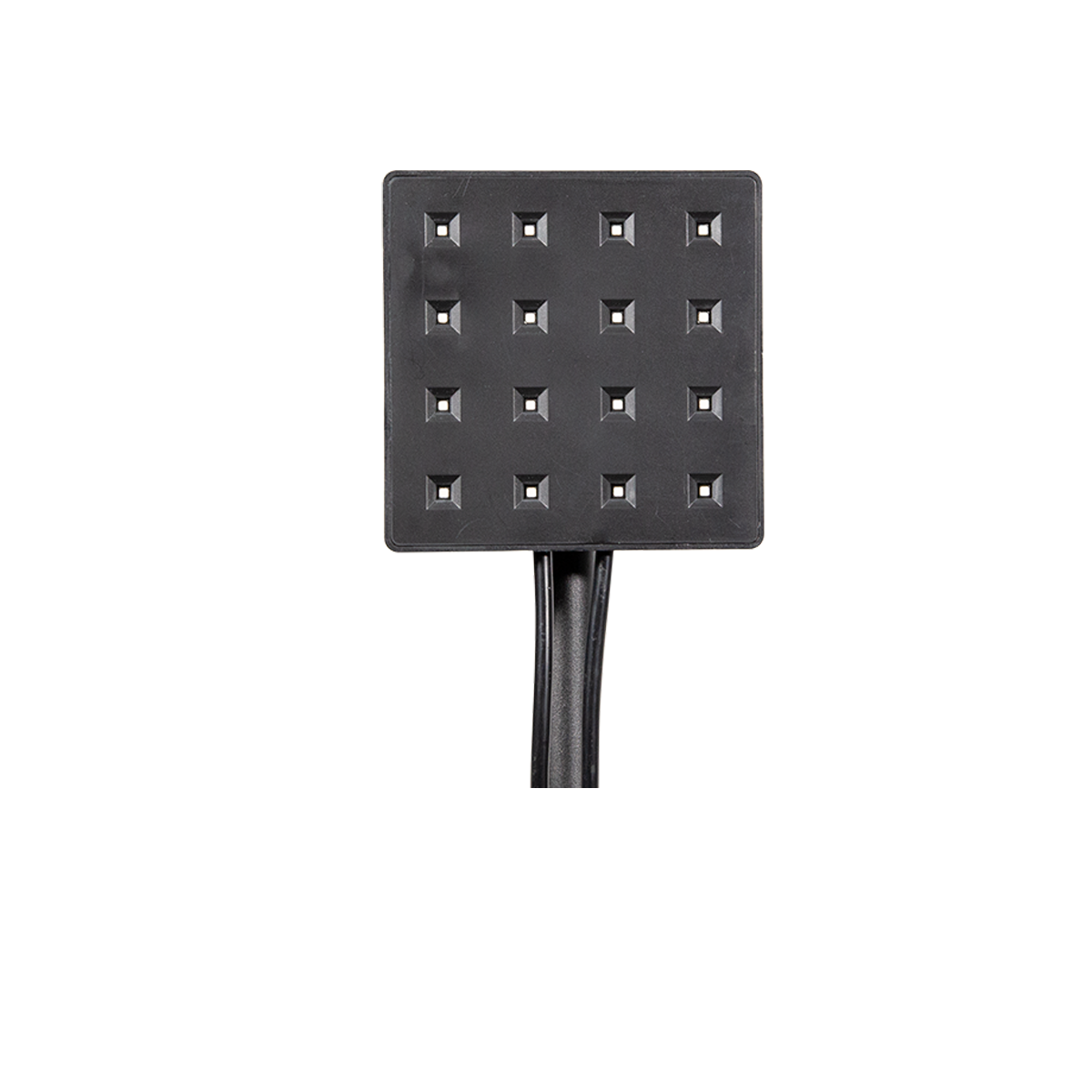

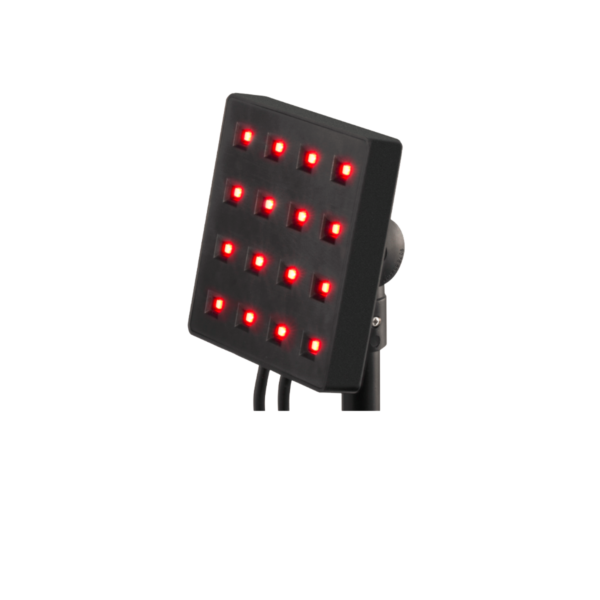

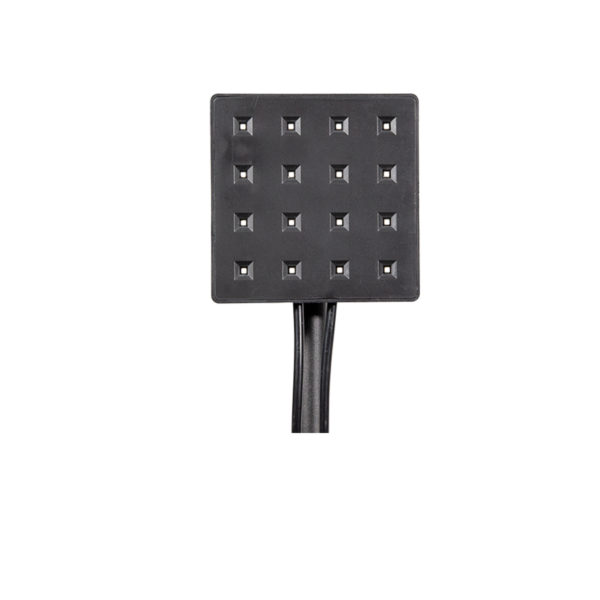

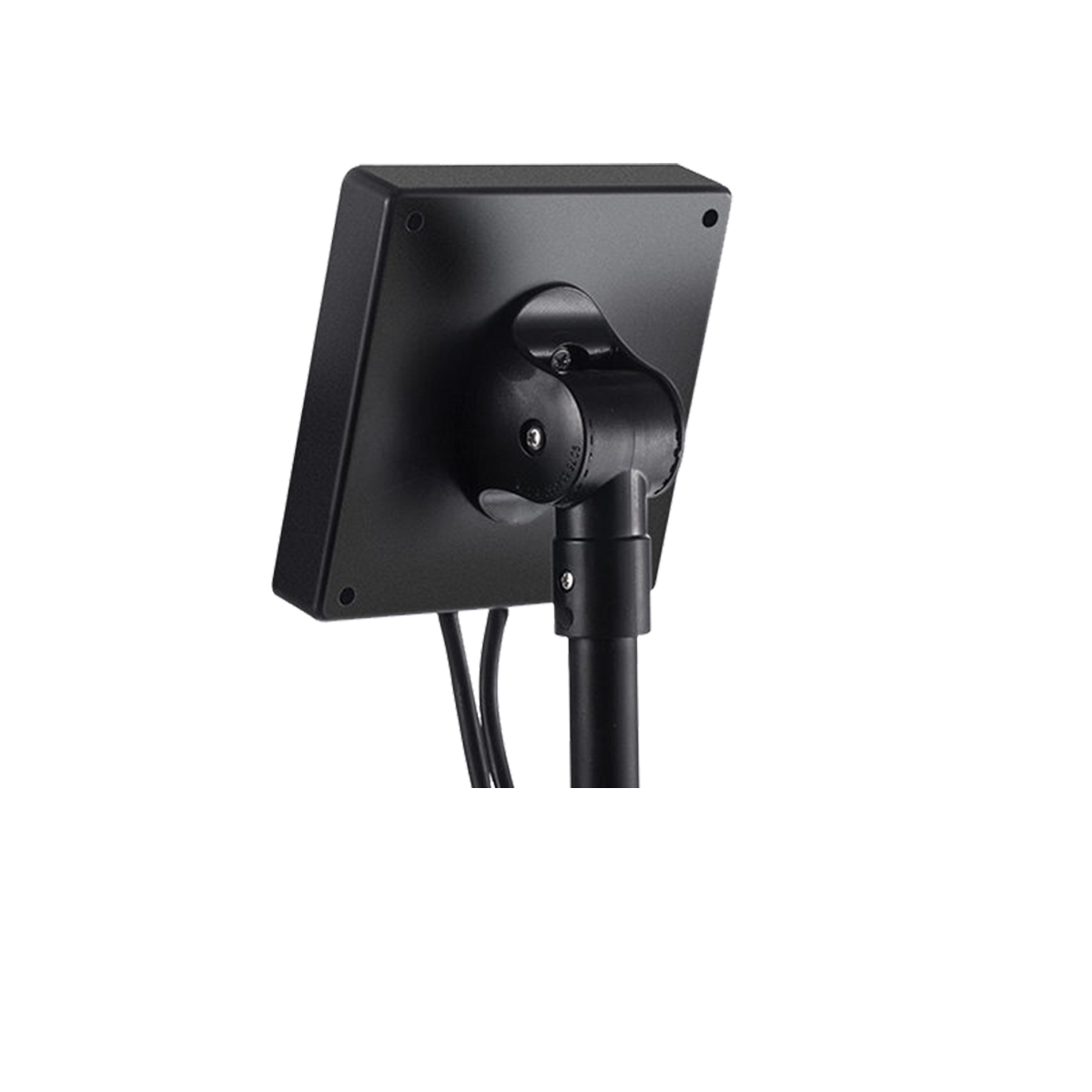

Outdoor RGB Digital Dot Panel with Holder

PixiDot 120-O is an outdoor IP67 rated digital dot panel. The 120 x 120mm panel is packed with 16 SMD3535 RGB LEDs of 2.5 watts each and supported with a 1 meter stand that comes with it. This panel is ideal for stadiums, events, and outdoor stages.



SKU: PDO24RGB161120120 Categories: ,

SOURCE

  • Light source: 16 x 2.5 watts SMD3535 RGB LEDs

OPTICAL SYSTEM

  • View angle: 120°

CONTROL & PROGRAMMING

  • Pixels control: 1 per dot
  • Color mixing: RGB
  • Control protocols: DMX
  • Control channels: 3 CHs
  • Address setting: Manual

ELECTRICAL

  • Input voltage: 24V
  • Power consumption: 40 watts

CONNECTIONS

  • Power and data connection: 1.3m 5 pin female and male connection
  • Cable entry: Bottom

PHYSICAL

  • Dimensions: 120 x 120mm panel, 1000mm stand
  • Net weight: 0.9 Kg
  • Color: Black
  • IP rating: 67
  • Operating temperature: -40℃/80℃
