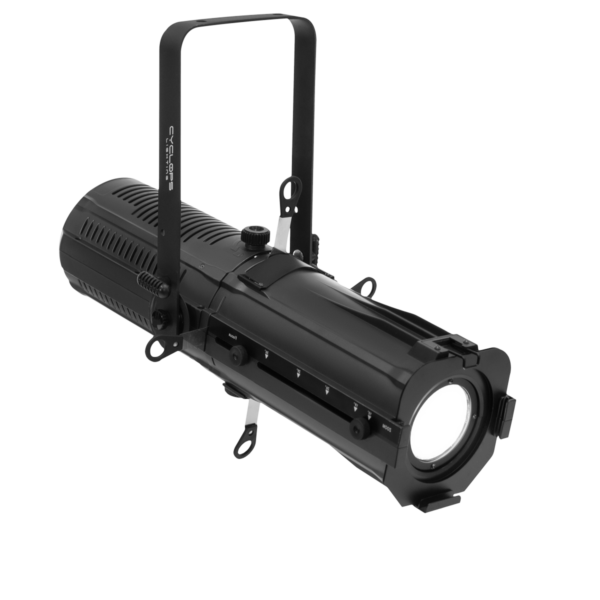

PR 300C

300 watts, Cool White, LED Profile

PR 300C is a 5600K Cool white LED Profile powered by a 300 watts COB LED. It’s designed to substitute the traditional 1 KW Tungsten Halogen lamp profile. It delivers a flat and even field of light, crisp pattern projection and high CRI of 97. An optional high performance Fresnel lens with barn doors can replace the profile lens offering an even Fresnel wash from the same LED engine. This LED profile offers the flexibility and high quality output required to stand out in theatres, studios and events applications.

Available in a kit of 1 flight case, 6 Profiles, 6 Adapter Fresnel Lenses + Barndoors. SKU: PR300CKIT

SKU: PR300C Categories: ,

Videos

SOURCE

  • Light source: 300 watts Cool white COB
  • LED Color temperature: 5600K
  • LED life expectancy: 50,000 Hrs.
  • CRI: 97, R9 ≥ 90
  • TLCI: 98

OPTICAL SYSTEM

  • Manual zoom
  • Zoom range: 18° to 38° (optional 5°-10° or 9°-18°profile lenses)
  • Light output: 29,000 Lux @ 2m @ 18°
  • Optional Fresnel lens adapter 25°-50° (PMMA)

KEY FEATURES

  • 5 Dimmer curves
  • 16 bit dimmer
  • Strobe
  • Video flicker free with selectable PWM
  • Intelligent temperature control
  • Silent operation

 CONTROL & PROGRAMMING

  • Control protocols: Rotary, DMX, RDM, Artnet
  • Control channels: 1, 2, 3 CHs

 ELECTRICAL

  • Input voltage: AC100-240V/50-60Hz

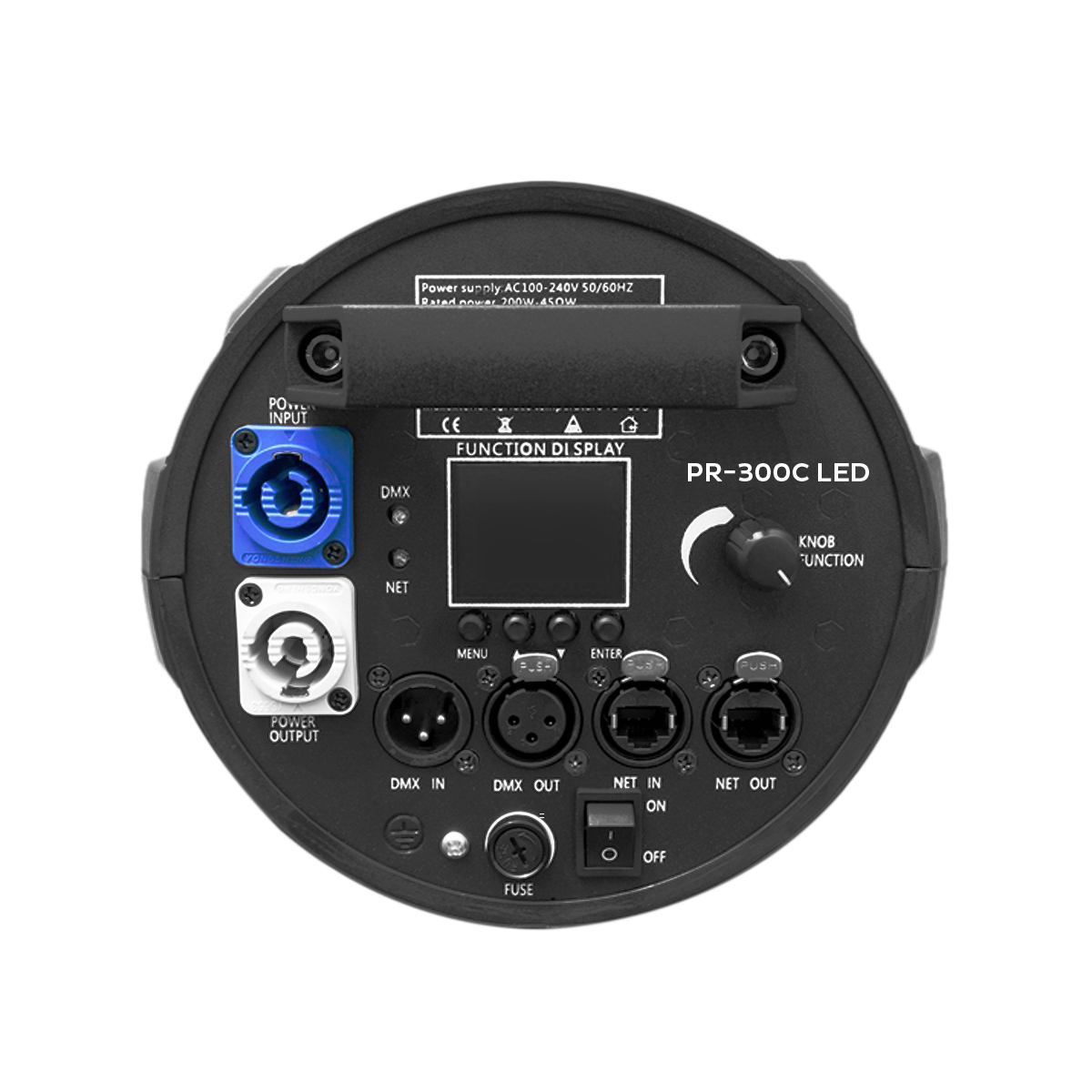

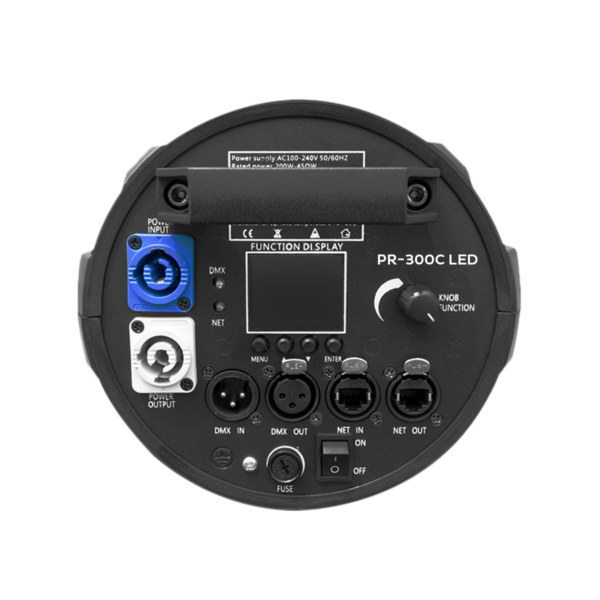

CONNECTIONS

  • DMX connections: 3 pin XLR In/Out male and female
  • Power connections: PowerCon In/Out

PHYSICAL

  • Dimensions: 745 x 294 x 294mm
  • Net weight: 8.7 Kg (including lens)
  • Color: Black
  • IP rating:  20
  • Operating temperature: -5°C/45°C
