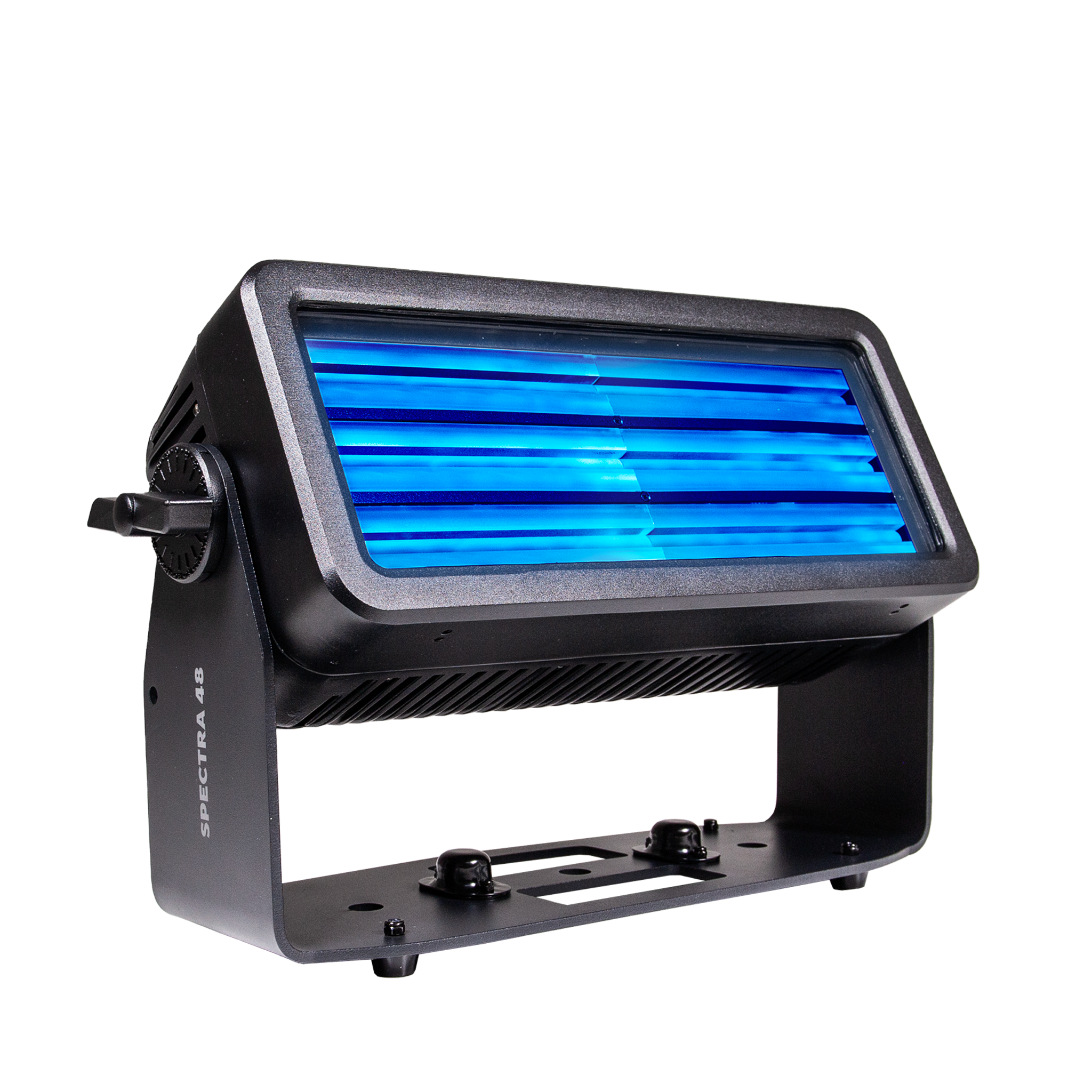

SPECTRA 48

SPECTRA 48

IP65 48x8W RGBL FX & Pixel Mapping Wash

The SPECTRA 48 is a professional-grade, IP65-rated wash fixture engineered for high-impact indoor and outdoor environments. Combining a powerful 11,289-lumen output with a sophisticated AP04-2 advanced long strip lens optical system, this fixture delivers exceptional color uniformity and precision beam control. Its Red, Green, Blue, and Lime (RGBL) engine provides a superior spectrum of color and high-quality white light (6700K), while its 12-section pixel mapping capabilities offer endless creative possibilities for dynamic visual displays.

By utilizing the specialized AP04-2 long strip optics, the SPECTRA 48 balances a punchy 30° native beam with a wide 115° field of view, ensuring even coverage and razor-sharp pixel definition for complex mapping. Designers benefit from professional-grade color control, including integrated Lee Filter and CTO presets (2000K–10000K), alongside four selectable dimming curves and a Halogen simulation mode. Its 12 individual control sections allow for granular pixel manipulation and sophisticated internal FX, while the IP65-rated housing and smart temperature management ensure reliable, flicker-free operation in the most demanding broadcast and all-weather environments.

SKU: SPECTRA48 Categories: Statics, Washes Tag: NEW Series: SPECTRA

SOURCE

Light Source: 48 x 8W RGBL LEDs
Total Output: 11,289 lumens (all LEDs on)
Illuminance : 3,857 lx @ 2m | 617 lx @ 5m | 241 lx @ 8m | 154 lx @ 10m
Color Temperature: 6,700K (at full)
LED Frequency: 1K Hz to 18K Hz PWM for flicker-free performance

OPTICAL SYSTEM

Lens Technology: Advanced AP04-2 Long Strip Lens optical system
Beam Angle: 30° (Native)
Spot Angle: 115°
Filter: Integrated Lee Filter (Tungsten/Daylight)
Accessories: Magnetic frost filter, One-sided barndoor, Two-sided barndoor

MOVEMENT

Tilt: 0–360° manual adjustment

COLOR

Color Mixing: RGBL
Color Calibration: 127–255
CTO: 2000K–10000K

CONTROL & PROGRAMMING

Display: LCD Touch Screen with four-button navigation
Control Channels: 1, 4, 5, 8, 11, 18, 22, 24, 34, 48, 58 CHs
Control Protocols: DMX 512, Master/Slave, Auto Run
Dimming Curves: 4 selectable modes (Linear, Square Law, Inverse Square Law, S-Curve)
Strobe: 0–20Hz adjustable; Pulse, Random, and Single Pixel modes
Fan Control: Auto, Max Power and Fan Off modes
