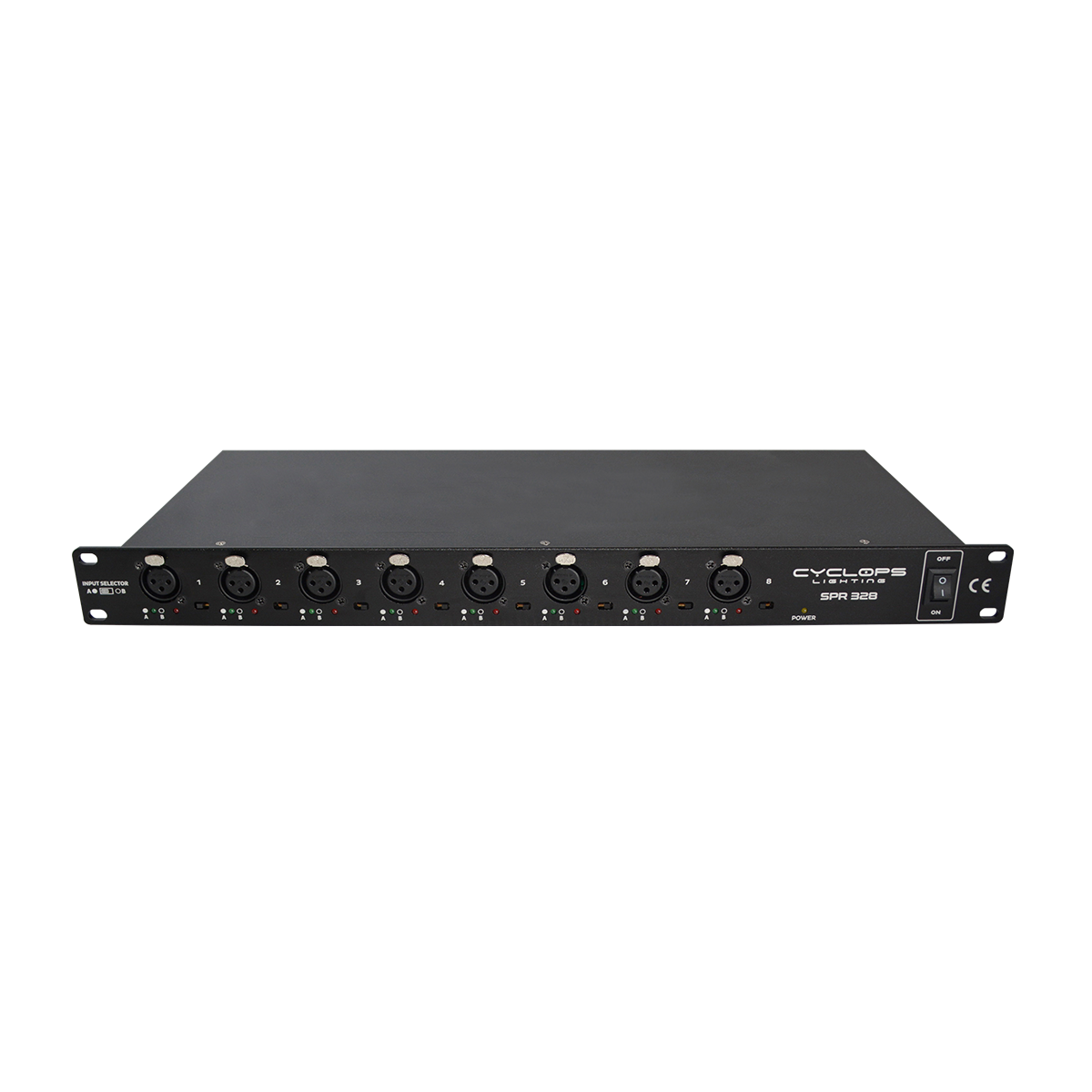

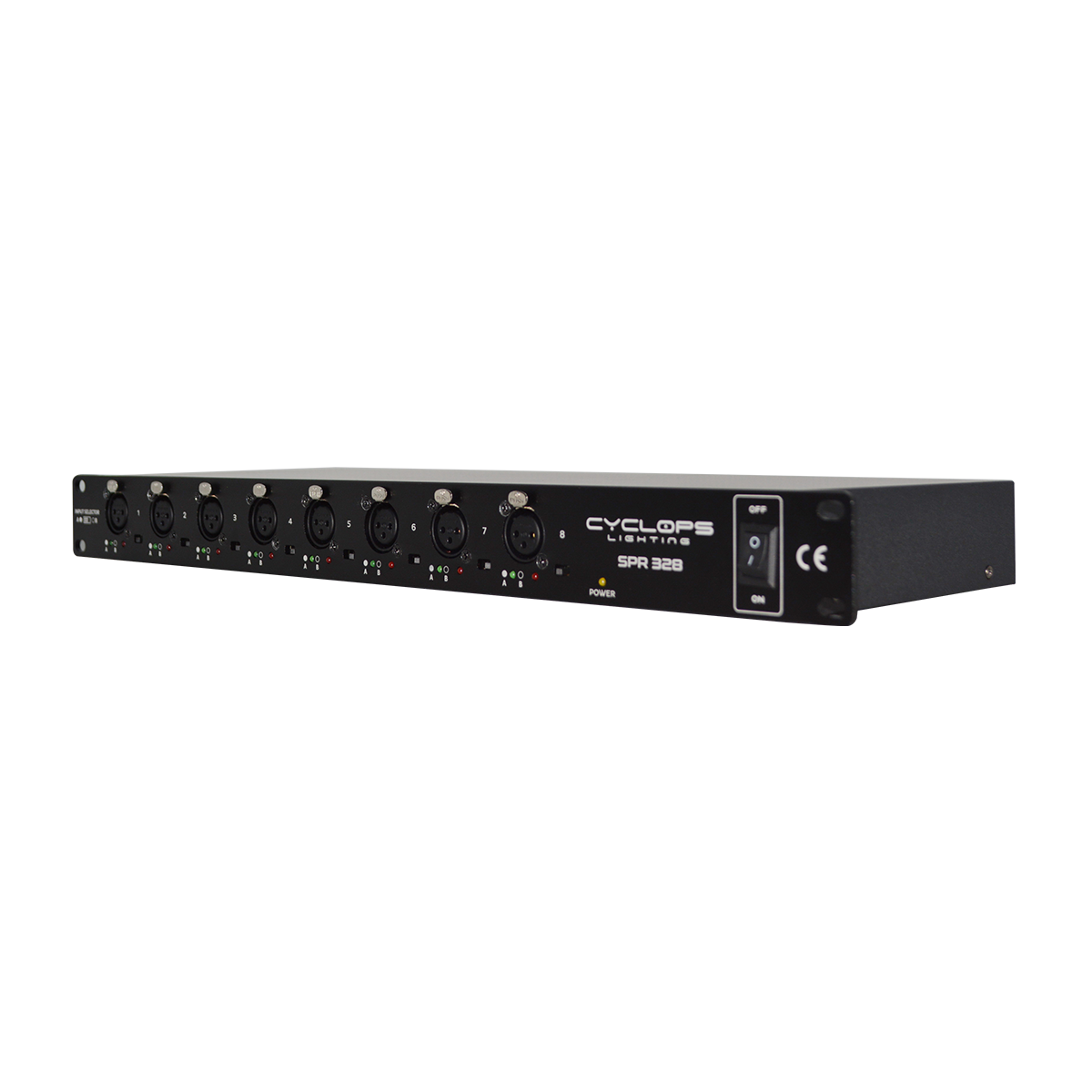

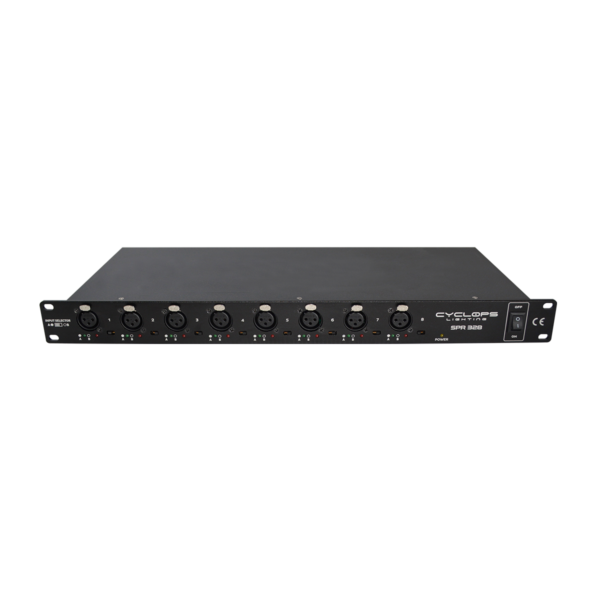

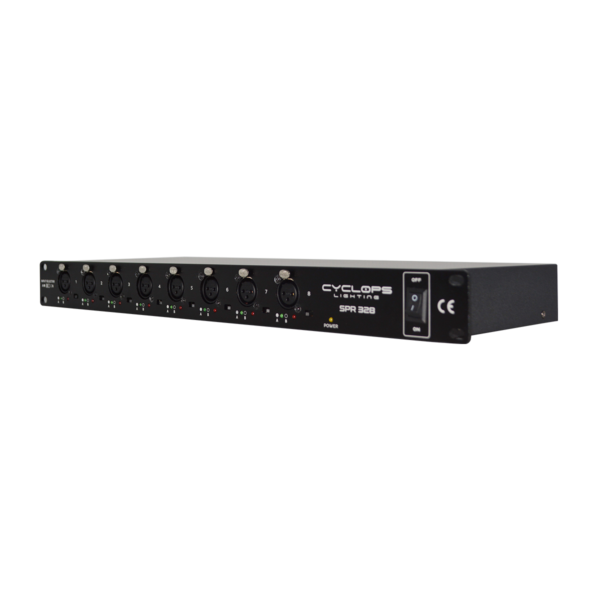

SPR 328

3 pin Rack Mounted DMX Splitter

SPR 328 is a 1U 19” Rack mounted DMX splitter. It buffers, multiplies, isolates and protects console DMX outputs. It features 2 independent DMX inputs/thru and 8 optically isolated DMX outputs, where each can be individually assigned to one of the two inputs giving flexibility in data distribution.

SKU: SPR328 Category:

FEATURES

  • Split and boost the DMX signal
  • Power and data optically isolated DMXports
  • High voltage protection
  • Selectable input source for each DMX output
  • High brightness Power and Data Status LED indicators
  • Individual input selection LED indicators per output
  • Front panel power on/off switch

CONTROL & PROGRAMMING

  • DMX Pass-Thru
  • Input selector switches
  • Power on/off switch
  • Power and data LED indicators

CONNECTIONS

  • Data inputs: 1 x Neutrik 3 pin XLR
  • Data thru: 1 x Neutrik 3 pin XLR
  • Data outputs: 8 x Neutrik 3 pin XLR
  • Power connection: powerCon input and output

ELECTRICAL

  • Input voltage: AC 88-256V 50/60 Hz

PHYSICAL

  • Dimensions: 482 x 173 x 46 mm
  • Net Weight: 1.7 Kg
  • Color: Black
