SPR 528

5 pin Rack Mounted DMX Splitter

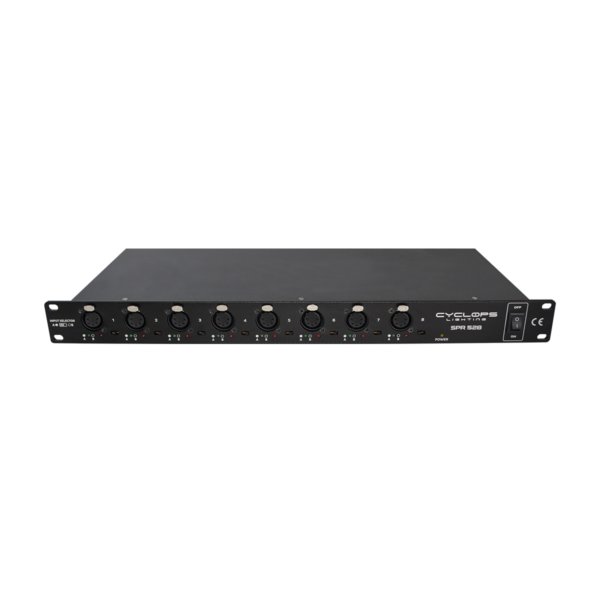

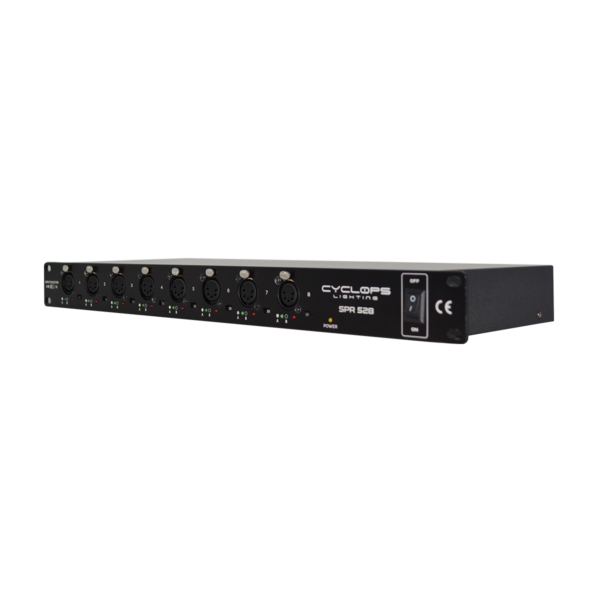

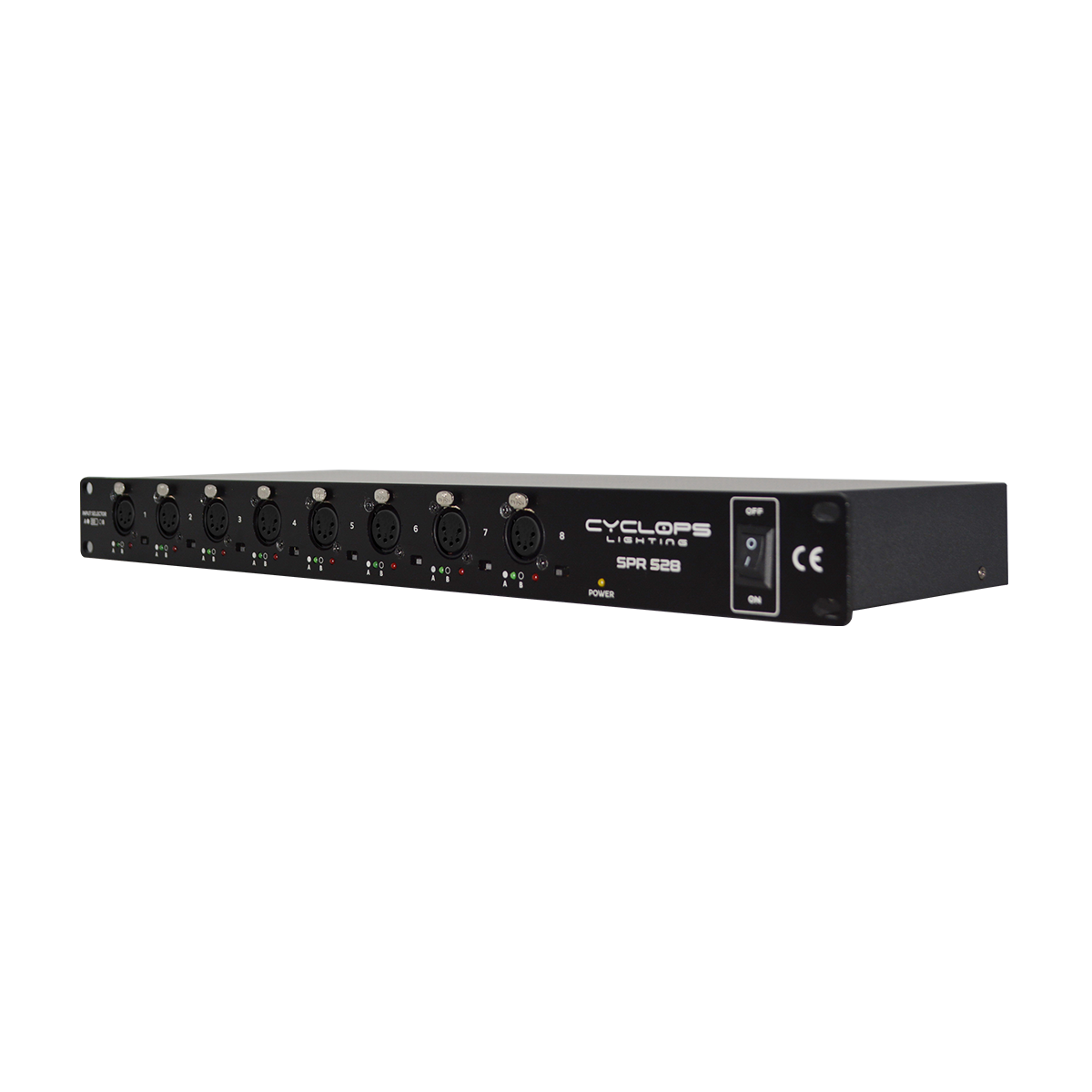

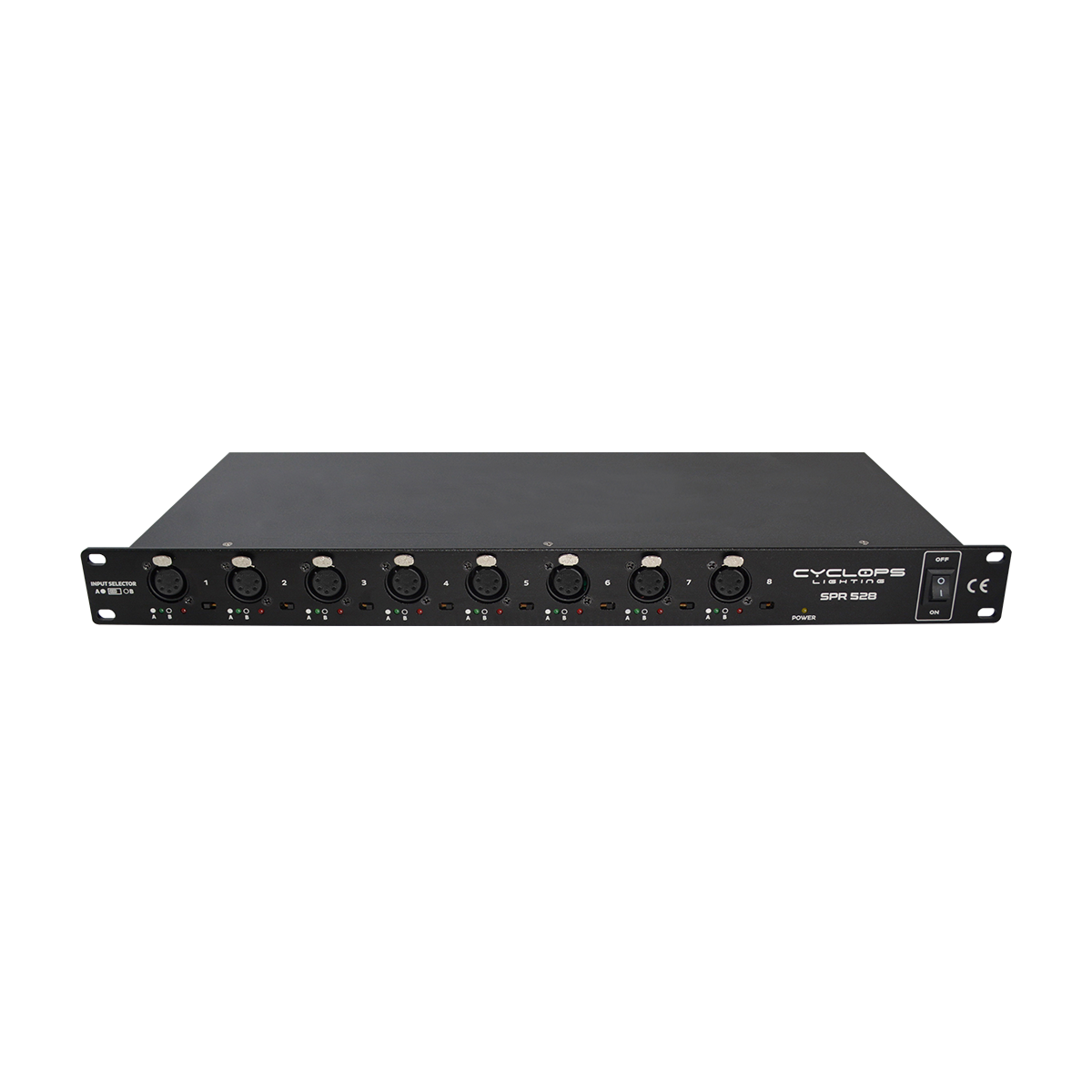

SPR 528 is a 1U 19” Rack mounted DMX splitter. It buffers, multiplies, isolates and protects console DMX outputs. It features 2 independent DMX inputs/thru and 8 optically isolated DMX outputs, where each can be assigned to one of the two inputs giving flexibility in data distribution.

SKU: SPR528 Category:

FEATURES

  • Split and boost the DMX signal
  • Power and data optically isolated DMX ports
  • High voltage protection
  • Selectable input source for each DMX output
  • High brightness power and DMX Status LED indicators Individual input selection LED indicators per output
  • Front panel power On/Off switch

CONTROL & PROGRAMMING

  • DMX Pass-Thru
  • Input selector switches
  • Power on/off switch
  • Power and Data LED indicators

CONNECTIONS

  • Data inputs: 2 x Neutrik 5 pin XLR
  • Data thru: 2 x Neutrik 5 pin XLR
  • Data outputs: 8 x Neutrik 5 pin XLR
  • Power input: Neutrik powerCon
  • Power output: Neutrik powerCon

ELECTRICAL

  • Input voltage: AC 88-256V 50/60Hz

PHYSICAL

  • Dimensions: 482 x 118 x 46mm
  • Net weight: 1.35 Kg
  • Color: Black
