BLOK 2C

BLOK 2C

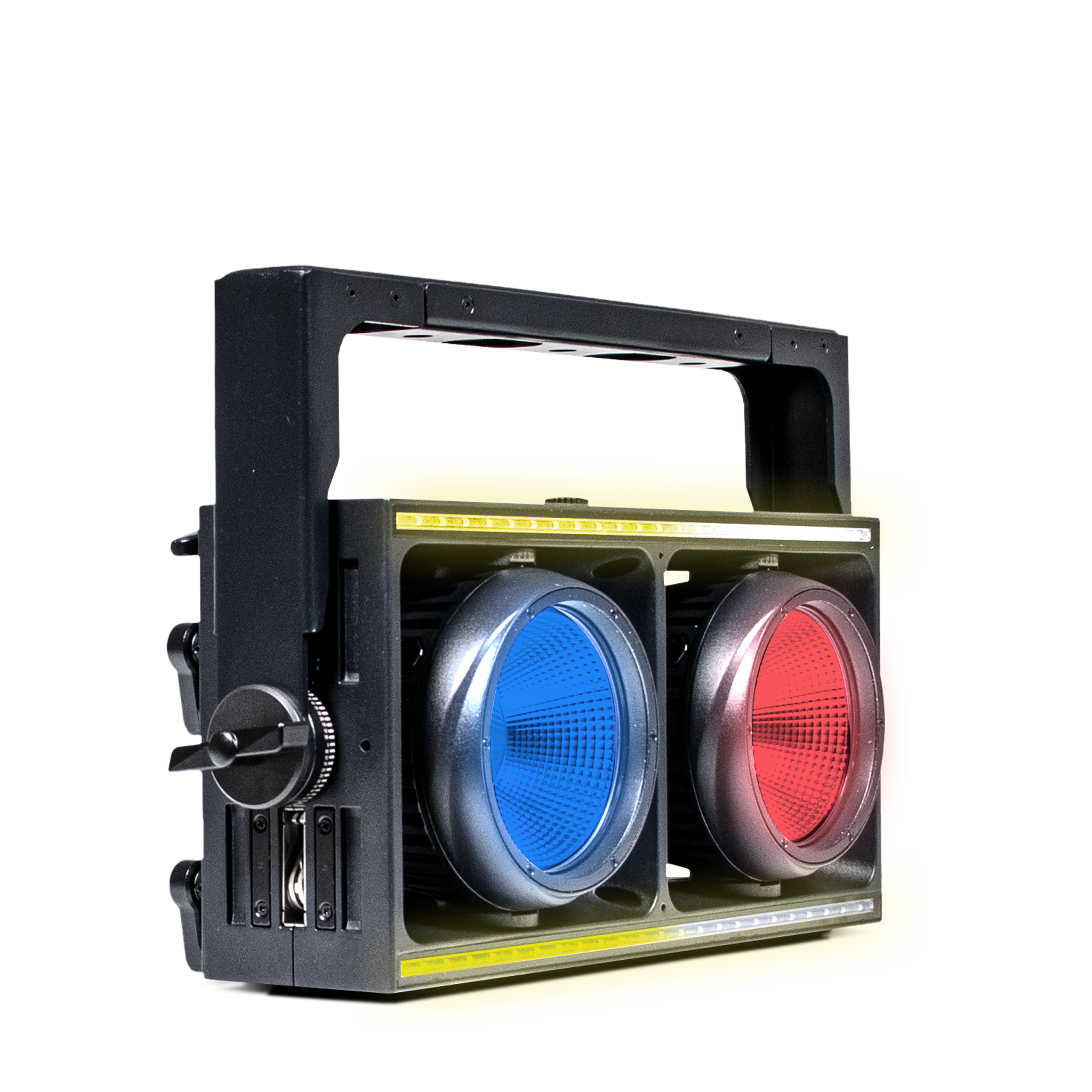

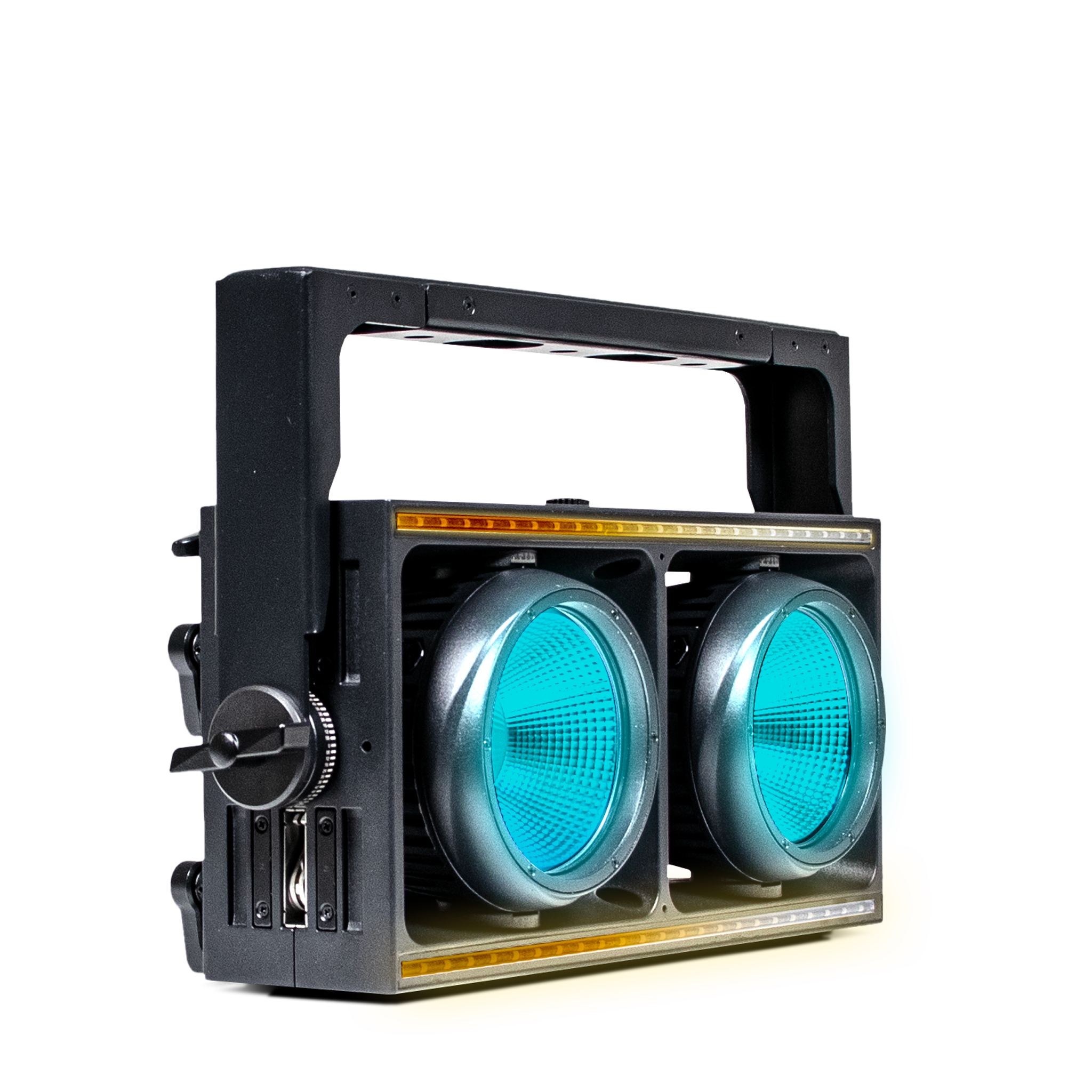

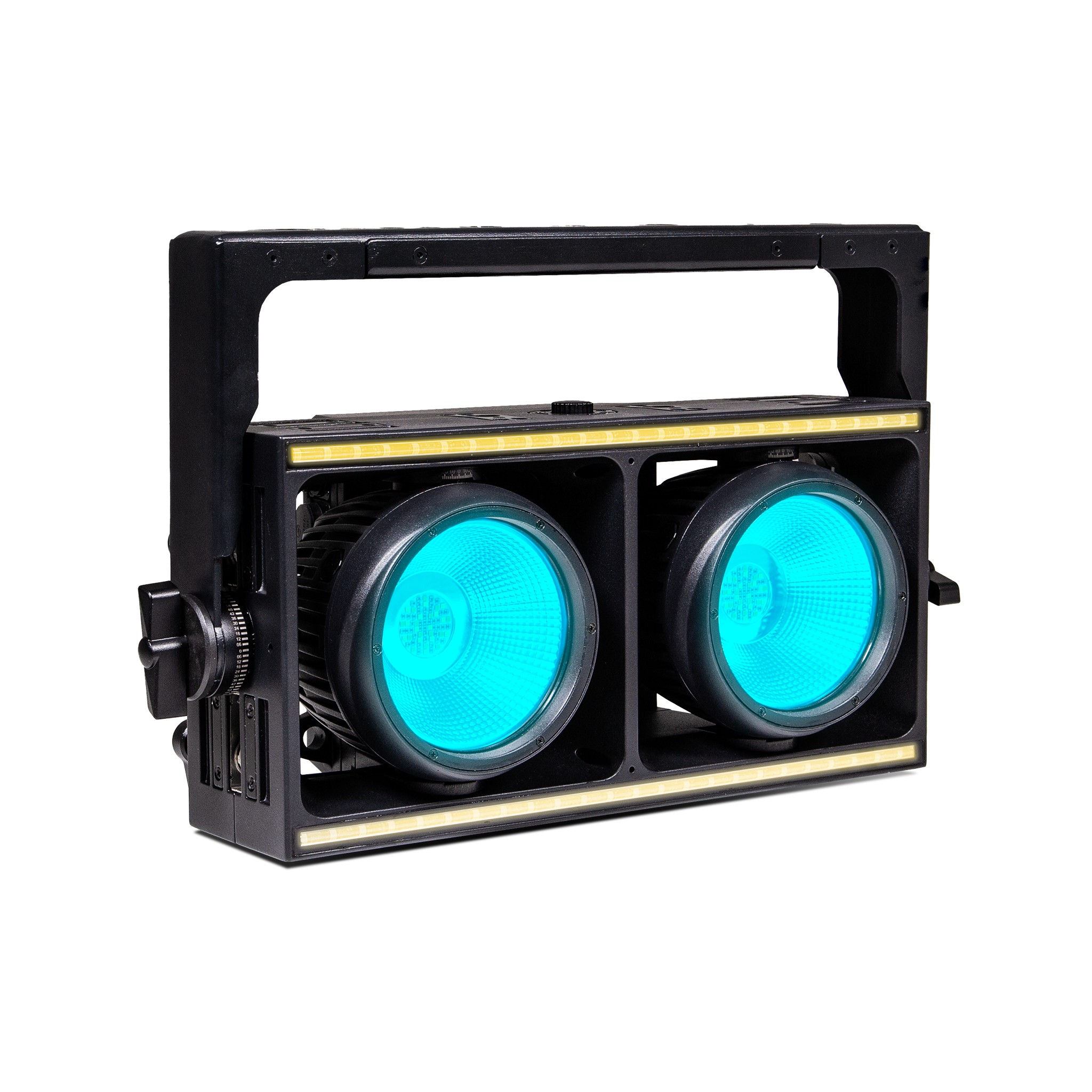

2x400W RGBLA Modular Blinder with RGB Pixel Lines

The BLOK 2C is a high-performance modular blinder designed for professional environments demanding raw power and creative versatility. It features a primary light source of two 400W RGBLA LED panels capable of delivering 40,600 lumen output, complemented by dual RGB pixel lines for sophisticated background effects. Engineered for “Relentless Performance,” its IP65-rated aluminum housing with anti-salt and anti-UV painting ensures durability in the most challenging outdoor conditions, from driving rain to extreme temperatures.

Users can effortlessly customize their beam with tool-free magnetic lenses—including Halogen, Fresnel, or Frosted options—to achieve diverse textures on the fly. Its advanced control system supports flicker-free performance via adjustable PWM frequencies and includes a specialized RedShift mode to accurately emulate the warm-to-dim behavior of traditional halogen lamps. Whether used as a standalone powerhouse or spliced into massive vertical structures using its magnetic C-Lock system, the BLOK 2C provides precision and reliability for any high-end production.

SKU: BLOK2C Categories: , Tag:

SOURCE

  • Light Source: 2 x 400W RGBLA (Main LED Panel)
  • Auxiliary Light Source: 2 x 24 x 2W CW + WW (Auxiliary LED Panel)
  • Total Output: 40,600 lm (Main + Auxiliary with all LEDs on)
  • Color Temperature: 1,750K to 20,000K

OPTICAL SYSTEM

  • Beam Angle: 50°
  • Spot Angle: 93°
  • Optional Lenses: Magnetic tool-free attachment for Halogen, Fresnel, or Frosted lenses

COLOR

  • Color Mixing: RGBLA

DYNAMIC EFFECTS

  • Effects: Variable color chasing, fading, and high-speed strobing
  • Pixels: 15 built-in auto programs and pattern FX for auxiliary strips
  • Halogen Emulation: RedShift (warm-to-dim) mode for halogen-style dimming

CONTROL & PROGRAMMING

  • Display: TFT displayer with four buttons and LCD Touch Screen
  • Control Channels: 01, 02, 02b, 03, 06, 07, HSV, CTC, 04, RGBAL, 07b, 09, 11, 12, 19, 19b, 26, 20, 27, 41, 31, 38, 52, 37, and 44 CHs
  • Control Protocols: DMX 512, Master/Slave, Auto Run
  • Dimming: 4 selectable dimming curves (Linear, Square Law, Inv. Squ. Law, S-Curve)
  • Programs: 10 internal and 10 customizable user programs
  • Temperature Control: Smart temperature control system

CONNECTIONS

  • Power Connections: Power In (True One) and Power Out
  • DMX Connections: 3-pin and 5-pin DMX In/Out
  • Network Connections: USB port for updates/service

ELECTRICAL

  • Input Voltage: 100~240V / 50~60Hz
  • Power Consumption: 700W

PHYSICAL

  • Dimensions: 495 x 299 x 199 mm
  • Net Weight: 9.2 Kg
  • Housing: Aluminum body with anti-salt and anti-UV painting
  • Operating Temperature: -40°C to 45°C
  • IP Rating: IP65
  • Mounting: Modular design with C-Lock system for tool-free splicing, magnetic alignment, and multiple mounting points for fast locks
