FR-200C

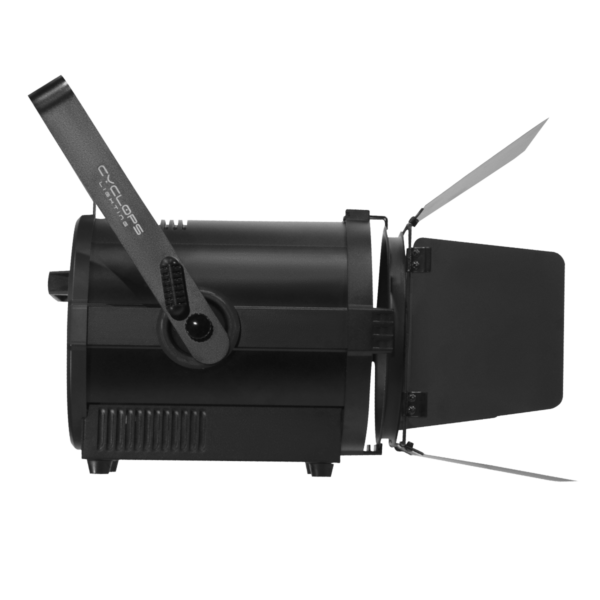

FR-200C is a 200 watts 5600K Cool white LED Fresnel with motorized zoom. With a powerful a COB LED source and a zoom range of 15 to 60°, this Fresnel can deliver a smooth even wash of a superior CRI of 96. It is RDM capable and comes with barn doors to sculpt and shape the light. It’s the perfect and the most flexible match for lighting designers in multi-purpose theatres and studios.

SKU: FR200C Categories: ,

Videos

SOURCE

  • Light source: 200 watts Cool white COB LED
  • Color temperature: 5600K
  • LED life expectancy: 50,000 Hrs.
  • CRI: 96, R9>90
  • TLCI: 98

OPTICAL SYSTEM

  • Electronic zoom
  • Zoom range: 15° to 60°
  • Light output: 40,200 Lux @ 1m @ 15°

KEY FEATURES

  • 5 Dimmer curves
  • Strobe
  • Video flicker free with selectable PWM
  • Intelligent temperature control
  • Silent operation
  • PMMA polymethyl methacrylate lens
  • Barn doors included

CONTROL & PROGRAMMING

  • Control protocols: DMX, RDM
  • Control channels: 2, 3, 4, 5 CHs

ELECTRICAL

  • Input voltage: AC100-240V/50-60Hz

CONNECTIONS

  • DMX connections: 3 pin XLR In/Out male and female
  • Power connections: PowerCon In/Out

 PHYSICAL

  • Dimensions: 315 x 296 x 330mm
  • Net weight: 8 Kg
  • Color: Black
  • Housing: Aluminum
  • IP rating: 20
  • Operating temperature: -5°C/45°C
