SOURCE
- Light source: 1x20W RGBW LED
- Output: all LEDs on: 647 lm | red: 160 lm | green: 250 lm | blue: 57 lm | white: 373 lm
- Illuminance: Lux @ 2m: 2470 lx | Lux @ 5m: 395 lx | Lux @ 8m: 154 lx | Lux @ 10m: 99 lx
- LED Life expectancy: 50,000 hours
OPTICAL SYSTEM
- Beam angle: 10°

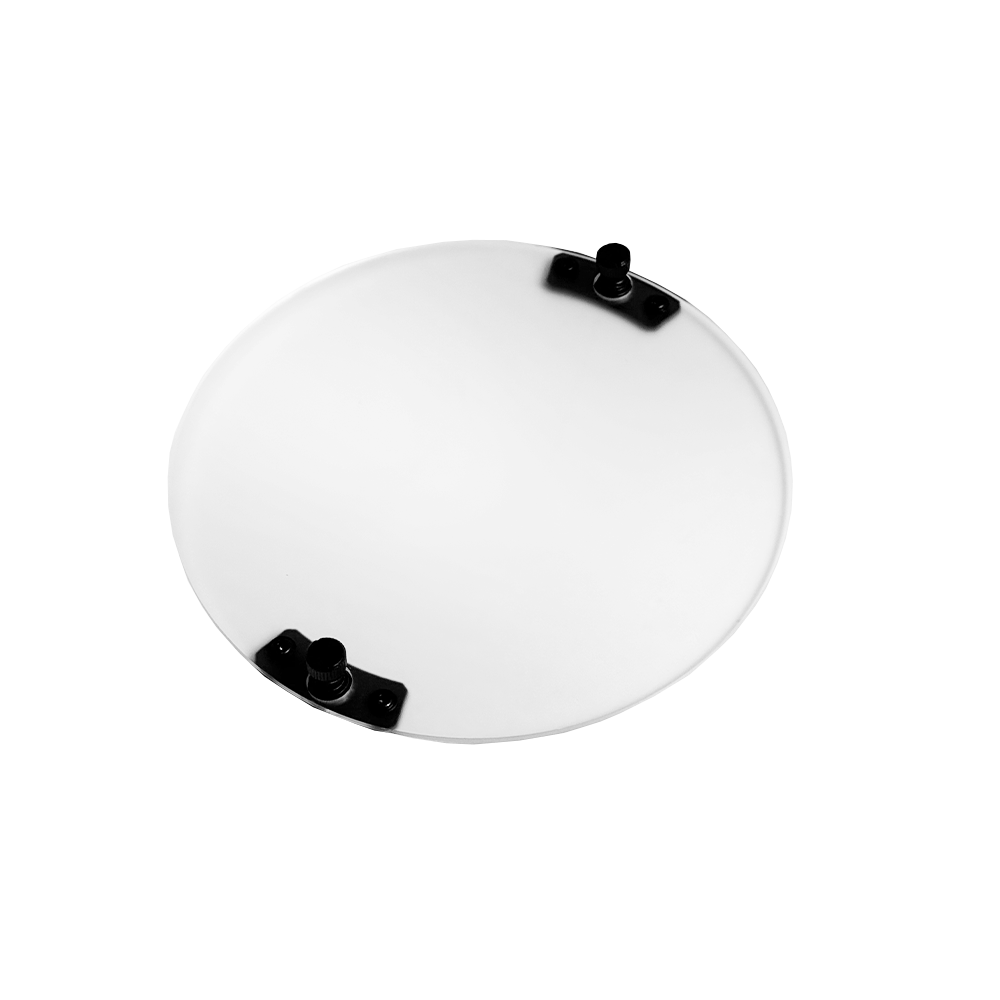

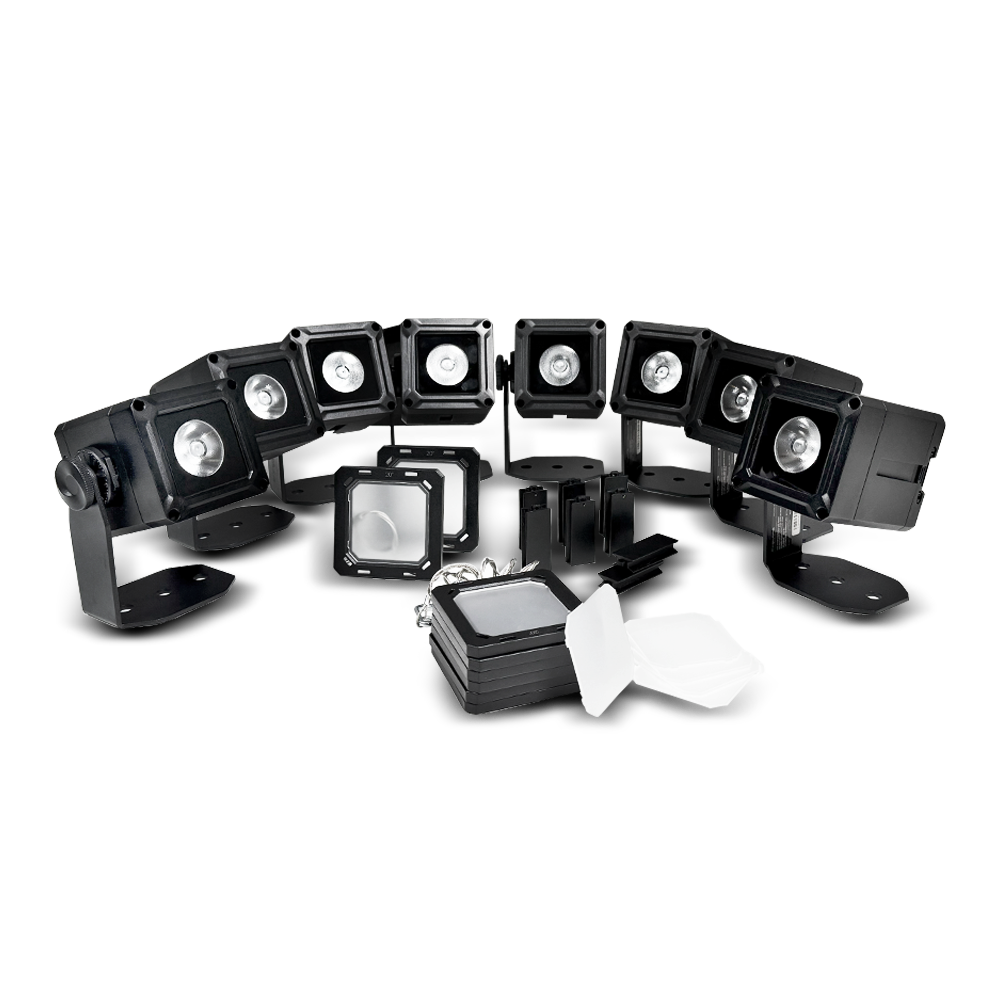

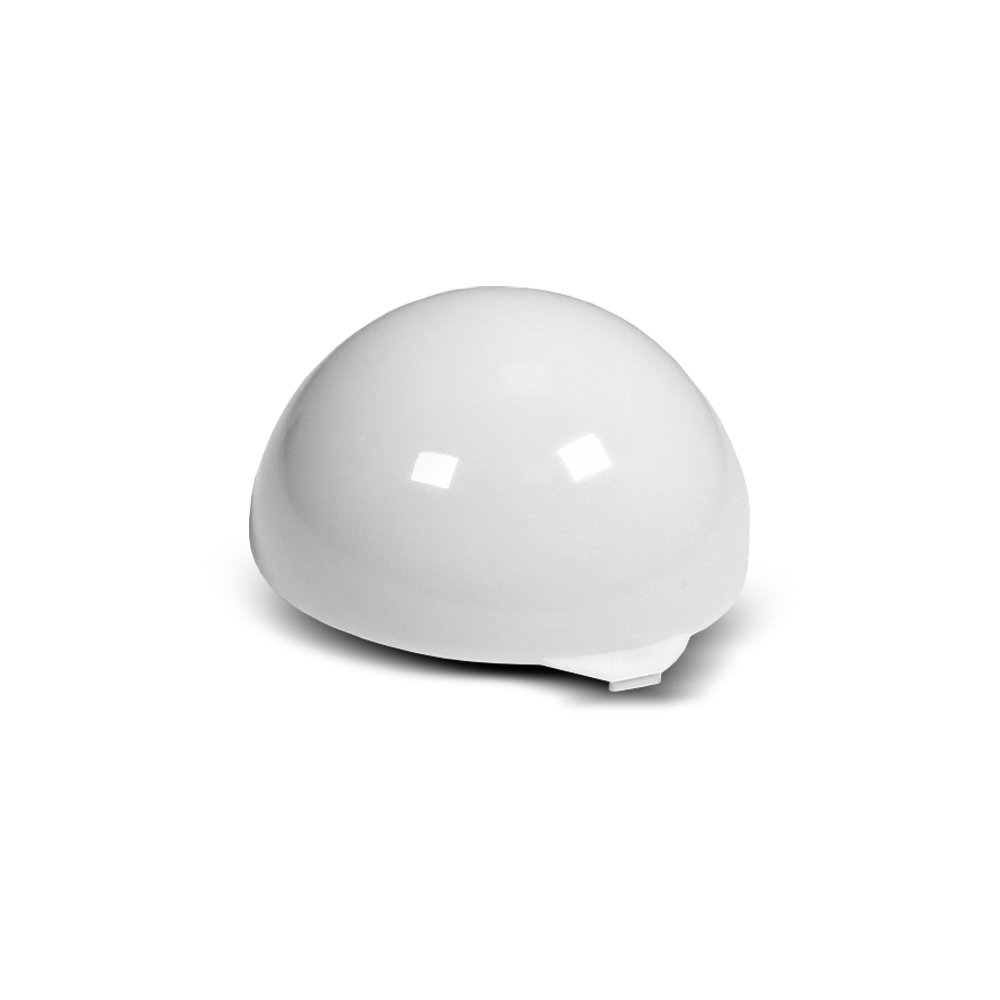

- Optional Frost filter: 20° (SKU: FF20-LGCUBE – included in kit LGCUBE120-KIT8)
DYNAMIC EFFECTS
- Dimmer: 0-100% linear adjustment
- Four dimming curves
- Color mixing: RGBW
- Color temperature adjustments: 3000 to 10000K
- Electronic Strobe: 0-20 Hz
CONTROL & PROGRAMMING
- Control Protocols: DMX/RDM, CRMX Wireless DMX, iOs/Android/Windows Application control, Remote control, Manual
- Channel mode: 2, 3, 5, 8, 11, 15 channels

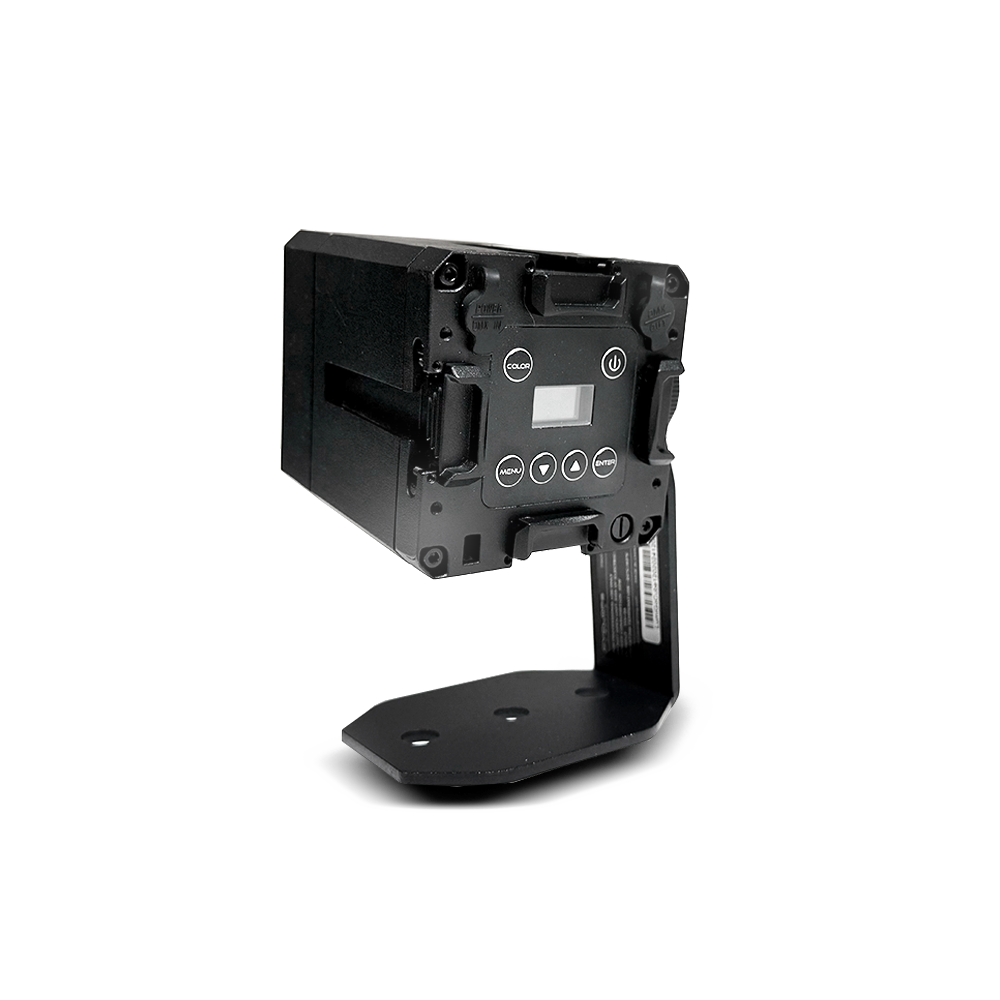

- Display: LCD
BATTERY
- Battery Life: Up to 19H
- Multiple battery usage option: 4H/5H/6H/7H/8H/9H/10H/11H/12H/13H/14H/15H/16H/17H/18H/19H
- Battery charge time: 4.5H
ELECTRICAL
- Input voltage Rating: DC 18V-20V
- Maximum Power consumption: 42W
- LED PWM Frequency: 600/1.2K/2.4K/4.8K/12K/18K (hz)
PHYSICAL
- Material: Aluminum
- IP Rating: 65
- IK Rating: IK07
- Operating Temperature: -20°~50°C
- Humidity: 98%
- Dimensions: 120 x 117 x 163 mm
- Weight: 1.5 Kg
