SPARKLY LED 1000P

SPARKLY LED 1000P

1000 Watts LED Moving Head Profile

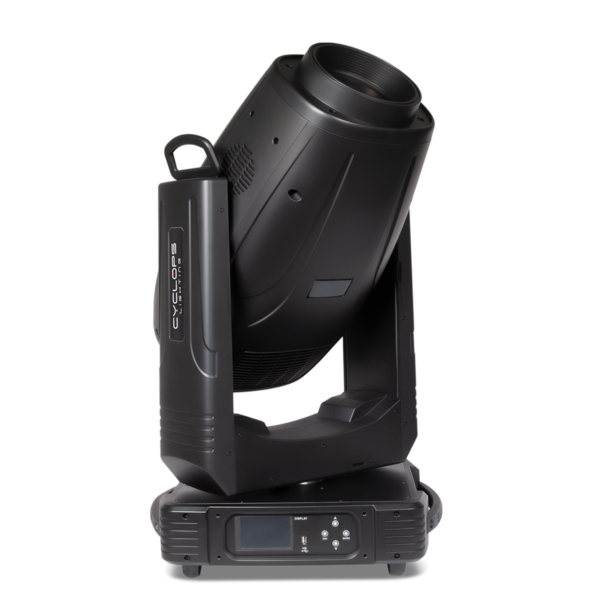

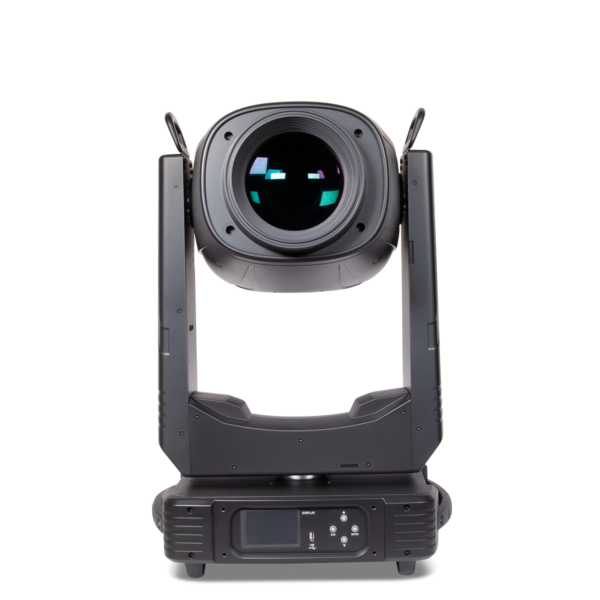

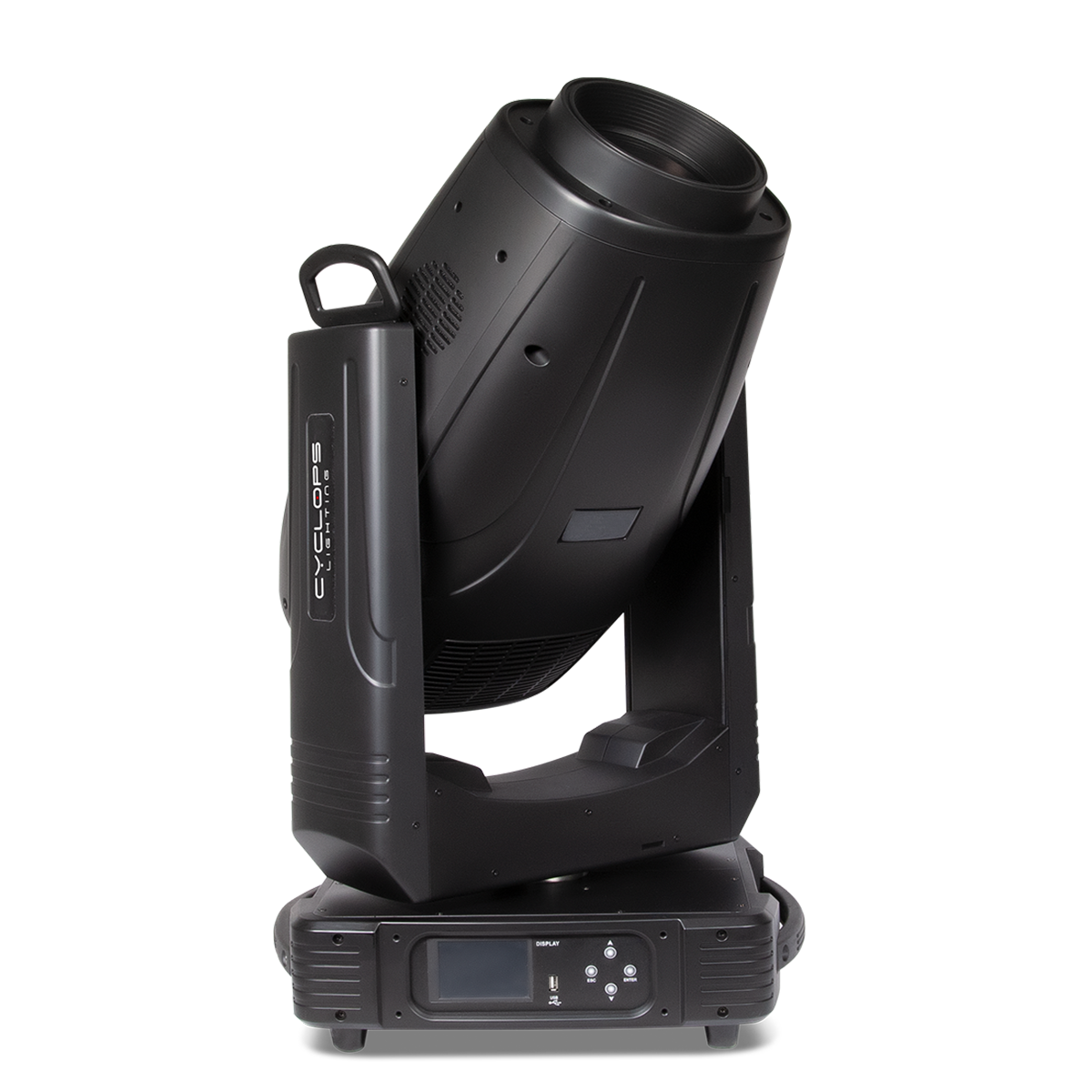

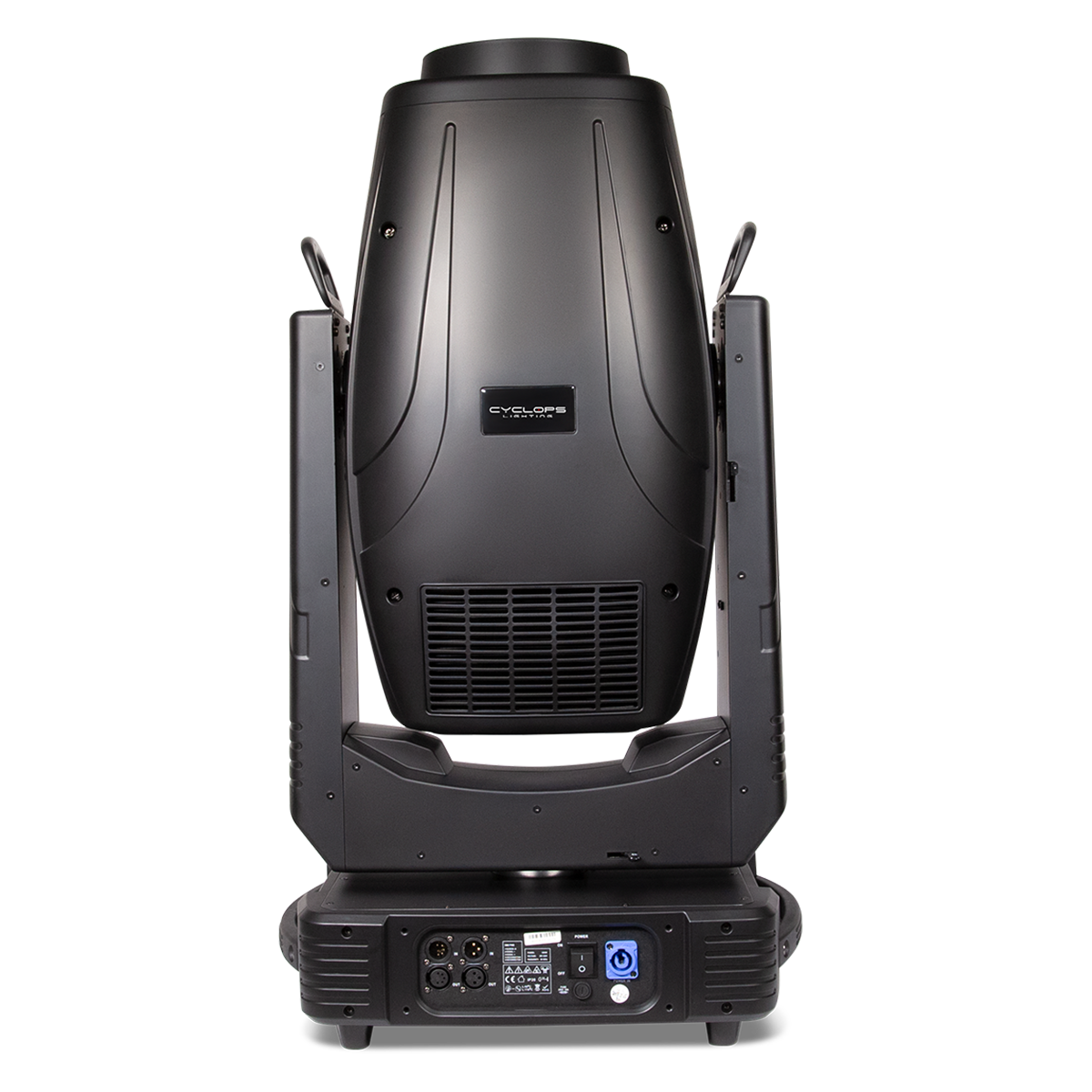

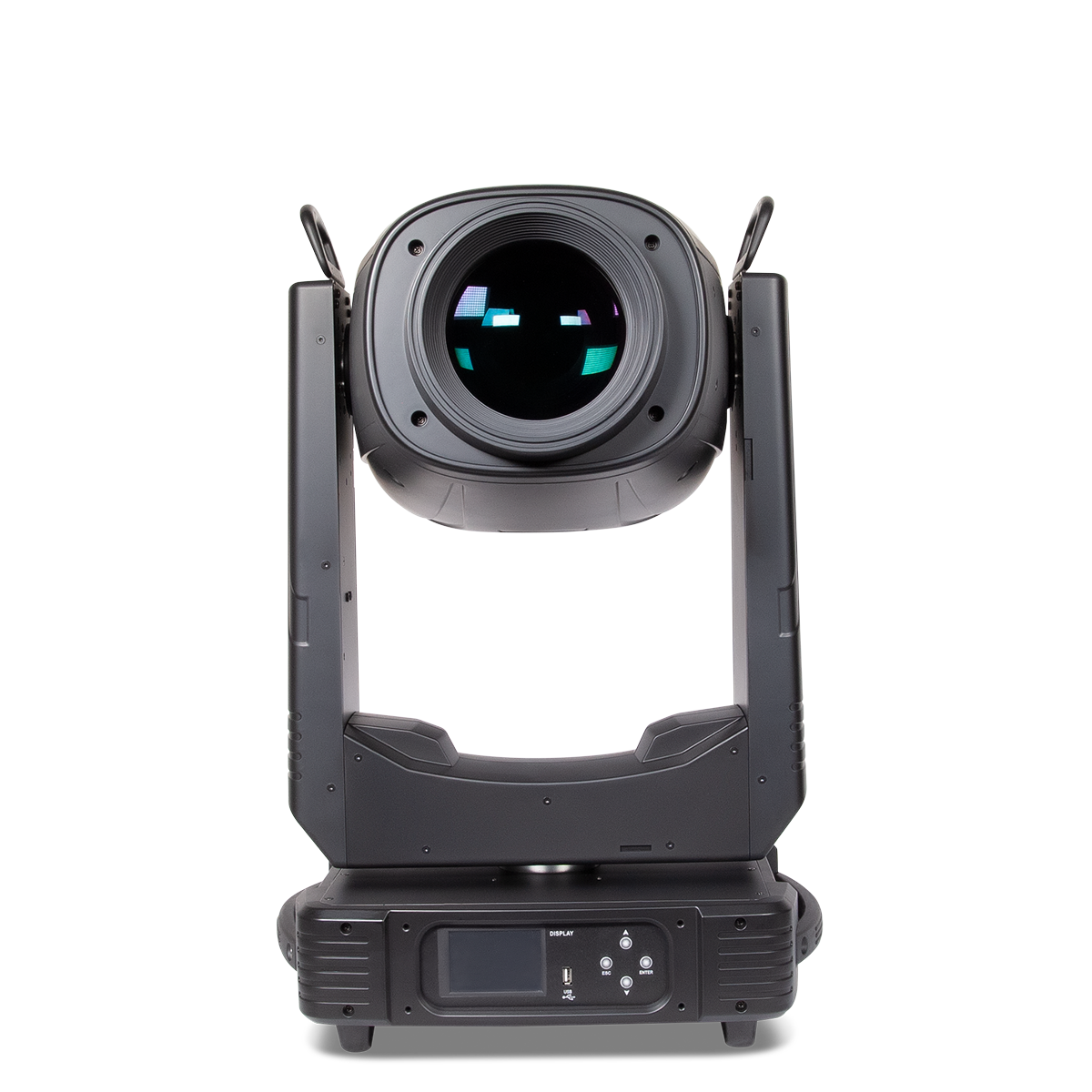

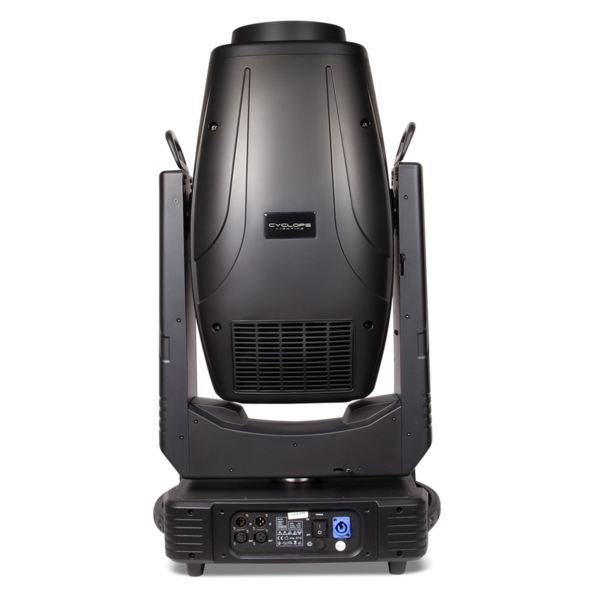

SPARKLY LED 1000P is an extremely powerful 1000 watts LED moving head profile with four rotatable shutter blades. It features a CMY color mixing, a set of static and interchangeable rotatable gobos and a rotatable prism for a wide variety of patterns and designs. In addition to the loaded dynamic features, it offers a wide zoom range from 6 to 39 degrees, Iris and a CTO filter (3200-6000K) making it the versatile and perfect fit moving head profile for theatrical and studio applications, as well as concerts and band events.

SKU: SparklyLED1000PH Categories: ,

SOURCE

  • Light source: 1000 watts white LED
  • LED life expectancy: 20000 Hrs.
  • CRI > 75 (High CRI > 85 SKU: SparklyLED1000PH)

OPTICAL SYSTEM

  • Beam angle: 6° to 39°
  • Four shutter blades, 180° rotatable
  • Electronic focus
  • 150mm diameter front lens
  • Iris

DYNAMIC EFFECTS

  • Dimmer: 0-100% linear adjustment
  • Color mixing: CMY
  • Color wheel: 7 colors + white
  • CTO filter, 3200K to 6000K
  • Static gobo: 8 gobos + open
  • Rotating gobo: 6 gobos + open
  • Prism: 4 facet prism
  • Frost

CONTROL & PROGRAMMING

  • Control protocols: DMX, Master-Slave, Auto Run
  • ECO Mode
  • Display: 3.5’ color LCD display, reversible 180°
  • Control channels: 37, 41 CHs

MOVEMENT

  • Pan: 540°
  • Tilt: 270°
  • Resolution: 16 bit

ELECTRICAL

  • Input voltage: 110-240V/50-60Hz
  • Power consumption: 1300 watts

CONNECTIONS

  • DMX connections: 3 pin/5 pin XLR In/Out male and female
  • Power connections: Powercon In

PHYSICAL

  • Dimensions: 482 x 372 x 870 mm
  • Net weight: 42 Kg
  • Color: Black
  • IP rating: 20
